Pre-Molded Cordsets3 · 4 · 5 pinSingle-ended
7/8 Single-Ended Cordsets, Female
Overmolded 7/8" female cordset with open cable end, straight & right-angle, 3/4/5-pin, PUR or PVC.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-F03S-2.0PUR/BK
7/8-F03S-2.0PVC/YW
7/8-F04S-2.0PUR/BK
7/8-F04S-2.0PVC/YW
7/8-F05S-2.0PUR/BK
7/8-F05S-2.0PVC/YW
7/8-F03A-2.0PUR/BK
7/8-F03A-2.0PVC/YW
7/8-F04A-2.0PUR/BK
7/8-F04A-2.0PVC/YW
7/8-F05A-2.0PUR/BK
7/8-F05A-2.0PVC/YW
Cable length is customizable; standard pre-molded length 2.0 m. Jackets: PUR (black, BK) / PVC (yellow, YW). Field connectors & flanges/boxes are rated 600 V / 8 A; pre-molded cordsets are rated 300 V. Naming: 7/8-M/F + pins(03/04/05) + S(straight)/A(angle); flanges FLF-7/8-...; T-splitters 7/8T-...; boxes 7/8-4x/8x{pins}P.
Technical Parameters
| Rated Voltage | 300 V AC/DC |
| Cross Section | 3×1.5 / 4×1.5 / 5×1.5 mm² |
| Operating Temp. | -25 °C ... +80 °C |
| Cable Connection | Pre-molded (overmolded) |
| IP Rating | IP67 |
| Jacket | PUR (black) / PVC (yellow) |

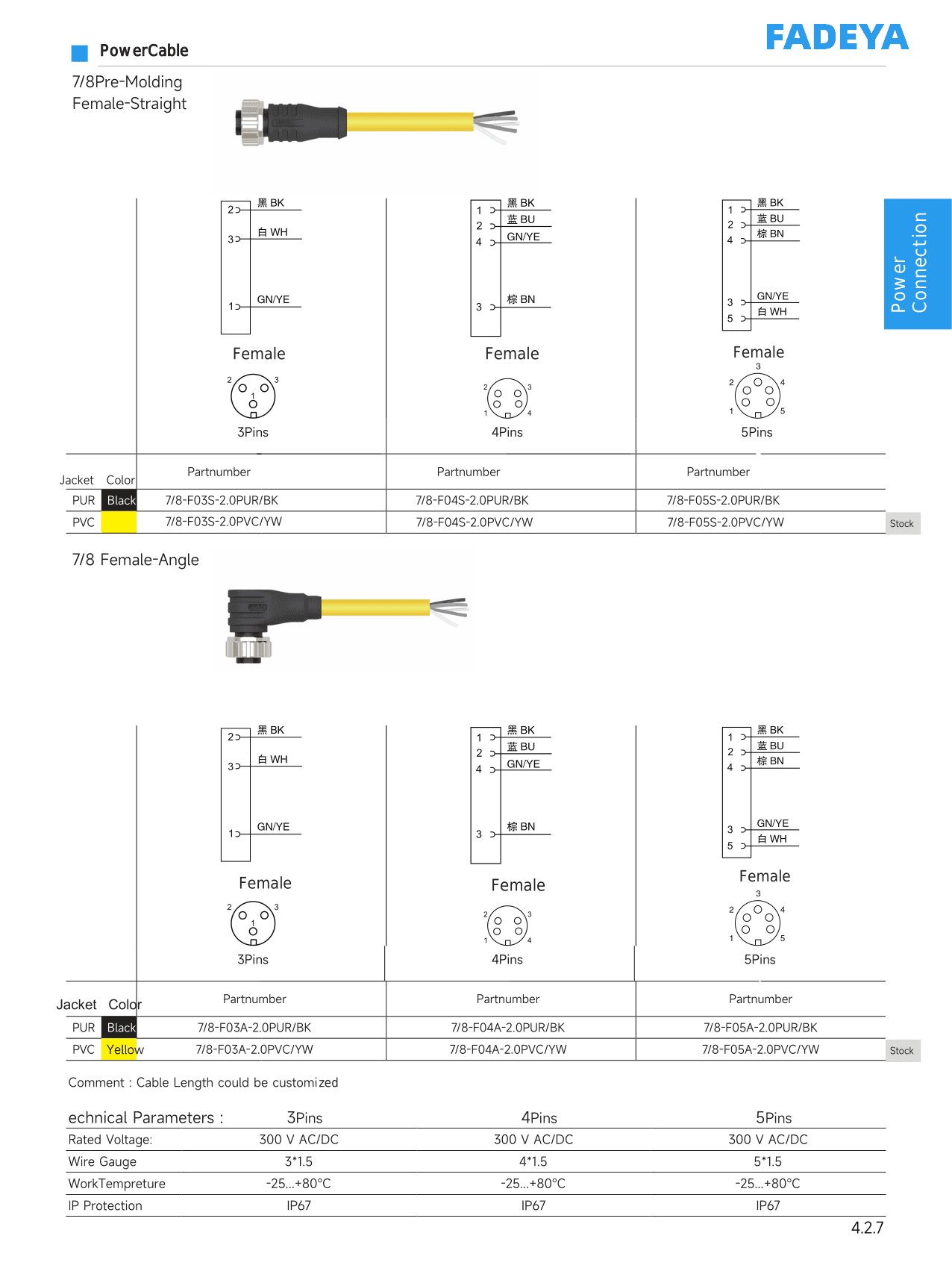

Datasheet
