MIL-Spec Connectors

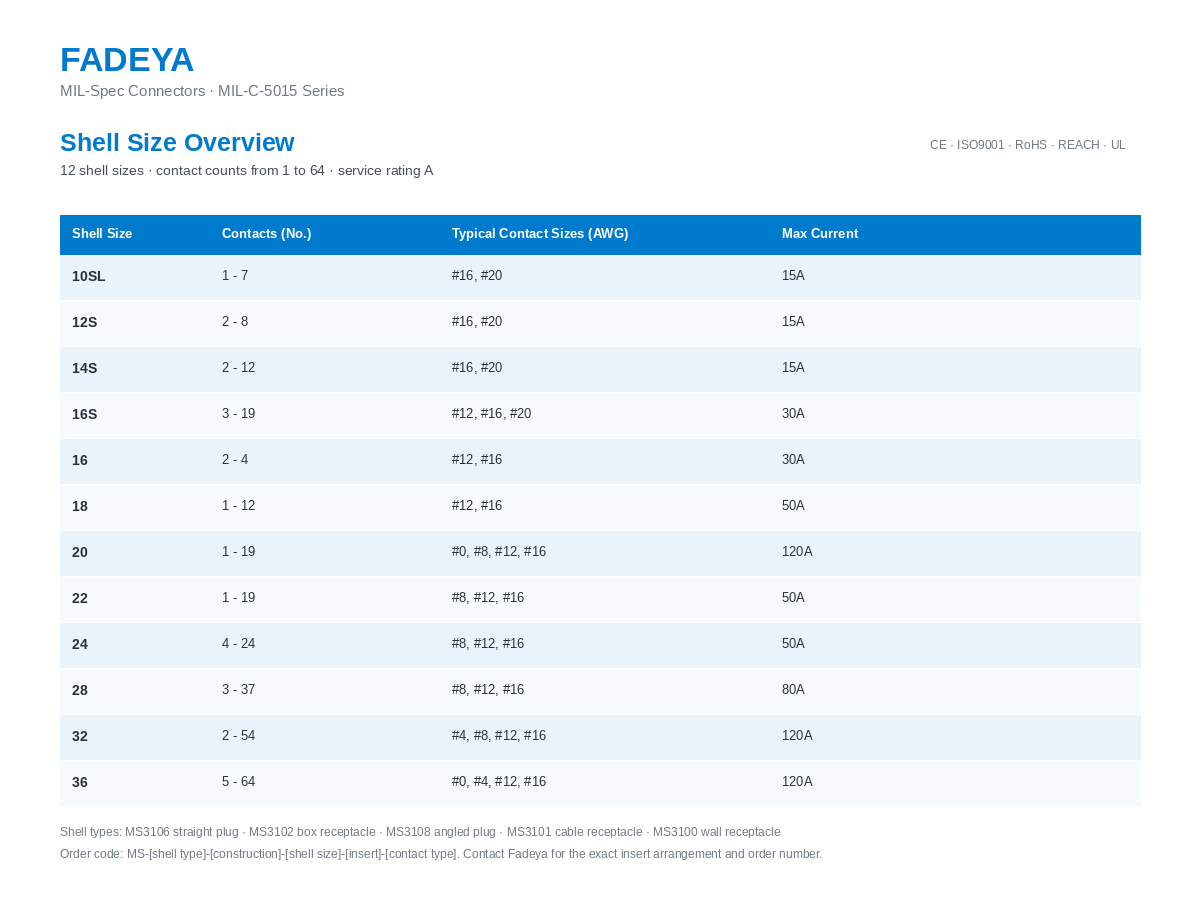

Fadeya MIL-C-5015 (GJB600) circular connectors — rugged, threaded-coupling connectors built to the US military MIL-C-5015 standard. High-strength aluminium-alloy shell, synthetic-rubber insulator, gold-plated copper-alloy contacts, IP67 sealing, solder or crimp termination. Available in 12 shell sizes (10SL to 36) with contact counts from 1 to 64, in straight plug, angled plug, box / wall / cable receptacle styles. Widely used in industrial machinery, rail transit, marine, defense equipment, automobile, instrumentation and servo motors — a drop-in replacement for European and American equivalents. This is a guided overview; download the full catalogue (PDF) for every shell's insert arrangement, and contact Fadeya to configure the exact order number for your application.
Download the complete PDF catalogue for full specifications and ordering details.

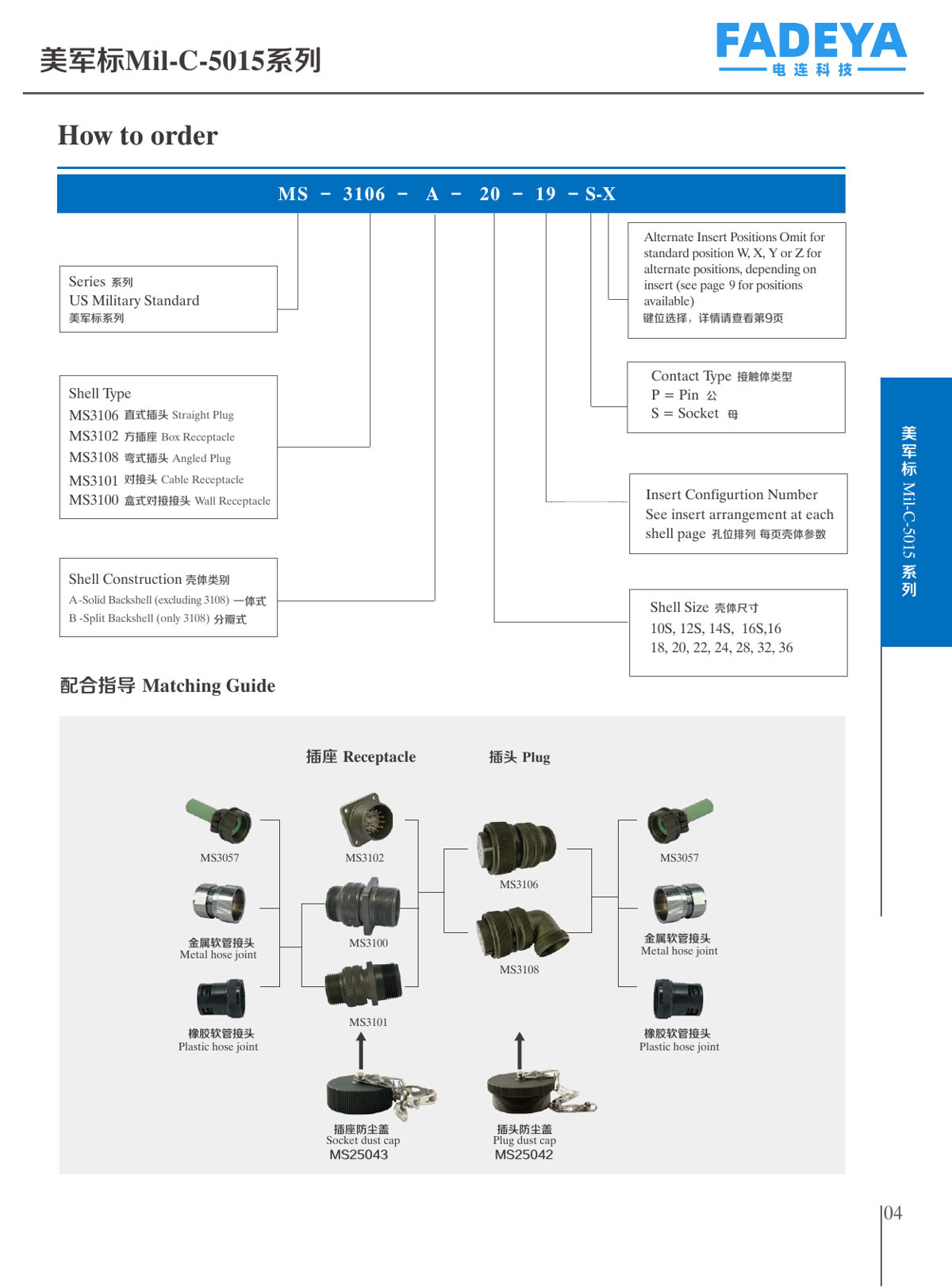

Order code is configured in six parts: MS - [Shell Type] - [Shell Construction] - [Shell Size] - [Insert Arrangement] - [Contact Type]. Shell Type: MS3106 straight plug / MS3102 box receptacle / MS3108 angled plug / MS3101 cable receptacle / MS3100 wall receptacle. Construction: A = solid backshell, B = split backshell (3108 only). Contact Type: P = pin, S = socket. Insert arrangement and alternate key positions (W/X/Y/Z) are selected per shell size — see the full PDF catalogue. Contact Fadeya for the exact order number, mating accessories (MS3057 clamp, MS25042/MS25043 dust caps) and lead time.
Need an Exact Order Number?
Download the full catalogue for every shell's insert arrangement, then contact Fadeya to configure the exact order number for your application.
