Servo Motor Cordsets

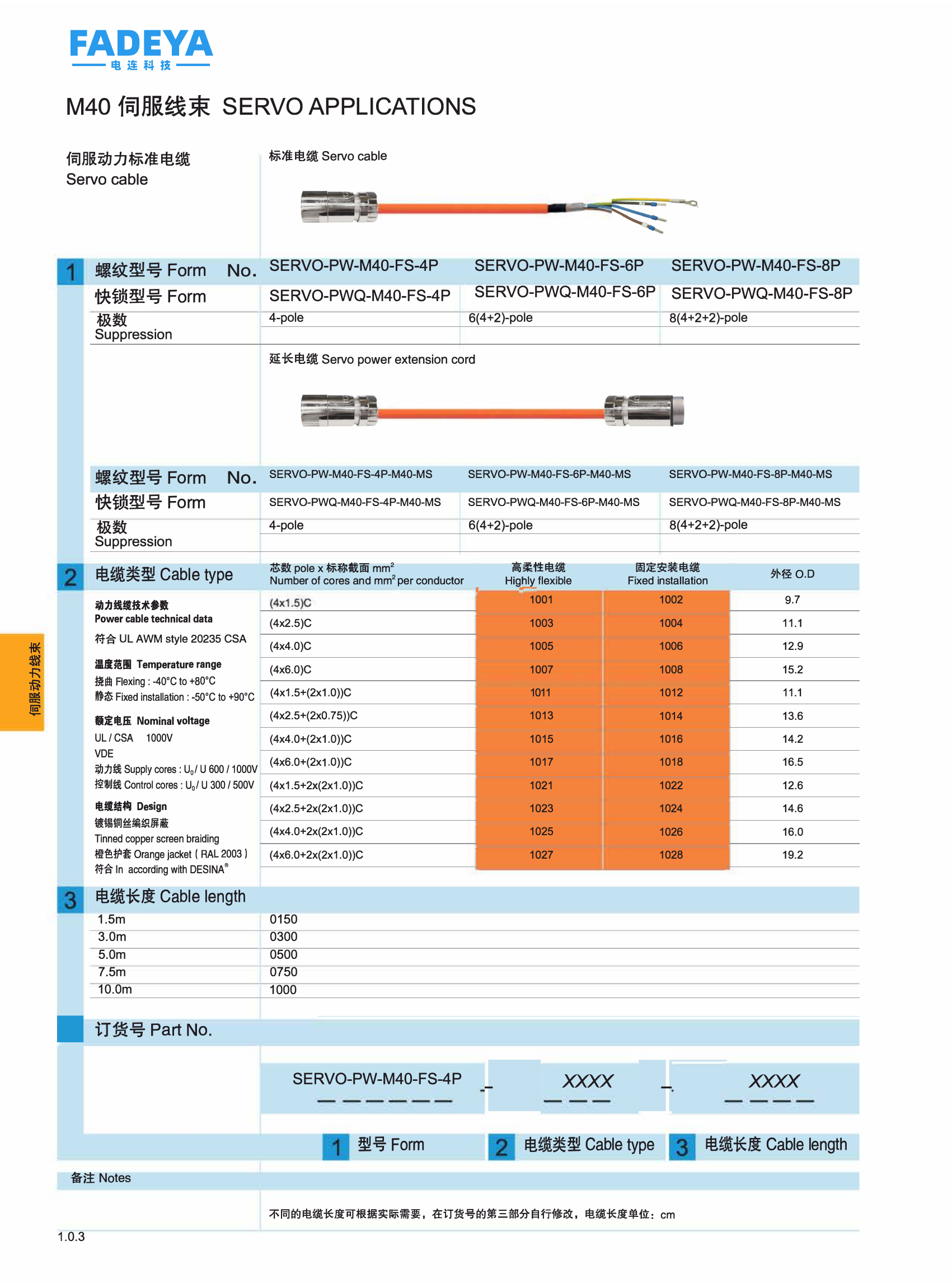

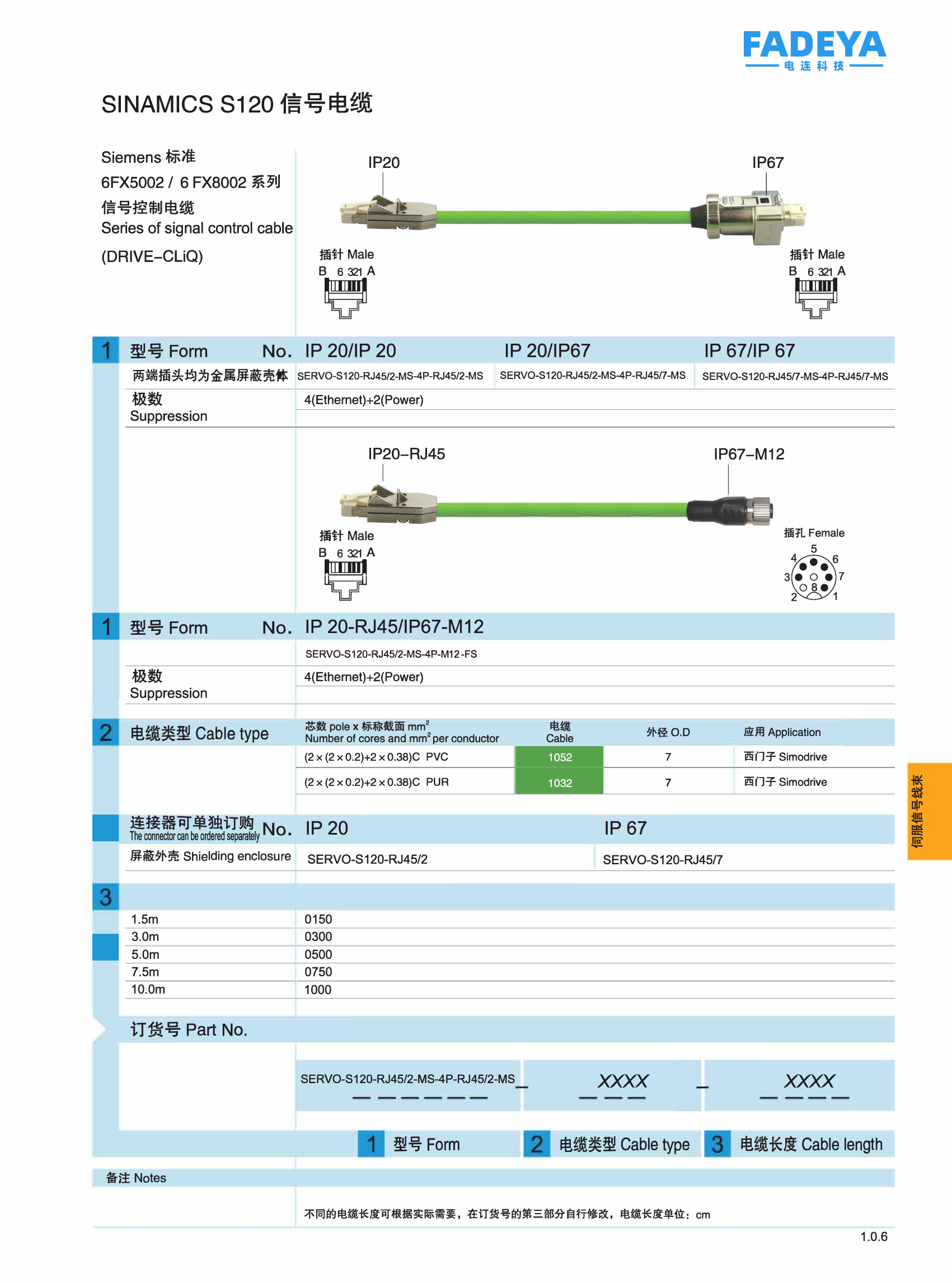

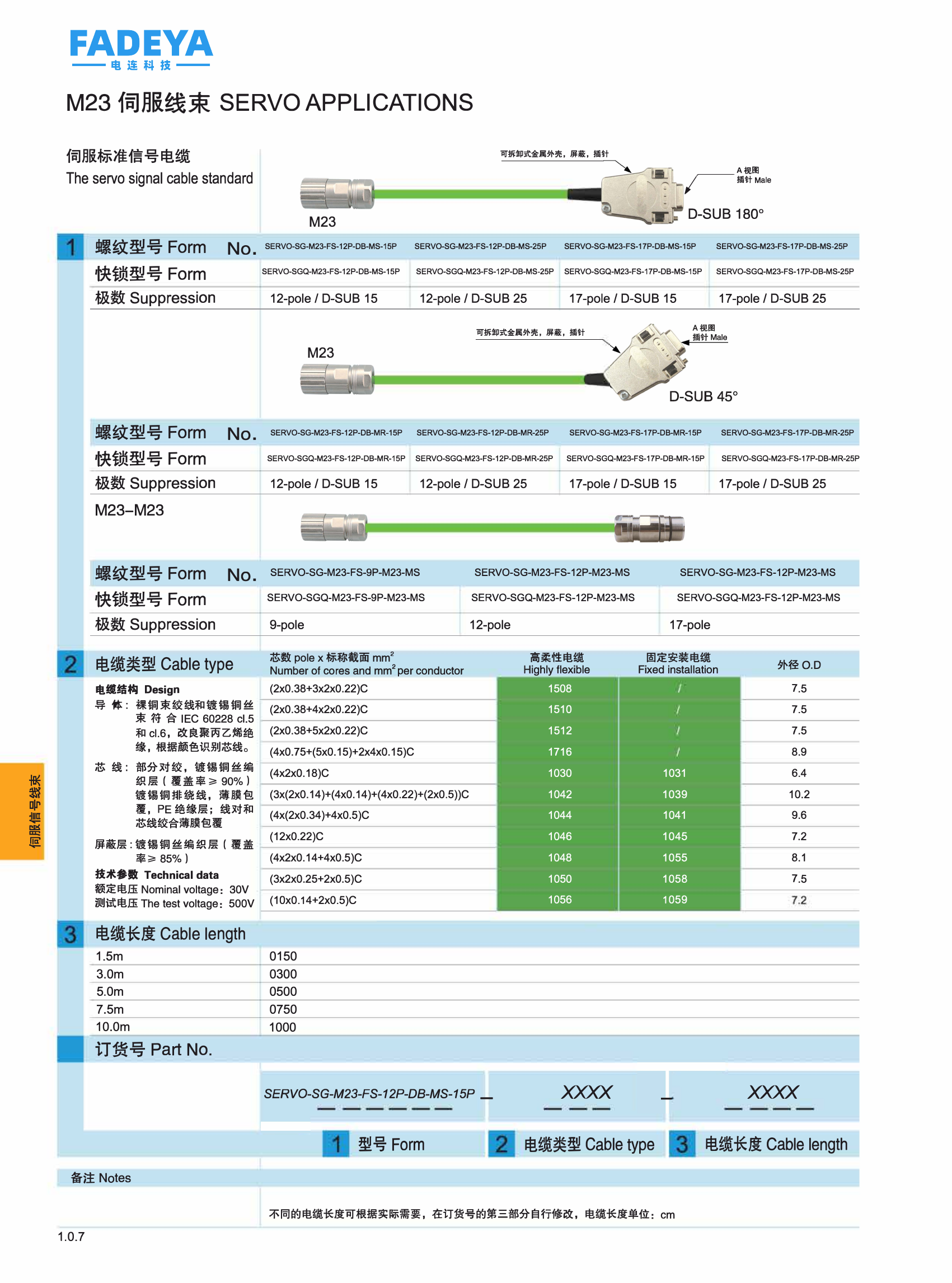

Fadeya servo motor cordsets — power, signal, encoder, brake and spindle cable assemblies built on M23 and M40 connectors and tailored to Siemens SINAMICS V90 and S120 drives. Every assembly is shielded (tinned-copper braid, orange DESINA jacket), UL AWM 20235 / CSA rated, and offered in screw-lock or quick-lock terminations with fixed or high-flex (drag-chain) construction. Configure by Form, conductor type and length; the catalogue shows representative models and the full range is made to order.
Download the complete PDF catalogue for full specifications and ordering details.
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Showing 11 products
Need a Custom Configuration?
Custom lengths, conductor cross-sections, and connector combinations available. Share your drive and motor specs and we'll respond within 24 hours.
