Cable Entry System

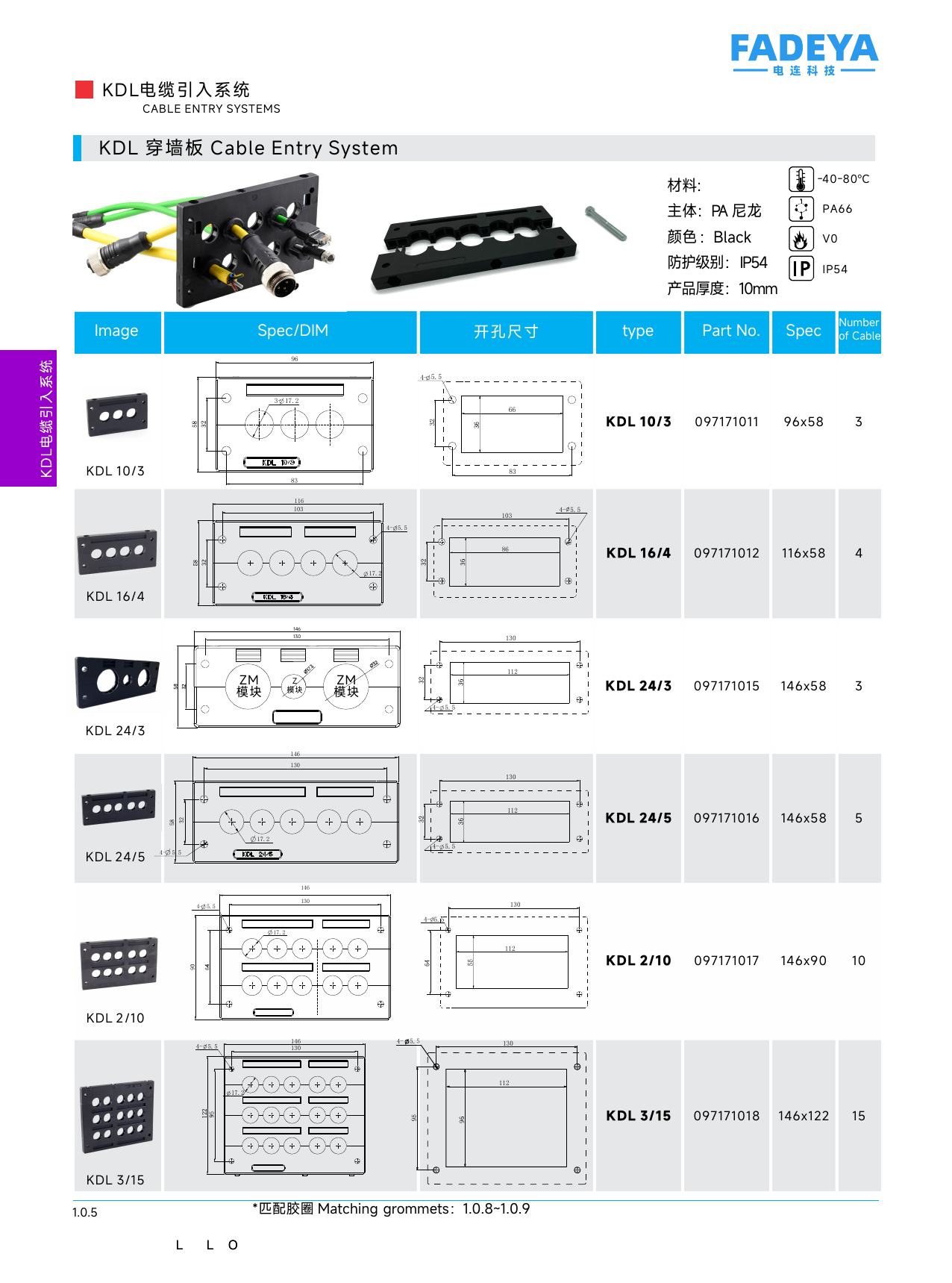

One-piece split entry frames in six cut-out sizes, holding 3–15 fixed-diameter grommets.

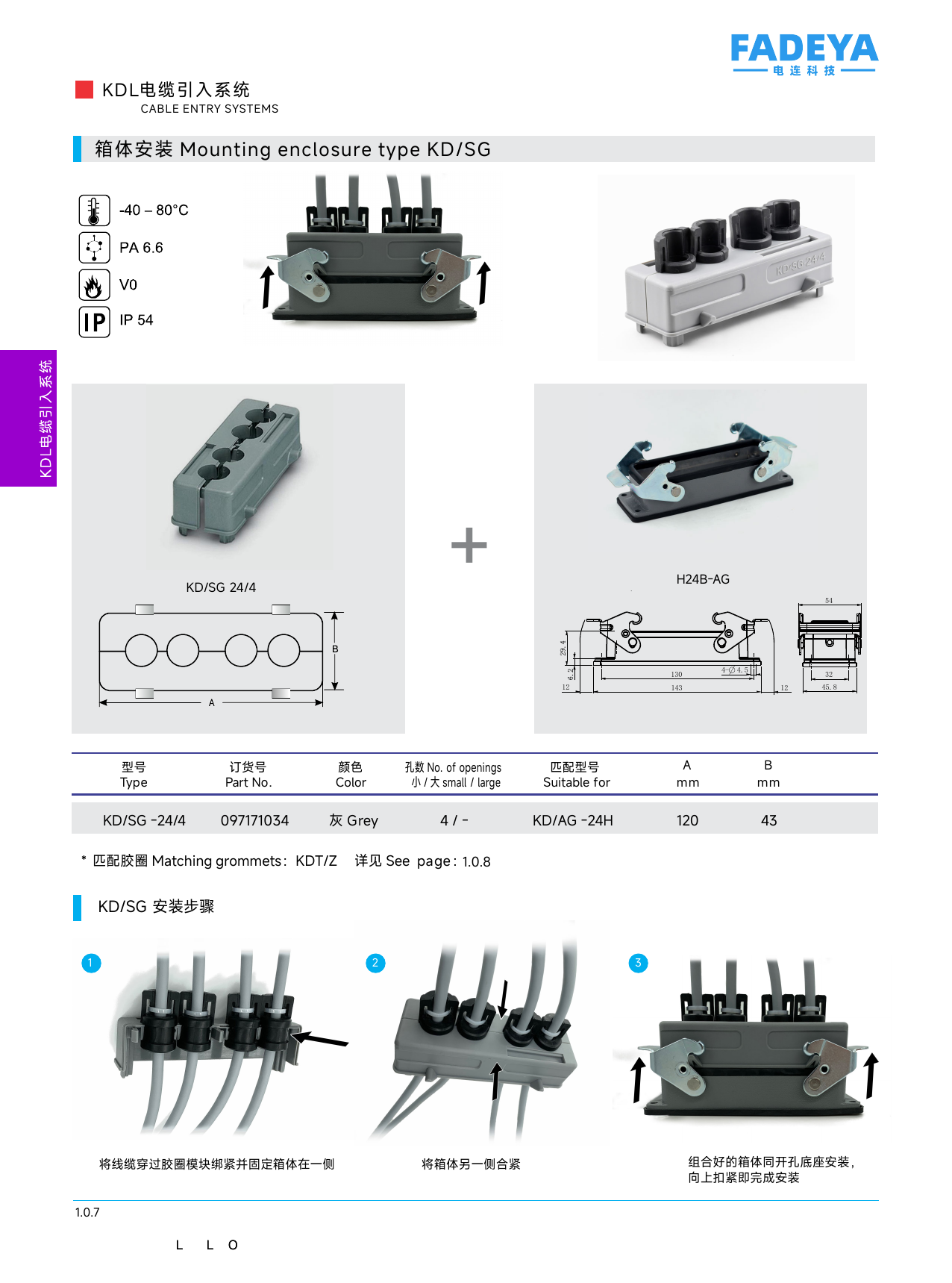

Snap-fit enclosure housing (KD/SG) with H24B-AG base for mounting KDL grommet sets onto cabinet walls.

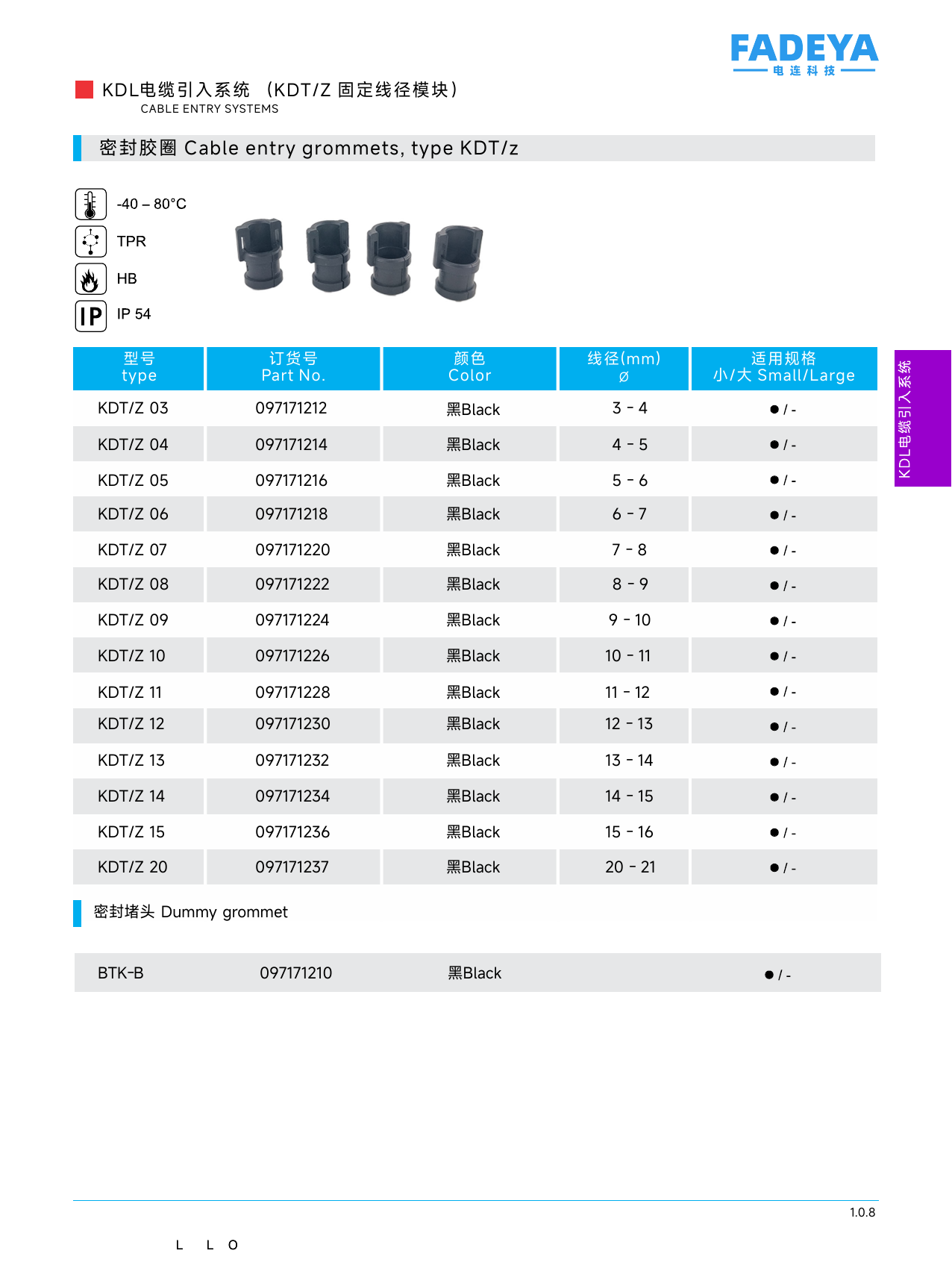

Fixed-diameter sealing grommets for KDL frames, 3–21 mm cable range, plus BTK-B dummy plug.

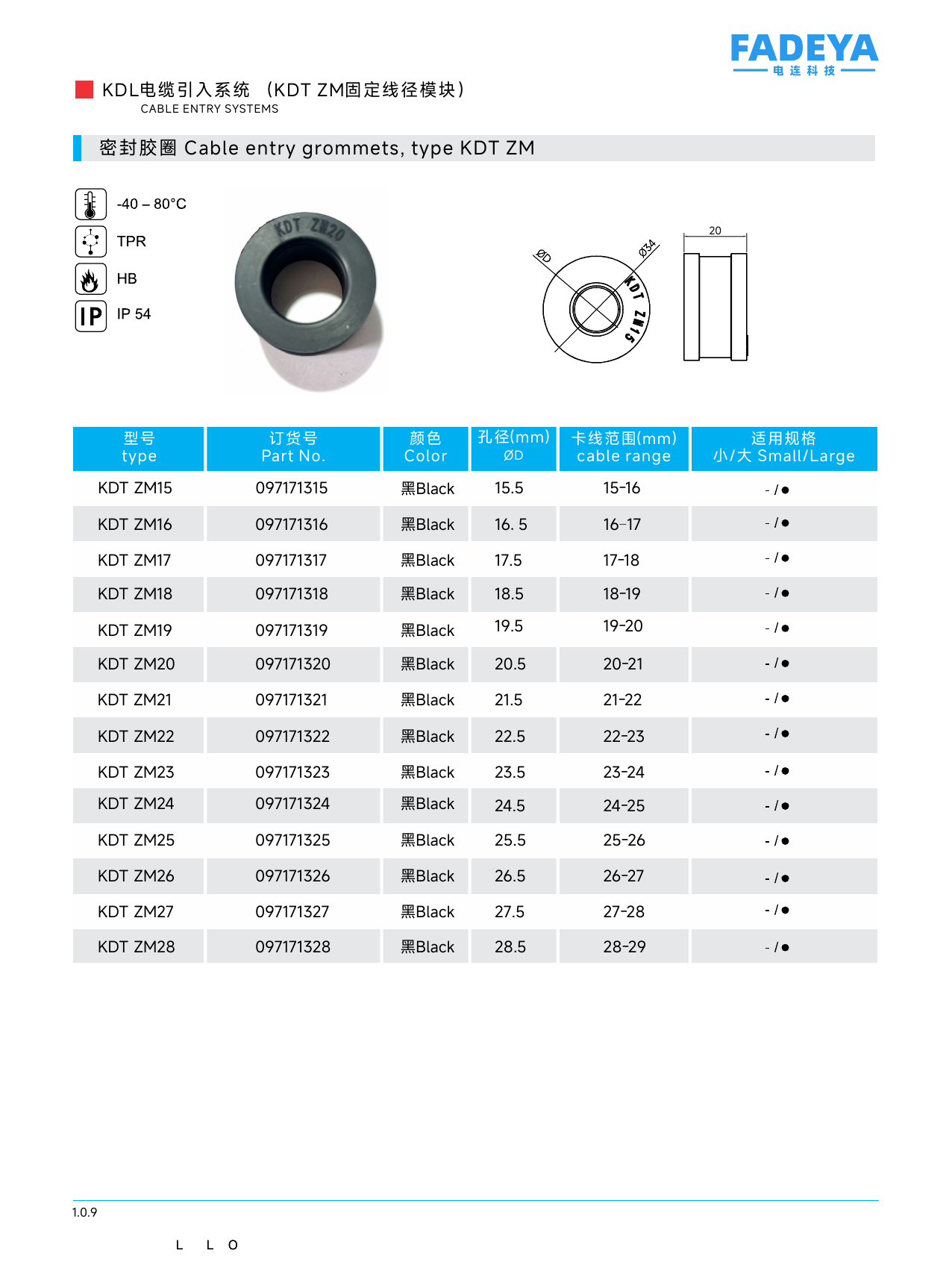

Large fixed-diameter grommets for KDL frames, 15–29 mm cable range.

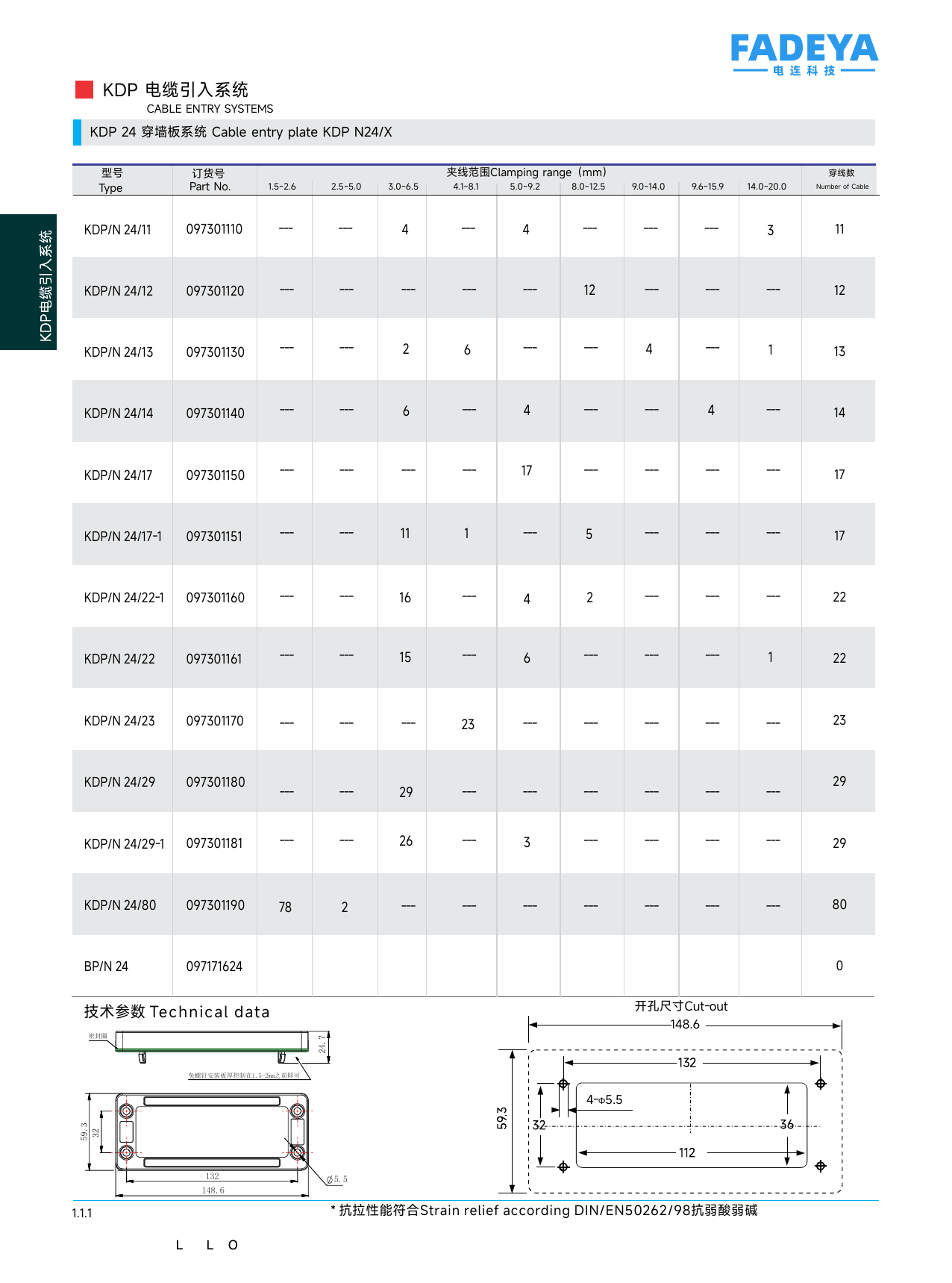

Push-through plates for 24-pole connector cut-outs, 11–80 cables, 1.5–20 mm clamping range. Strain relief per DIN/EN 50262.

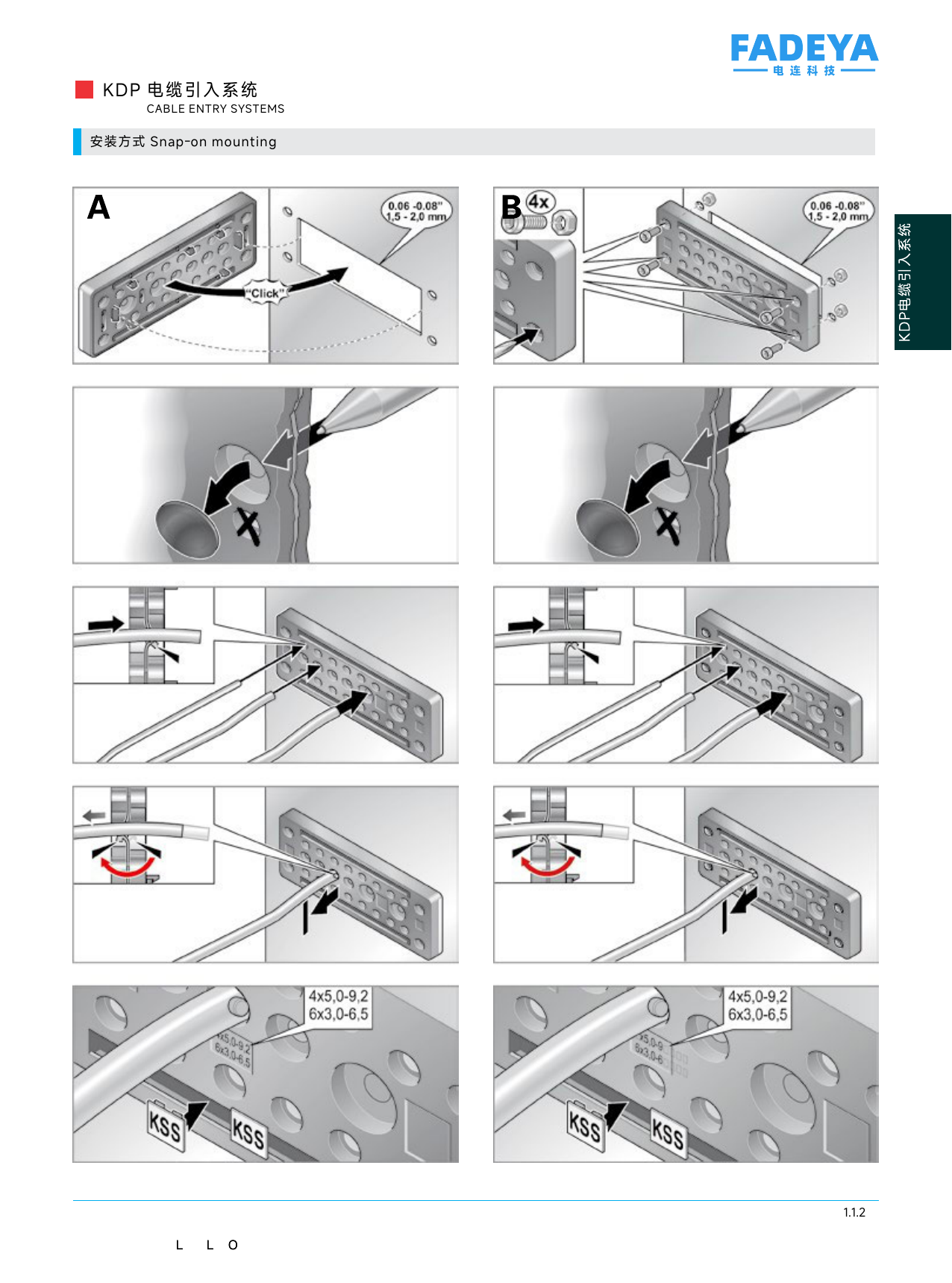

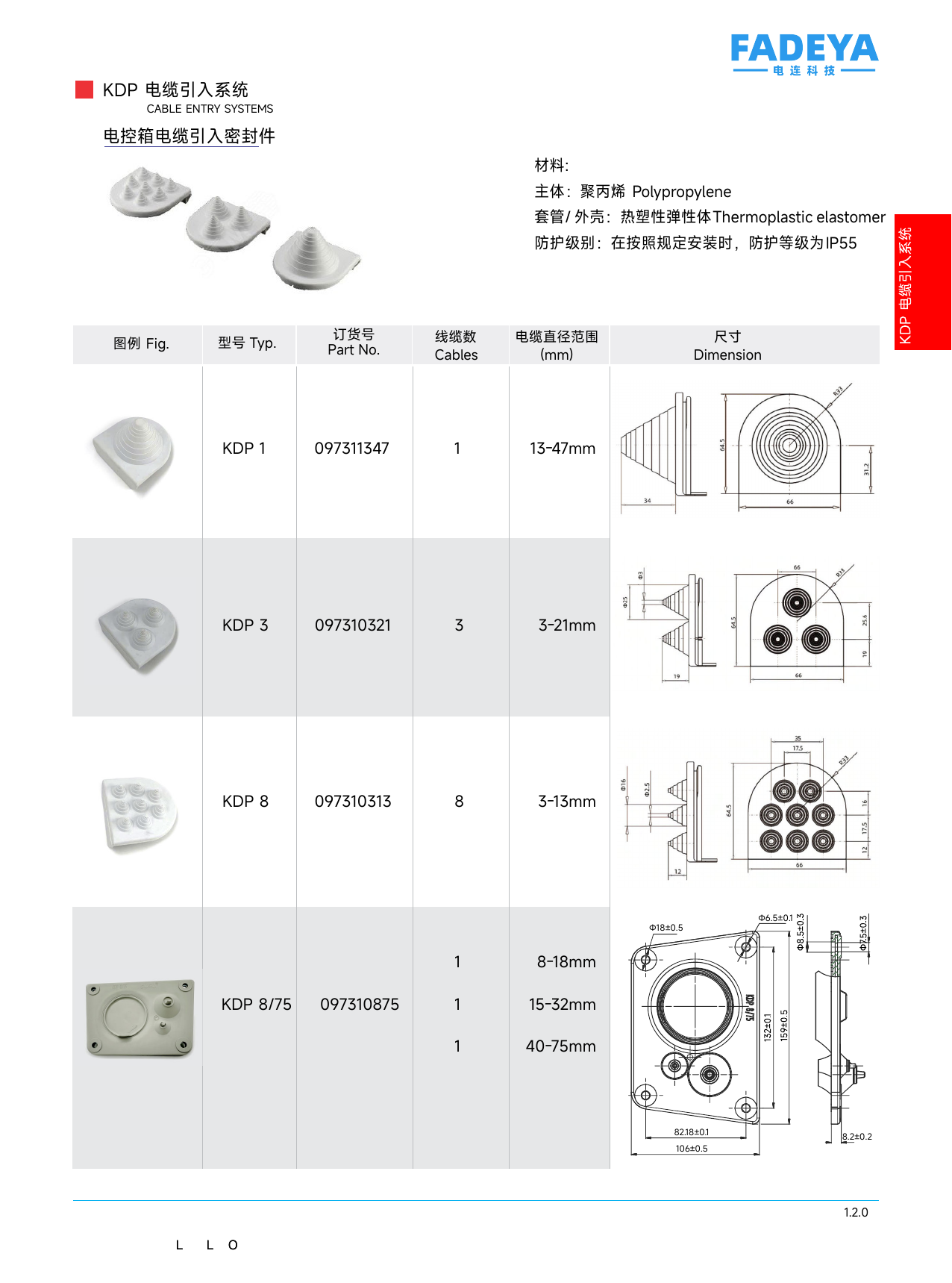

Pre-sealed cone grommets for the bottom area of control boxes — KDP1/3/8 plus the three-cable KDP 8/75. IP55.

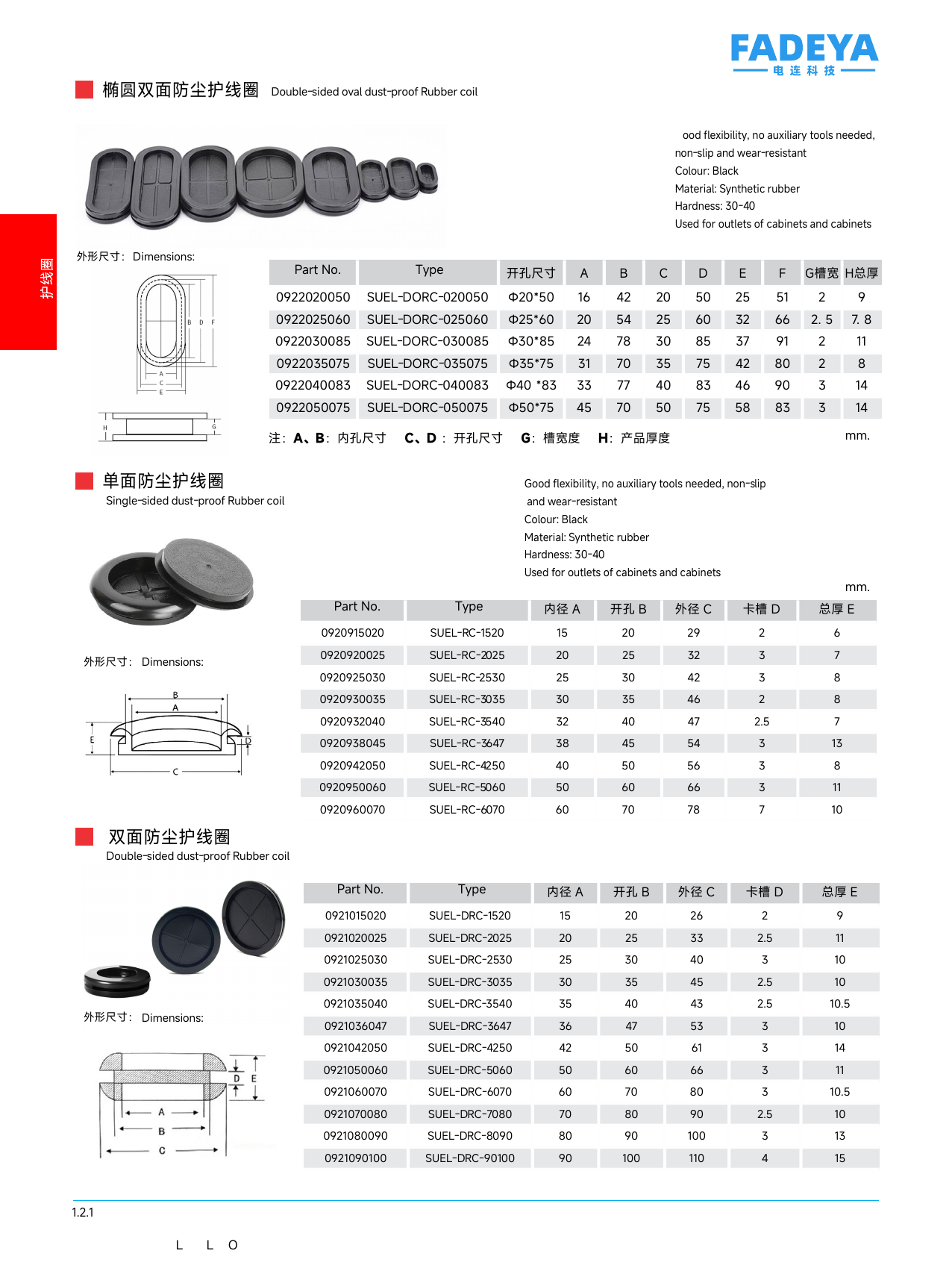

Oval and round single/double-sided dust-proof grommets (rubber coils) for cabinet cable outlets.

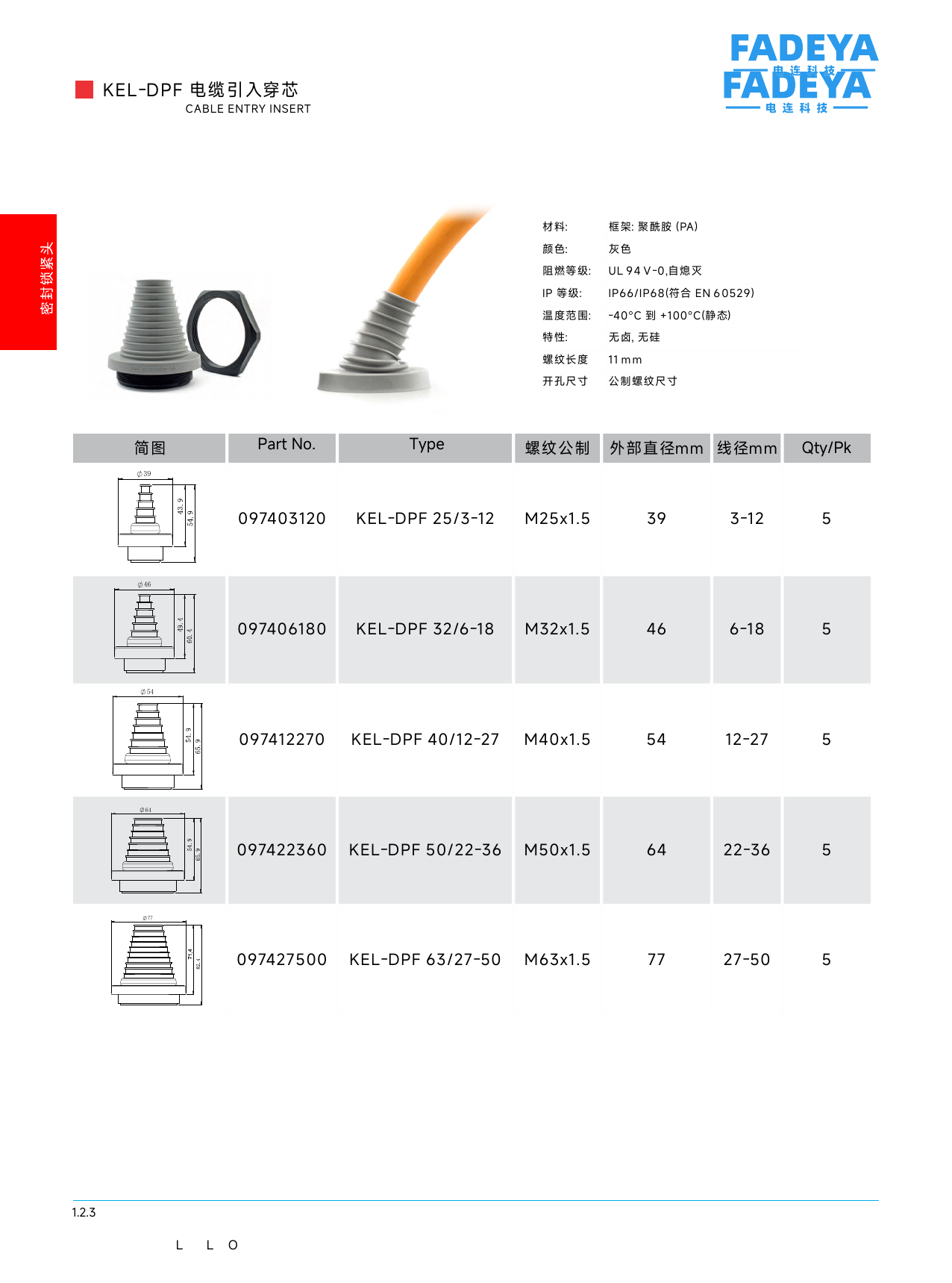

Tower-form gland inserts for large/unknown-diameter cables. Cut to 20% below cable OD; up to IP68. Metric M25–M63.

Compact round split frames for pre-terminated cables — 1–16 conductors via multi-hole inserts. IP54; IP65 with single insert.

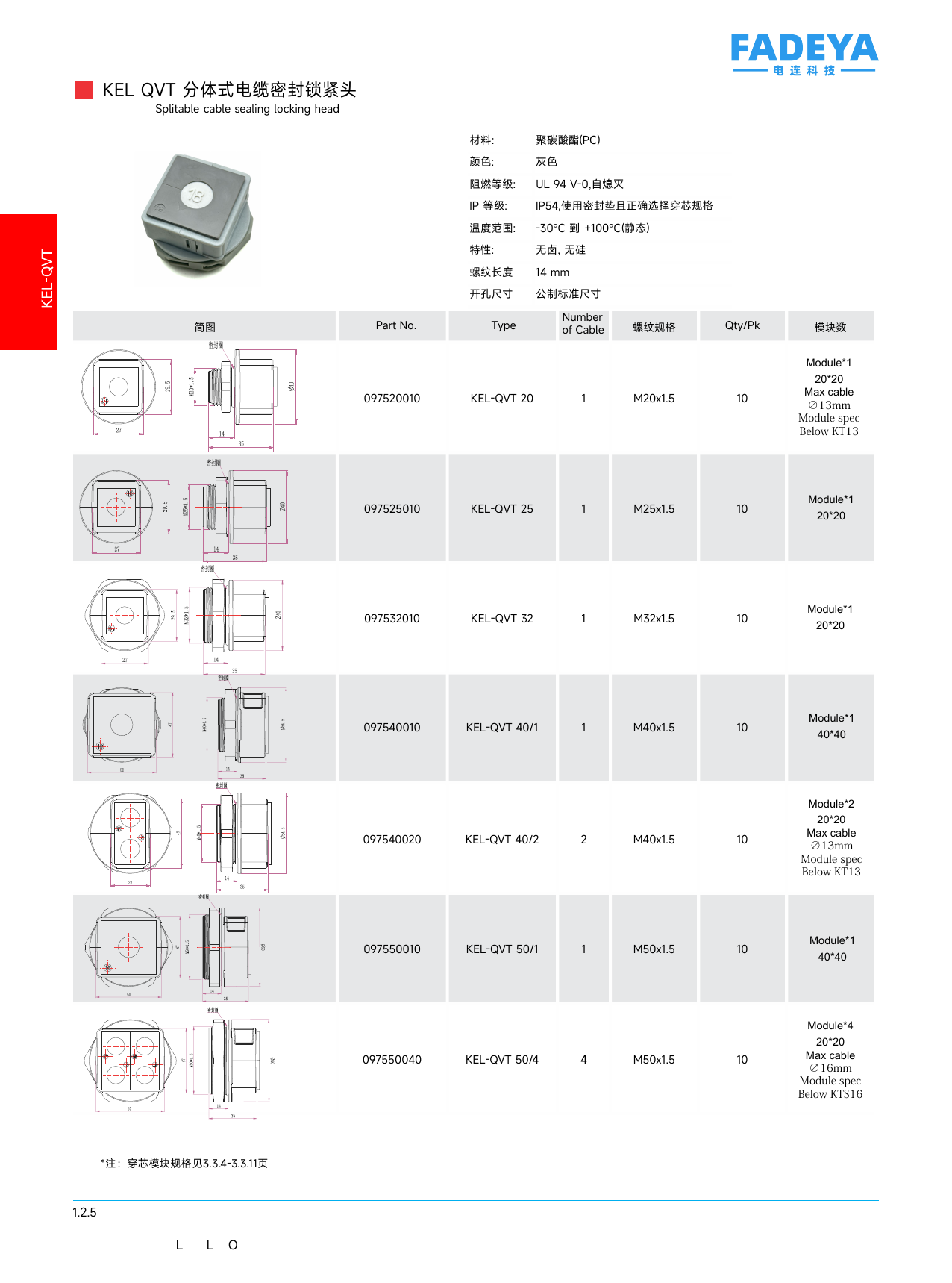

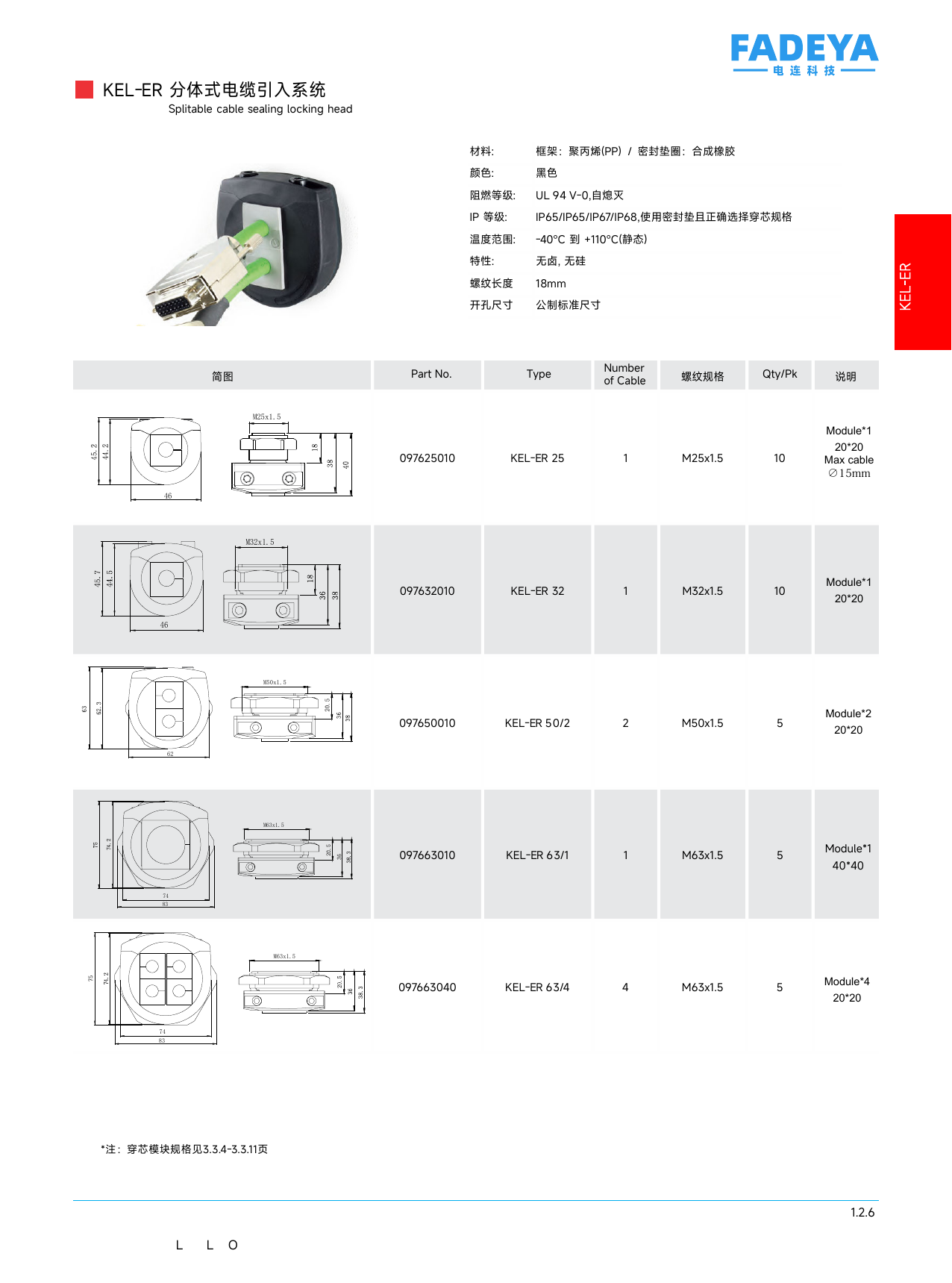

Split sealing heads guiding and sealing terminated cables 1–16 mm. Certified IP65/66/67/68 (single insert) per EN 60529.

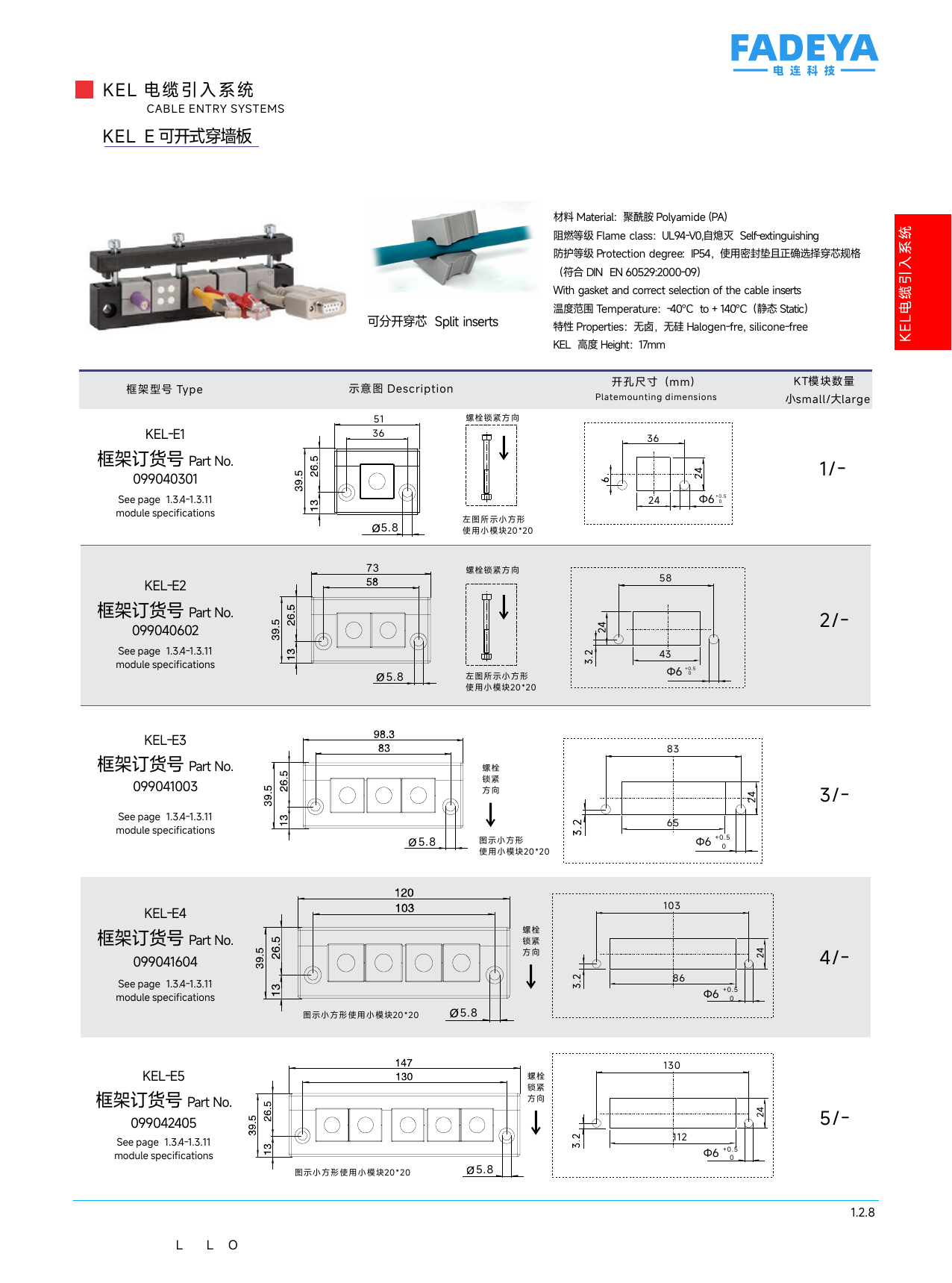

Openable single-row frames (E1–E5) matching standard industrial connector cut-outs, 1–5 module openings. KEL height 17 mm.

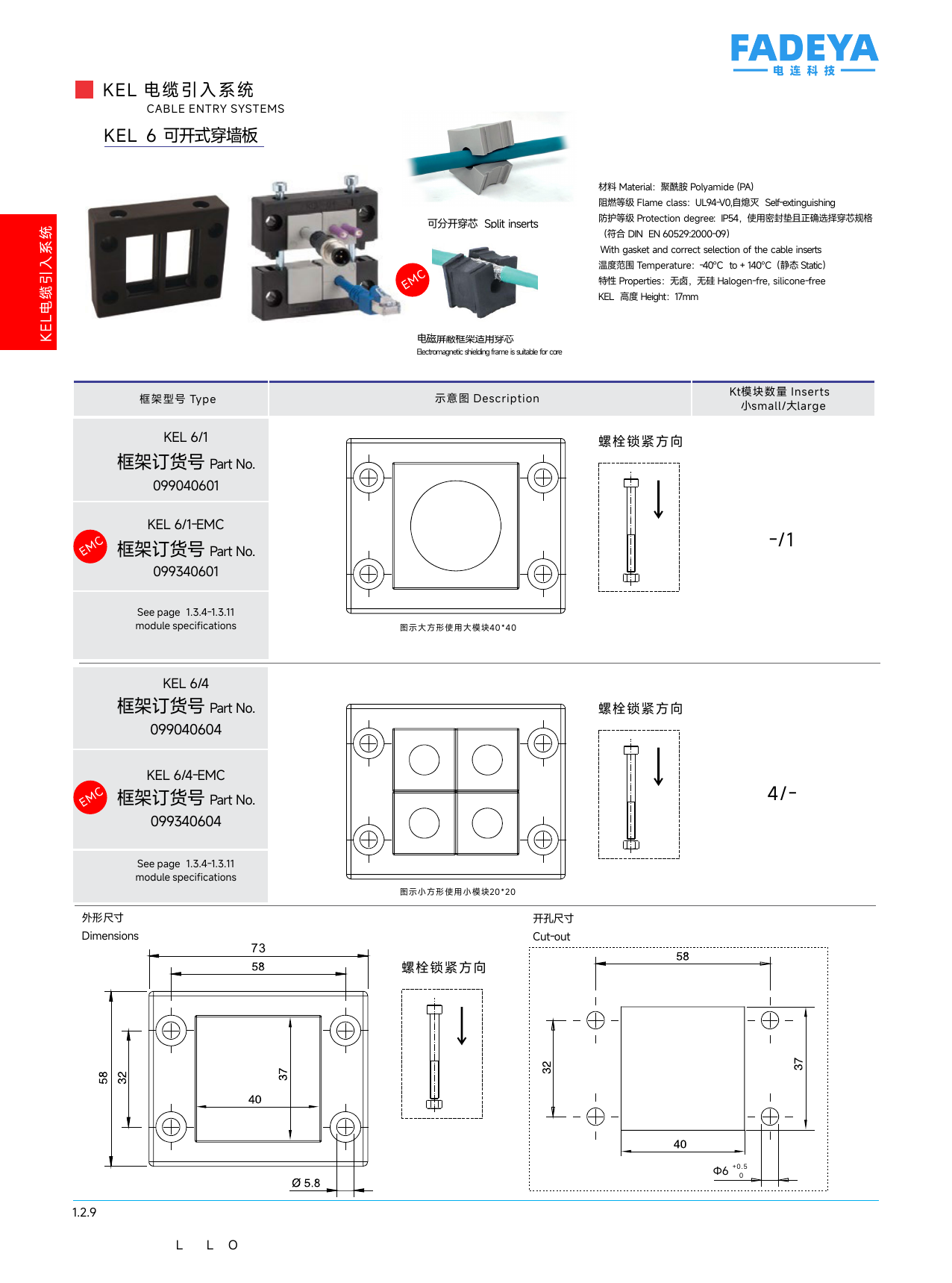

Compact openable frames in 1-large or 4-small module layout, with optional EMC shielding versions.

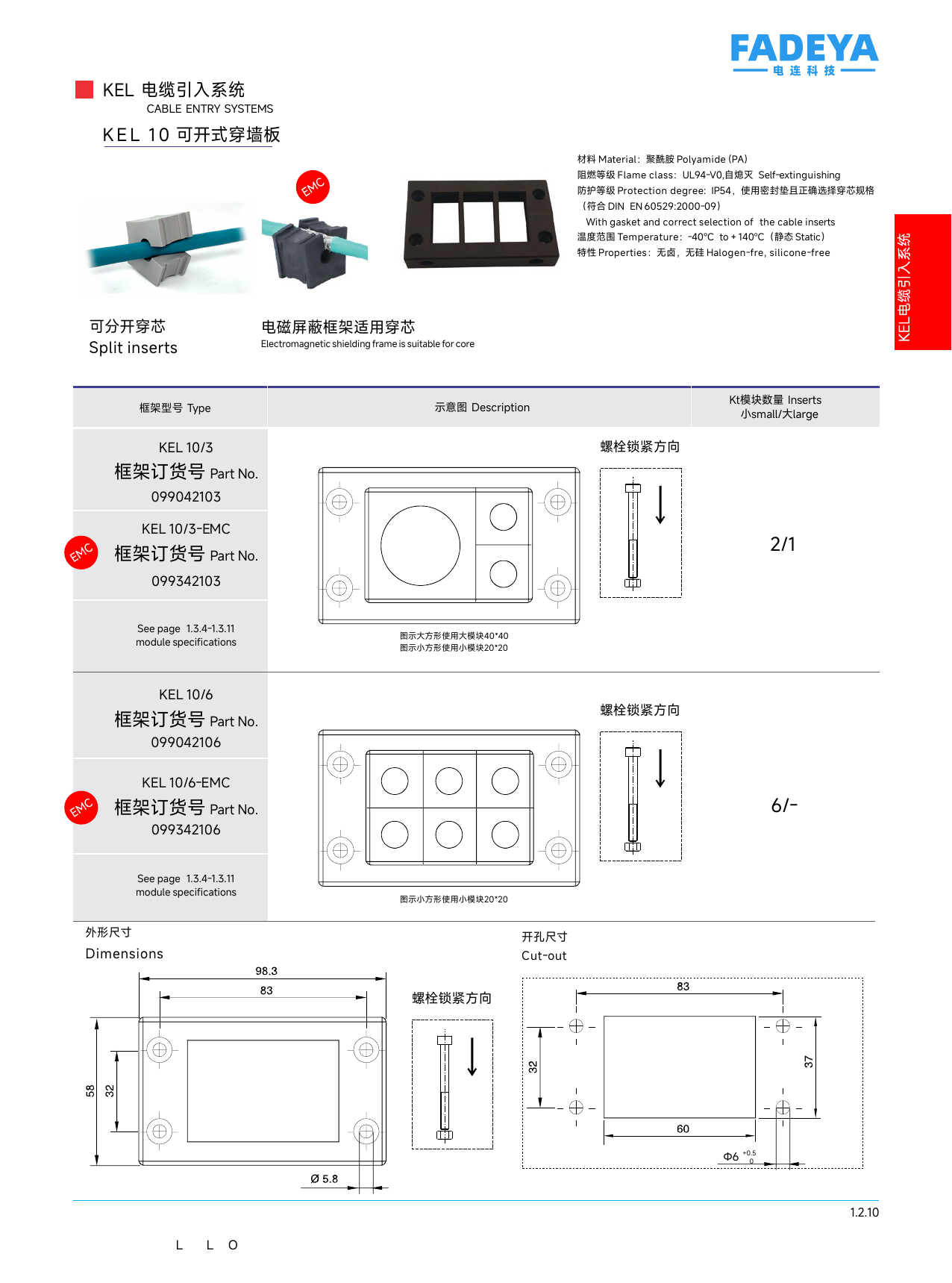

Openable frames matching the KEL-10 cut-out (83 × 60 mm), 2/1 or 6 small modules, with EMC options.

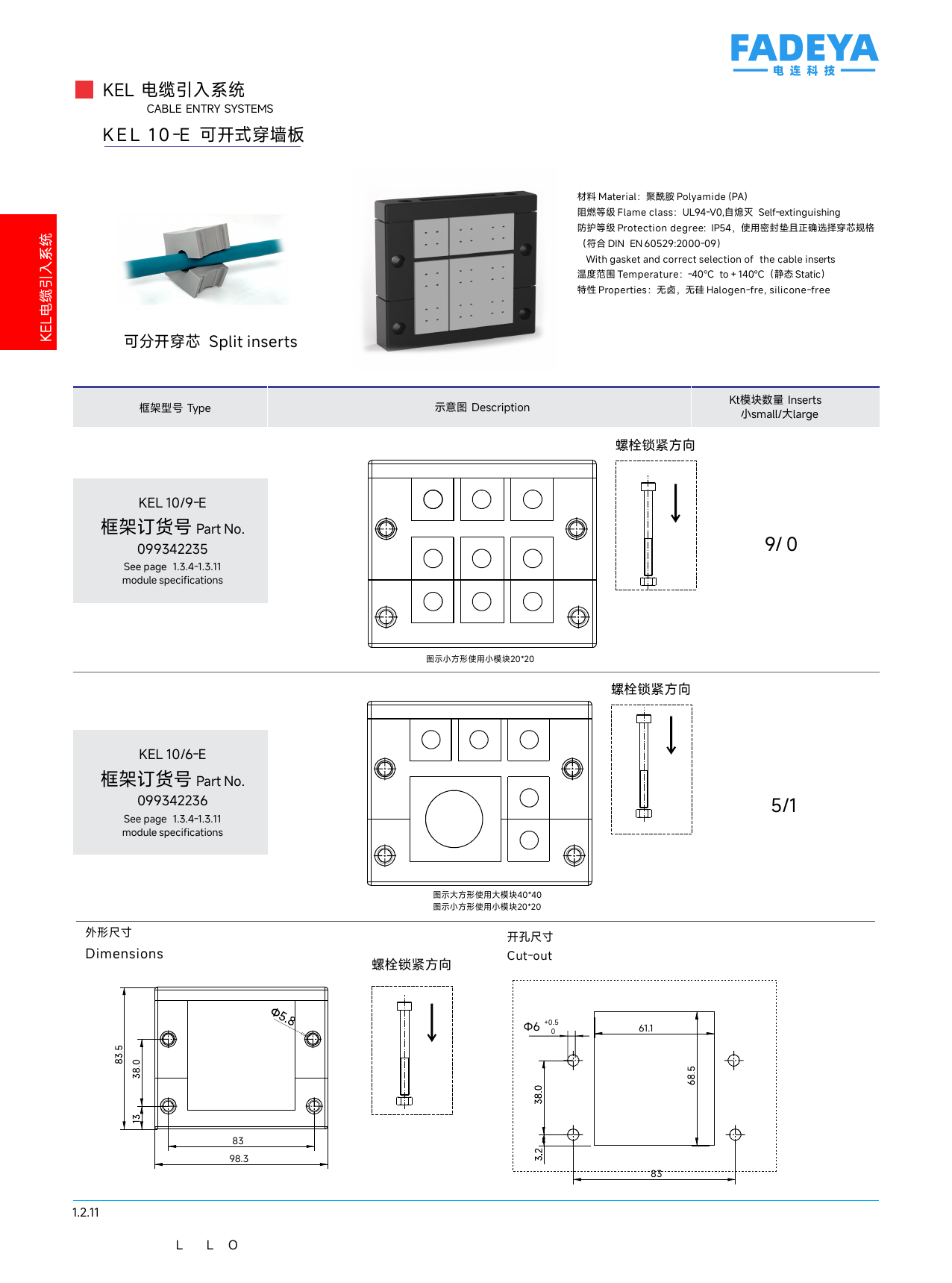

Three-row KEL-10 frames: 9/0 and 5/1 module layouts for higher packing density.

Tall KEL-10 frames mixing large and small modules (10/5, 11/1, 7/2 layouts).

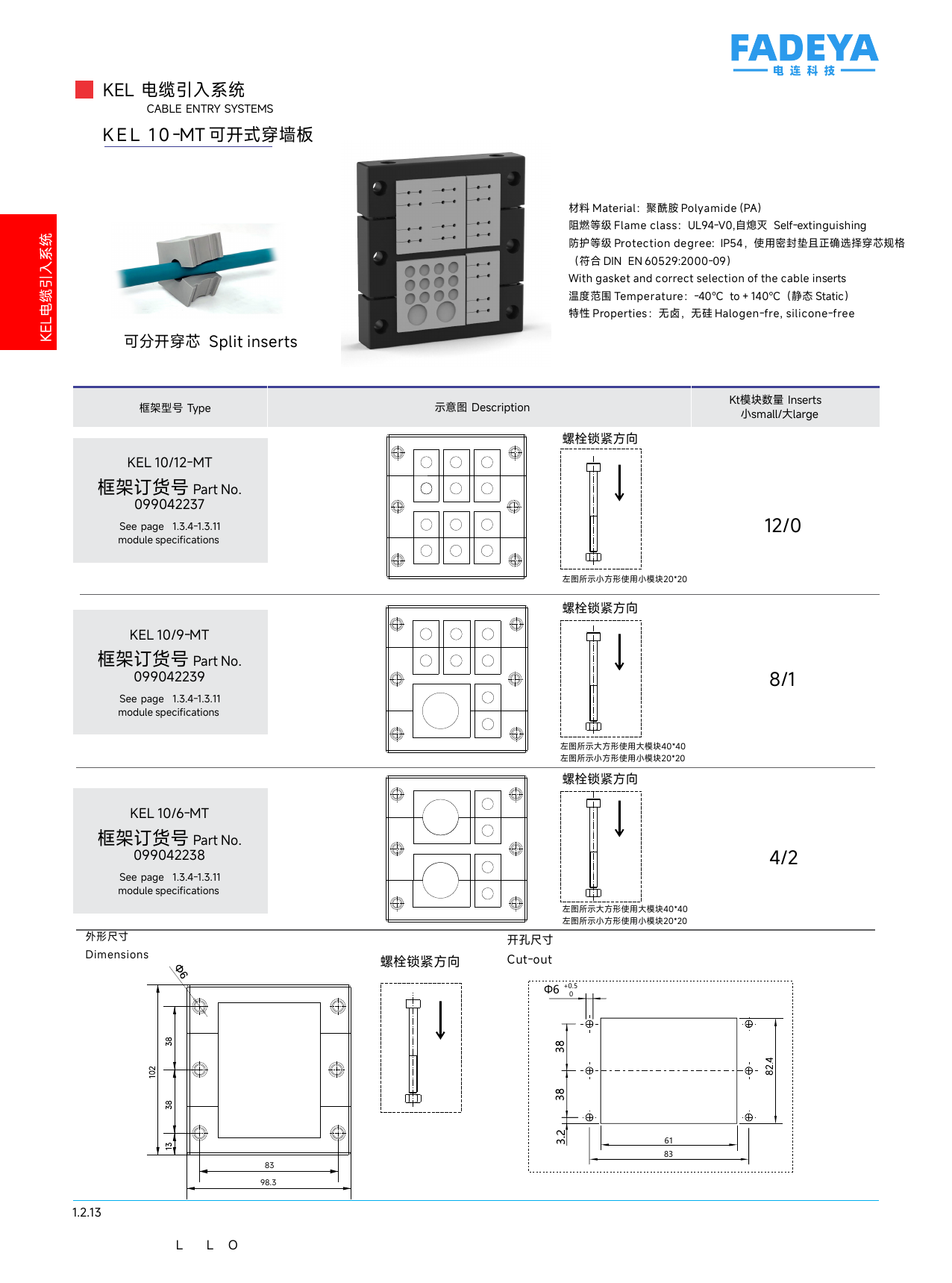

Two-row KEL-10 frames: 12/0, 8/1 and 4/2 module layouts.

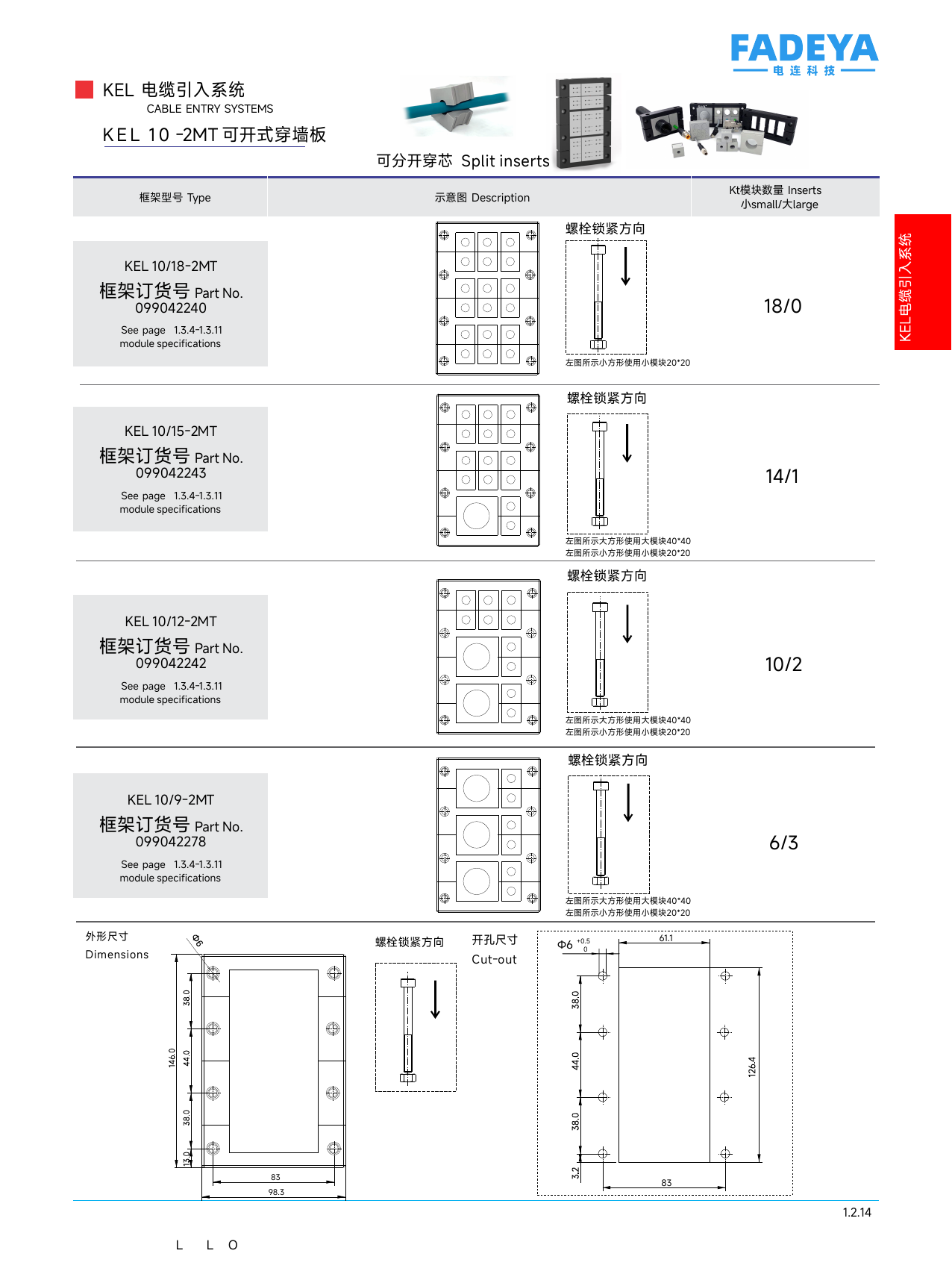

High-density KEL-10 frames up to 18 modules (18/0, 14/1, 10/2, 6/3 layouts).

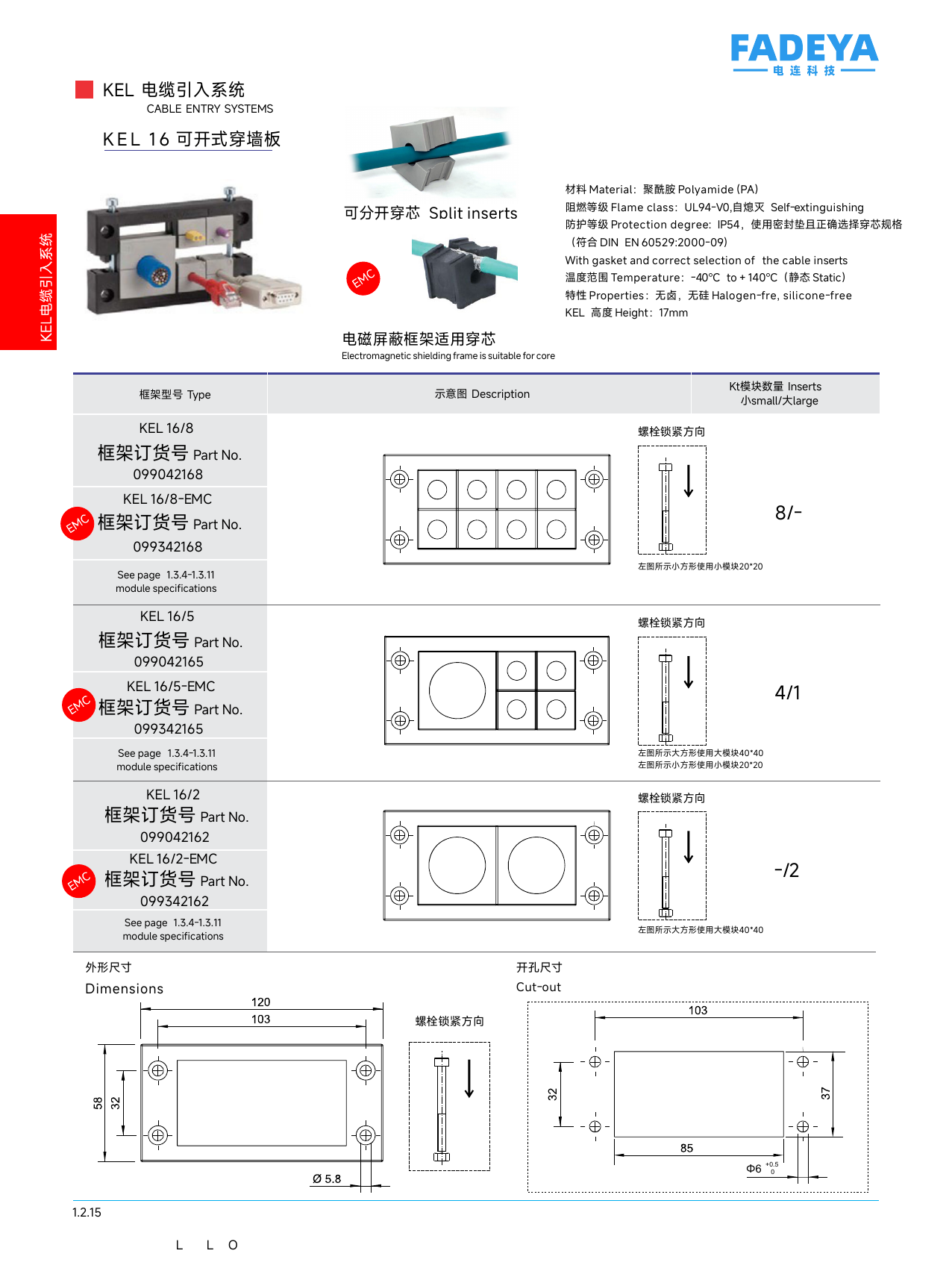

KEL-16 cut-out frames (85 × 37 mm) in 8/-, 4/1 and -/2 module layouts, with EMC options.

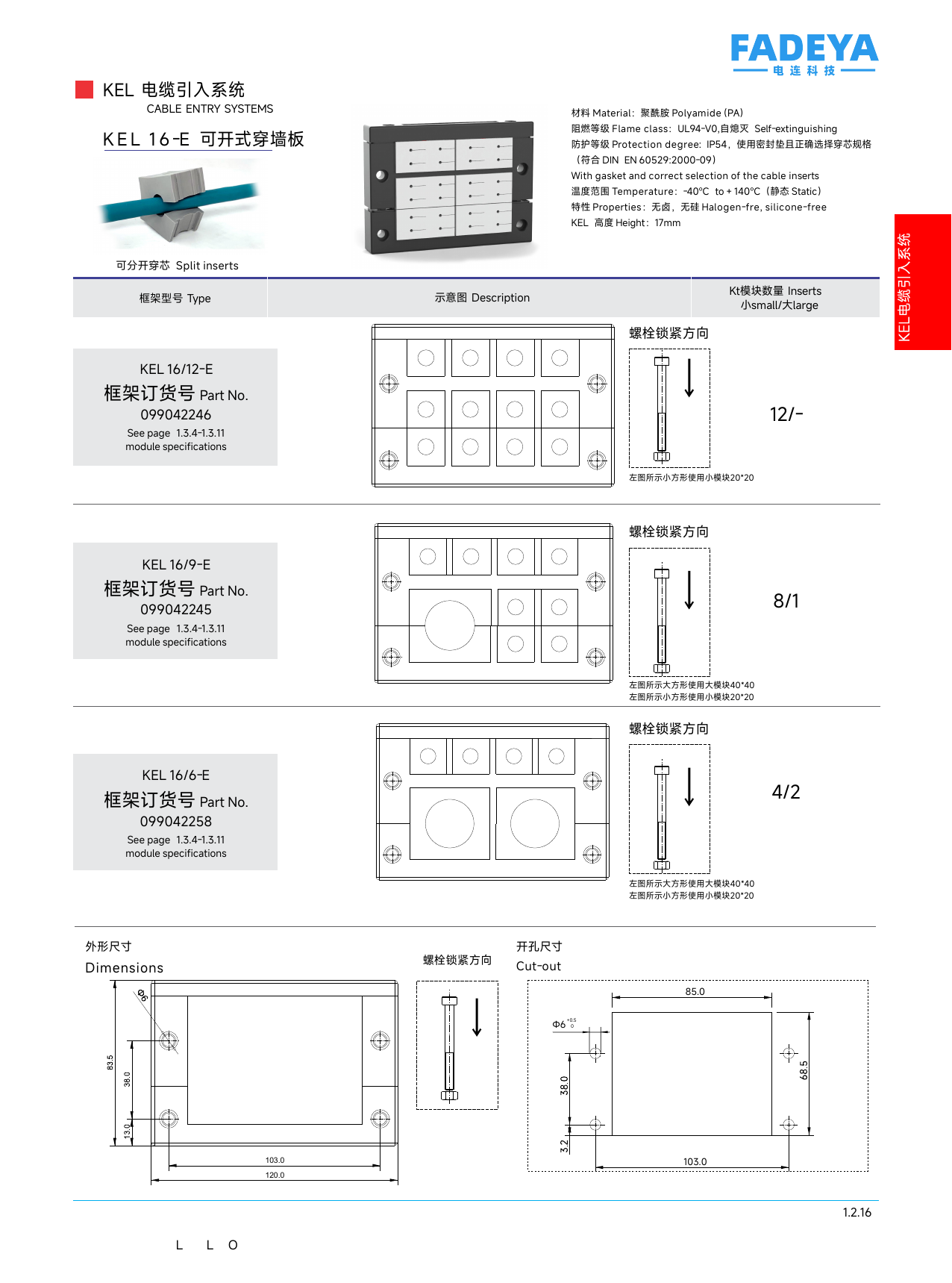

Three-row KEL-16 frames: 12/-, 8/1 and 4/2 module layouts.

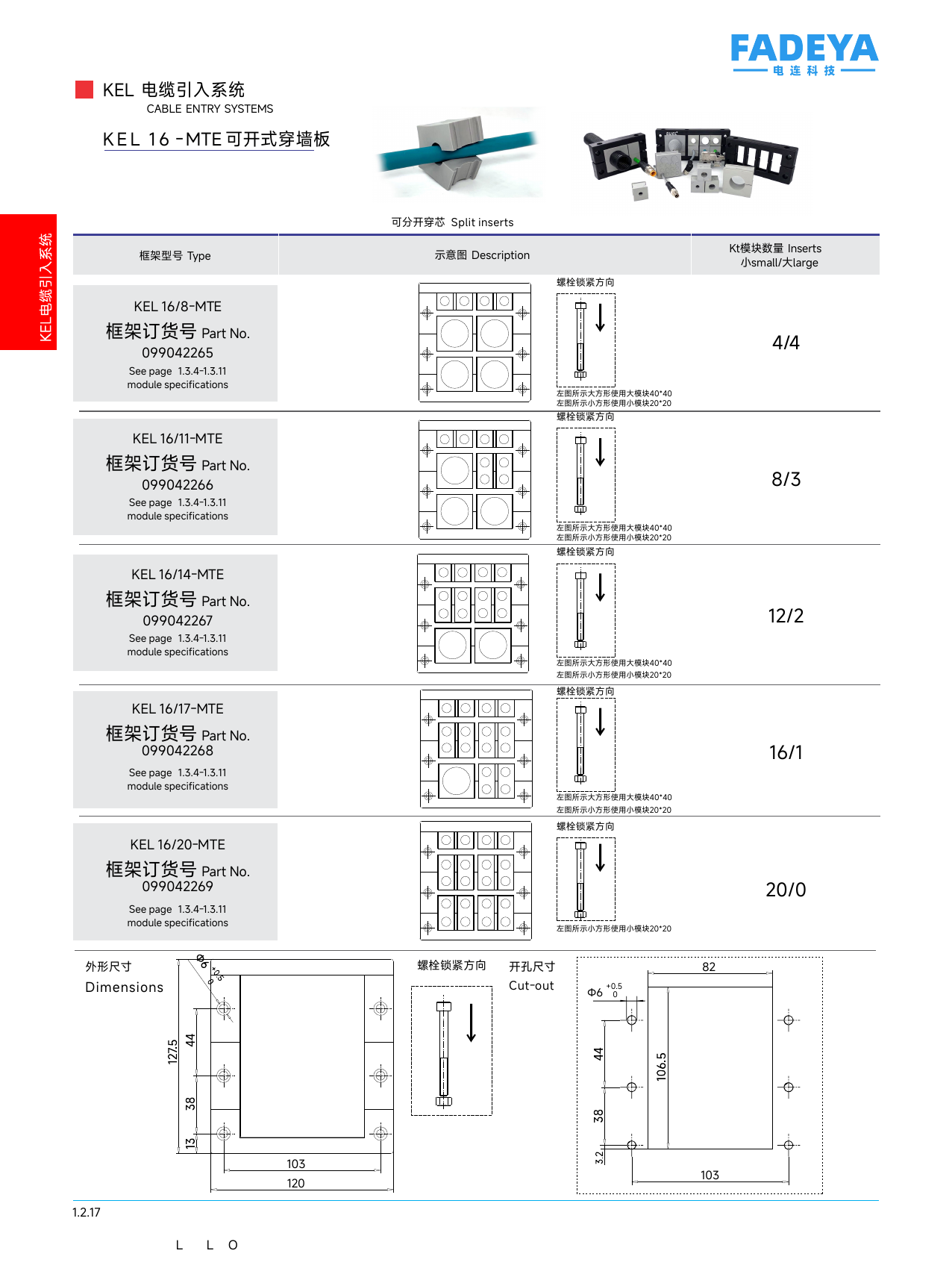

Tall KEL-16 frames mixing large/small modules: 4/4, 8/3, 12/2, 16/1, 20/0 layouts.

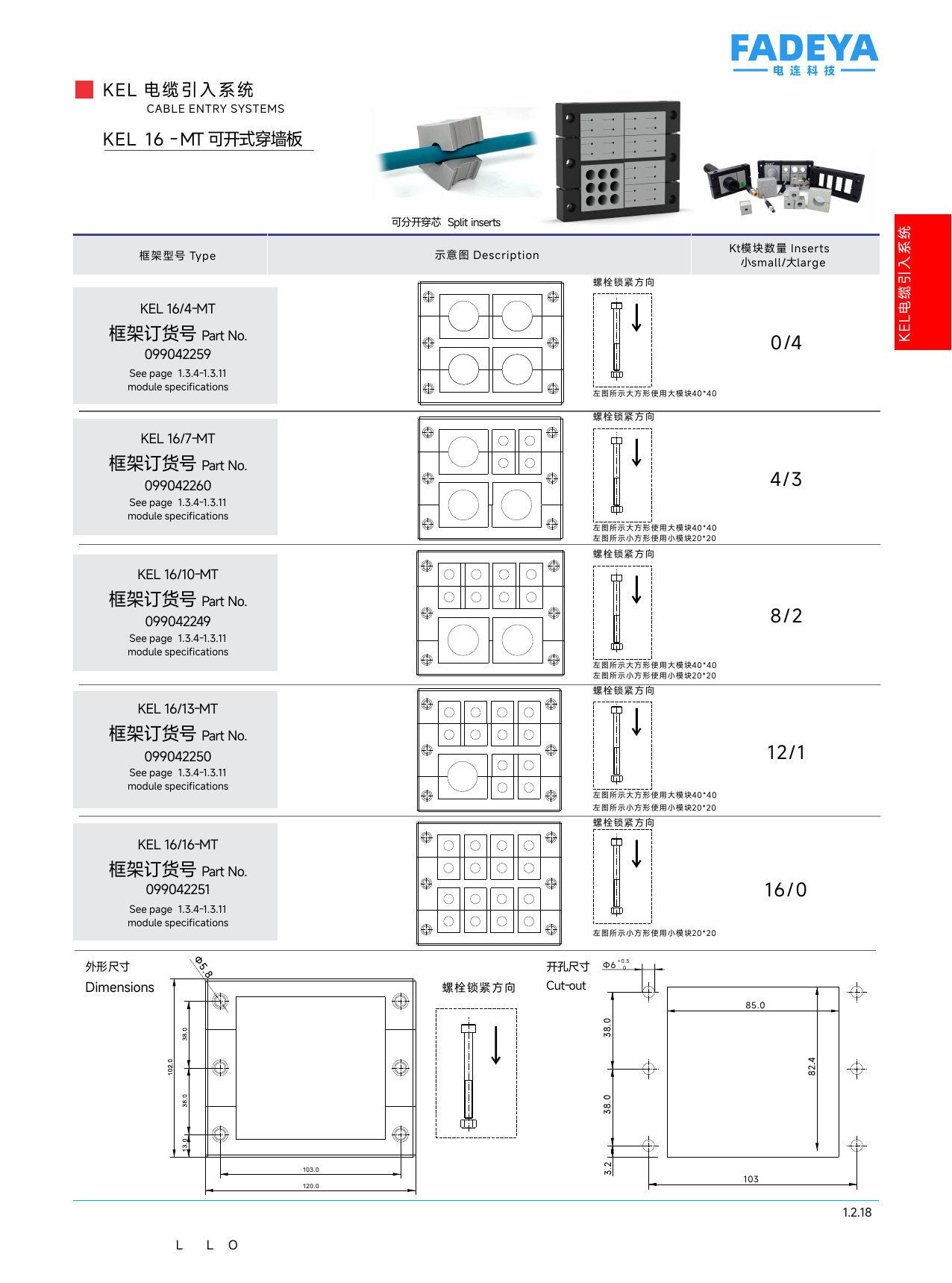

Two-row KEL-16 frames: 0/4, 4/3, 8/2, 12/1, 16/0 layouts.

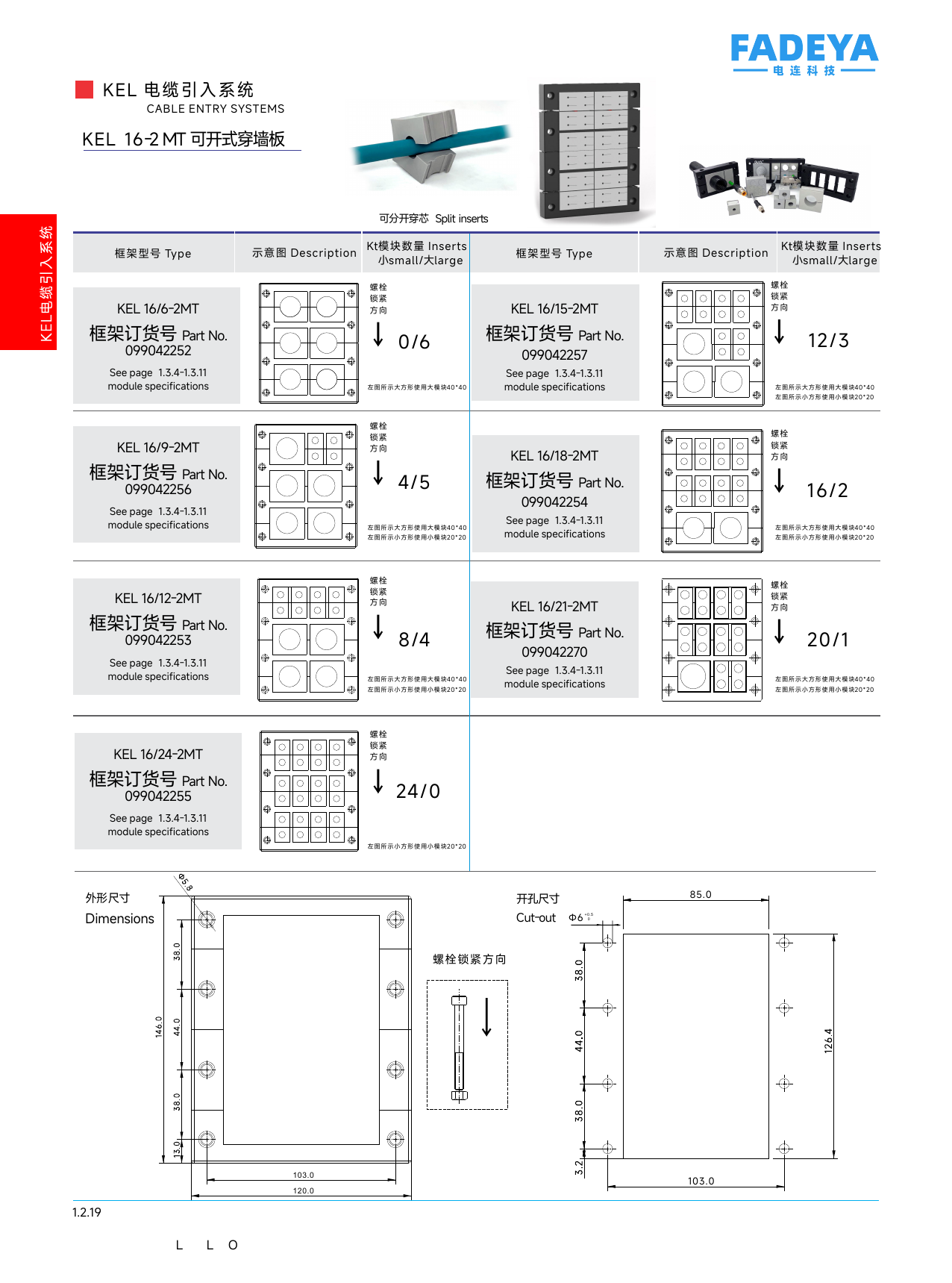

High-density KEL-16 frames up to 24 modules: 0/6, 4/5, 8/4, 12/3, 16/2, 20/1, 24/0 layouts.

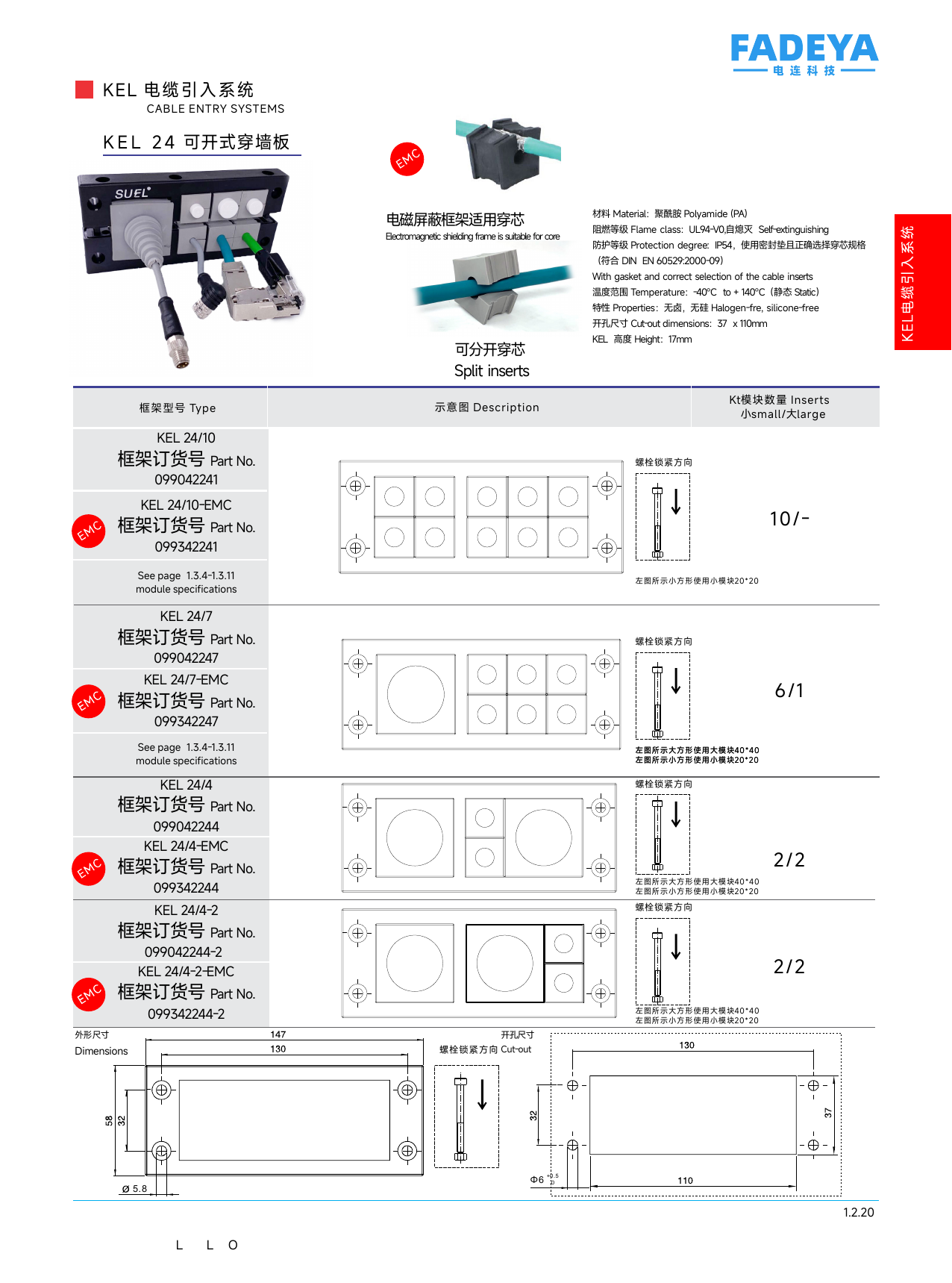

KEL-24 cut-out frames (37 × 110 mm) in 10/-, 6/1 and 2/2 module layouts, with EMC options.

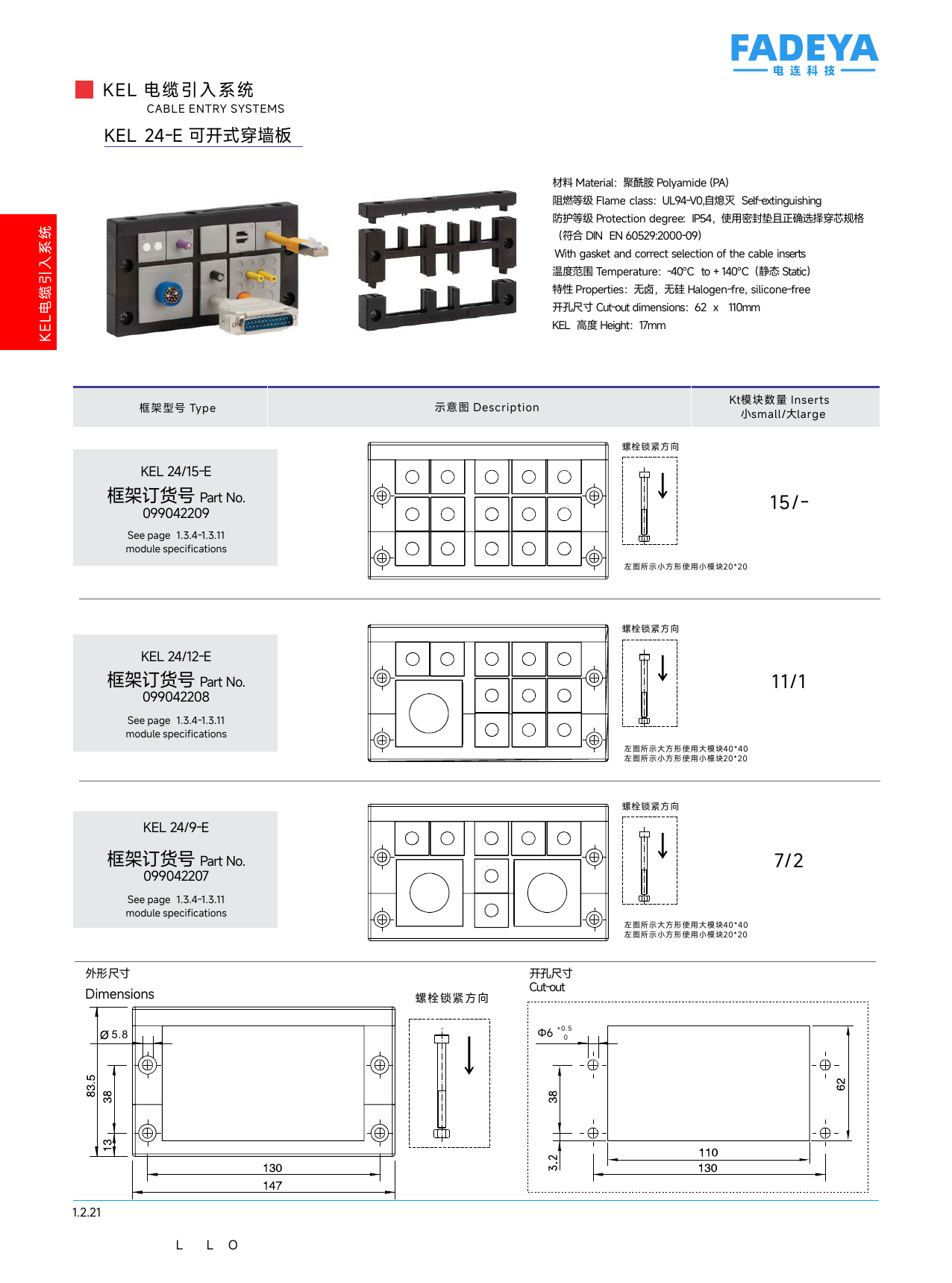

Three-row KEL-24 frames (62 × 110 mm cut-out): 15/-, 11/1 and 7/2 layouts.

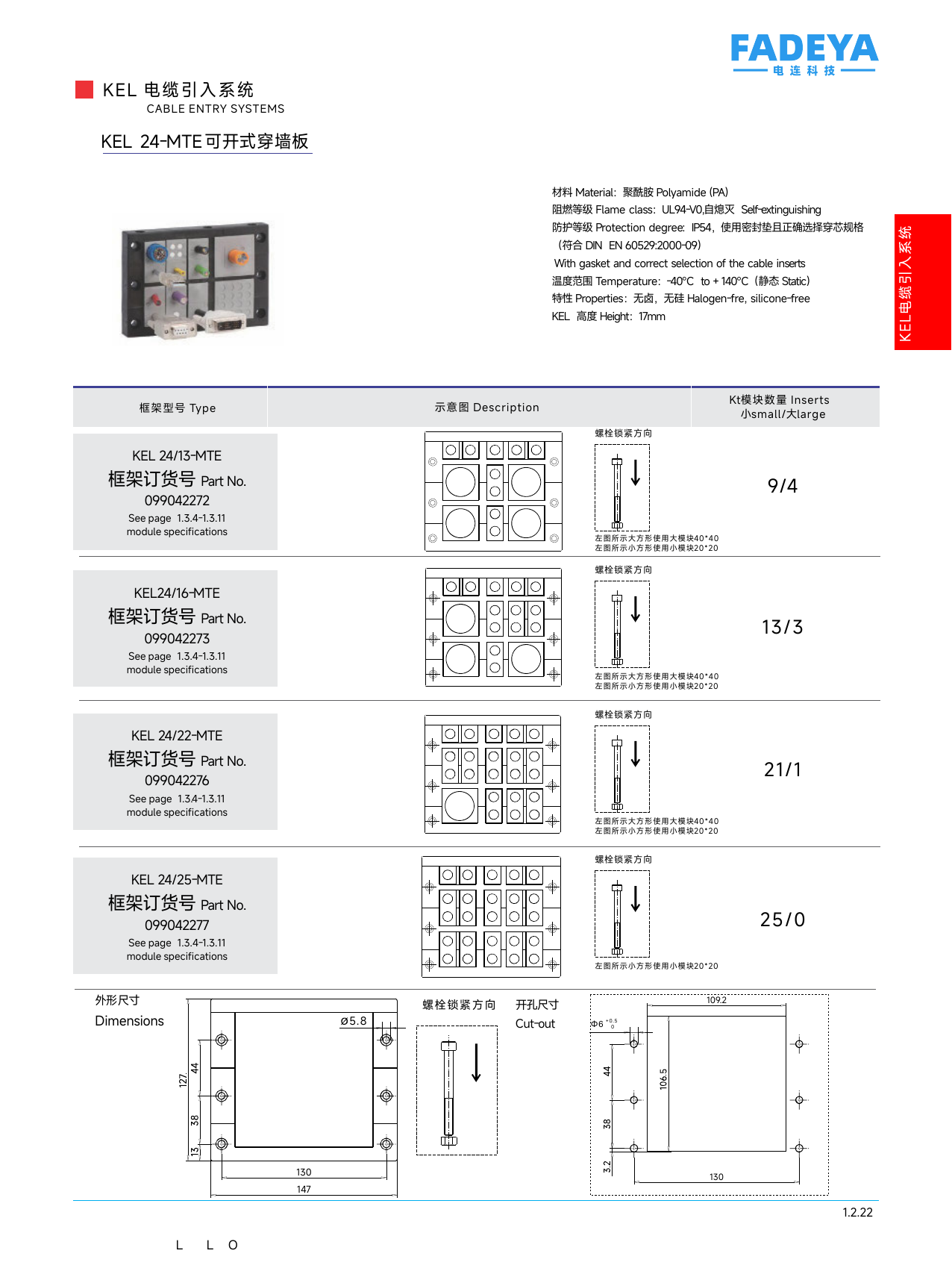

Tall KEL-24 frames mixing large/small modules: 9/4, 13/3, 21/1, 25/0 layouts.

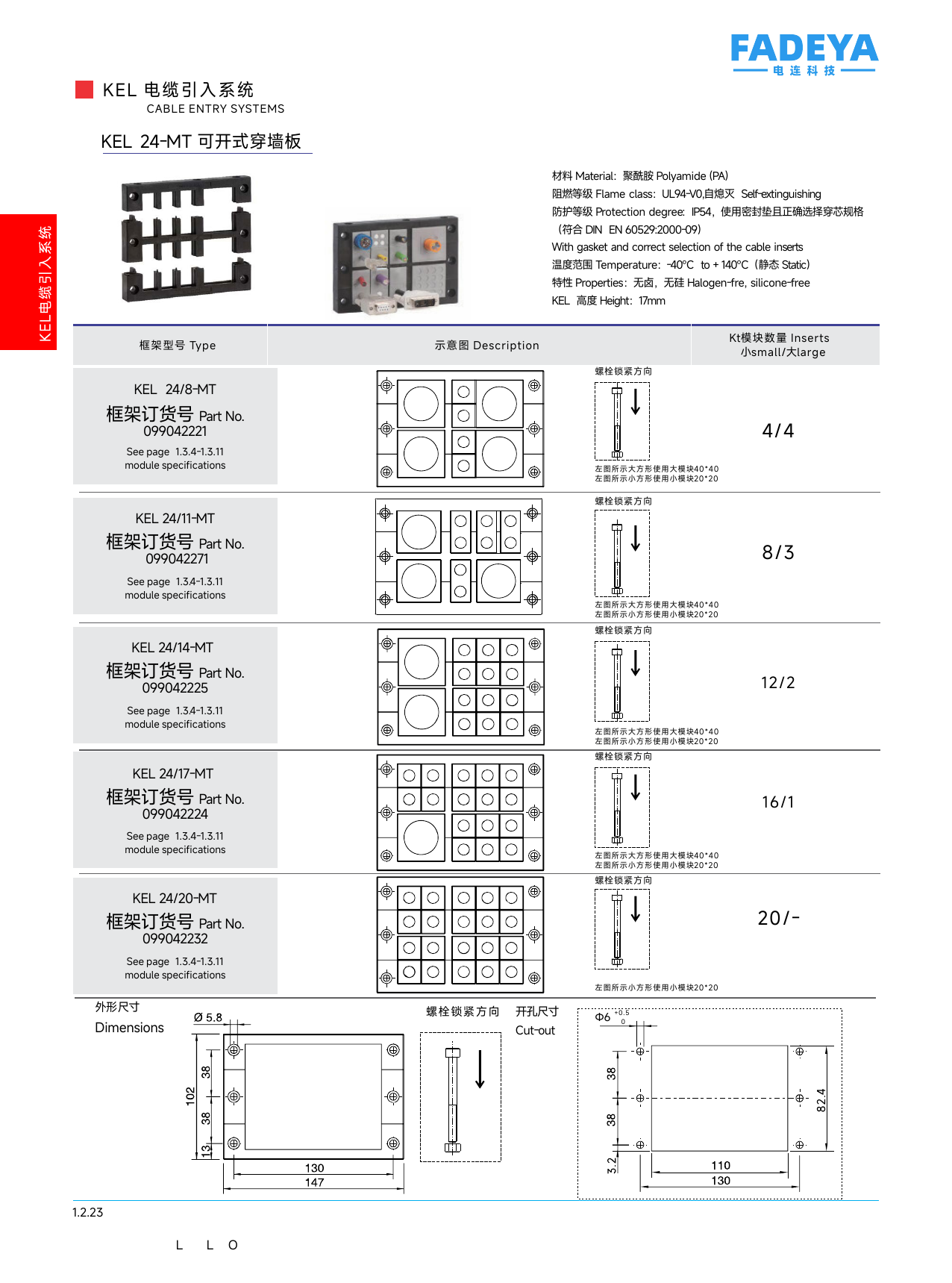

Two-row KEL-24 frames: 4/4, 8/3, 12/2, 16/1, 20/- layouts.

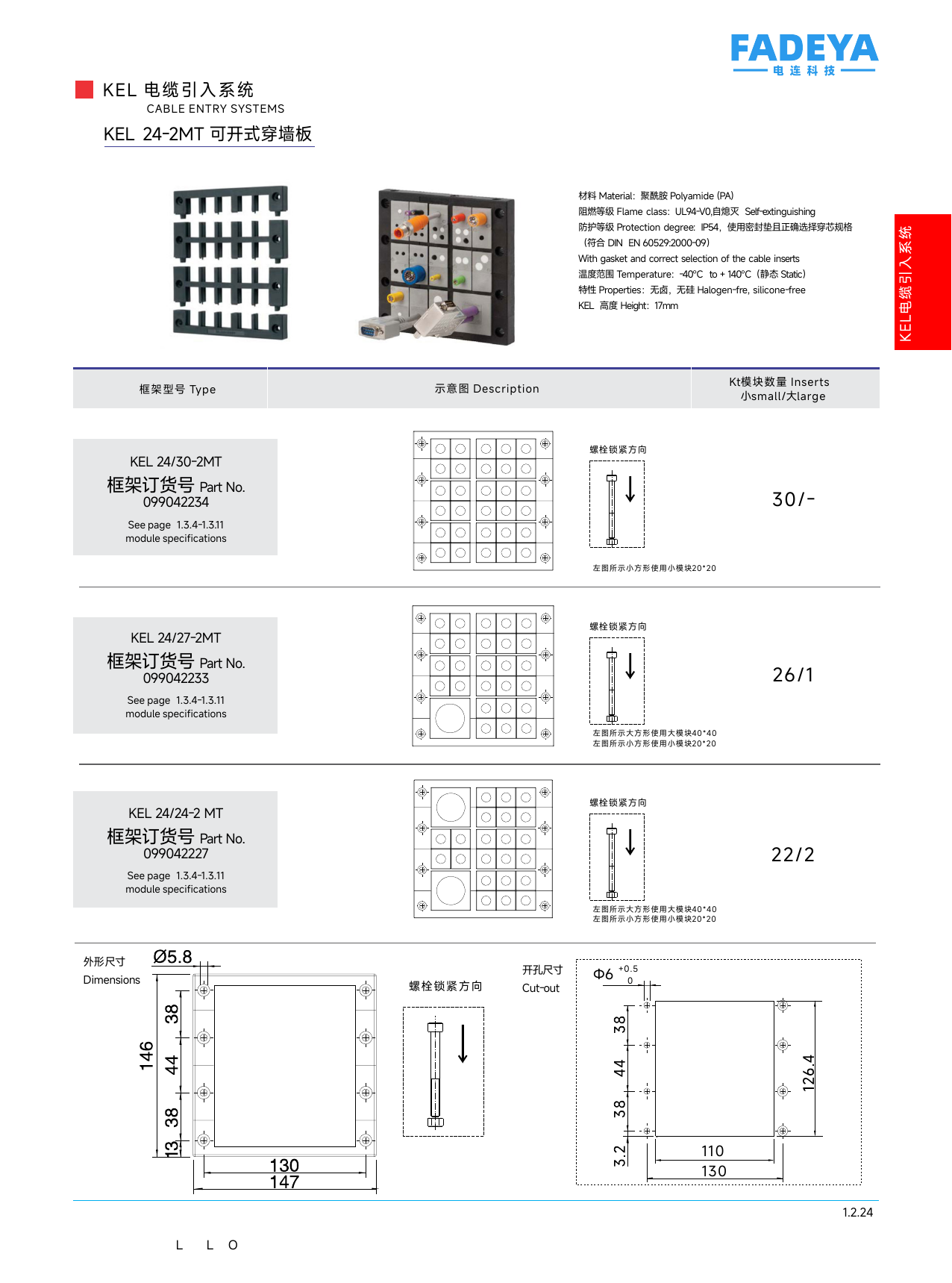

Highest-density KEL-24 frames up to 30 modules: 30/-, 26/1, 22/2, 18/3, 14/4, 10/5, 6/6 layouts.

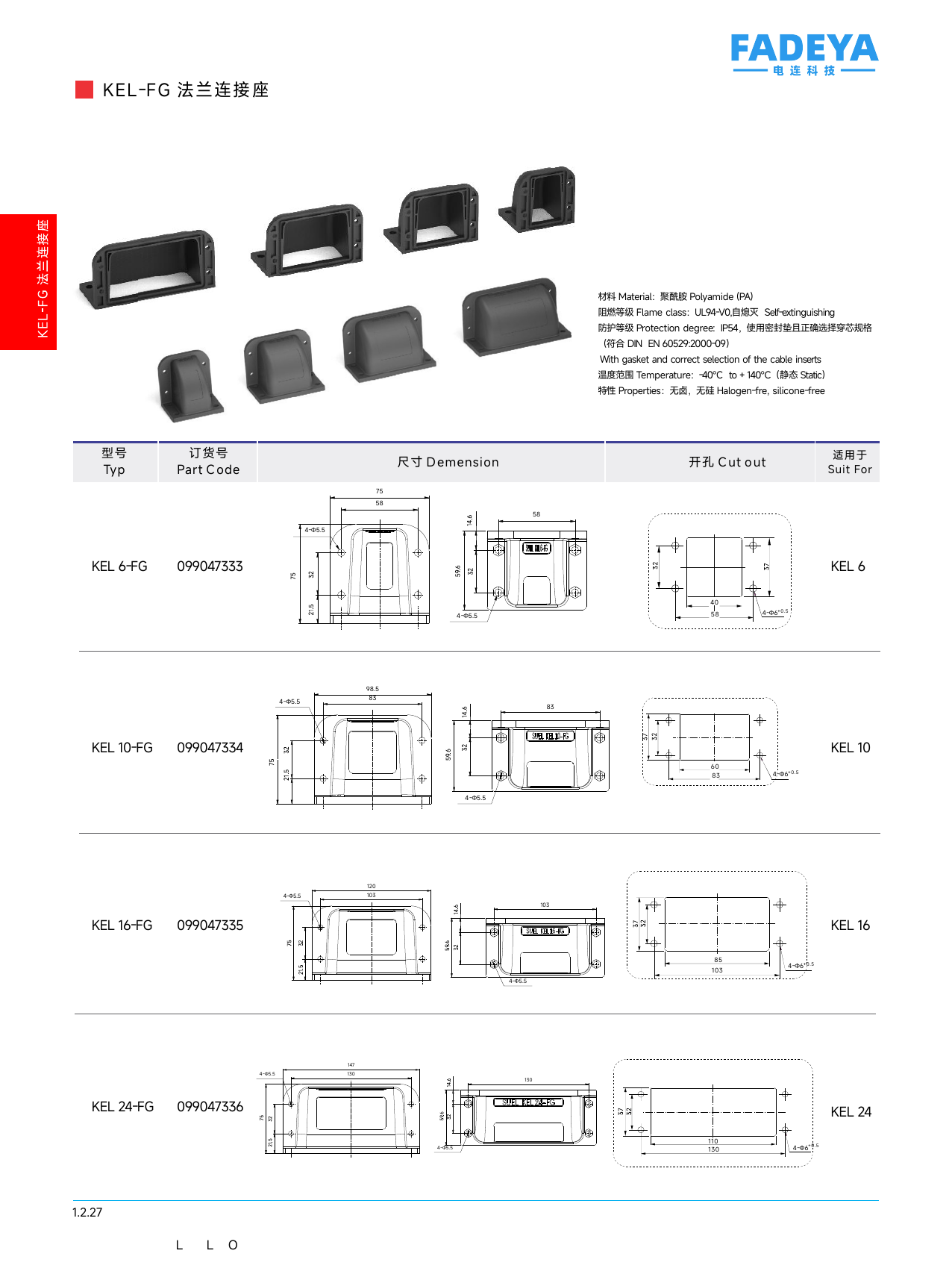

90° flange seats for cables/corrugated pipes with connectors — mount KEL frames at a right angle to the wall. Strain relief per EN 62444.

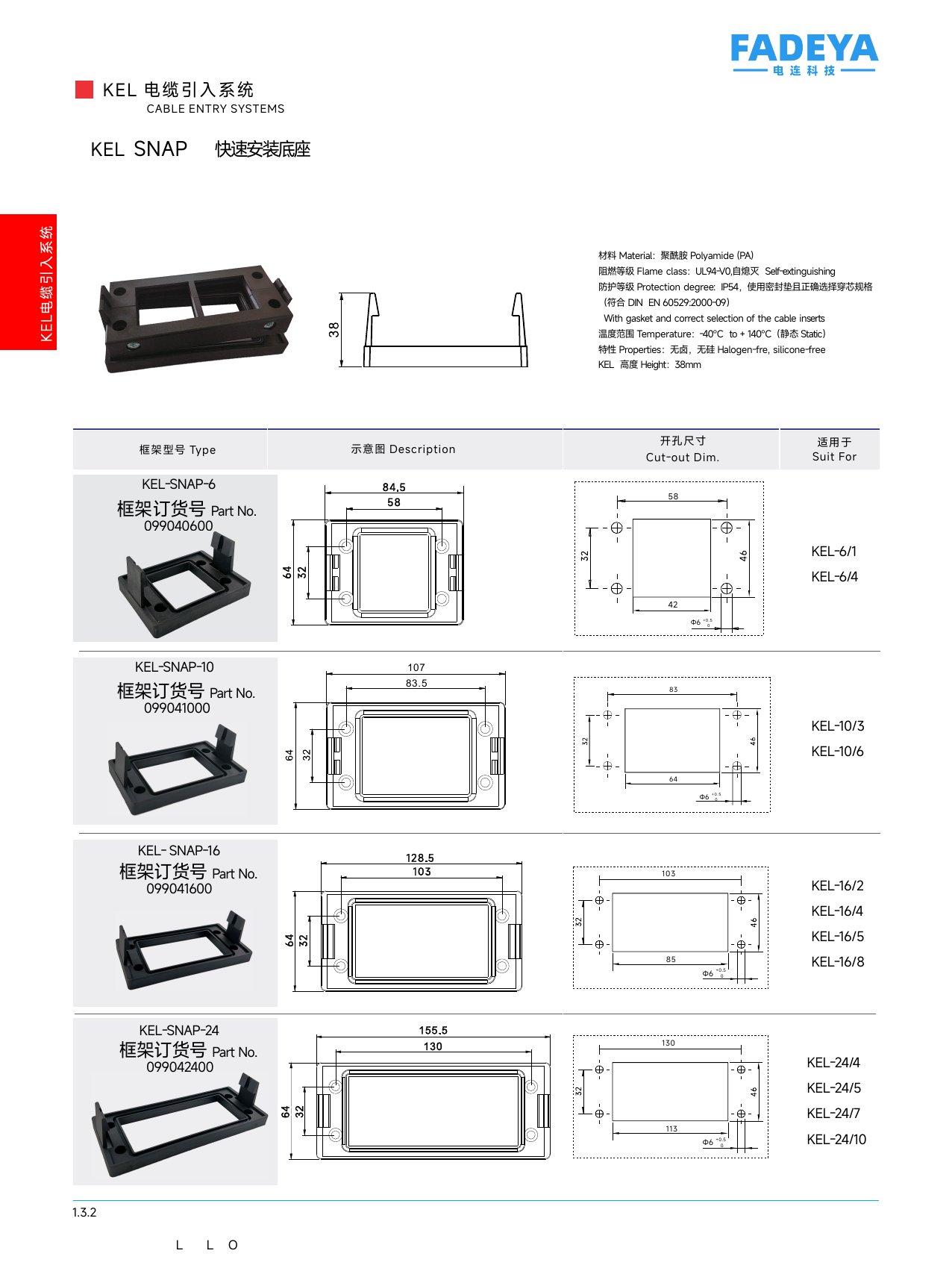

Tool-free snap bases for sealing KEL-6/10/16/24 frames — press the loaded frame in to mount. KEL height 38 mm.

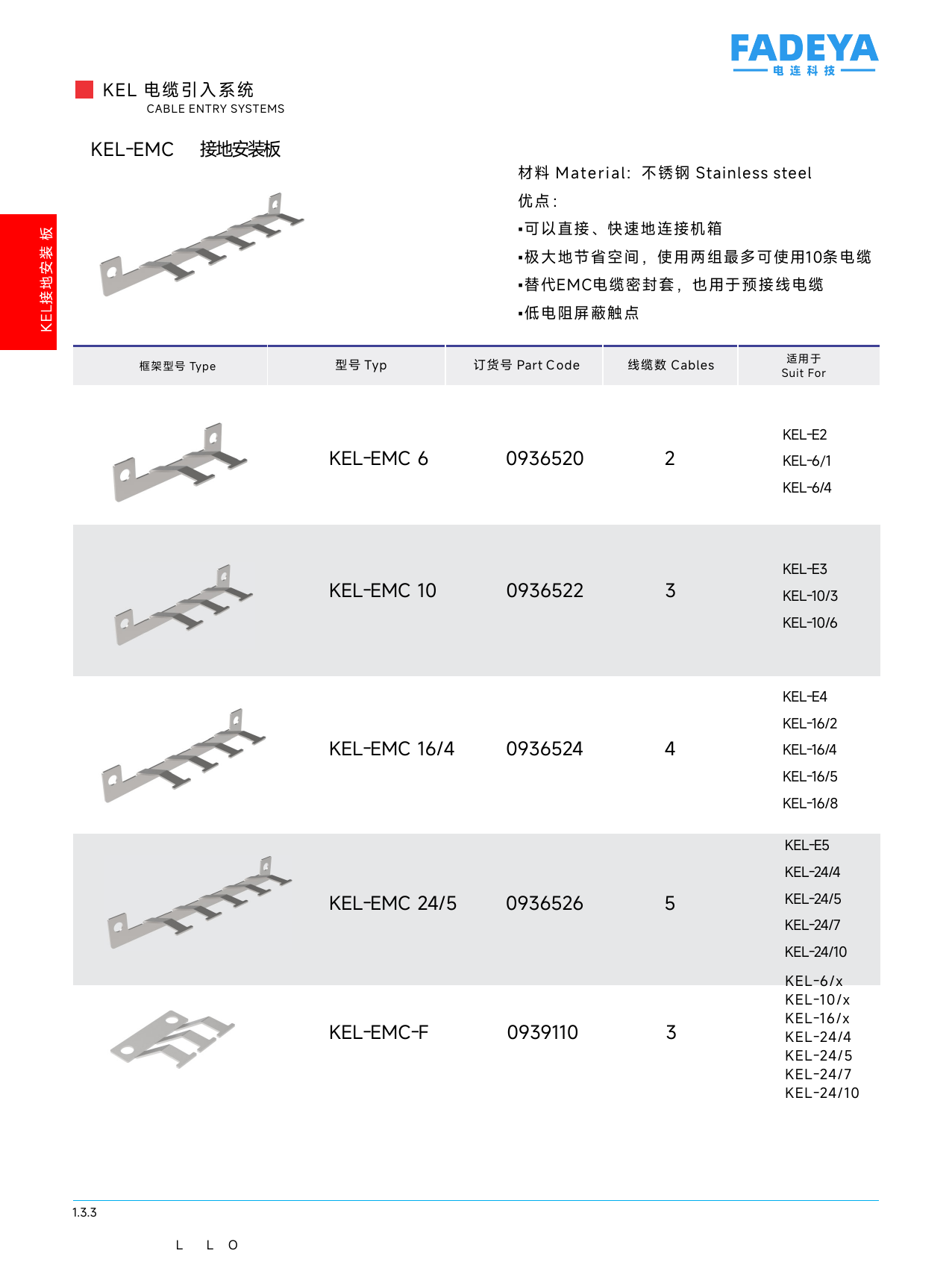

Stainless-steel shielding contact plates that ground installed shielded cables without cutting — direct, low-resistance chassis connection.

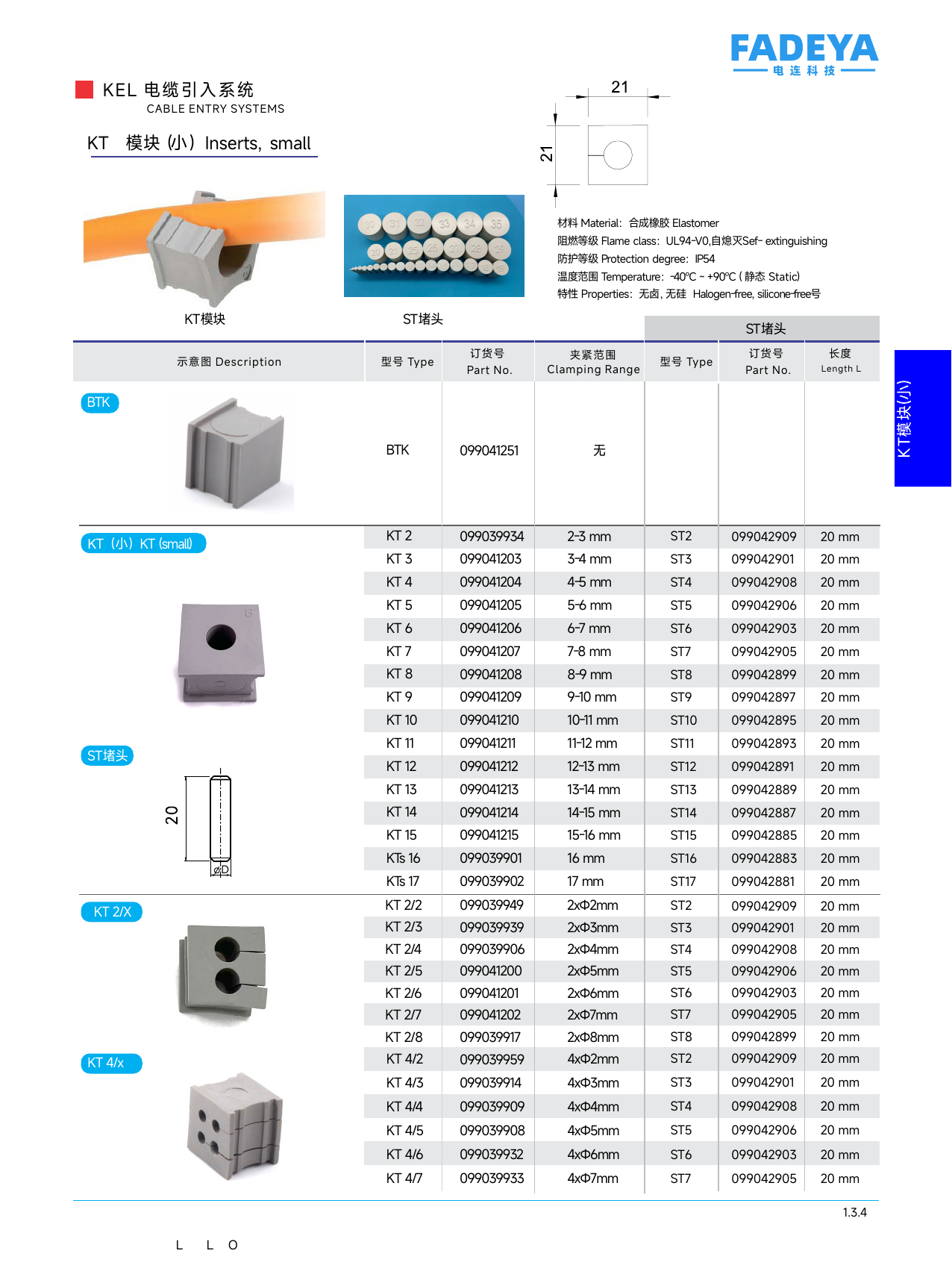

20×20 mm split sealing inserts: single-cable KT 2–17, multi-hole KT 2/x and 4/x, plus BTK frame and ST sealing plugs.

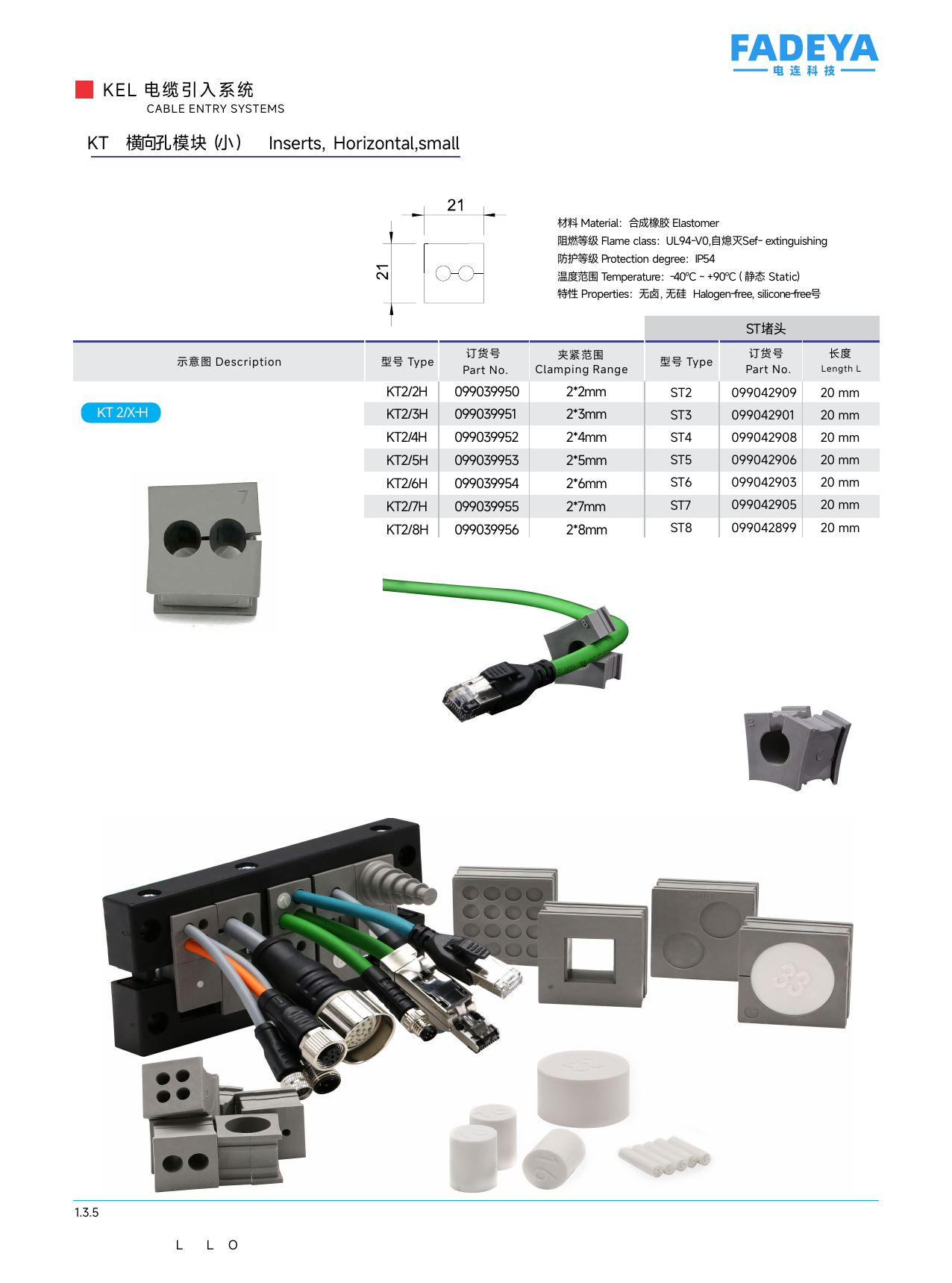

20×20 mm inserts with two side-by-side horizontal holes, for routing flat/twin cables.

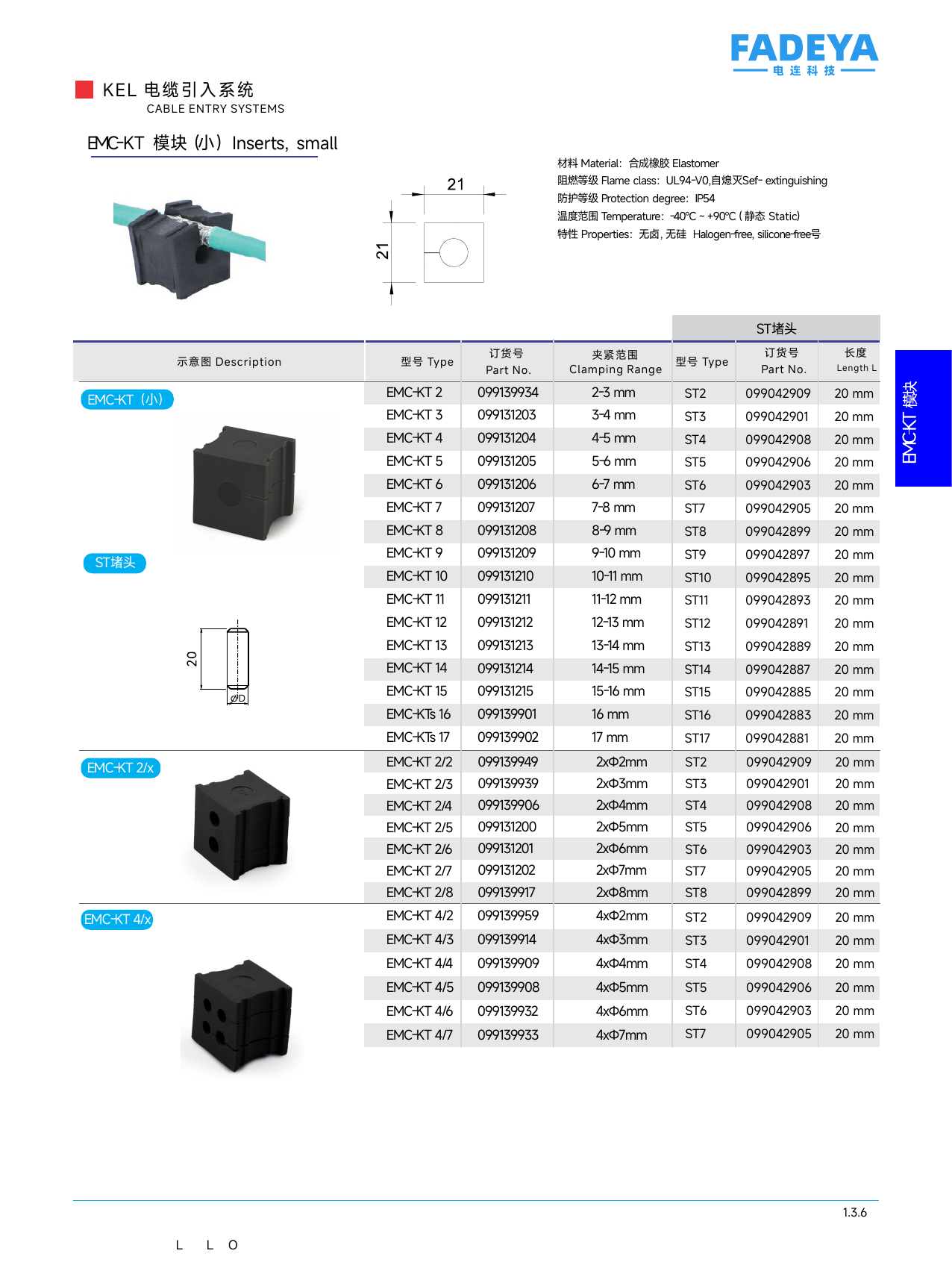

Shielded 20×20 mm inserts (EMC versions of the KT small range) for grounding cable shields at the entry.

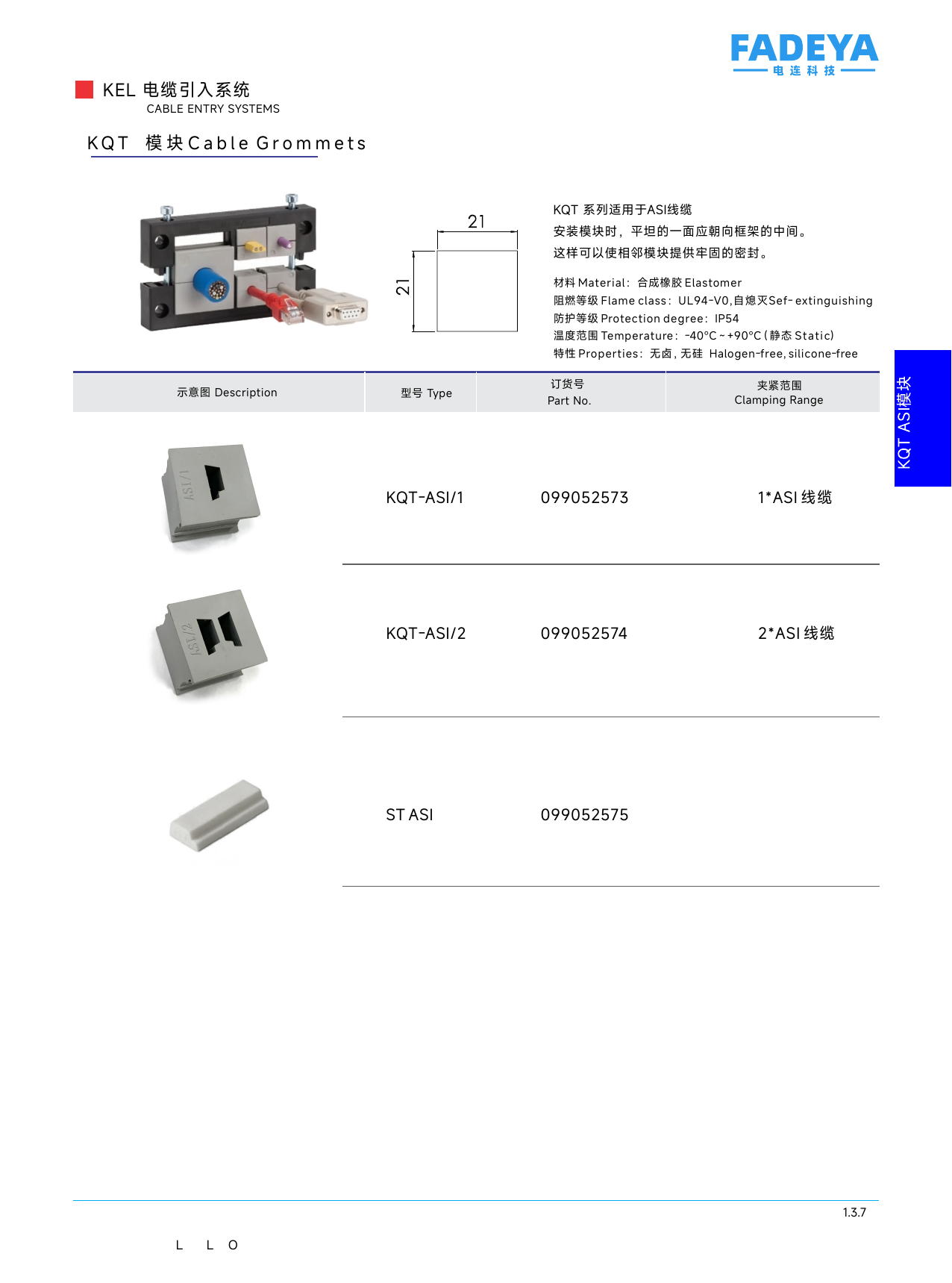

20×20 mm inserts for flat ASI bus cables — 1 or 2 ASI cables; flat face toward frame centre for a tight seal.

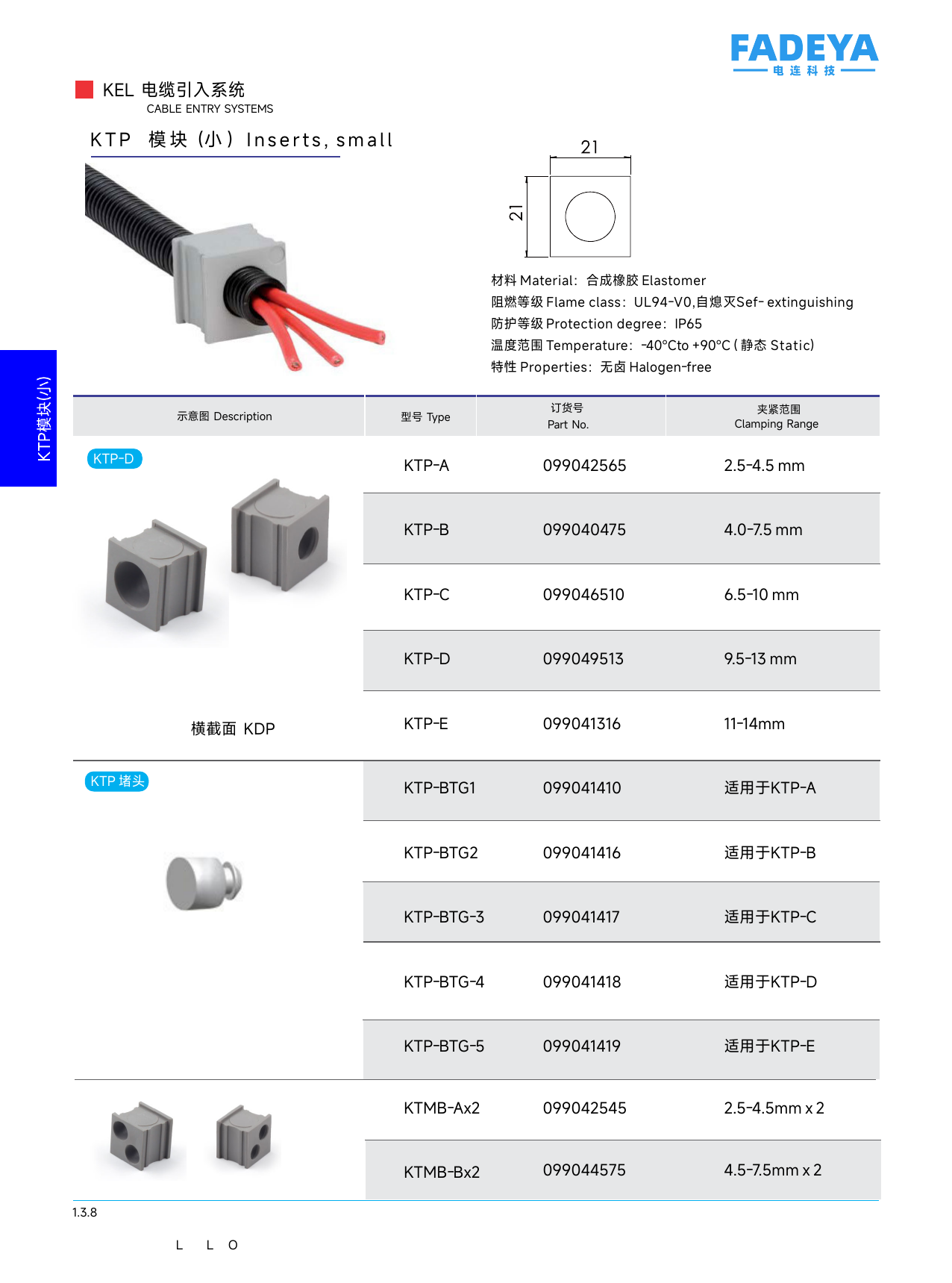

20×20 mm inserts for corrugated conduit, 2.5–14 mm, plus matching dummy plugs and twin-hole KTMB versions. IP65.

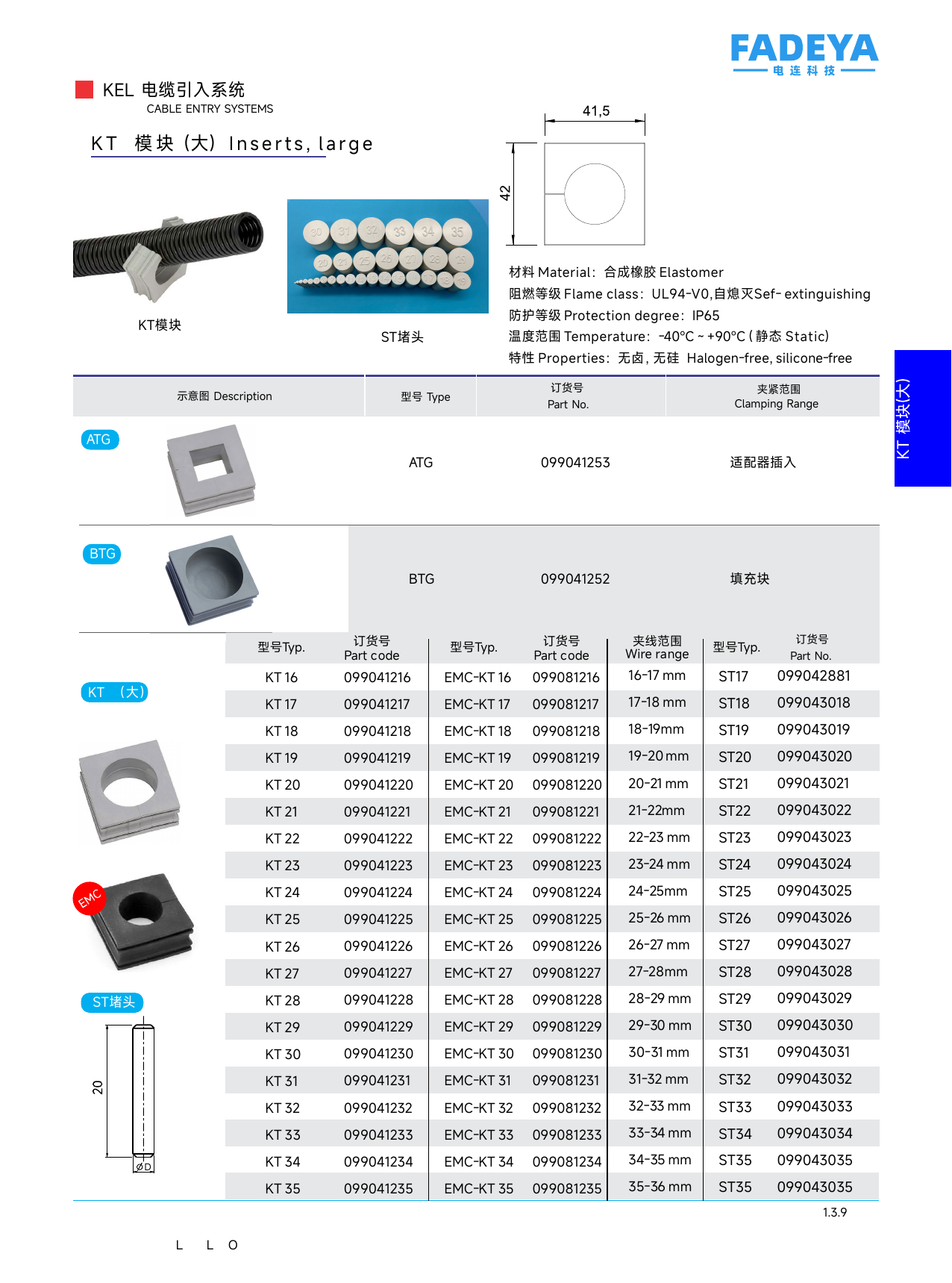

41.5×42 mm split inserts KT 16–35 (16–36 mm), with shielded EMC-KT versions, ATG adapter and BTG filler block. IP65.

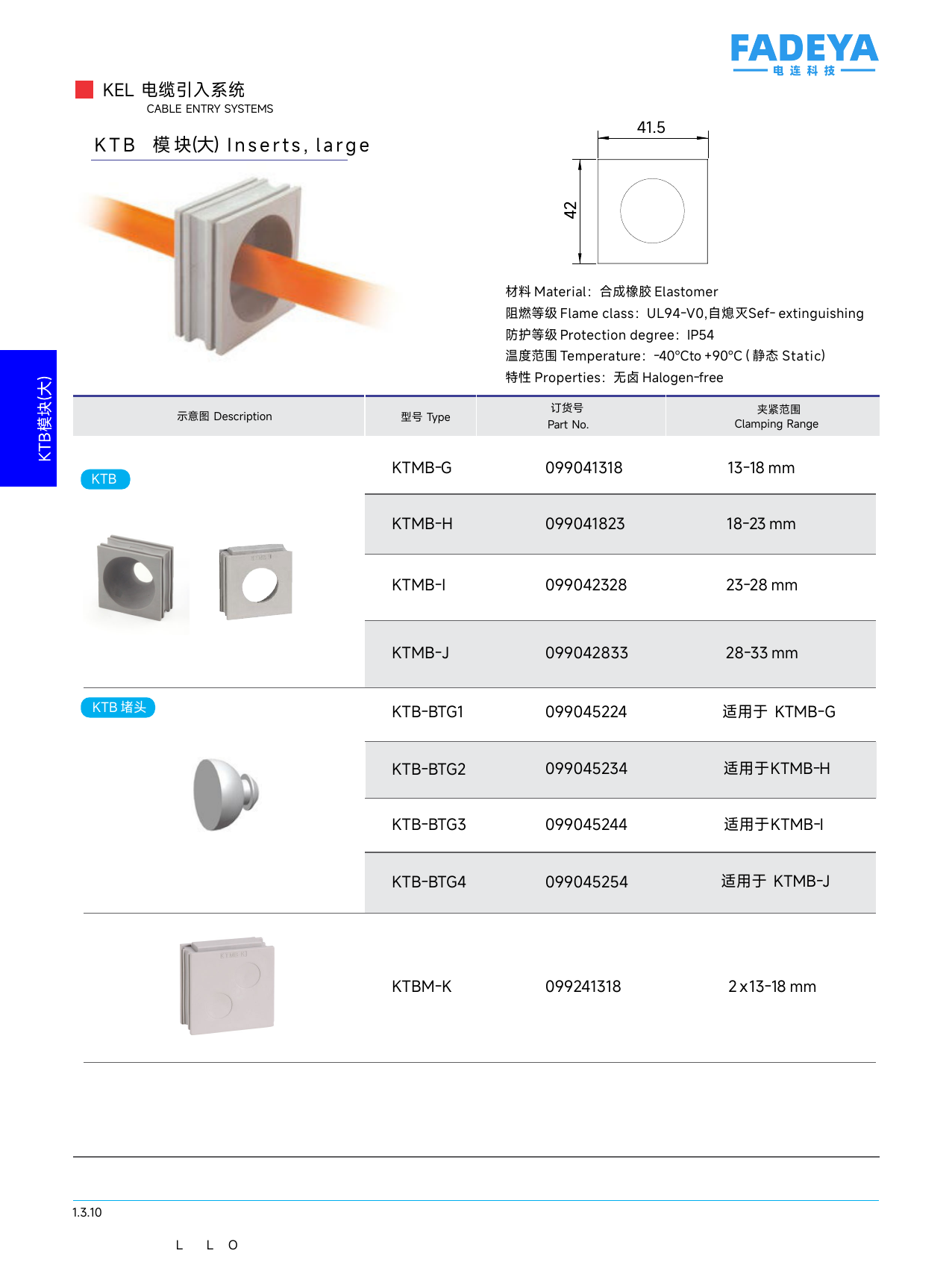

41.5×42 mm conduit inserts 13–33 mm, with matching dummy plugs and twin-hole KTBM-K. IP54.

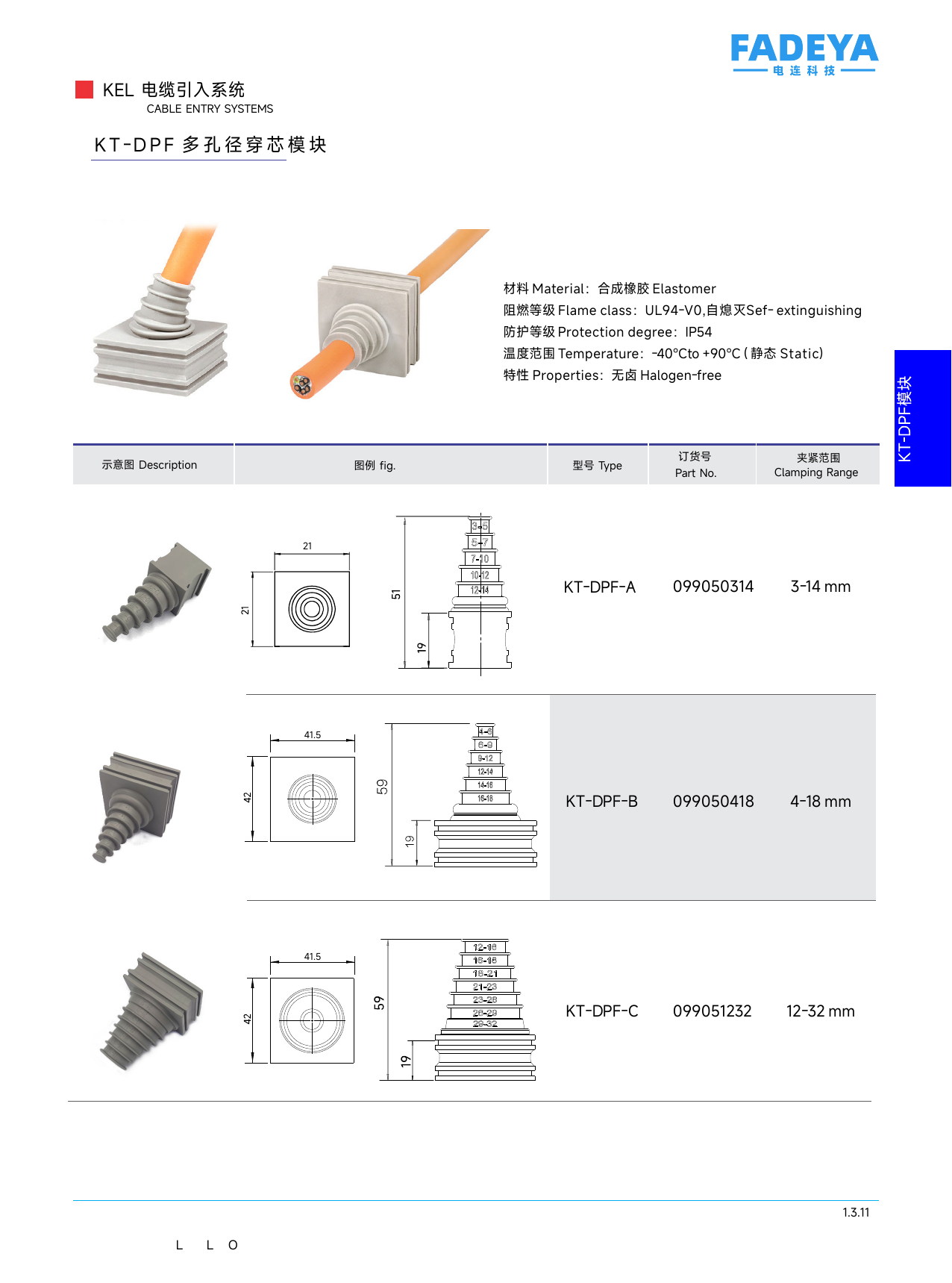

Tower-form inserts cut to the cable OD (3–32 mm) for the 20×20 and 40×40 module openings.

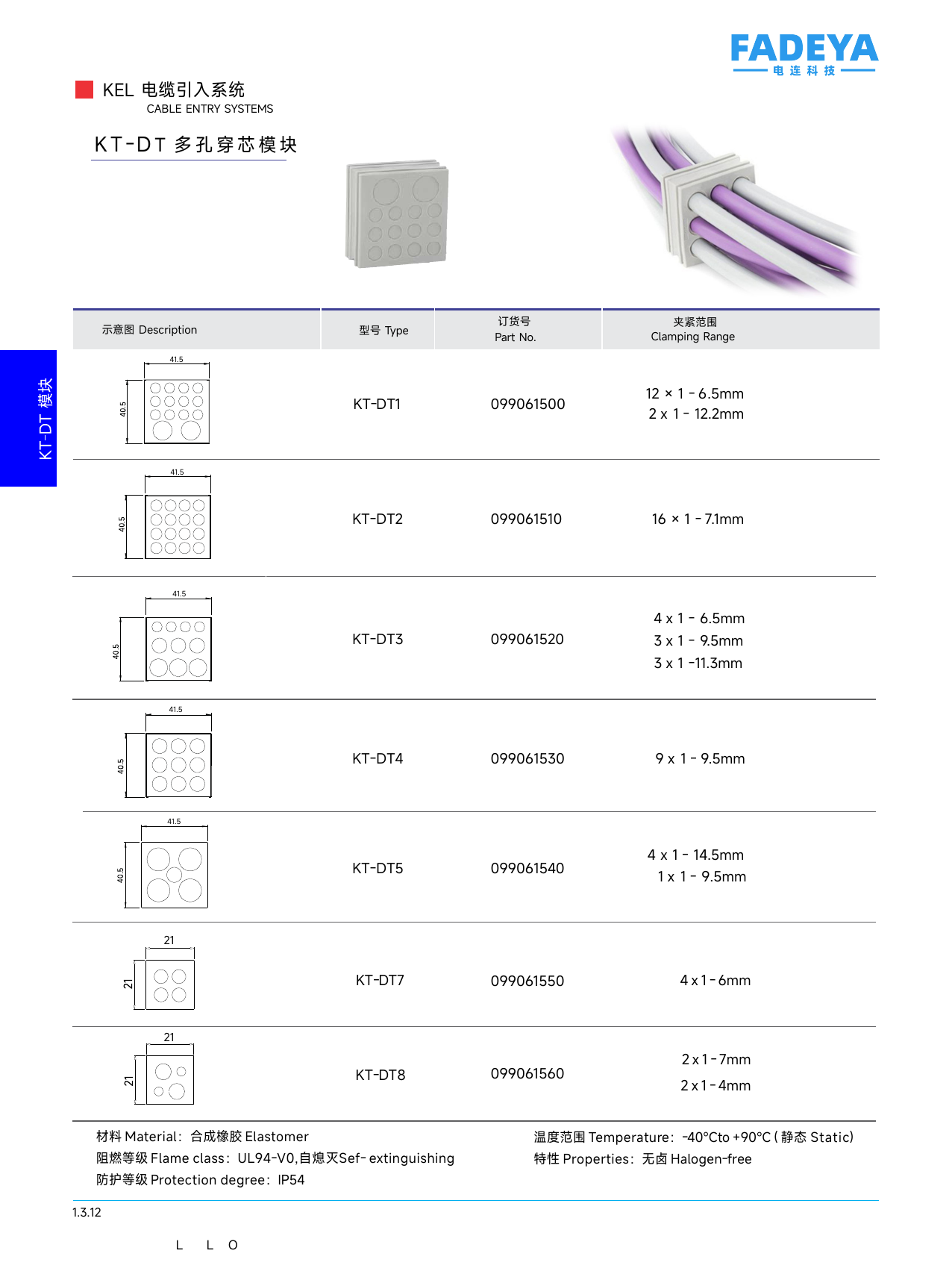

Multi-hole grommet inserts (up to 16 holes per module) for routing many small cables through one opening.

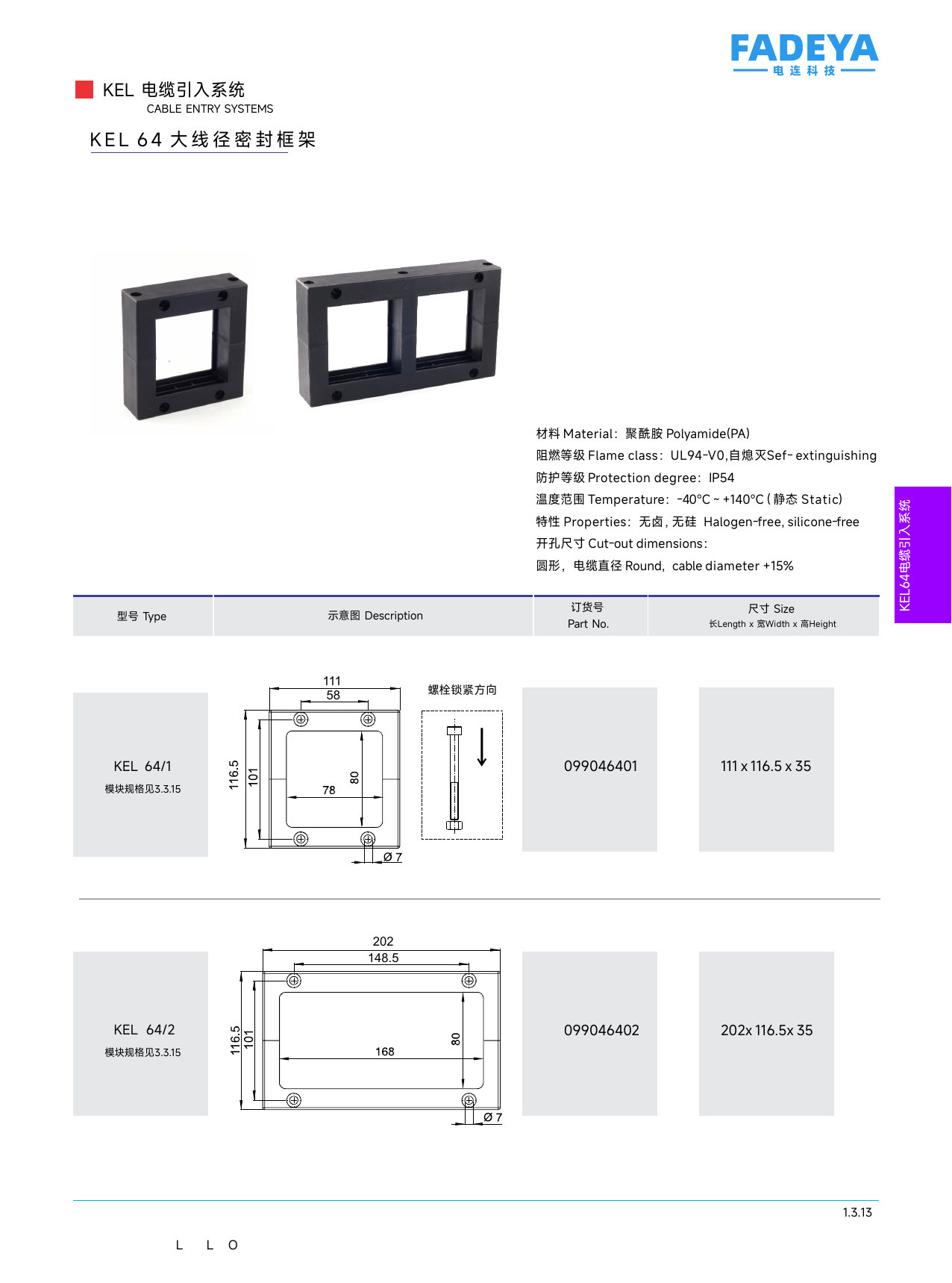

Large round-cable sealing frames (1 or 2 openings) for big cable diameters, used with KTF bellows/cable modules. Cut-out = cable diameter +15%.

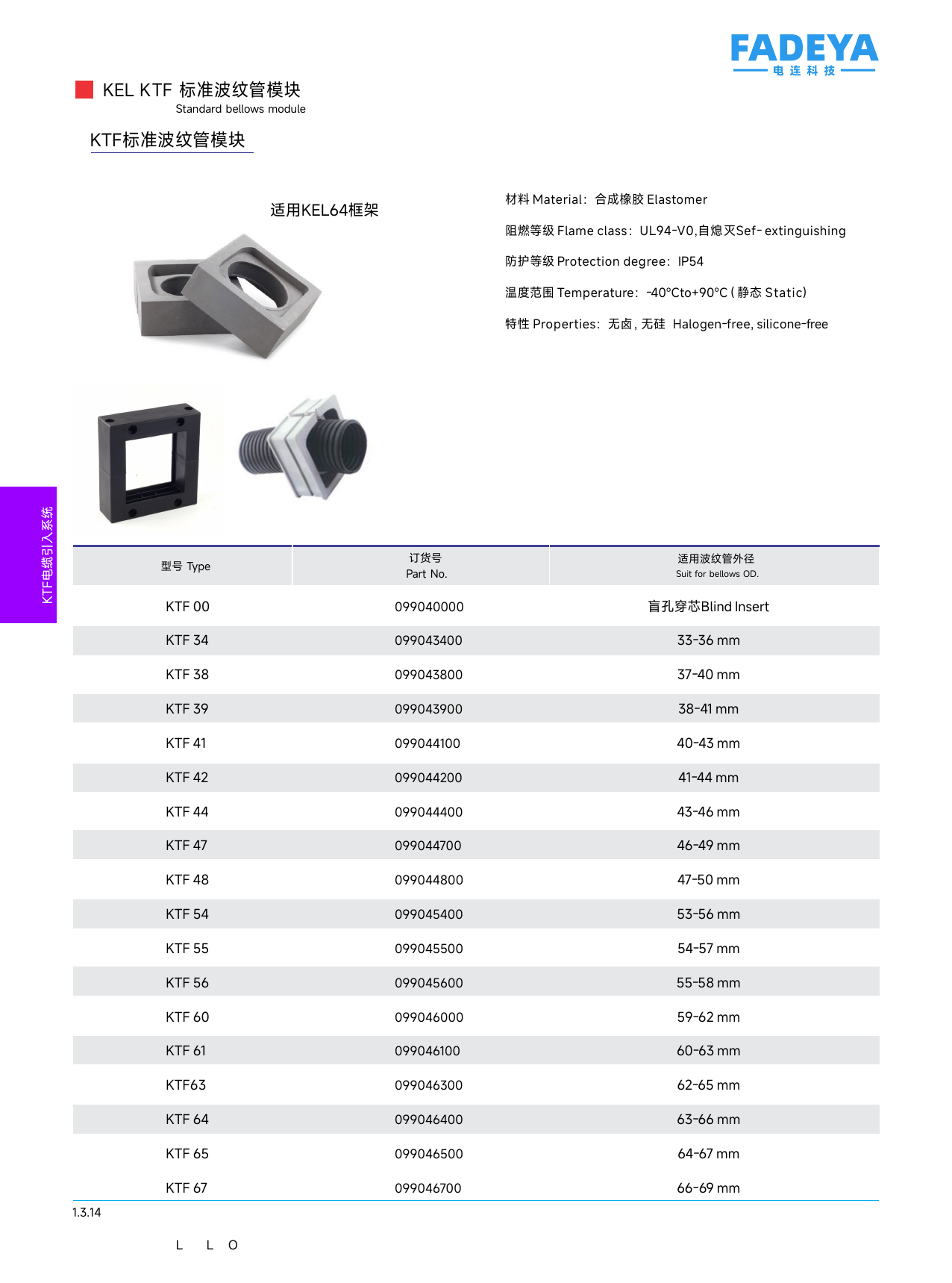

Bellows-tube modules for the KEL-64 frame, suiting corrugated-conduit OD 33–69 mm (plus blind insert).

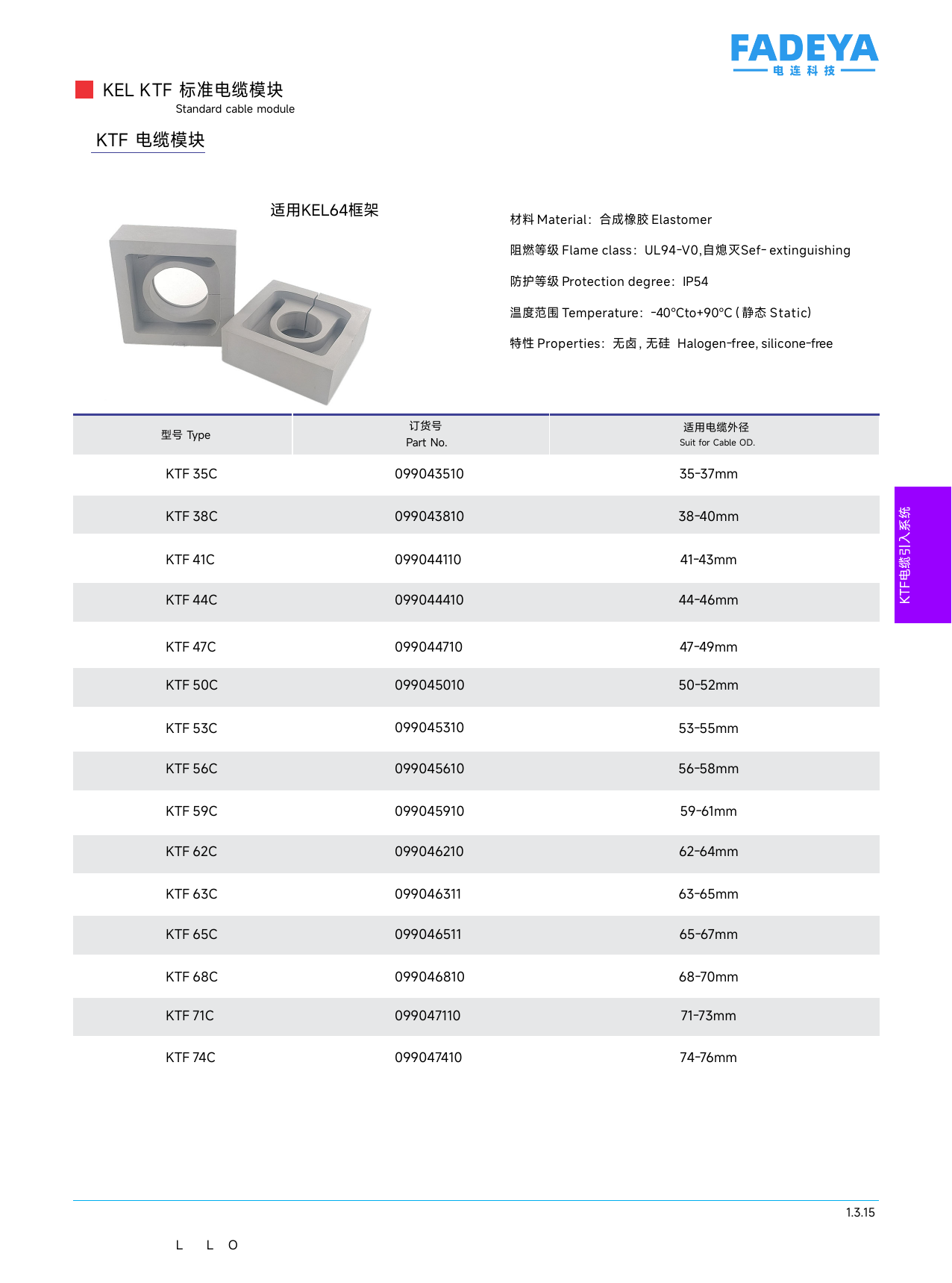

Solid cable modules for the KEL-64 frame, suiting cable OD 35–76 mm.

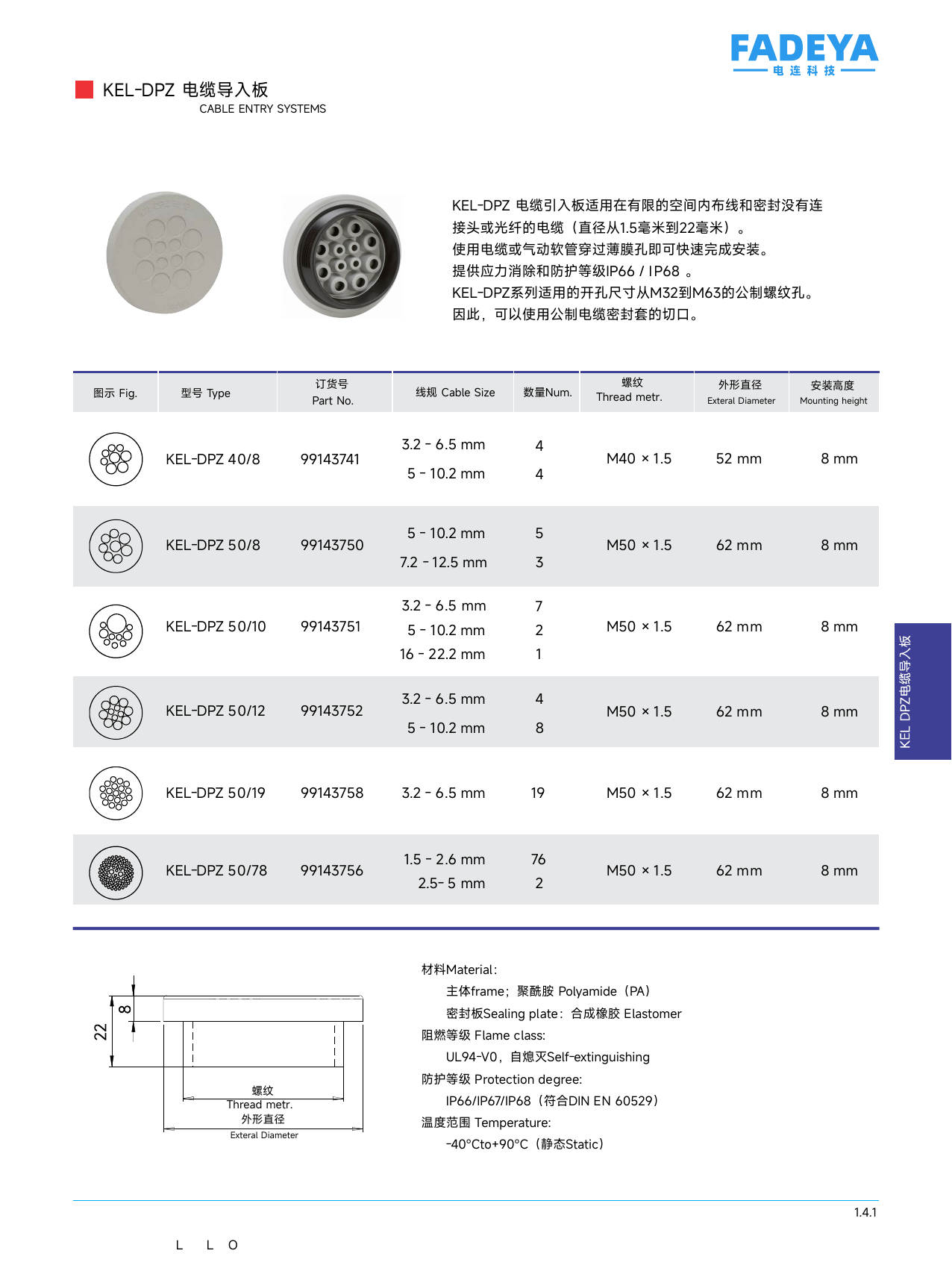

Threaded round membrane plates for high-density routing of standard cables/fibres (1.5–22 mm) in M40/M50 cut-outs. IP66/67/68.

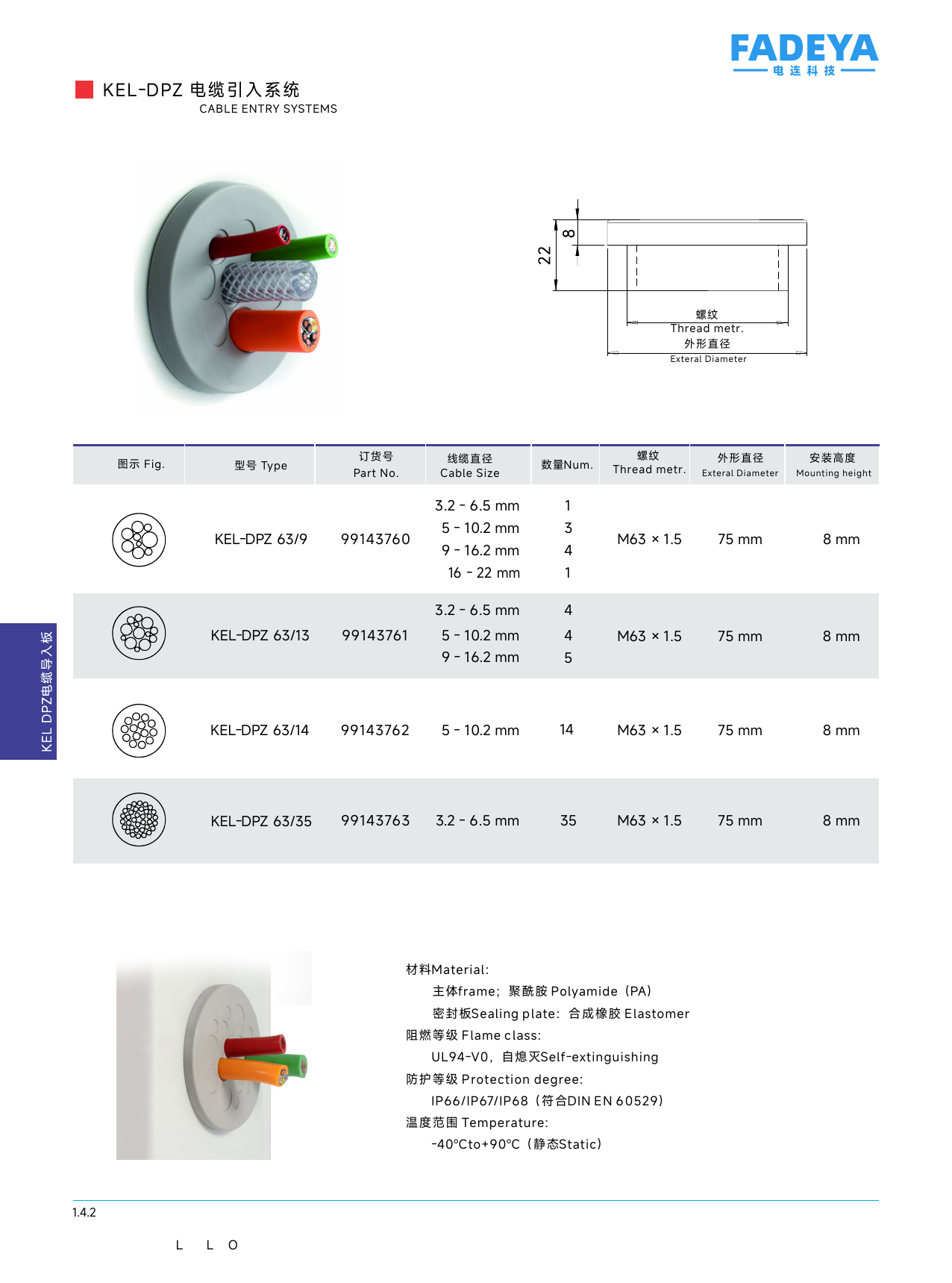

Large M63 threaded round plates, 9–35 openings, for dense multi-cable routing. IP66/67/68.

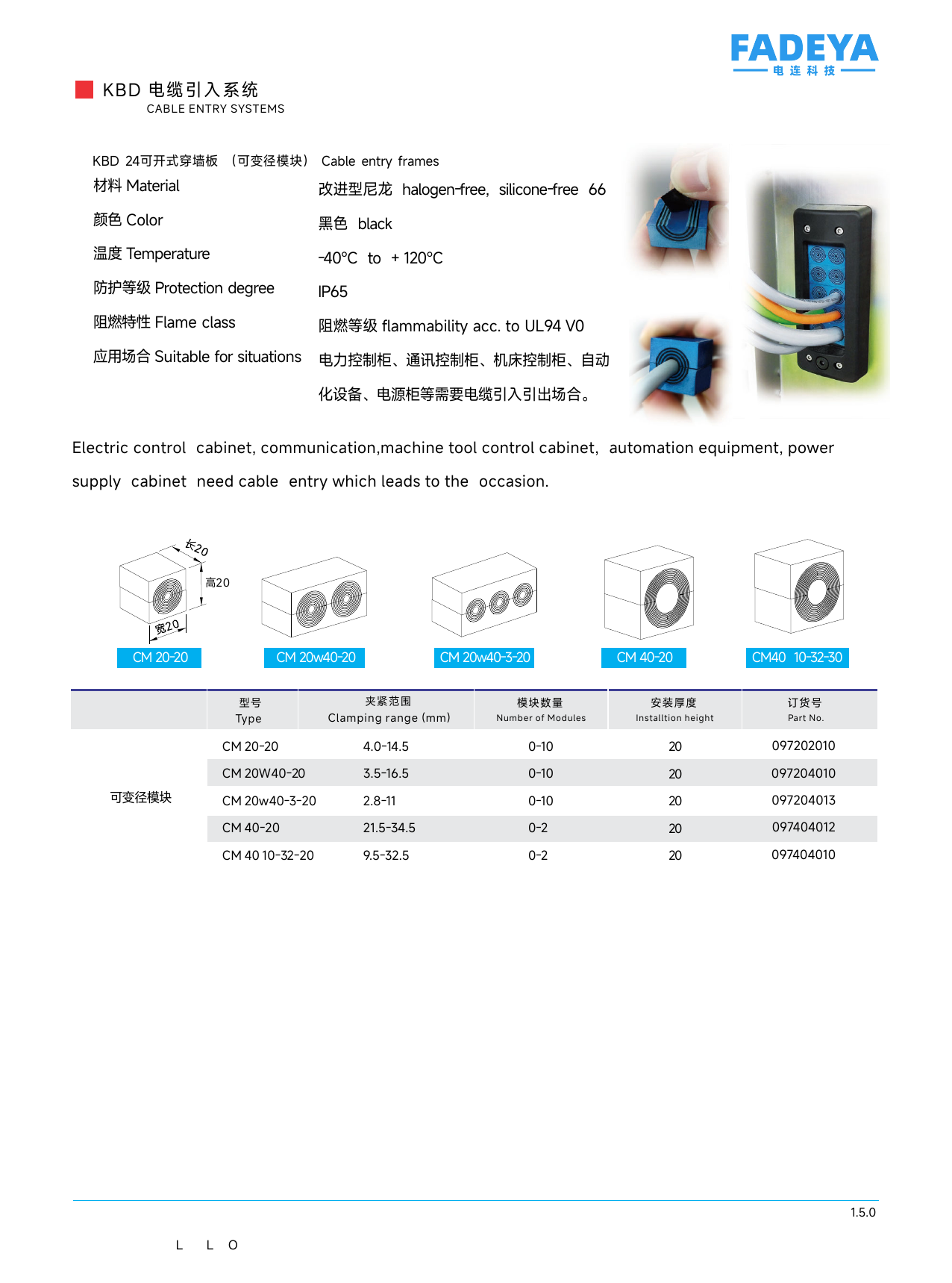

Peel-layer variable-diameter modules (20 mm height) for KBD frames, clamping 2.8–34.5 mm.

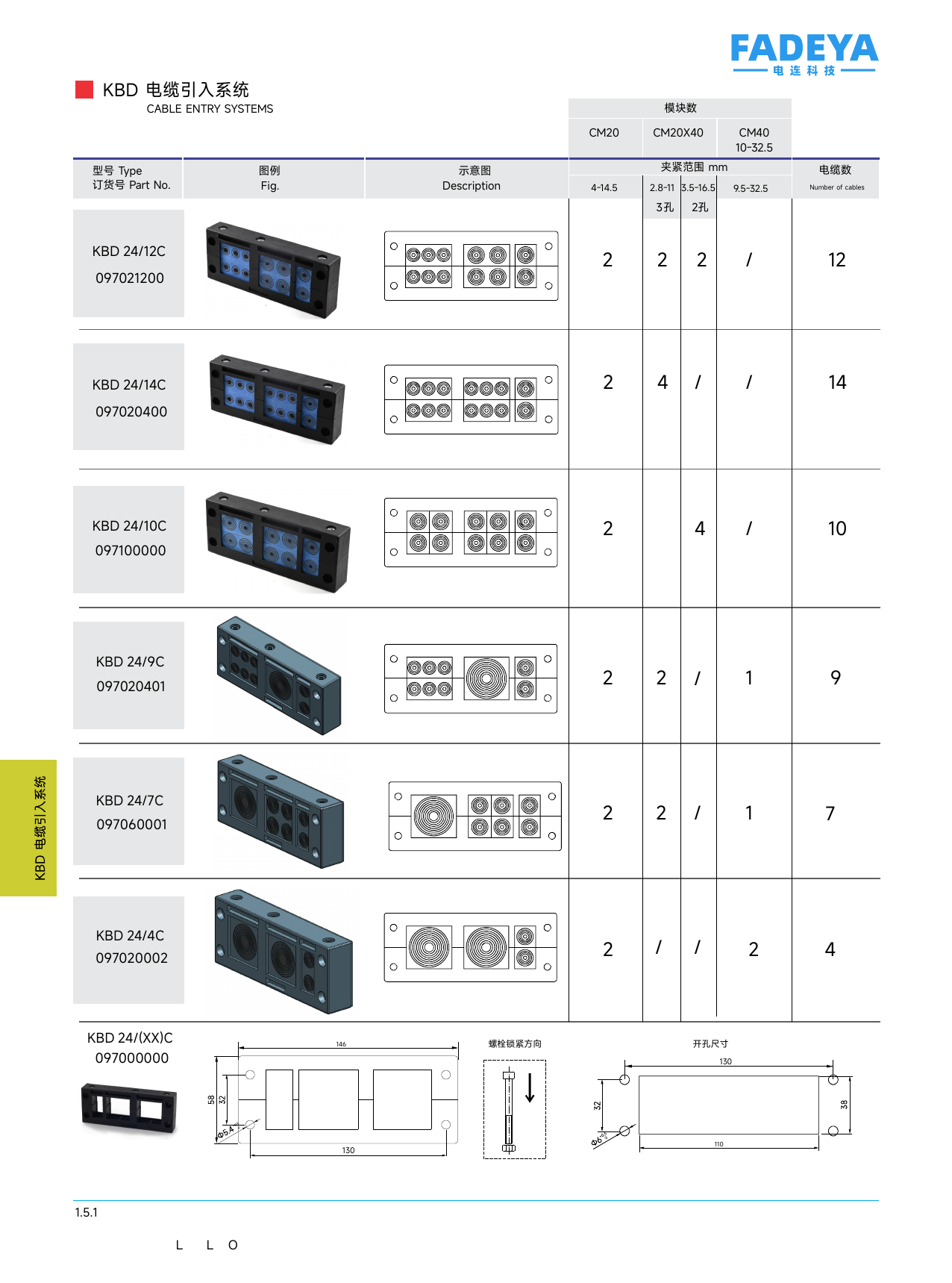

Openable wall plates on the 24-cut-out (110 × 32 mm), holding 4–14 variable-diameter CM modules. Empty frame available.

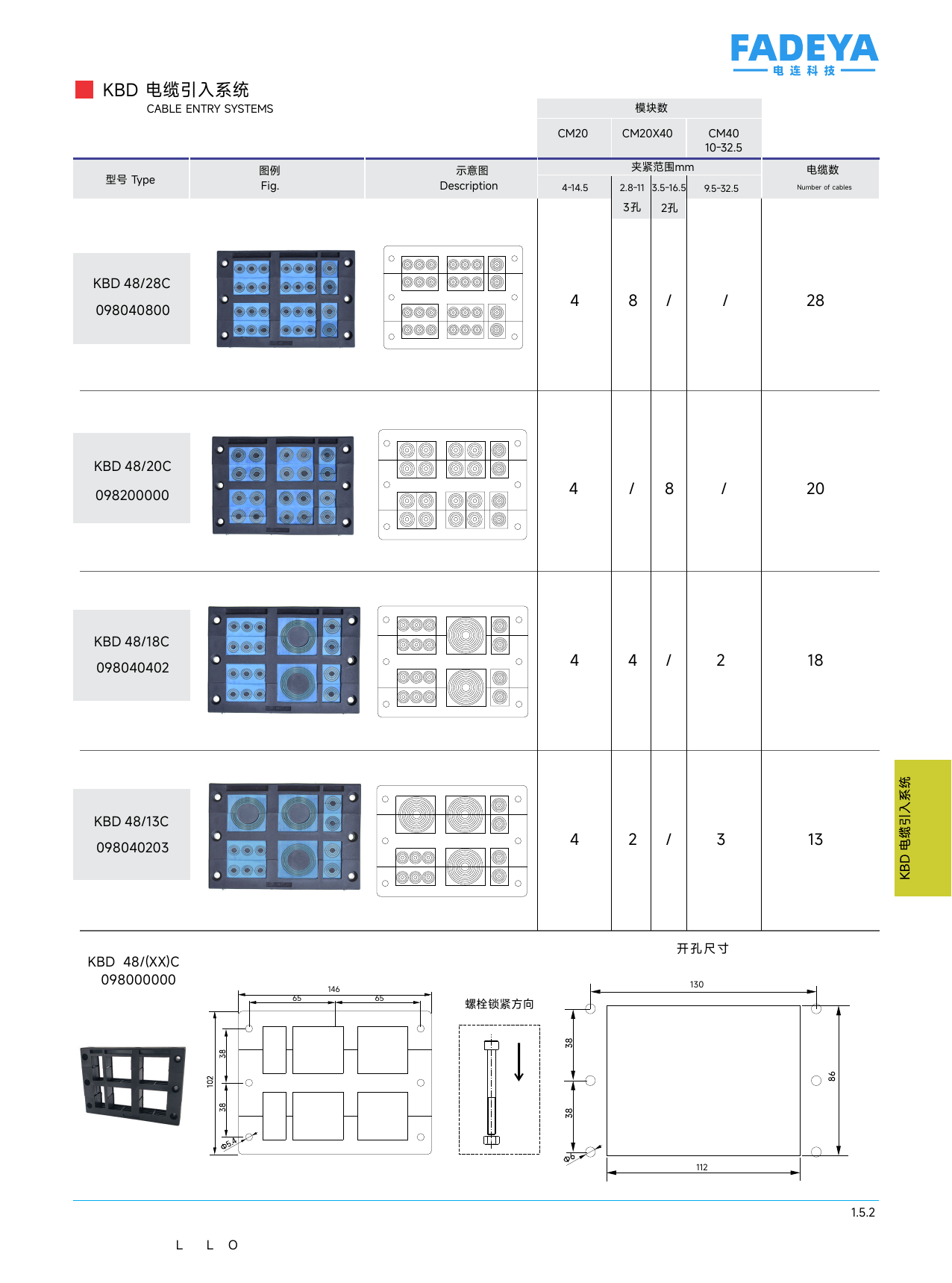

Larger double-row variable-diameter frames (112 × 86 mm cut-out), 13–28 cables. Empty frame available.

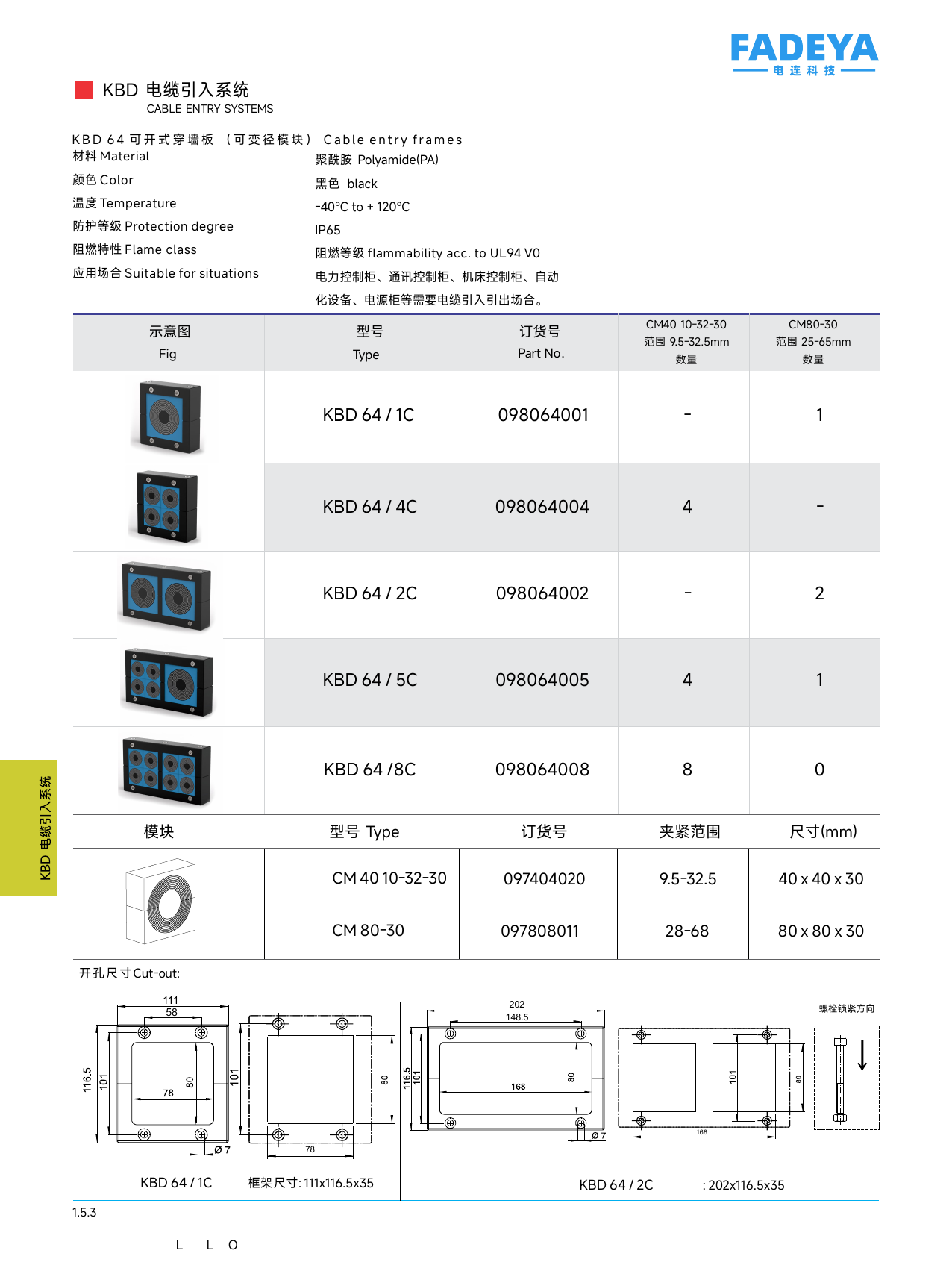

Heavy-duty variable-diameter frames (111 or 202 mm) with large CM 40 and CM 80 modules for big cables/pipes up to 68 mm.

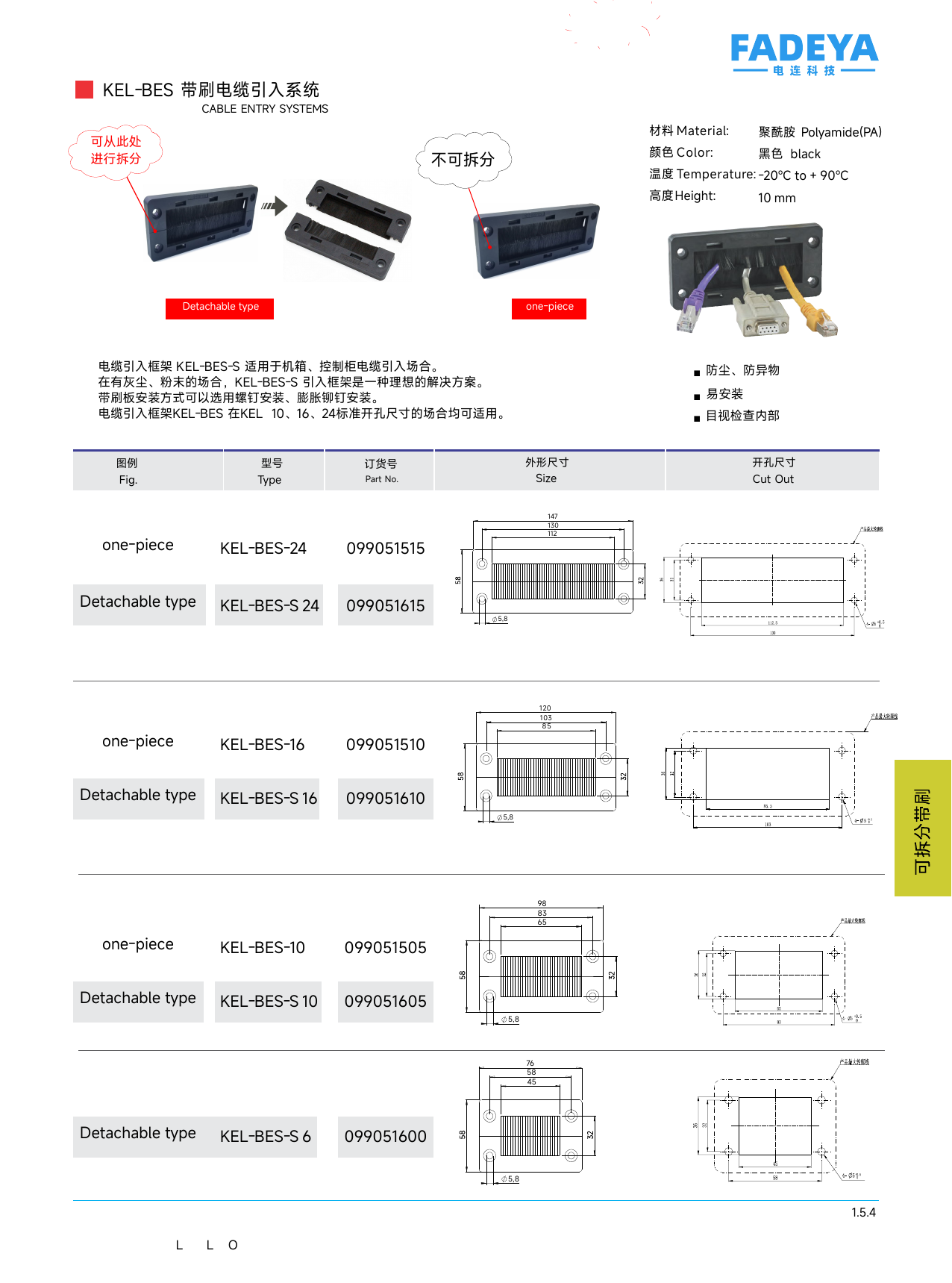

Brush-strip entry frames for dusty/powder environments, matching KEL-10/16/24 standard cut-outs. One-piece or detachable (-S). 10 mm height.

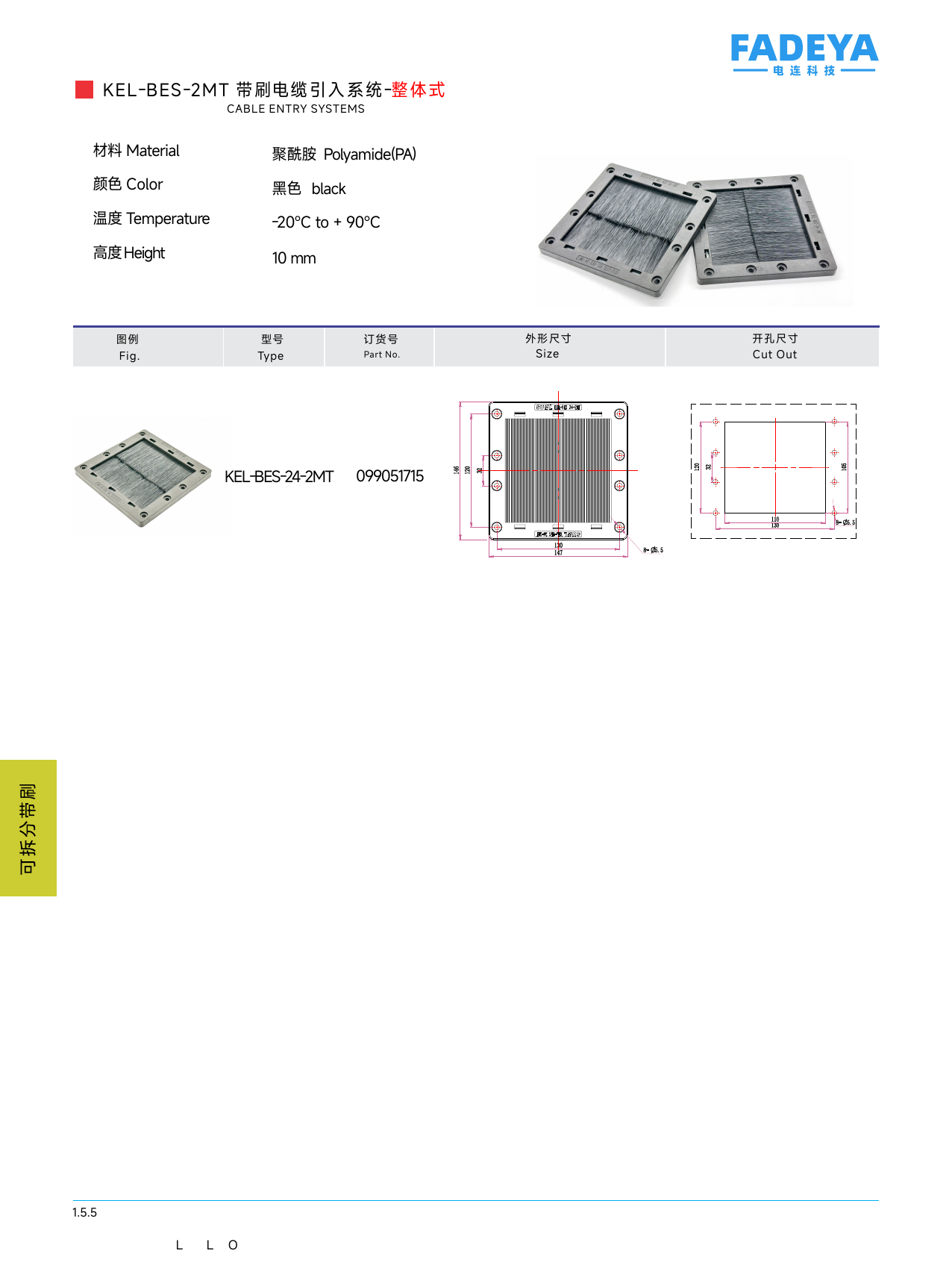

Large one-piece double-row brush entry frame on the KEL-24 footprint.

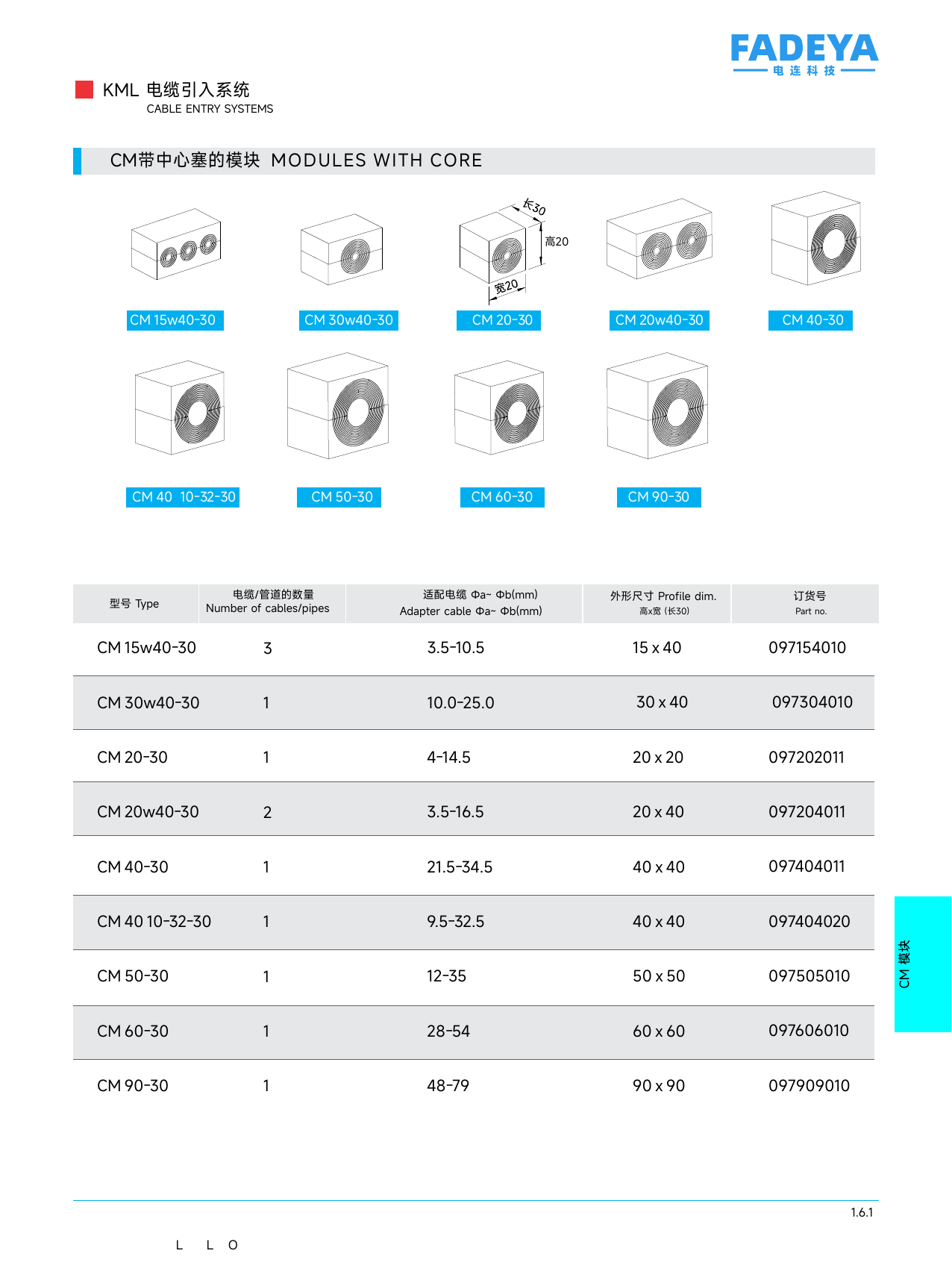

Variable-diameter core modules (30 mm height) for KML frames, sealing cables/pipes 3.5–79 mm; keep the core in as a spare for future capacity.

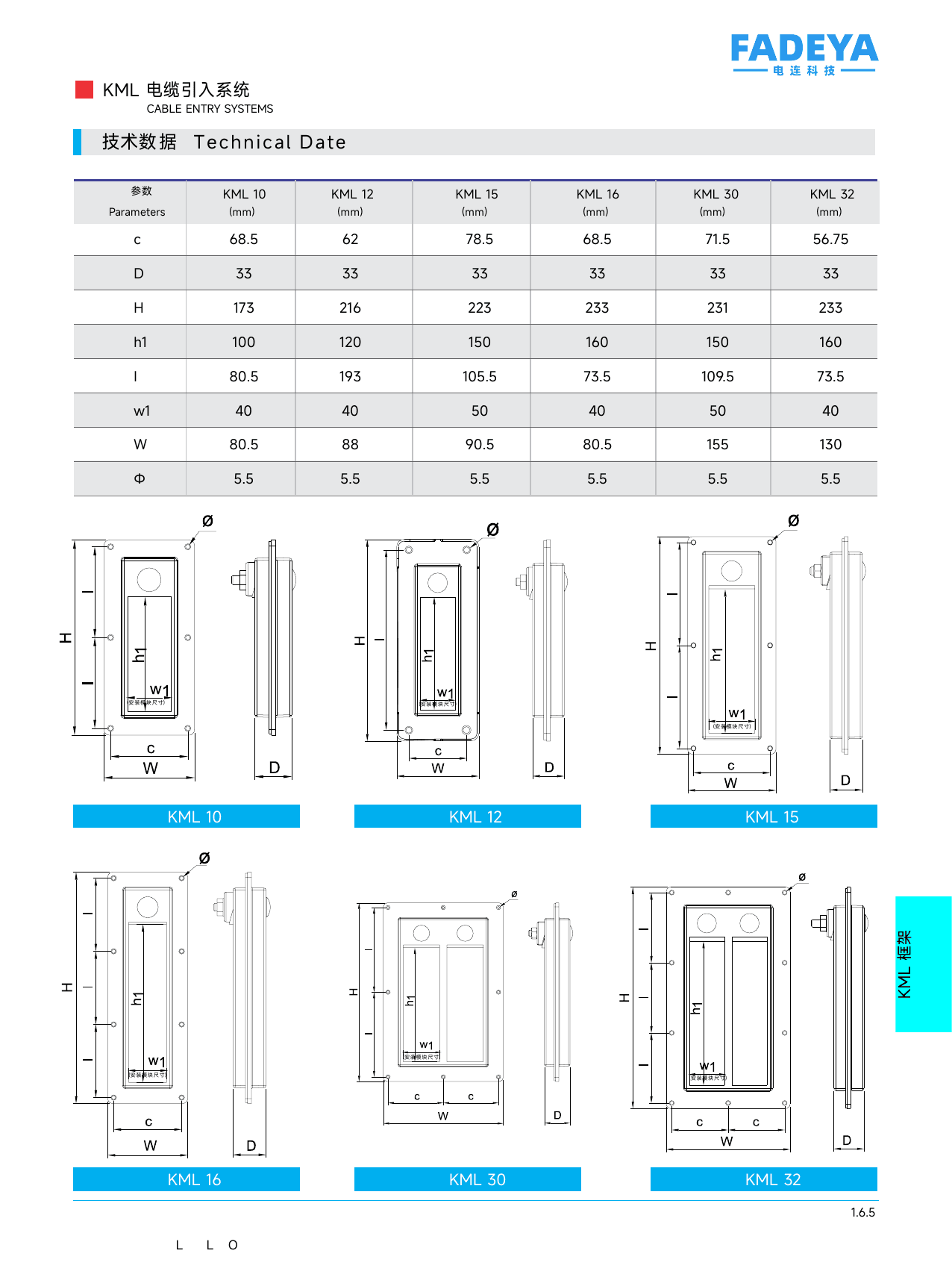

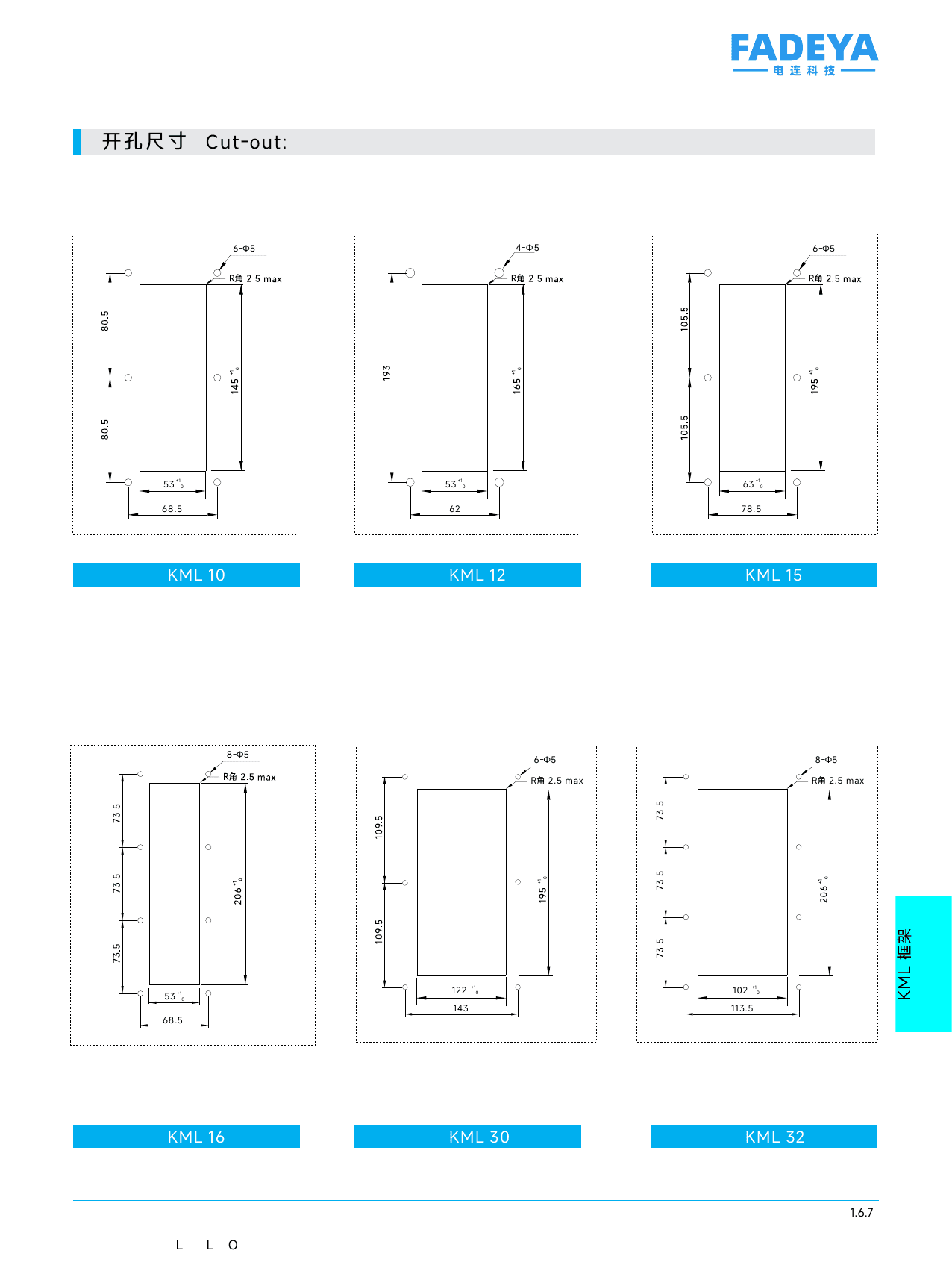

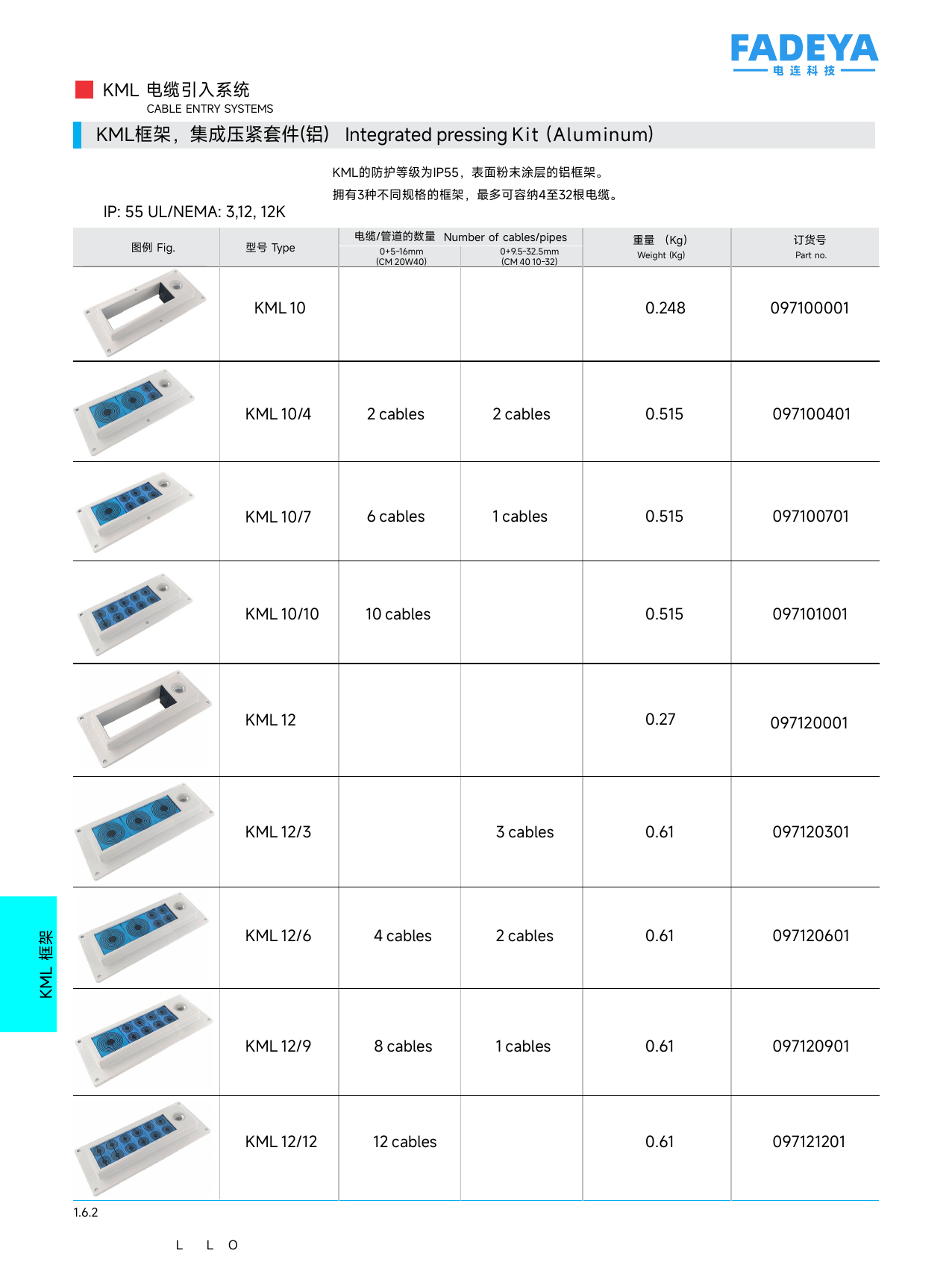

Powder-coated aluminium frames with integrated pressing kit, holding up to 10 (KML 10) or 12 (KML 12) cables. IP55, UL/NEMA 3/12/12K.

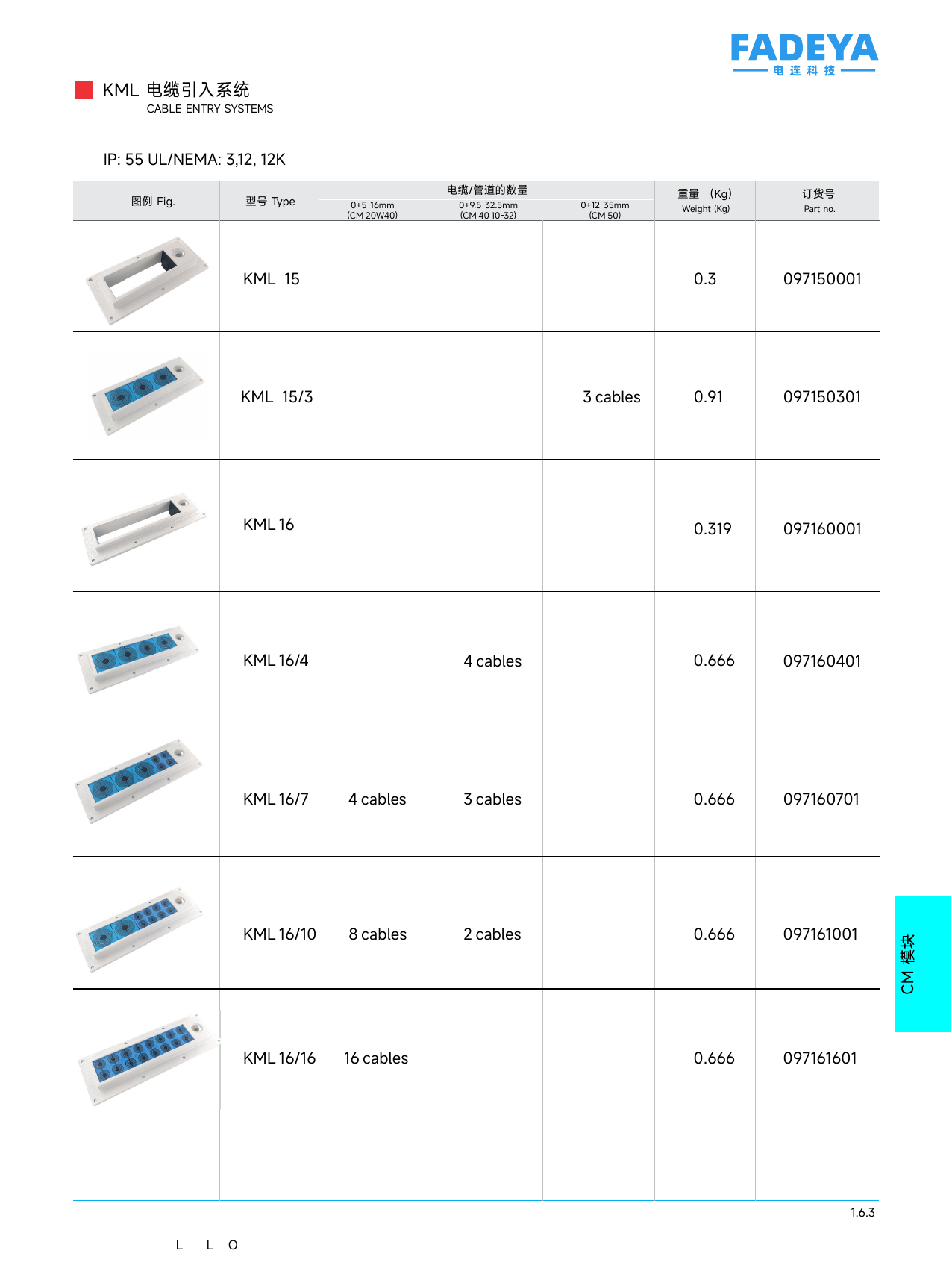

Aluminium frames for up to 3 large (KML 15) or 16 (KML 16) cables, with CM 20W40 / CM 40 / CM 50 modules. IP55.

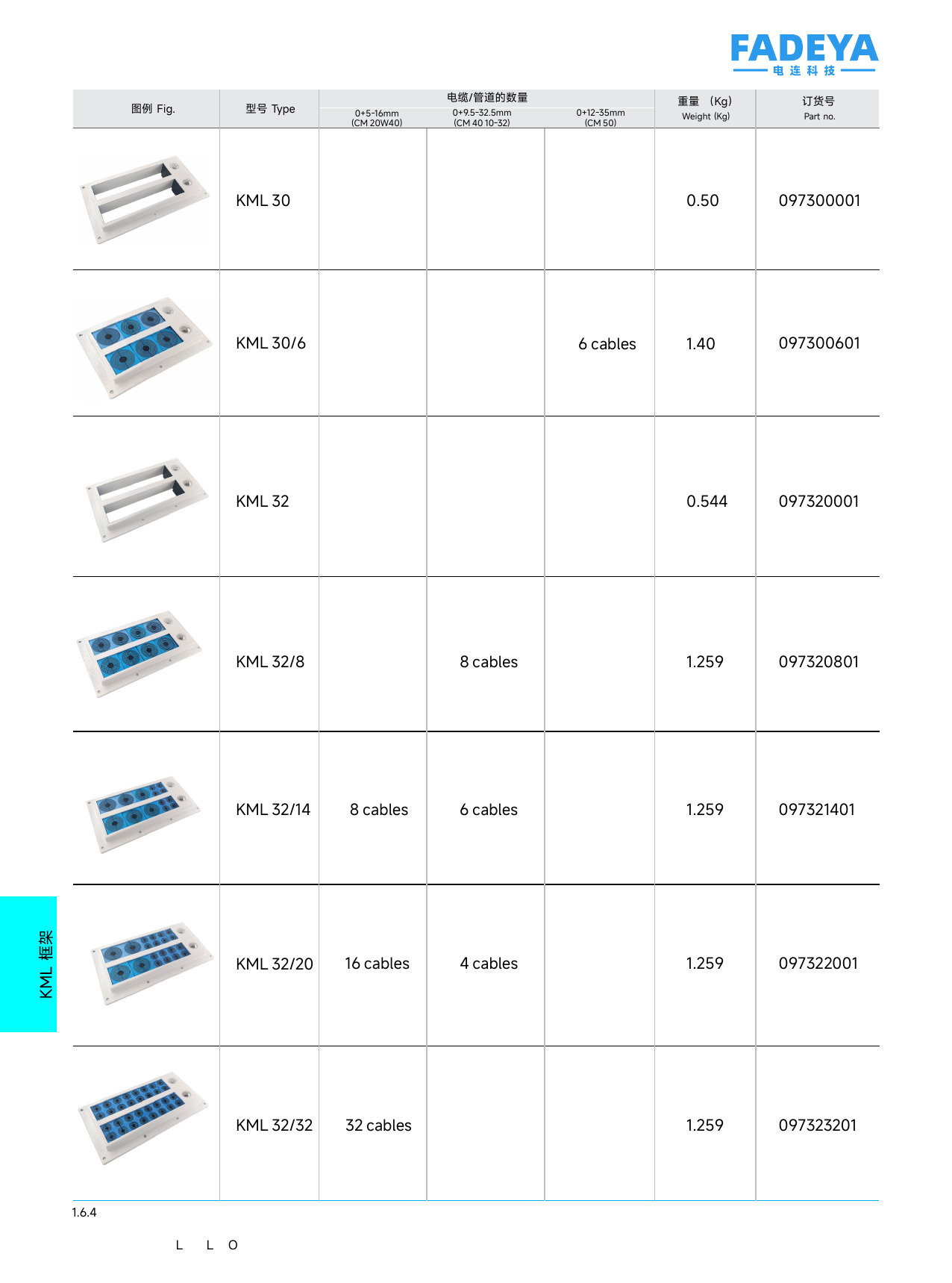

Largest aluminium frames, up to 6 large (KML 30) or 32 (KML 32) cables. IP55, UL/NEMA 3/12/12K.

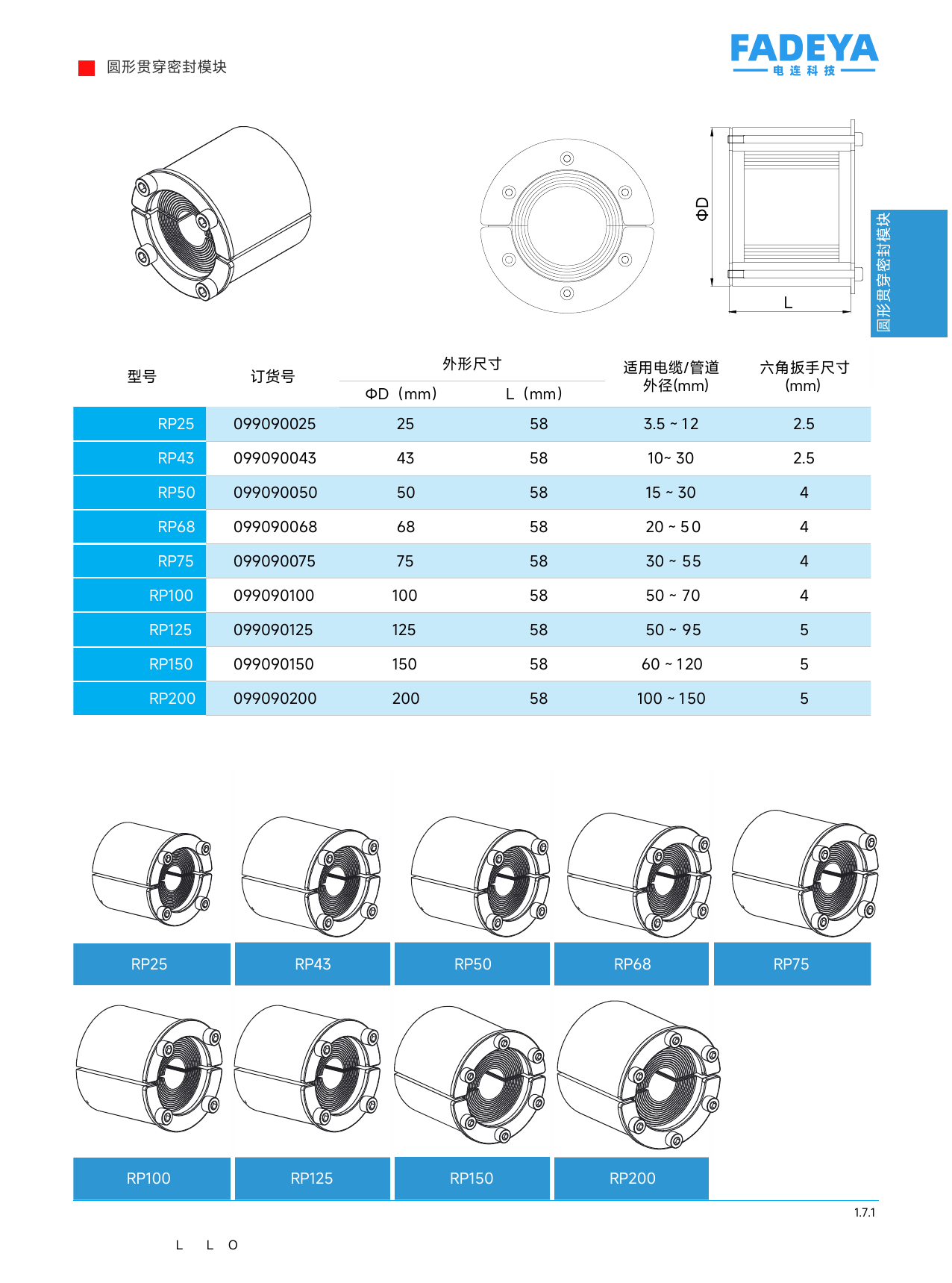

Split round through-seals (Ø25–200 mm) for sealing a single cable/pipe through a round opening, 3.5–150 mm OD. 58 mm depth.

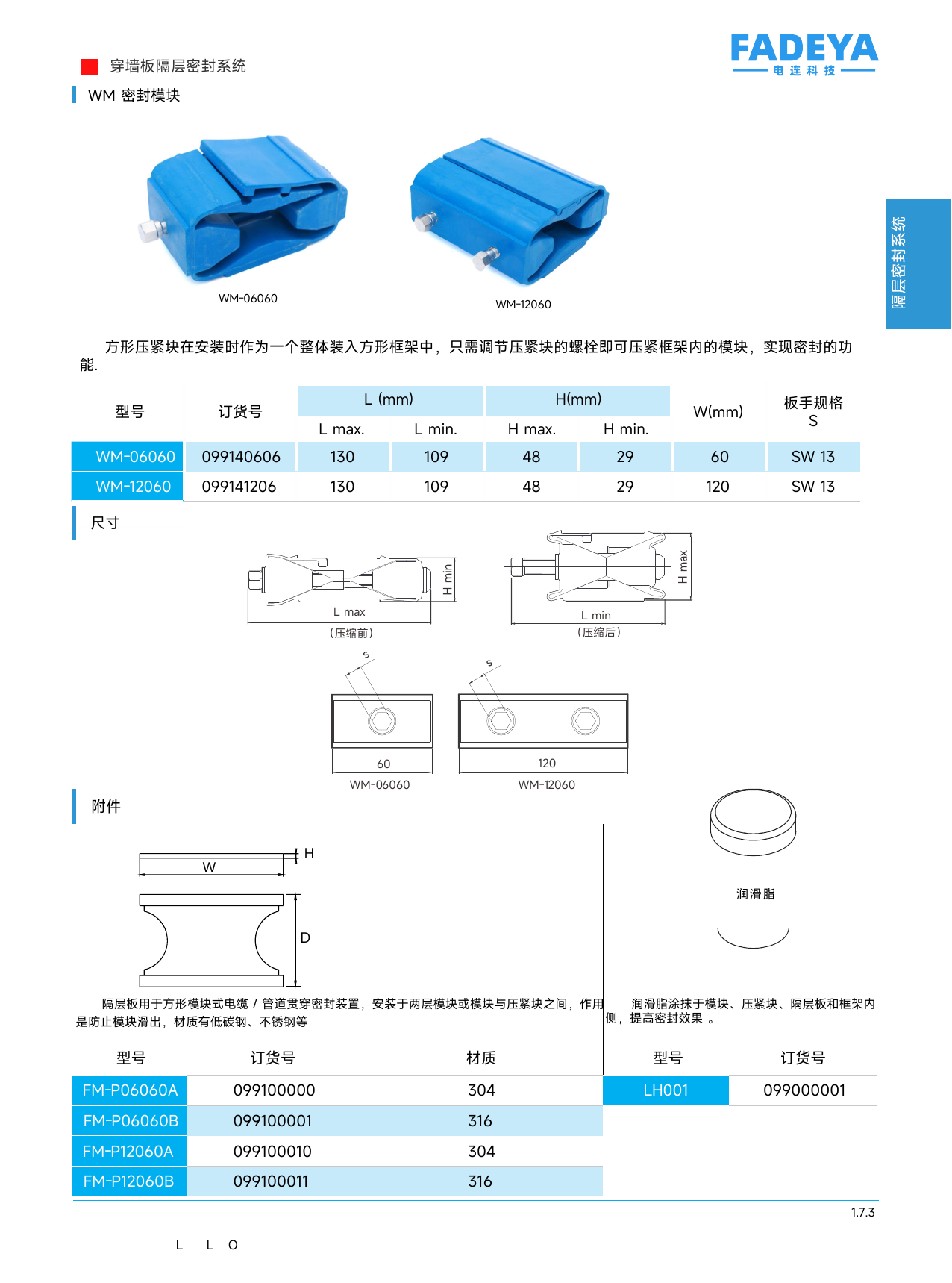

Square compression blocks (single bolt to compress modules in a frame), plus stayplates (304/316) and lubricant.

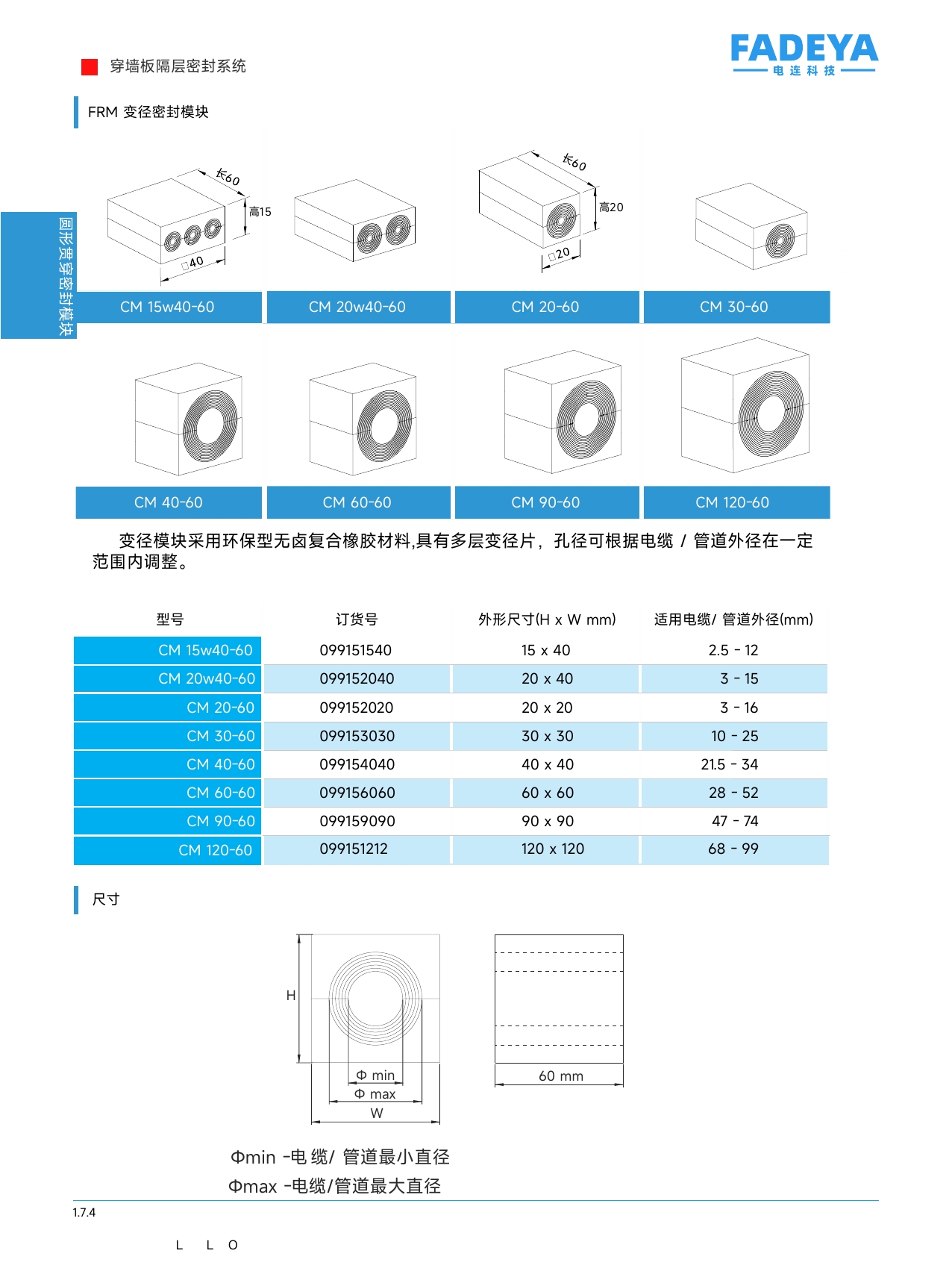

Halogen-free peel-layer transit modules (60 mm depth) for cables/pipes 2.5–99 mm, used in the FM frame system.

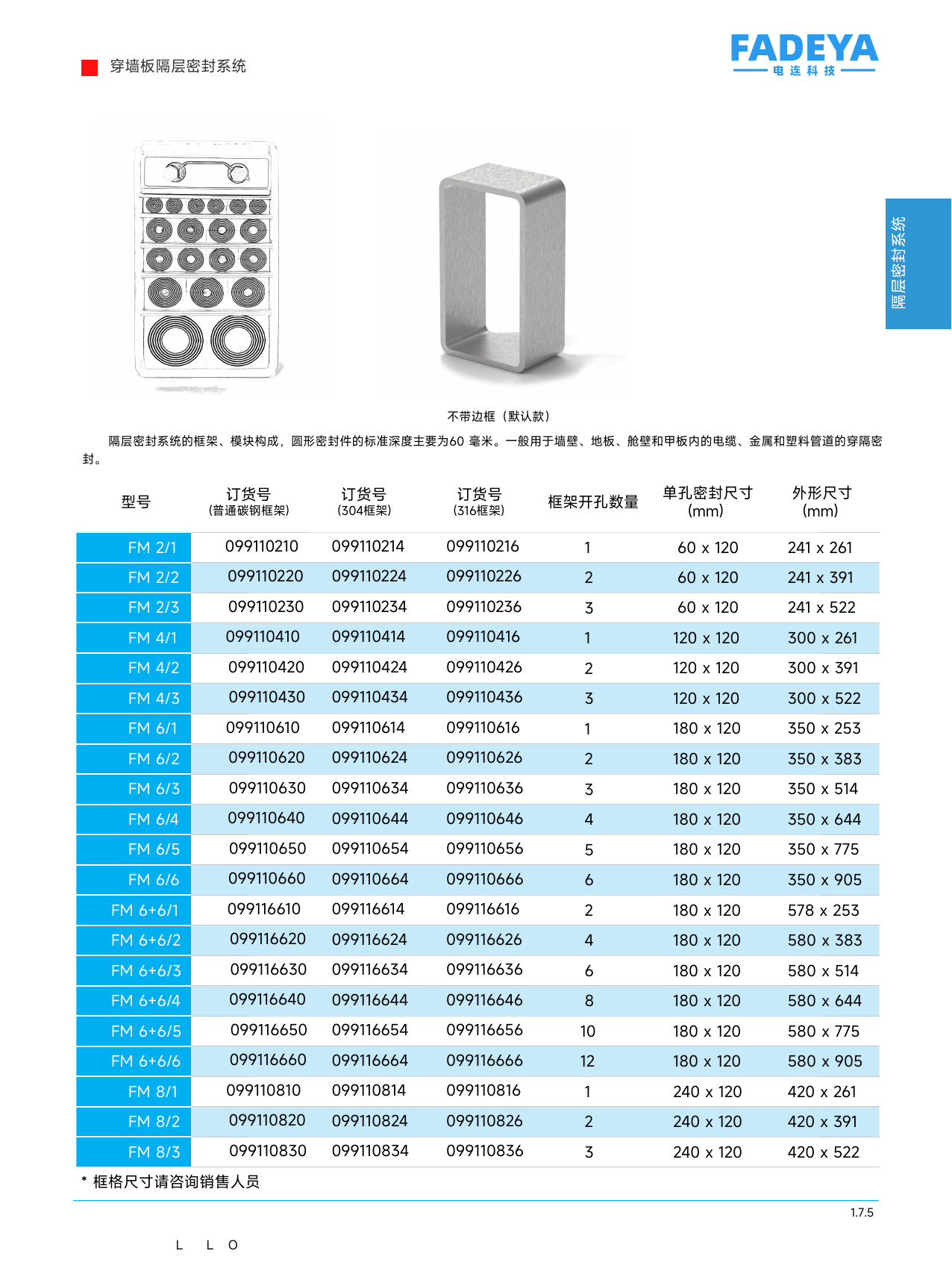

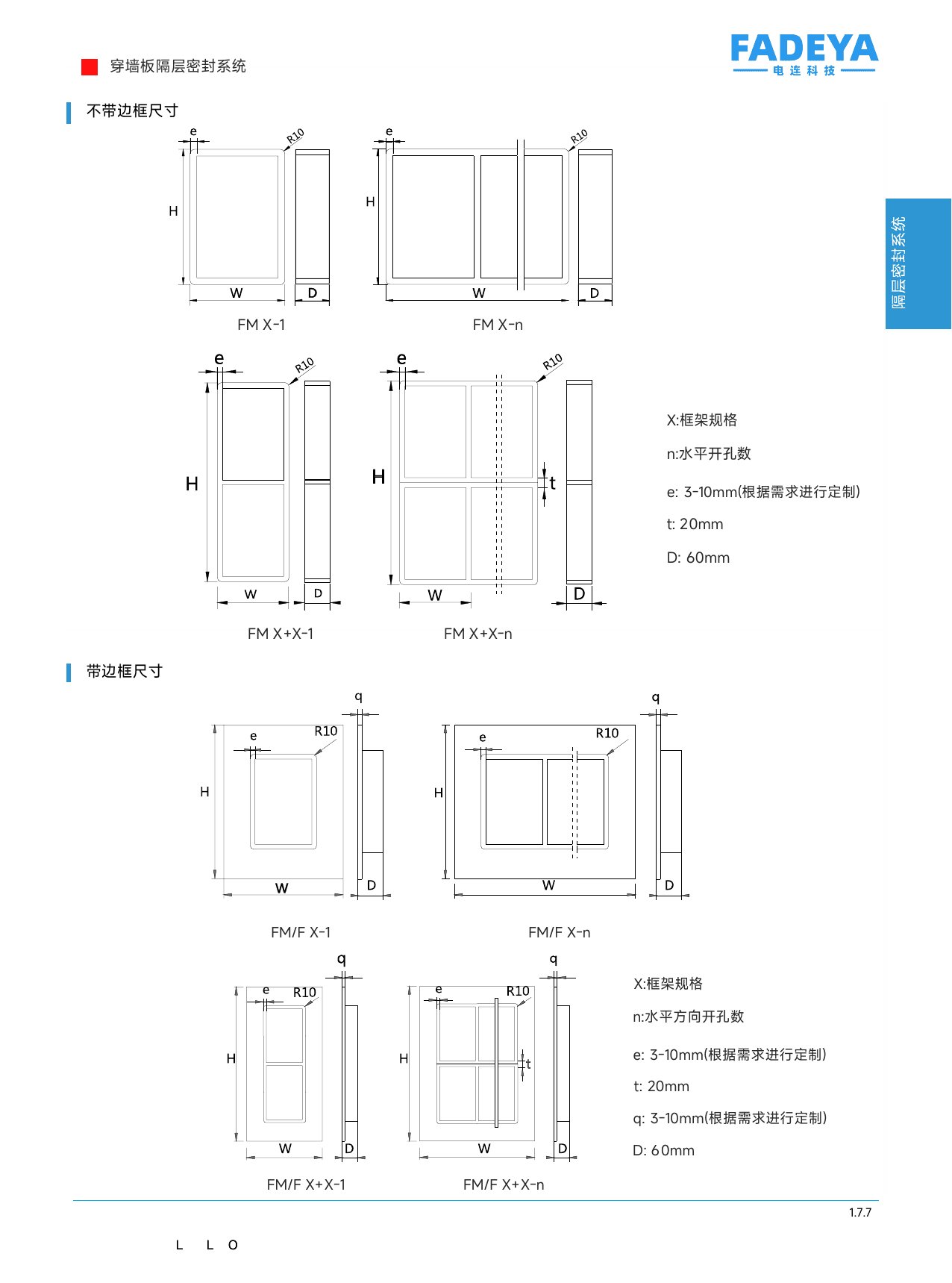

Steel transit frames (carbon / 304 / 316) for sealing multiple cables/pipes through walls, floors, bulkheads and decks. 60 mm standard module depth.

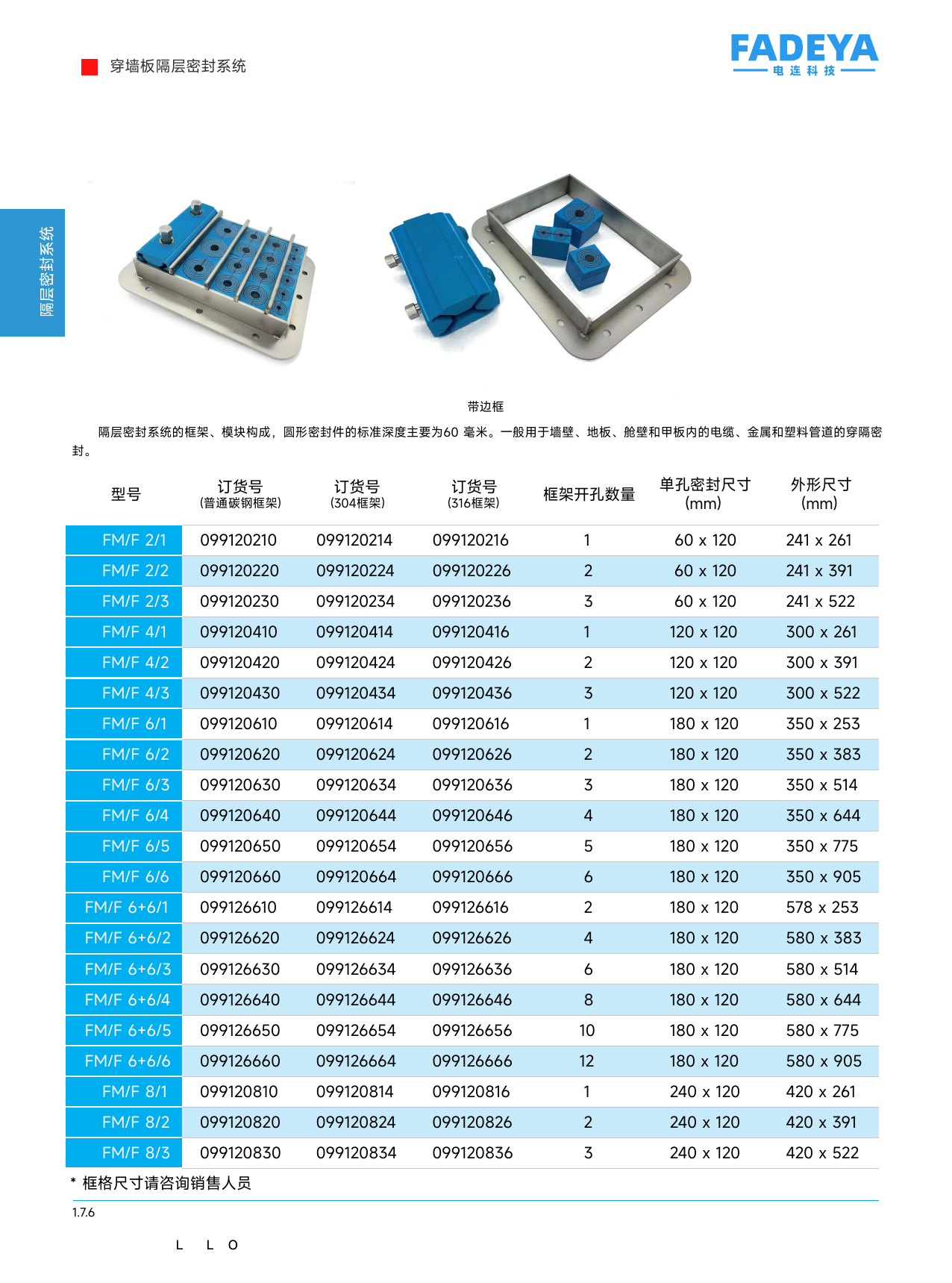

Flanged version of the FM transit frame system (carbon / 304 / 316), for bolt-on mounting. 60 mm standard module depth.
