KEL 16-E Split Entry Frames
Three-row KEL-16 frames: 12/-, 8/1 and 4/2 module layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 16/12-E (099042246) — 12/-
KEL 16/9-E (099042245) — 8/1
KEL 16/6-E (099042258) — 4/2
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Cut-Out | 85 × 68.5 mm |

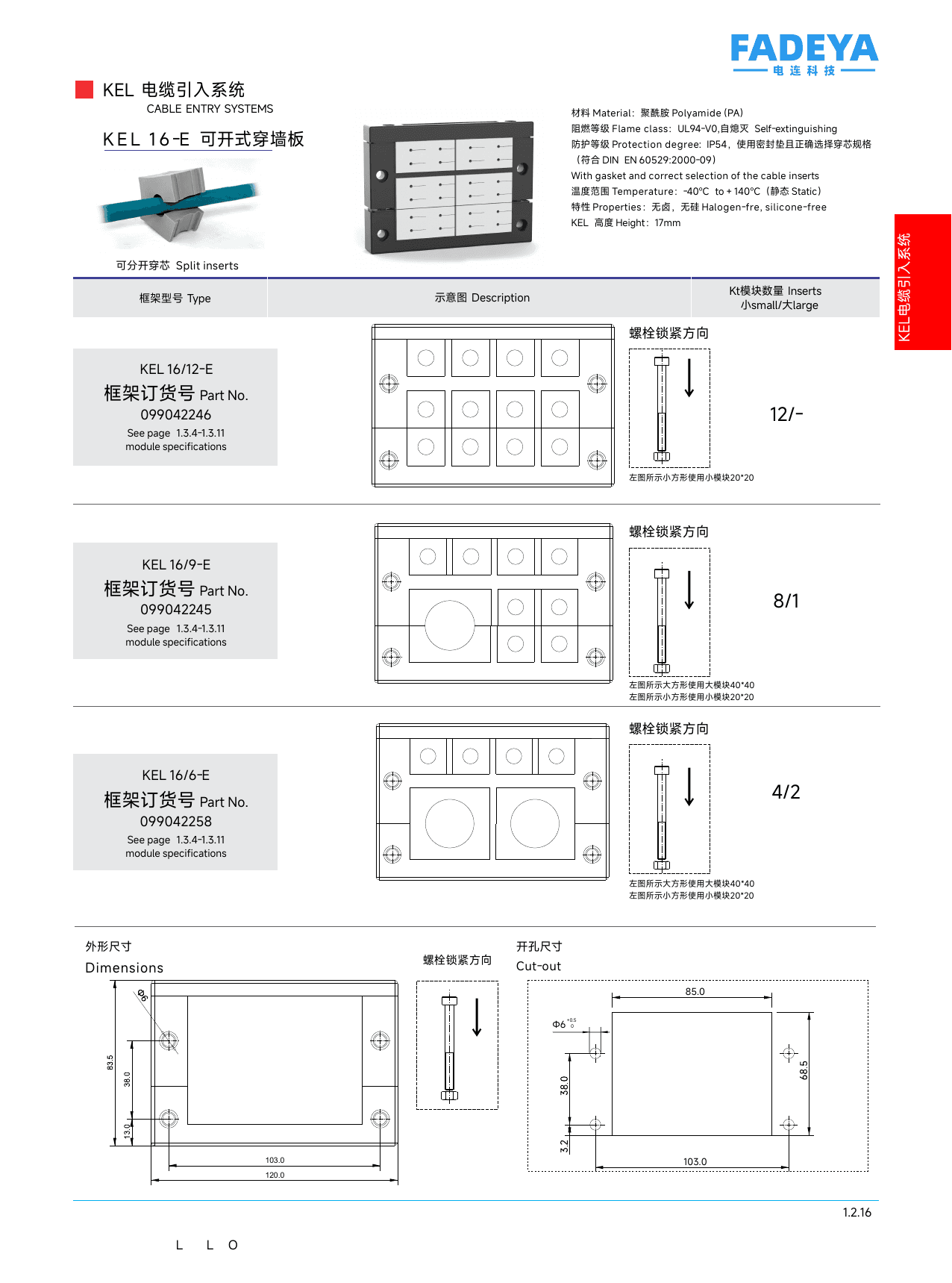

Datasheet
