KEL — Split Cable Entry Frames
KEL 10 Split Entry Frames
Openable frames matching the KEL-10 cut-out (83 × 60 mm), 2/1 or 6 small modules, with EMC options.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 10/3 (099042103)
KEL 10/3-EMC (099342103)
KEL 10/6 (099042106)
KEL 10/6-EMC (099342106)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 83 × 60 mm |
| EMC Shielding | EMC variants available |

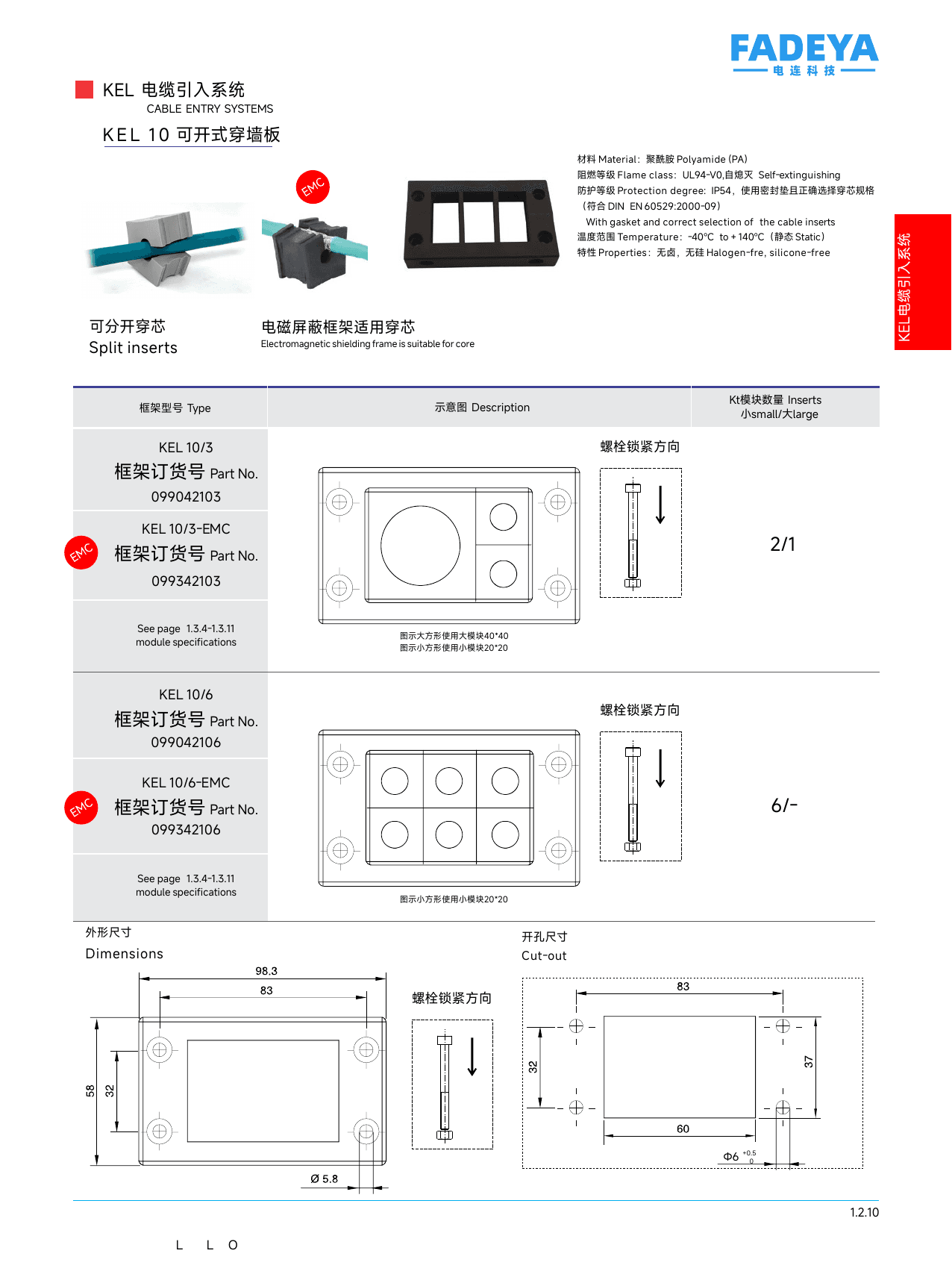

Datasheet
