KEL 10-E Split Entry Frames
Three-row KEL-10 frames: 9/0 and 5/1 module layouts for higher packing density.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 10/9-E (099342235) — 9/0
KEL 10/6-E (099342236) — 5/1
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 61.1 × 68.5 mm |

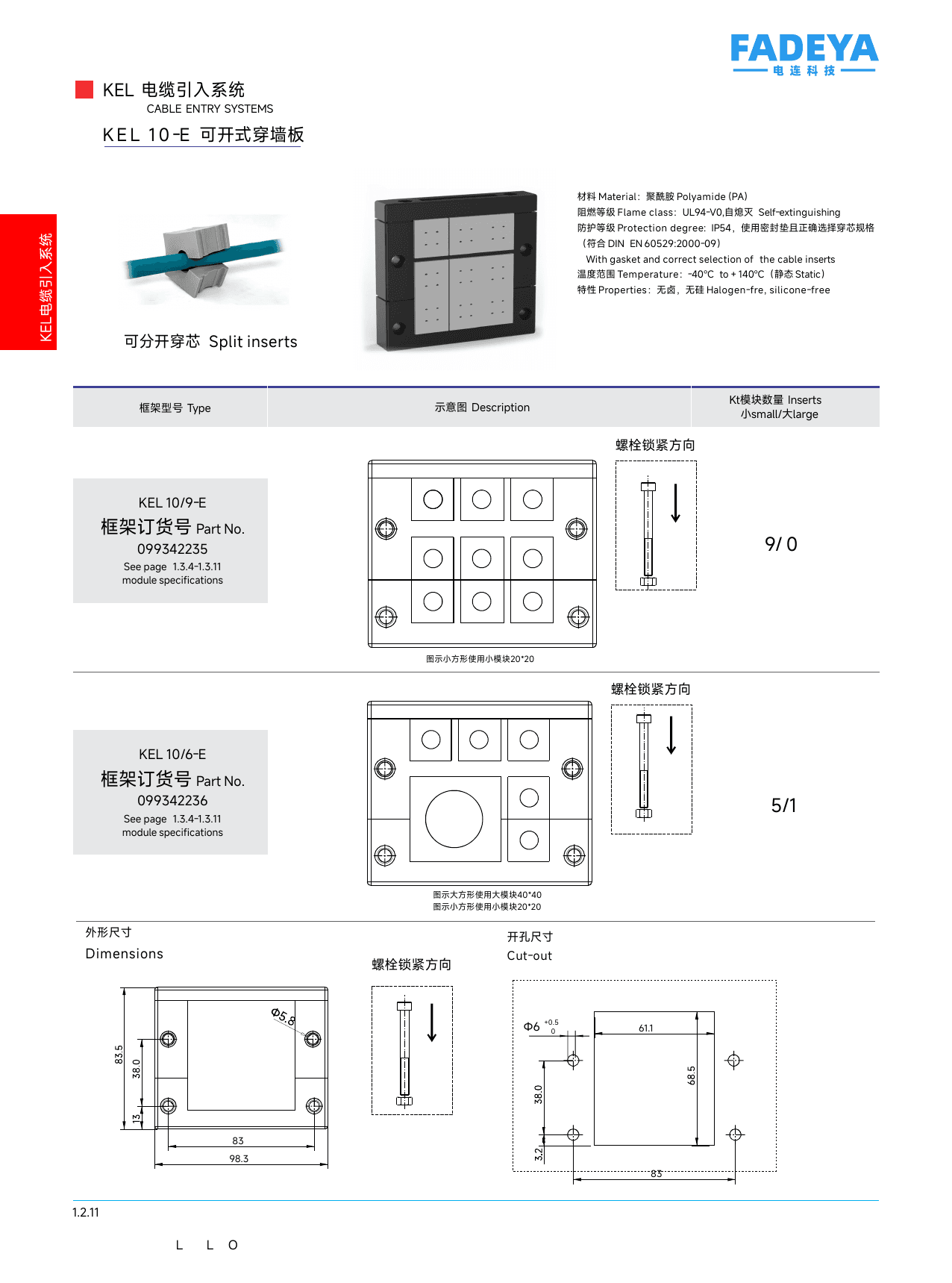

Datasheet
