KEL-E Split Entry Frames
Openable single-row frames (E1–E5) matching standard industrial connector cut-outs, 1–5 module openings. KEL height 17 mm.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-E1 (099040301)
KEL-E2 (099040602)
KEL-E3 (099041003)
KEL-E4 (099041604)
KEL-E5 (099042405)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Module Count | 1 to 5 small |

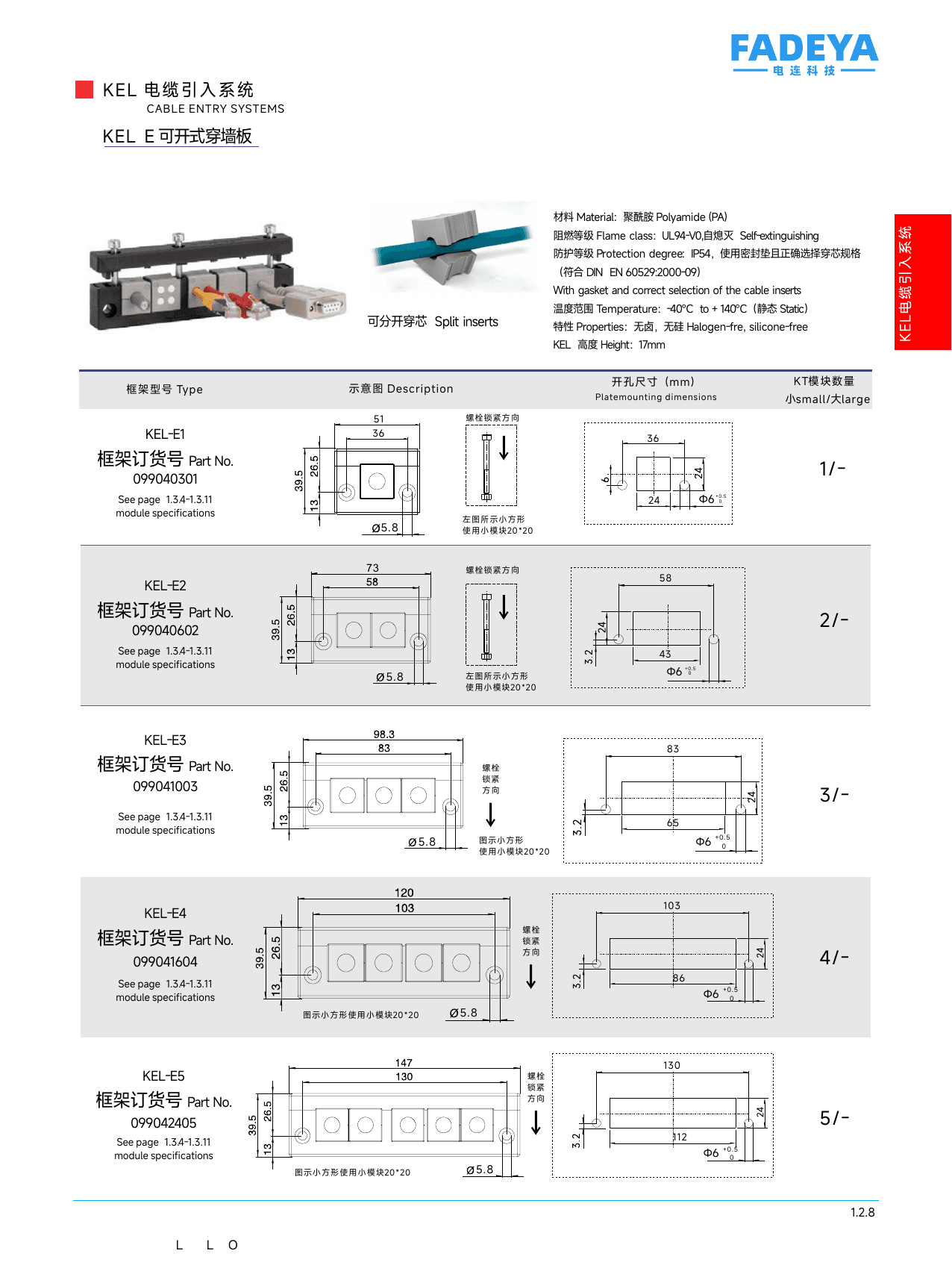

Datasheet
