KEL — Split Cable Entry Frames
KEL 6 Split Entry Frames
Compact openable frames in 1-large or 4-small module layout, with optional EMC shielding versions.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 6/1 (099040601)
KEL 6/1-EMC (099340601)
KEL 6/4 (099040604)
KEL 6/4-EMC (099340604)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Cut-Out | 40 × 37 mm |
| Module Layout | 1 large / 4 small |
| EMC Shielding | EMC variants available |

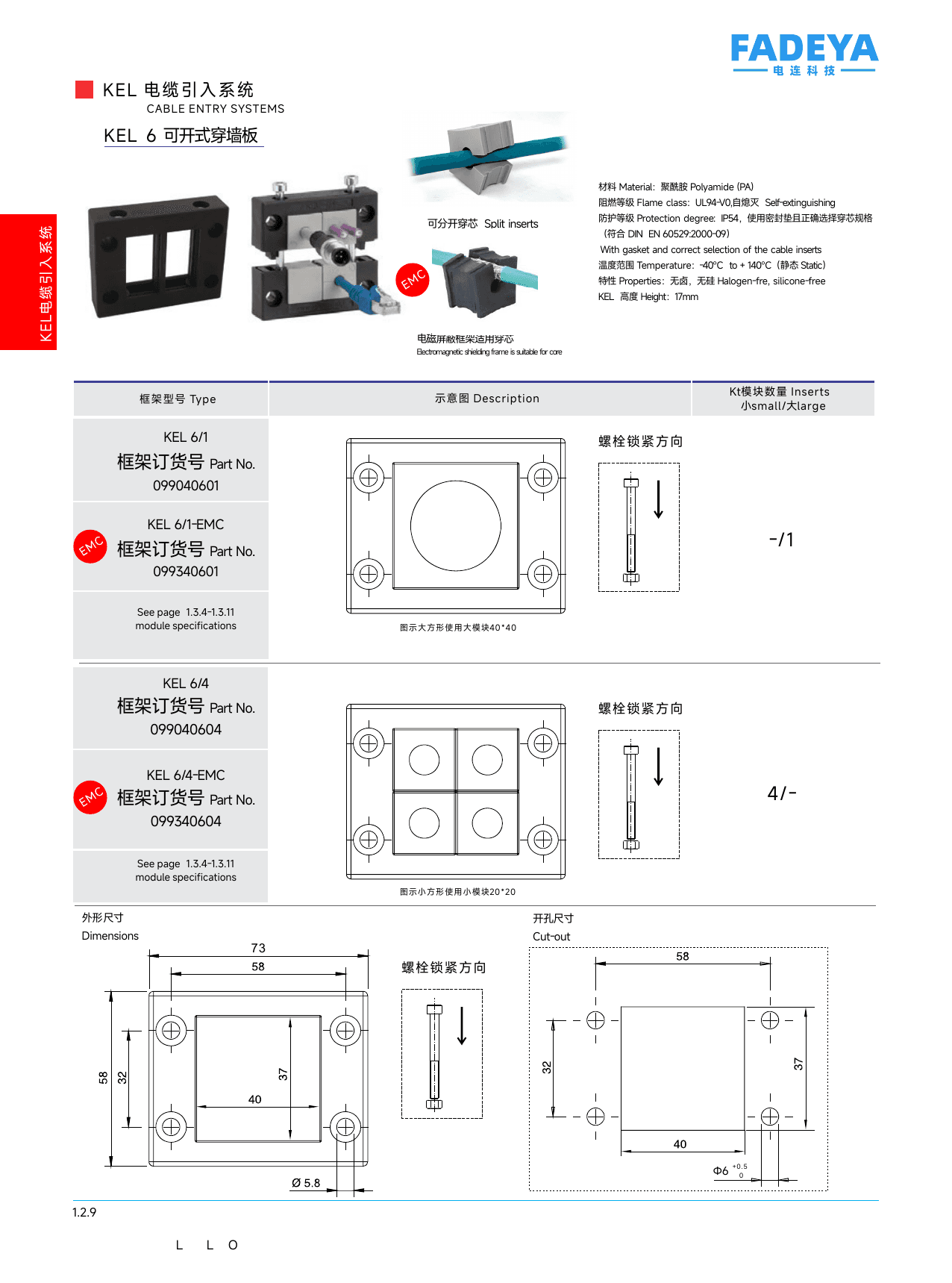

Datasheet
