Heavy Duty Connectors
Heavy-duty rectangular connectors (Han-style) for industrial machinery, automation cabinets and modular plant wiring. Polycarbonate inserts rated to -40°C...+125°C, UL94 V0, with copper-alloy contacts (hard-gold or hard-silver plated, contact resistance ≤1mΩ) and ≥500 mating cycles. This batch covers three insert families: HA (compact), HE (standard) and HEE (high-density). Hoods, housings and accessories are added in later batches.
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Inserts

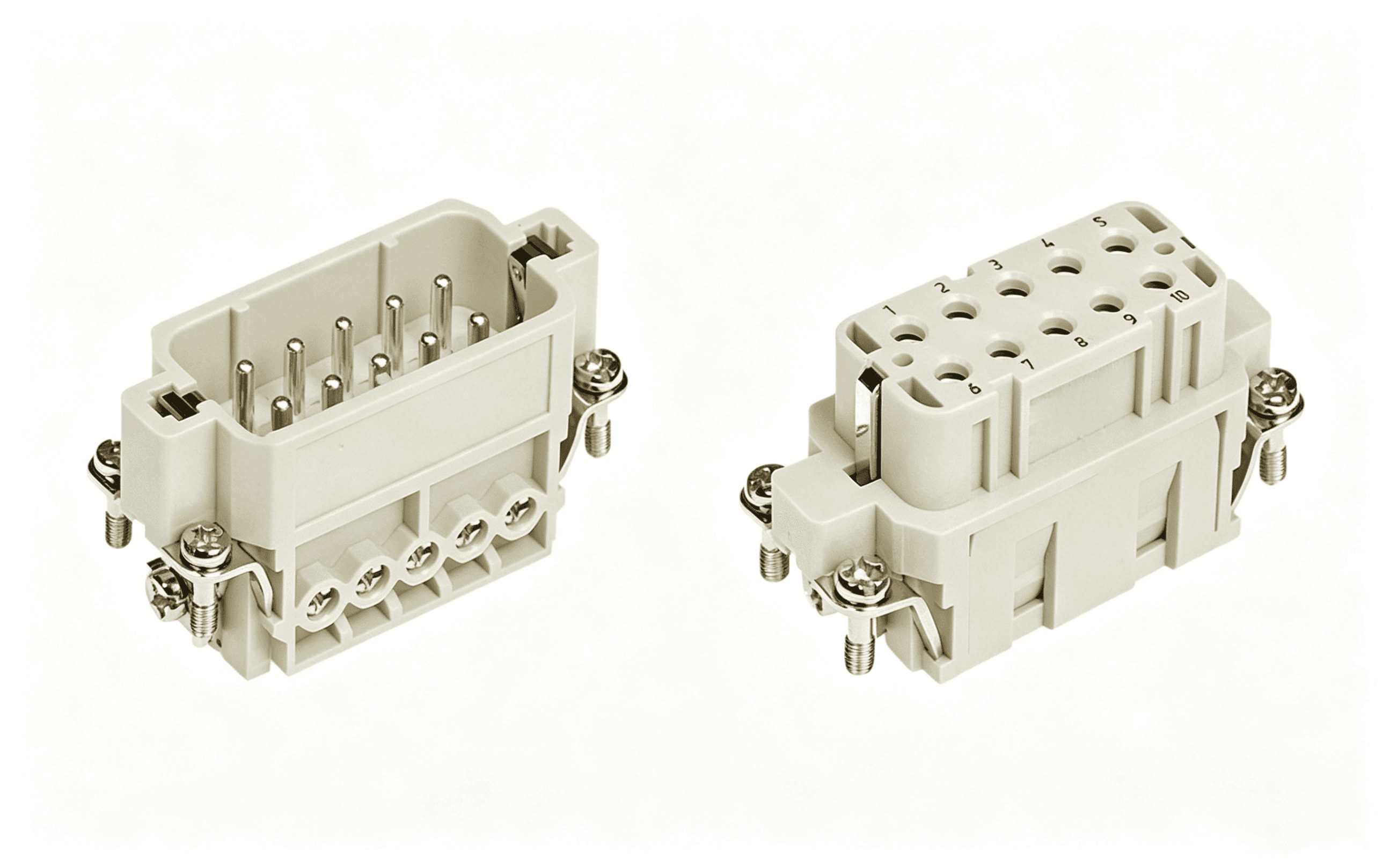

Male/female insert blocks (the contact-carrying cores) for Han-style heavy-duty connectors.
Hoods & Housings

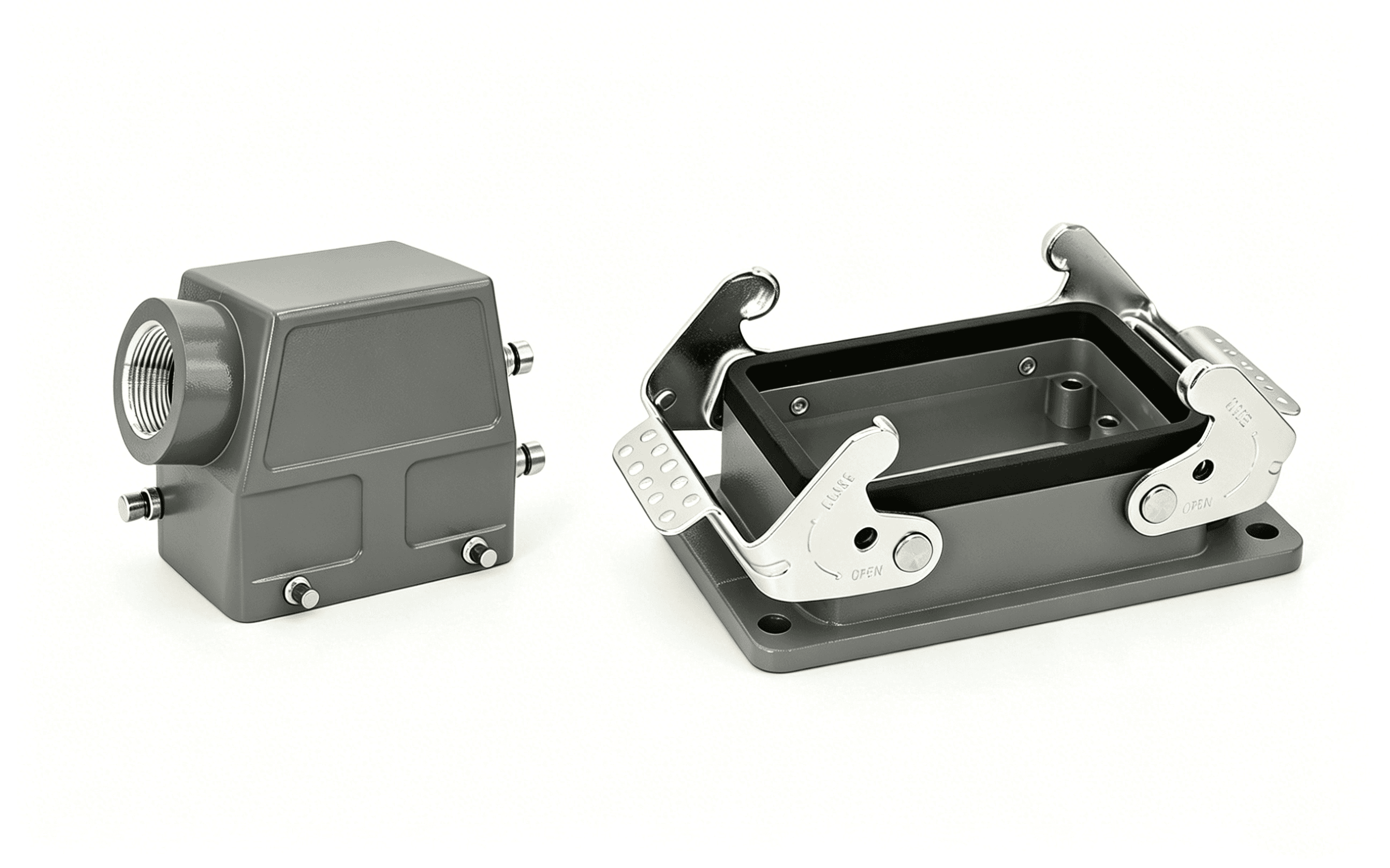

Metal and plastic enclosures (hoods and bases) that carry the inserts and provide IP protection and locking.
Pins / Contacts

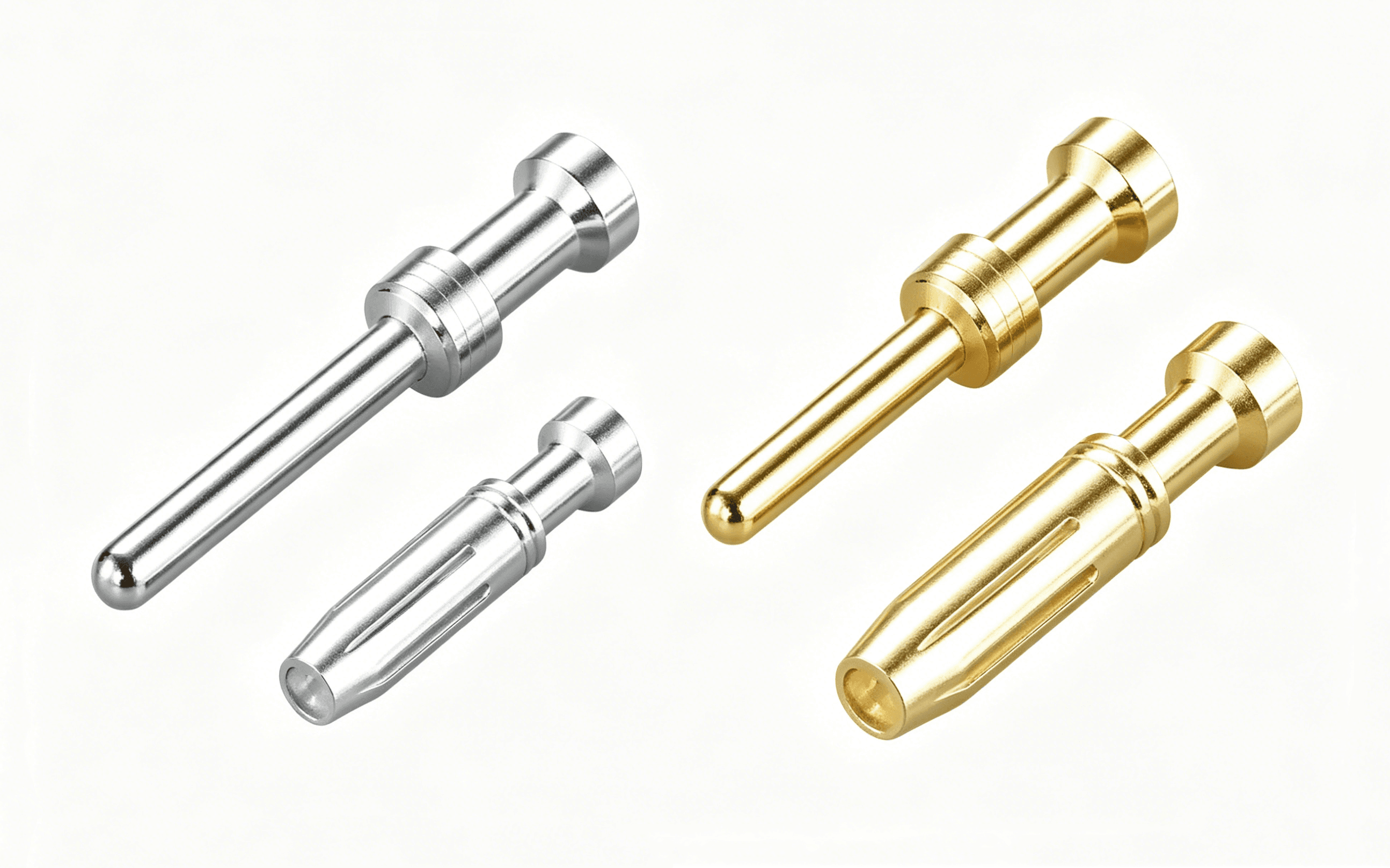

Loose crimp and screw contacts (pins and sockets) and contact accessories.
Accessories

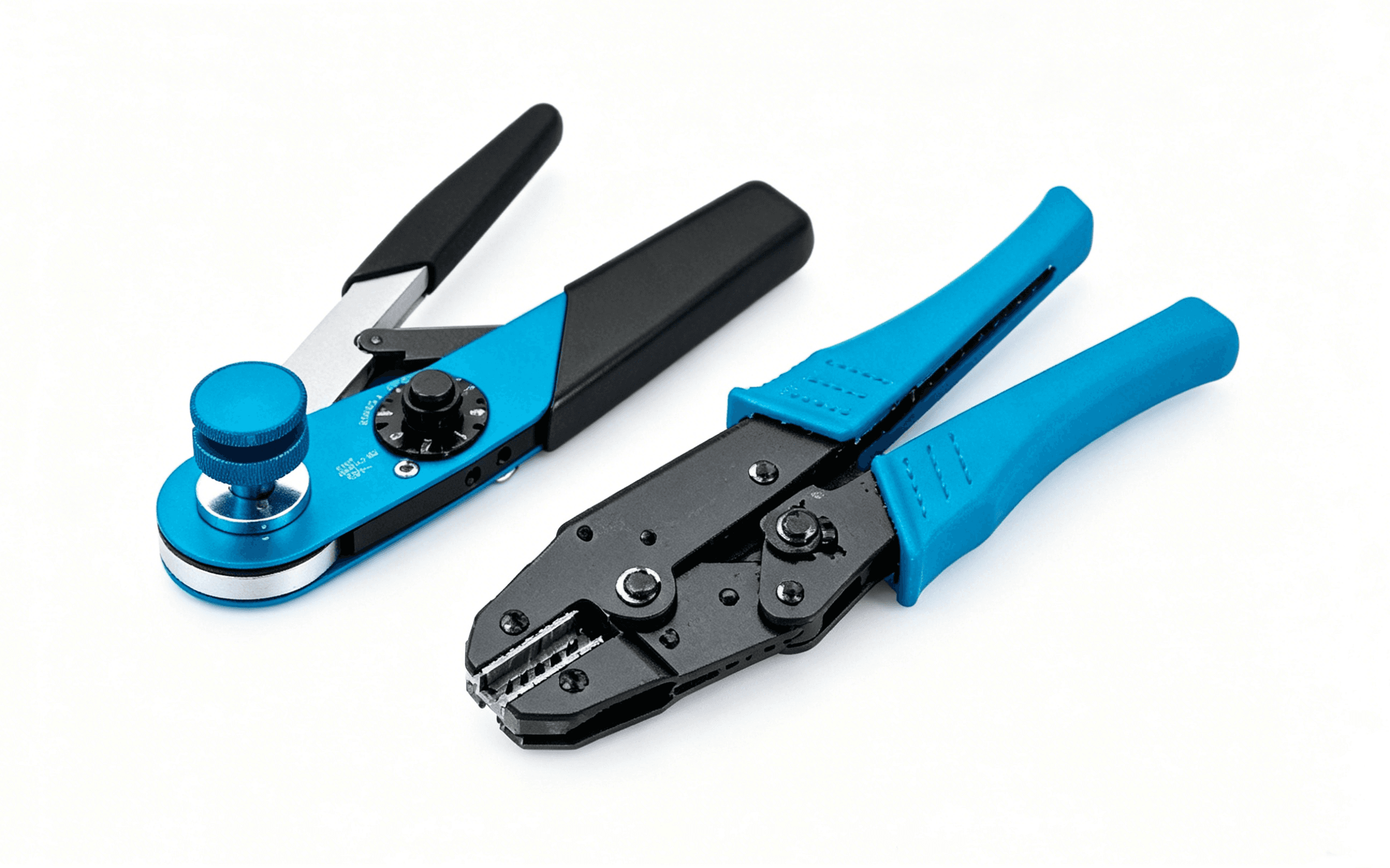

Cable glands, levers, seals, protection covers and other supporting parts.
Series Reference Sheets

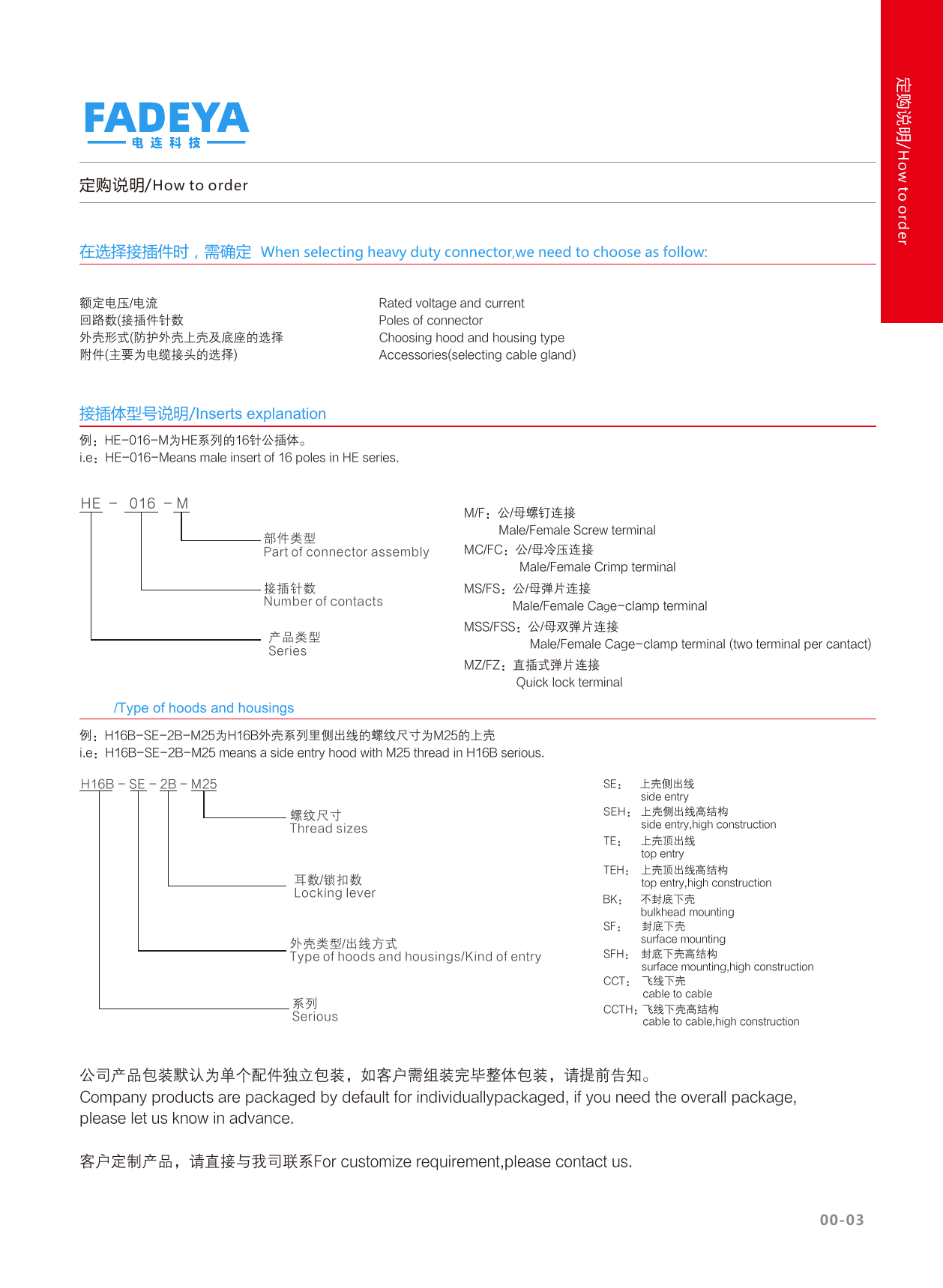

Understanding Heavy Duty connector part numbers

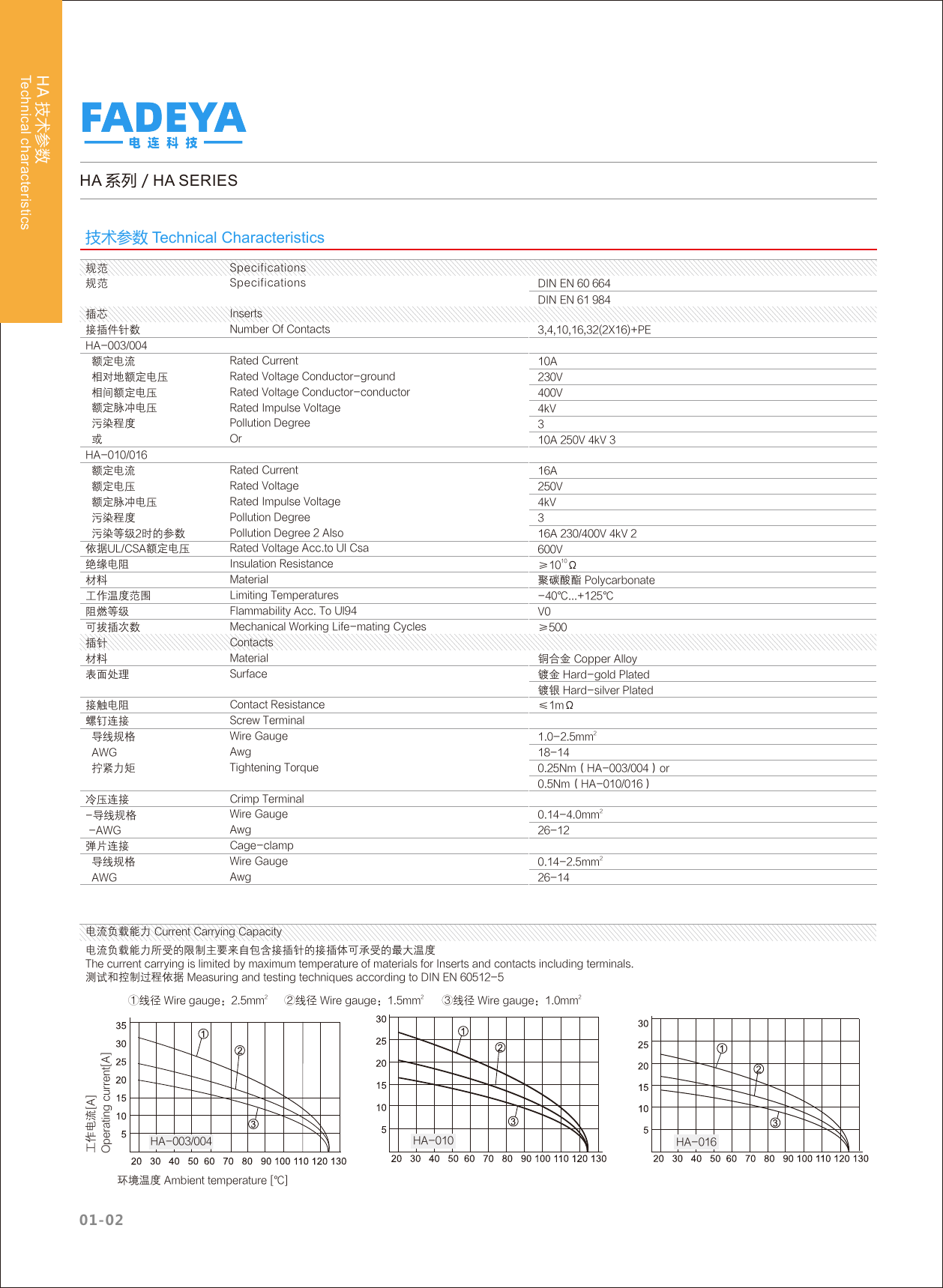

ZoomHA compact series — ratings, materials, current-carrying curves

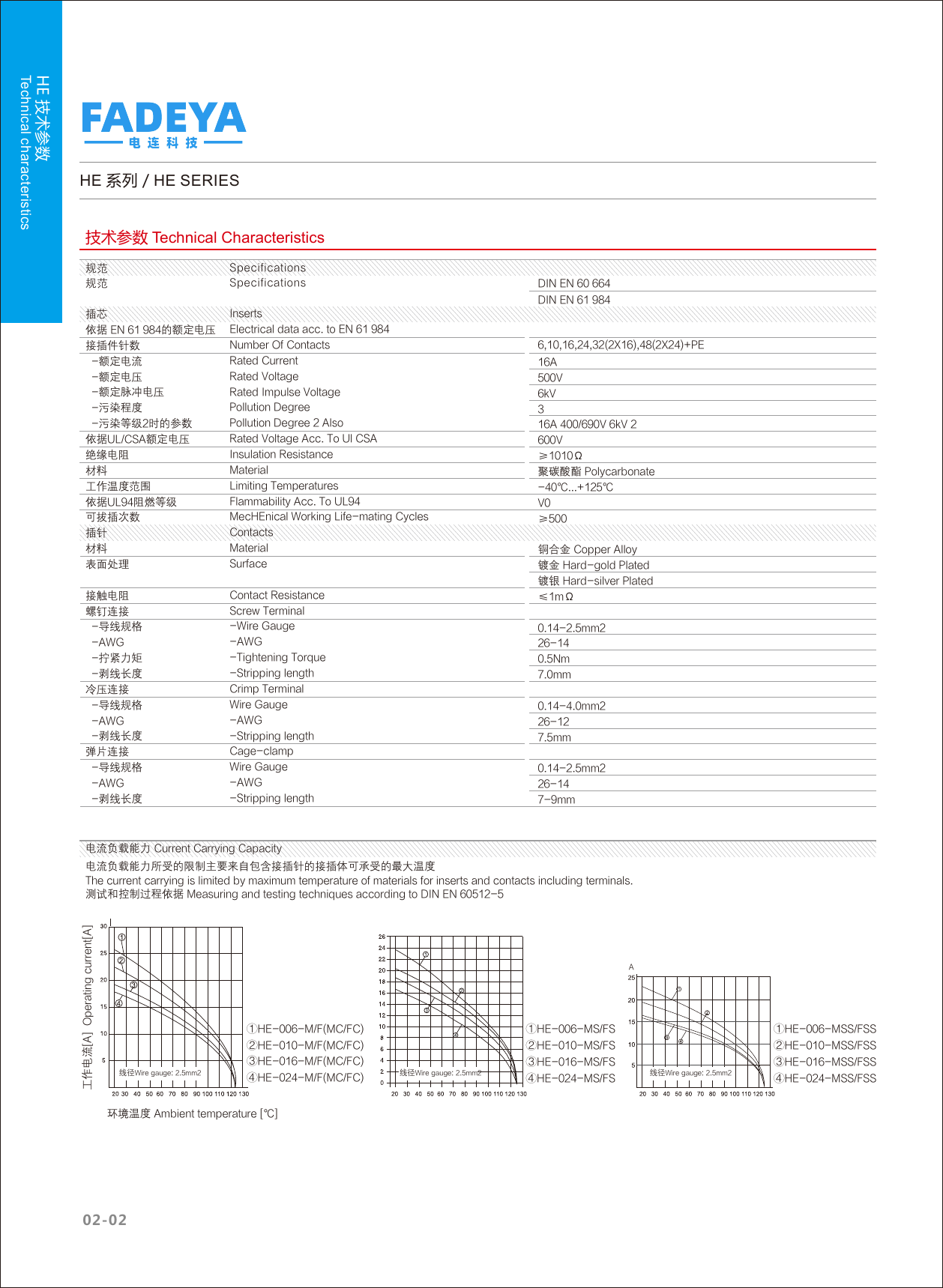

ZoomHE standard series — ratings, materials, current-carrying curves

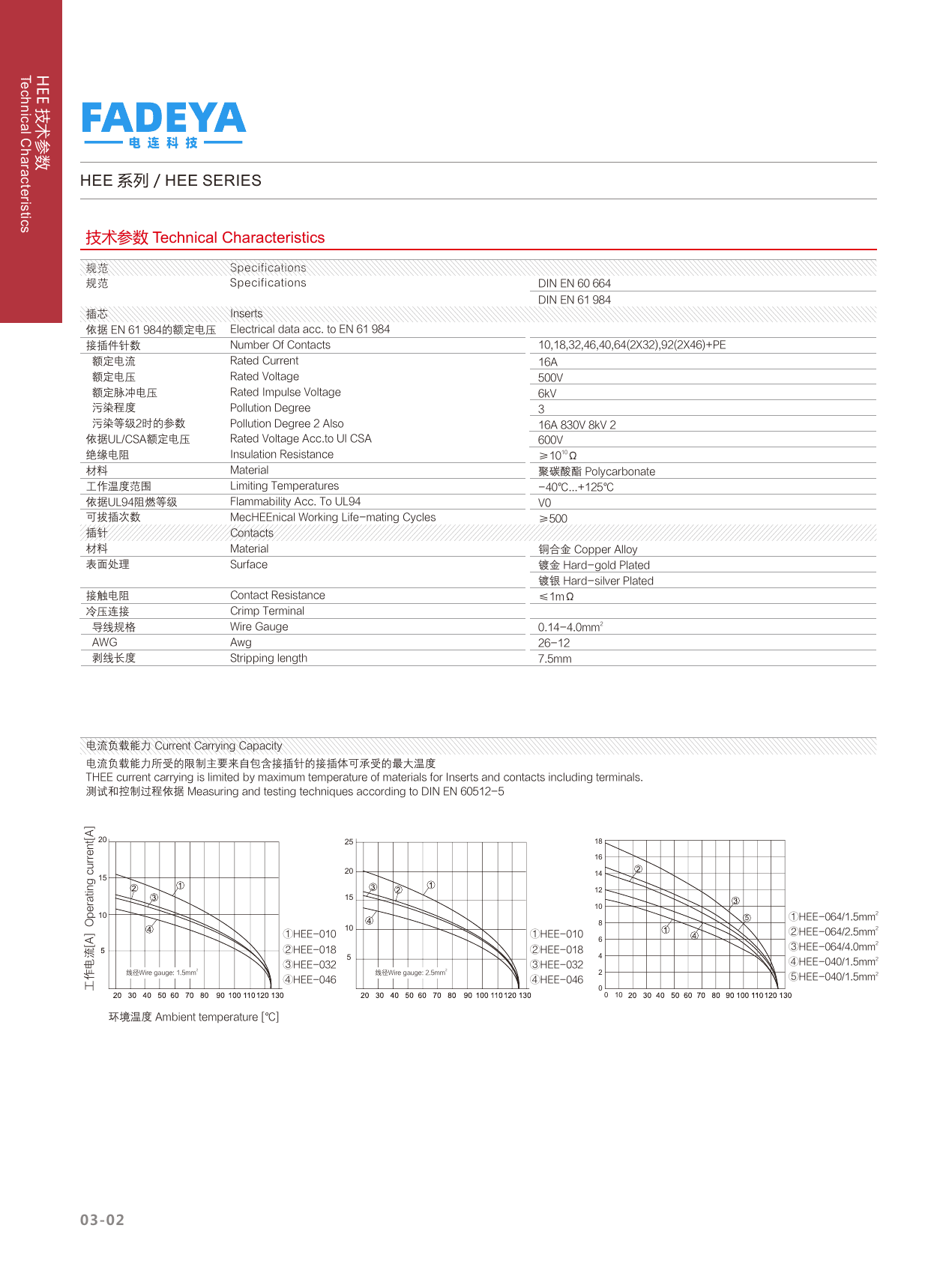

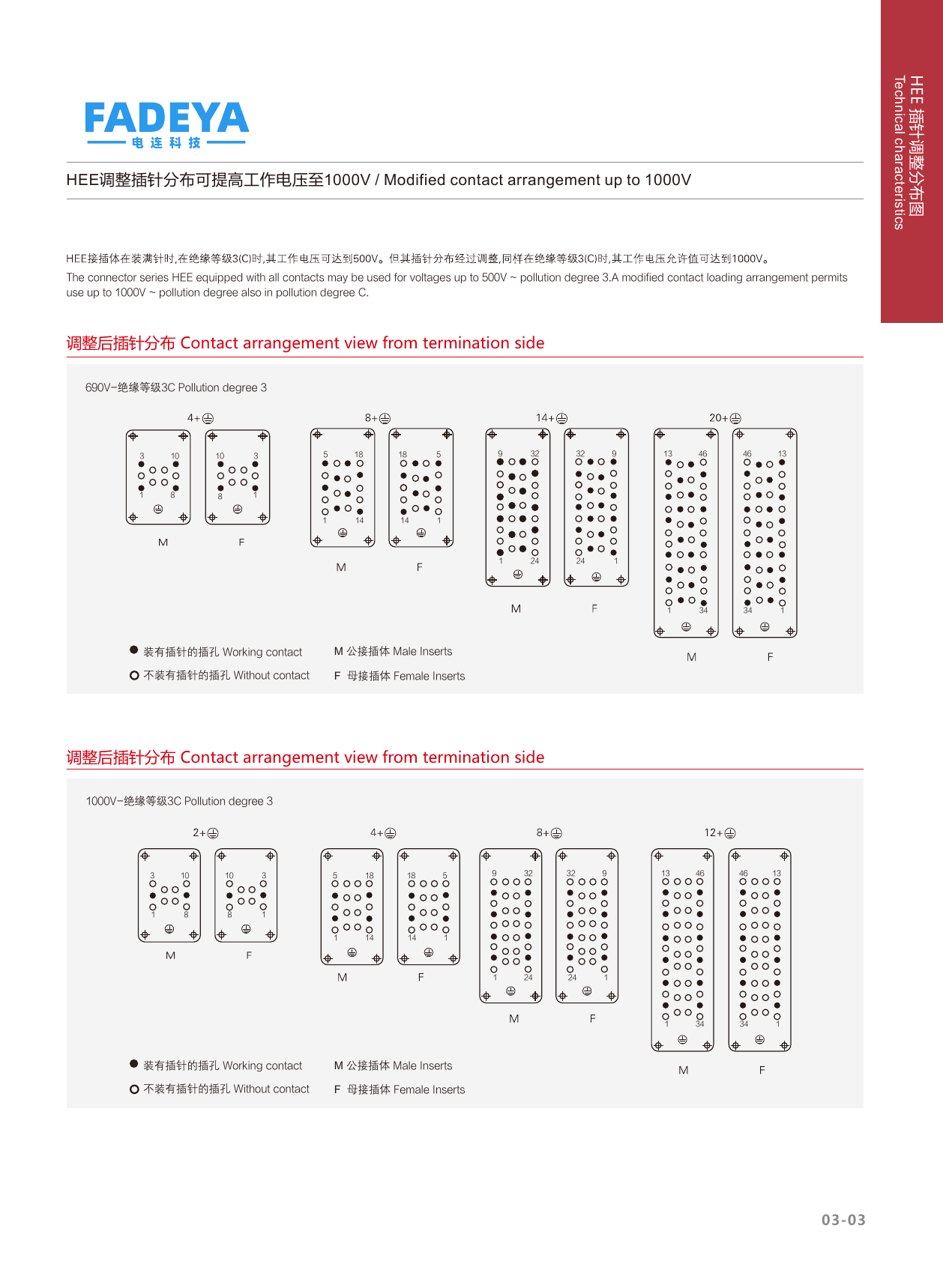

ZoomHEE high-density series — ratings, materials, current-carrying curves
ZoomModified contact loading arrangement (690V / 1000V, pollution degree 3)

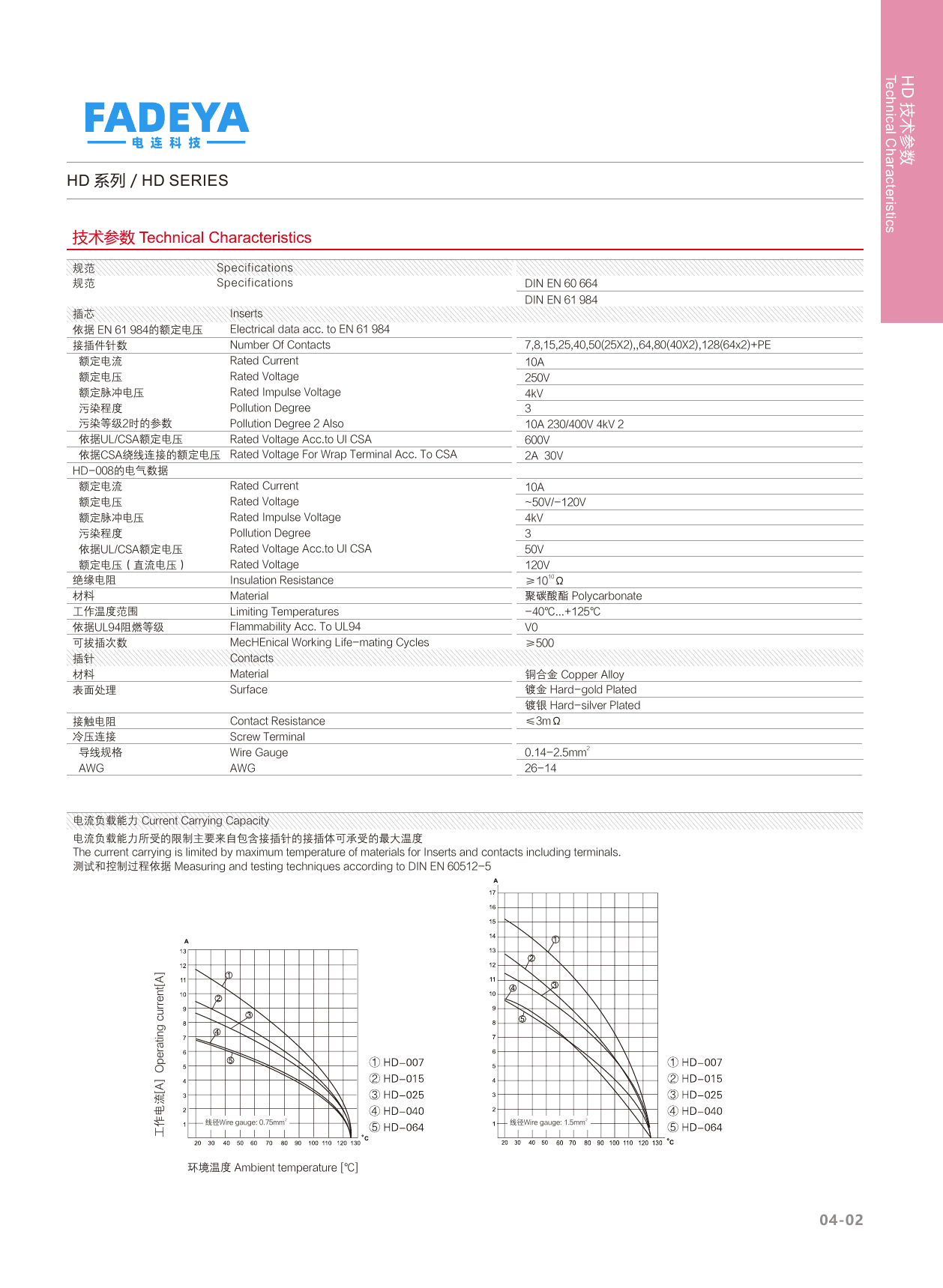

ZoomHD ultra-high-density series — ratings, materials, current-carrying curves

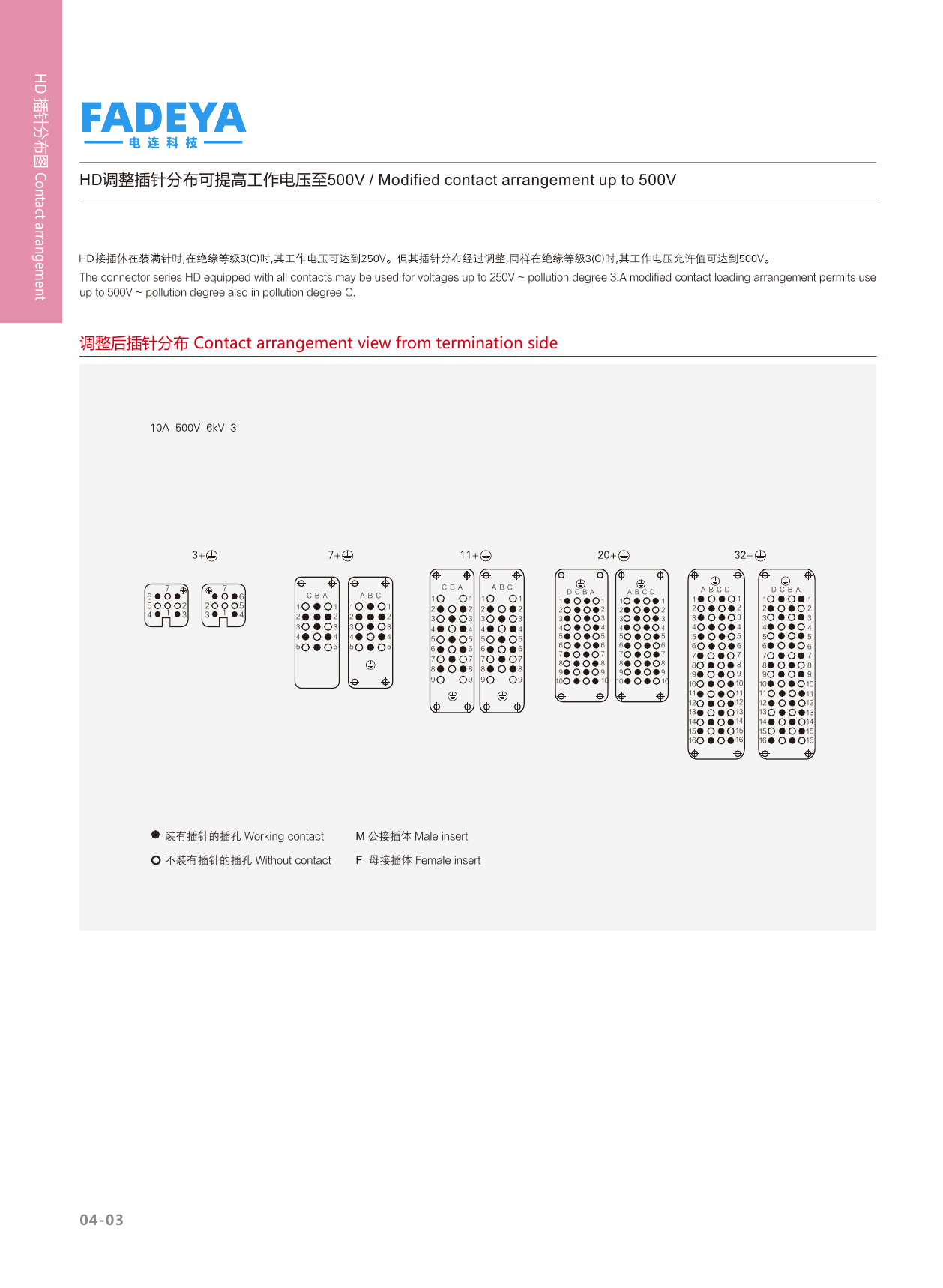

ZoomModified contact loading arrangement (up to 500V, pollution degree 3)

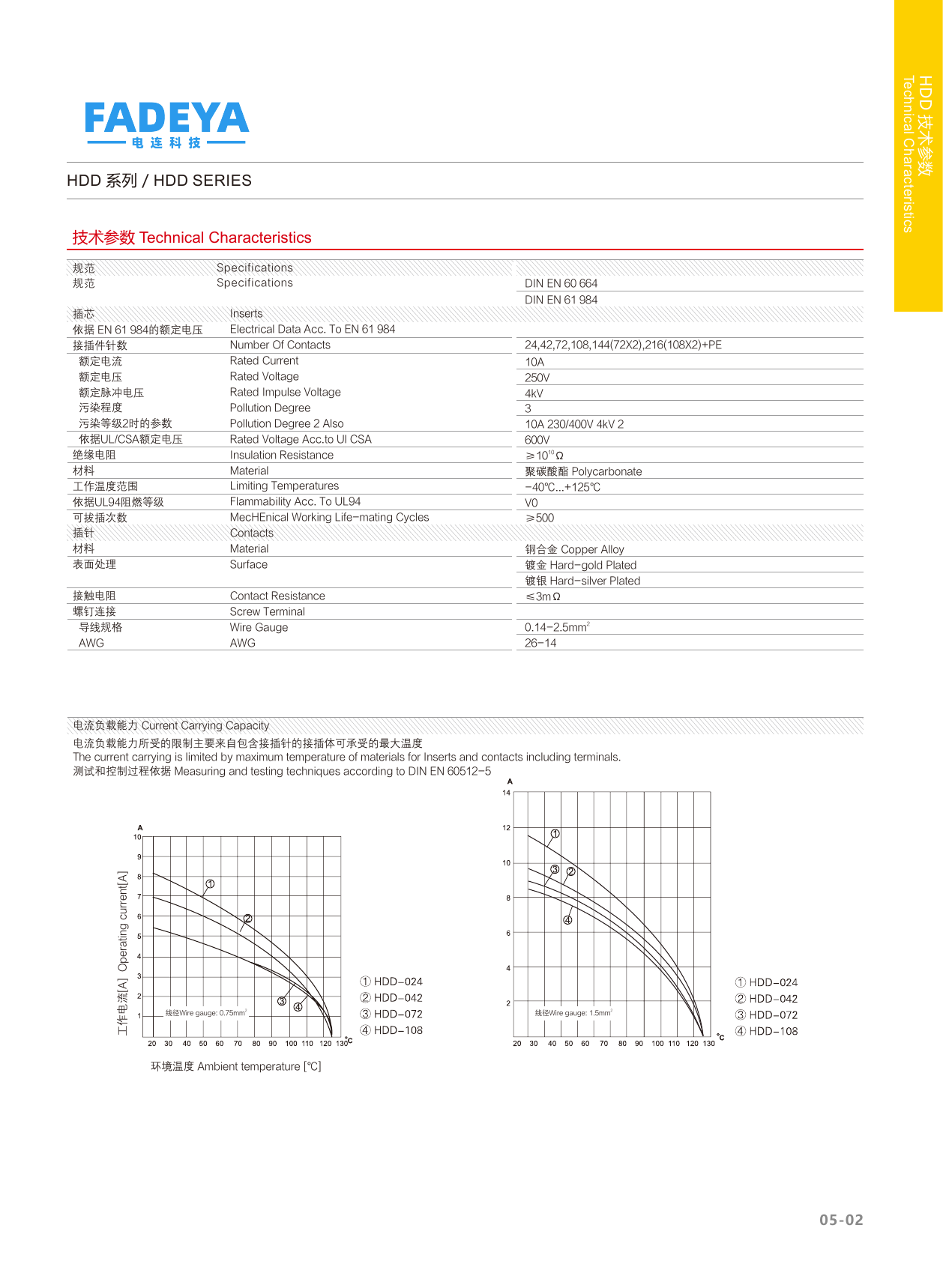

ZoomHDD double-density series — ratings, materials, current-carrying curves

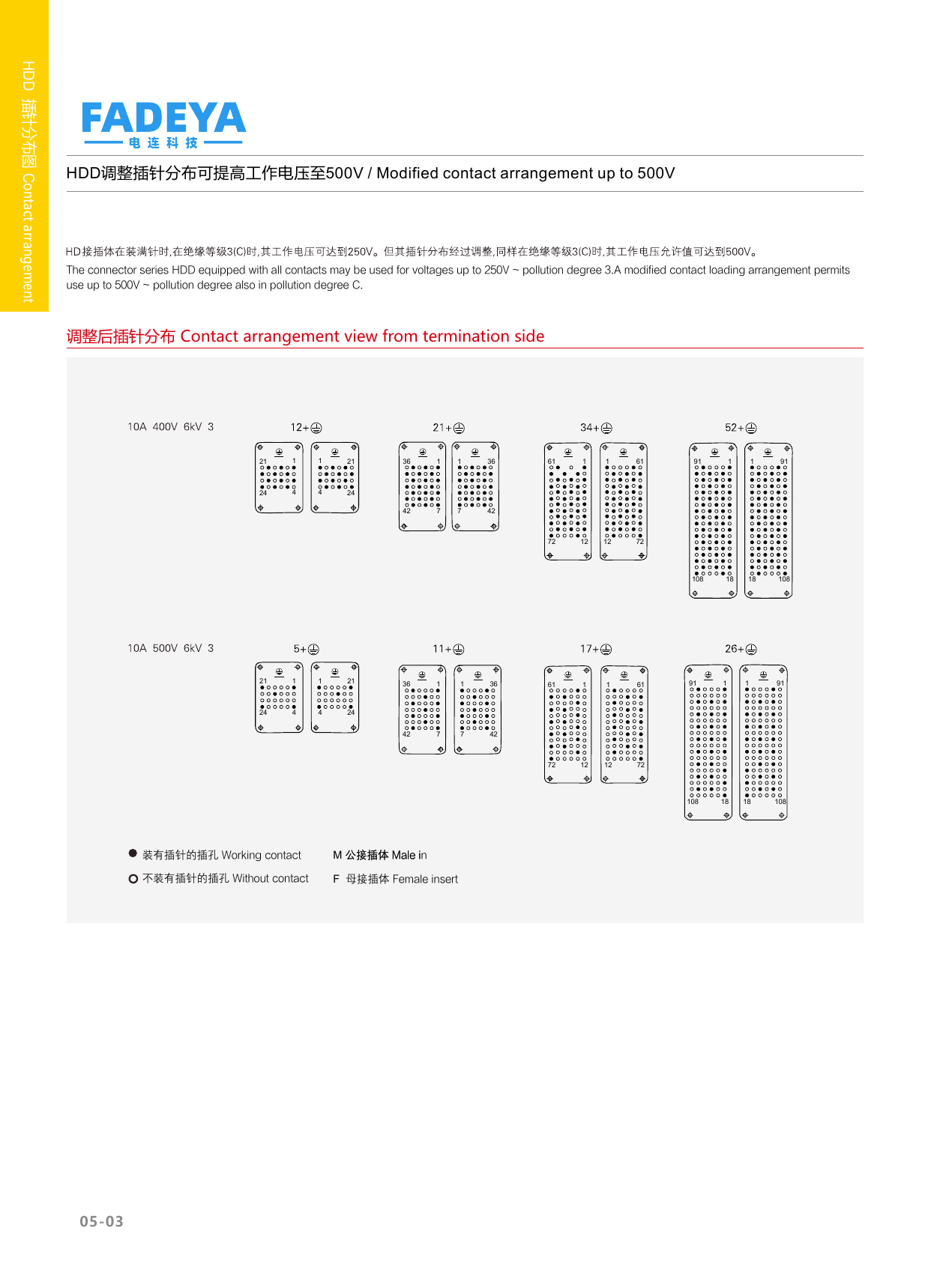

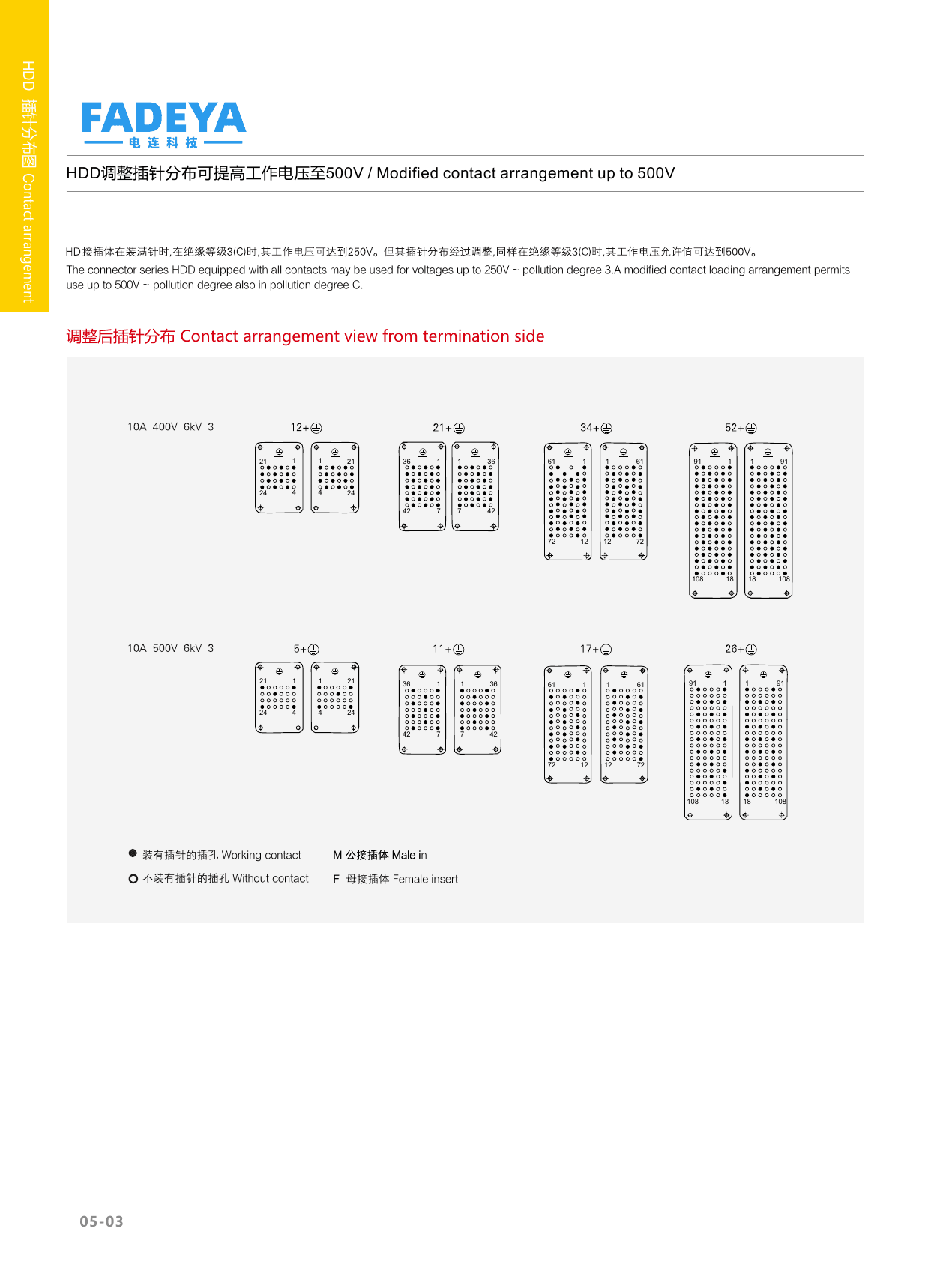

ZoomModified contact loading arrangement (up to 500V, pollution degree 3)

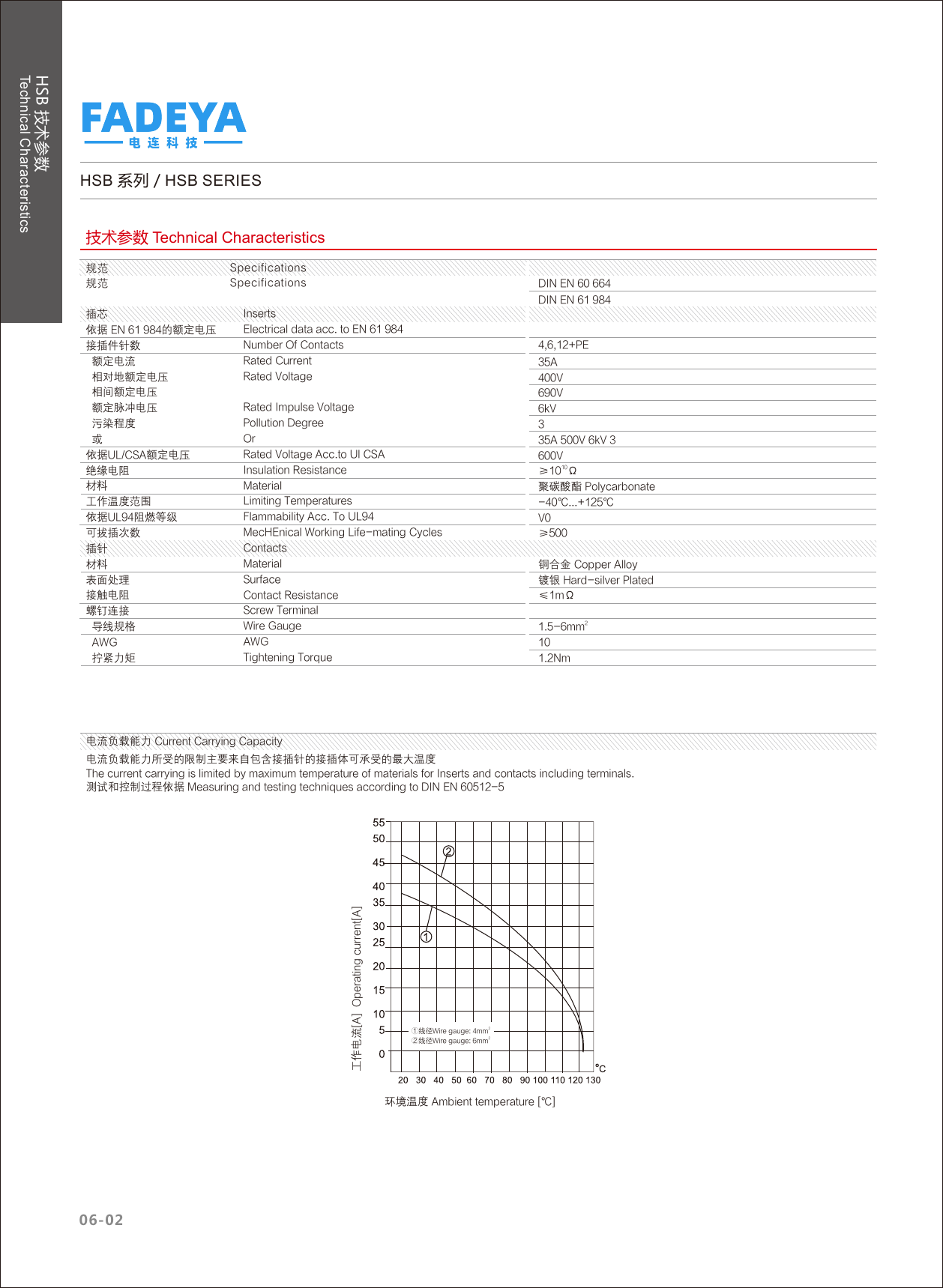

ZoomHSB 35A heavy-current series — ratings, materials, current-carrying curves

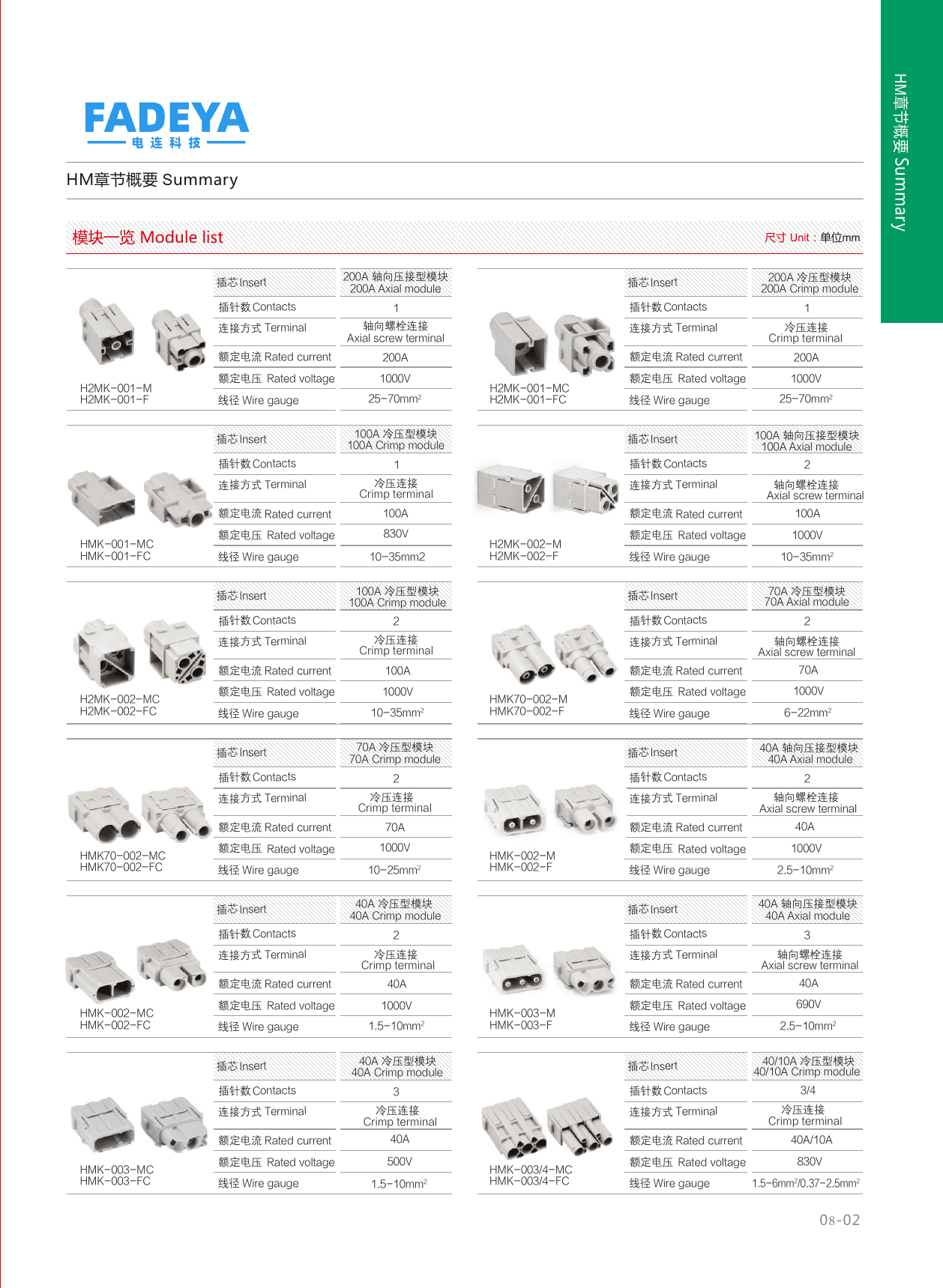

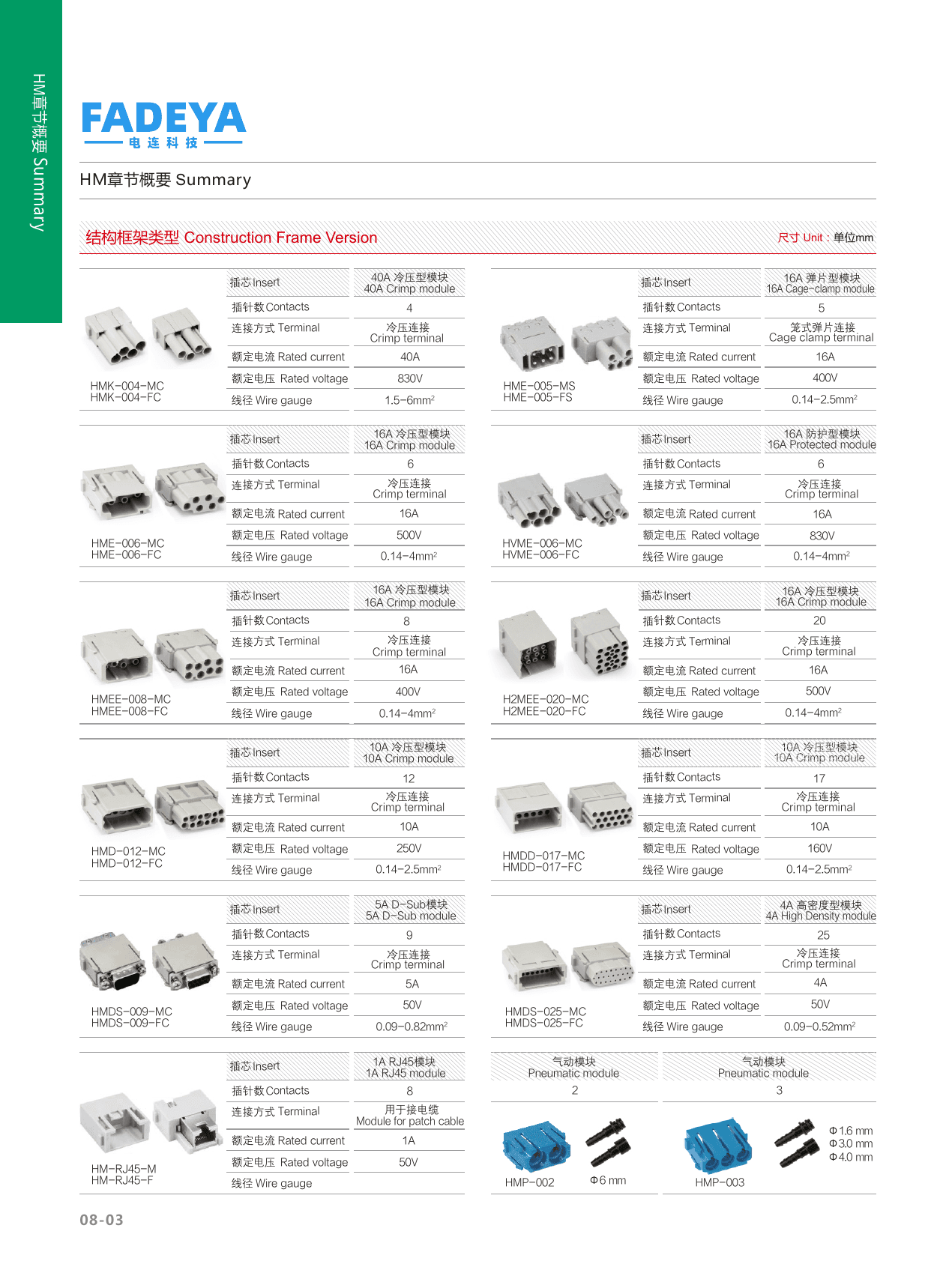

ZoomOverview of all HM modules — contacts, termination, current/voltage/wire-gauge ratings
ZoomConstruction frame version — signal, data and pneumatic module overview

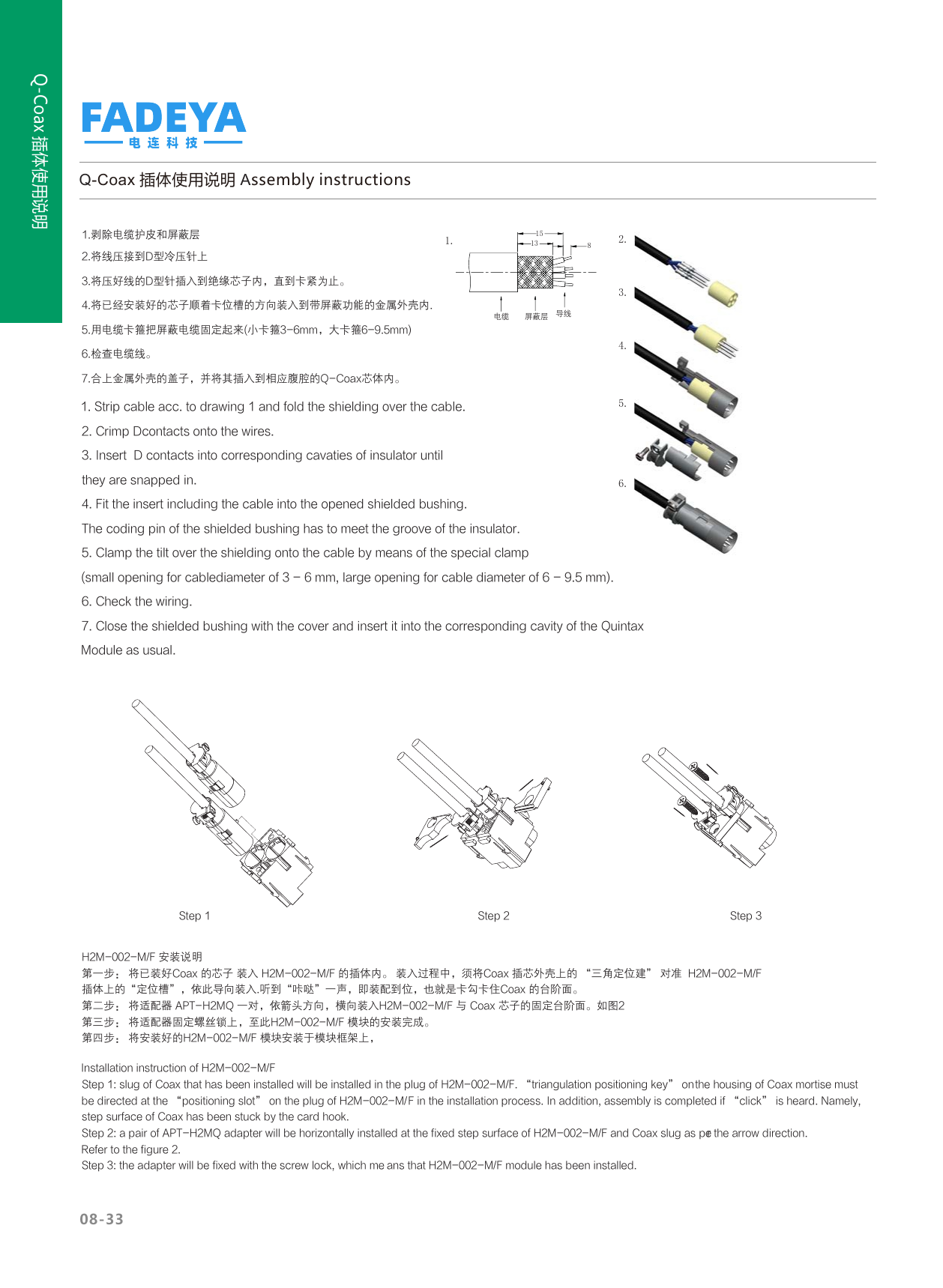

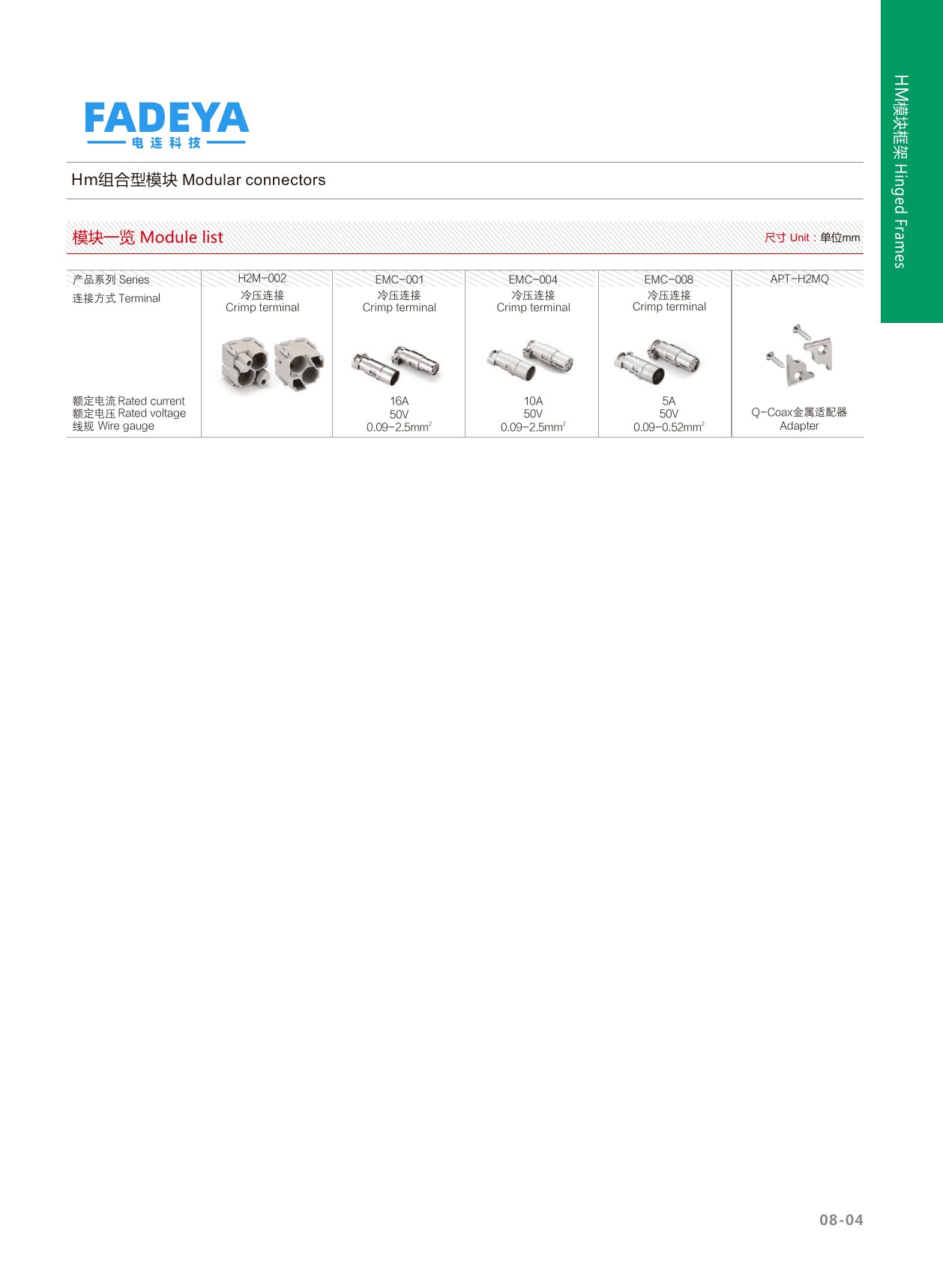

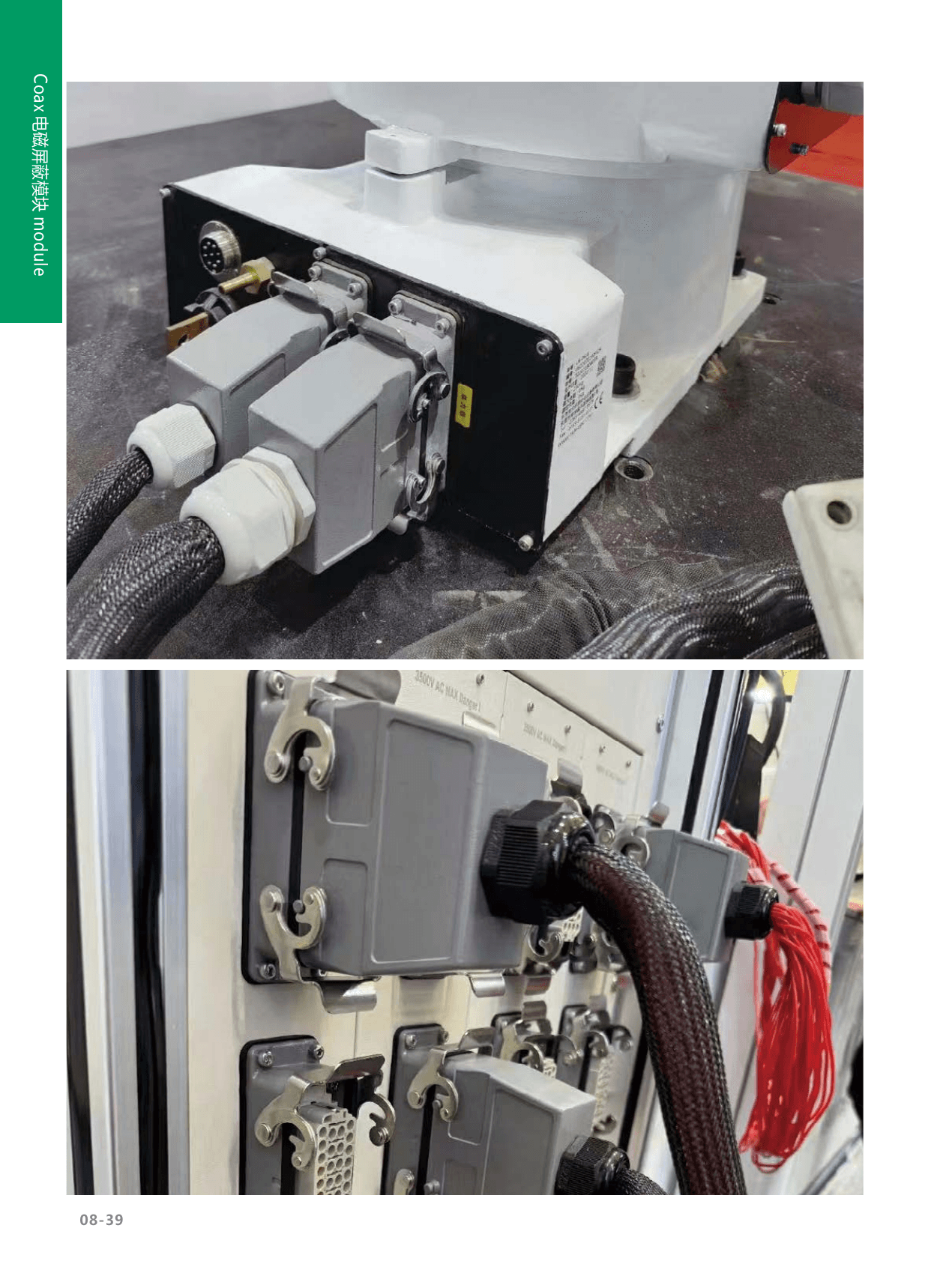

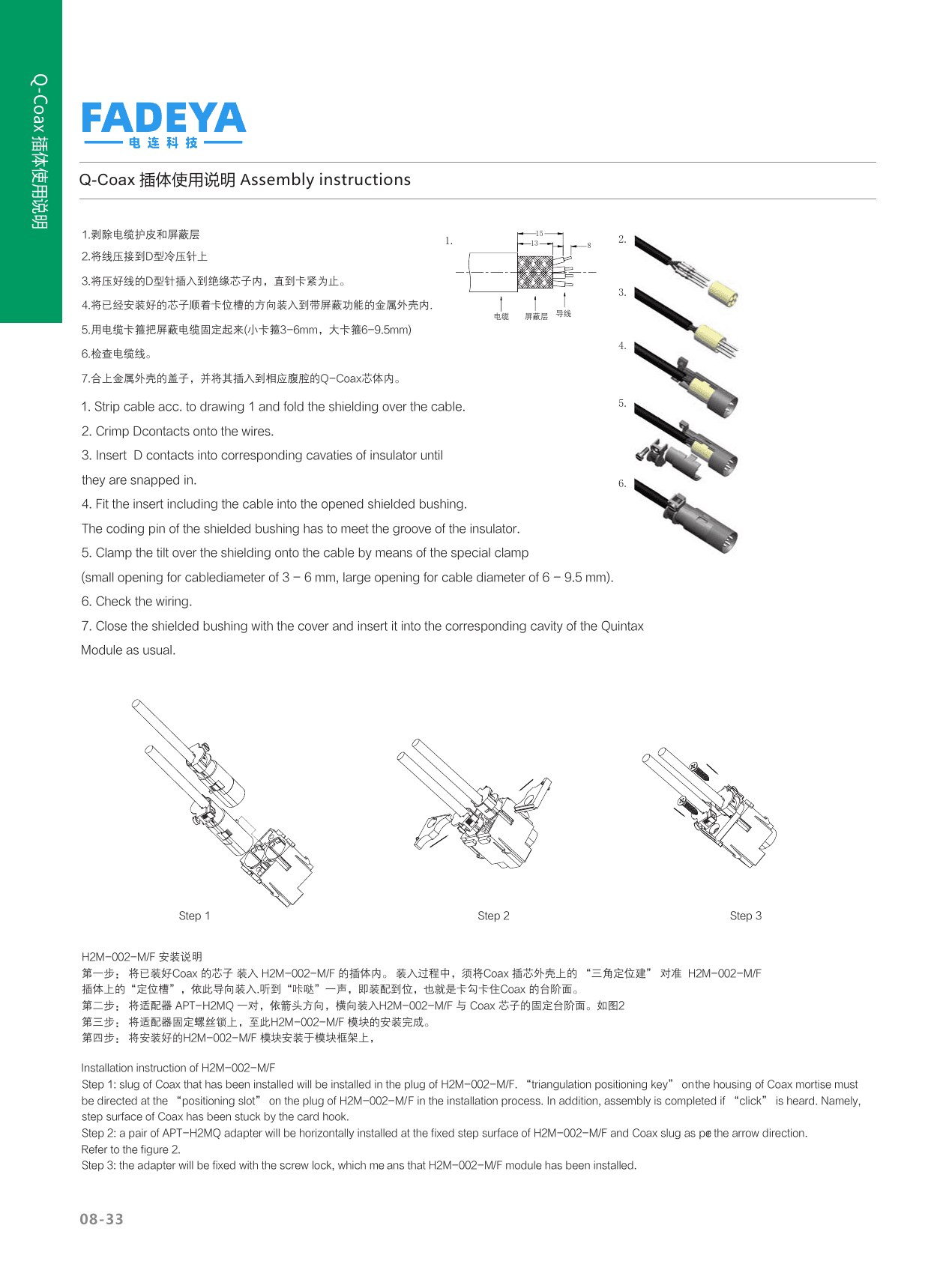

ZoomCoax / Q-Coax modular connectors (H2M-002, EMC-001/004/008, APT-H2MQ adapter)
Zoom

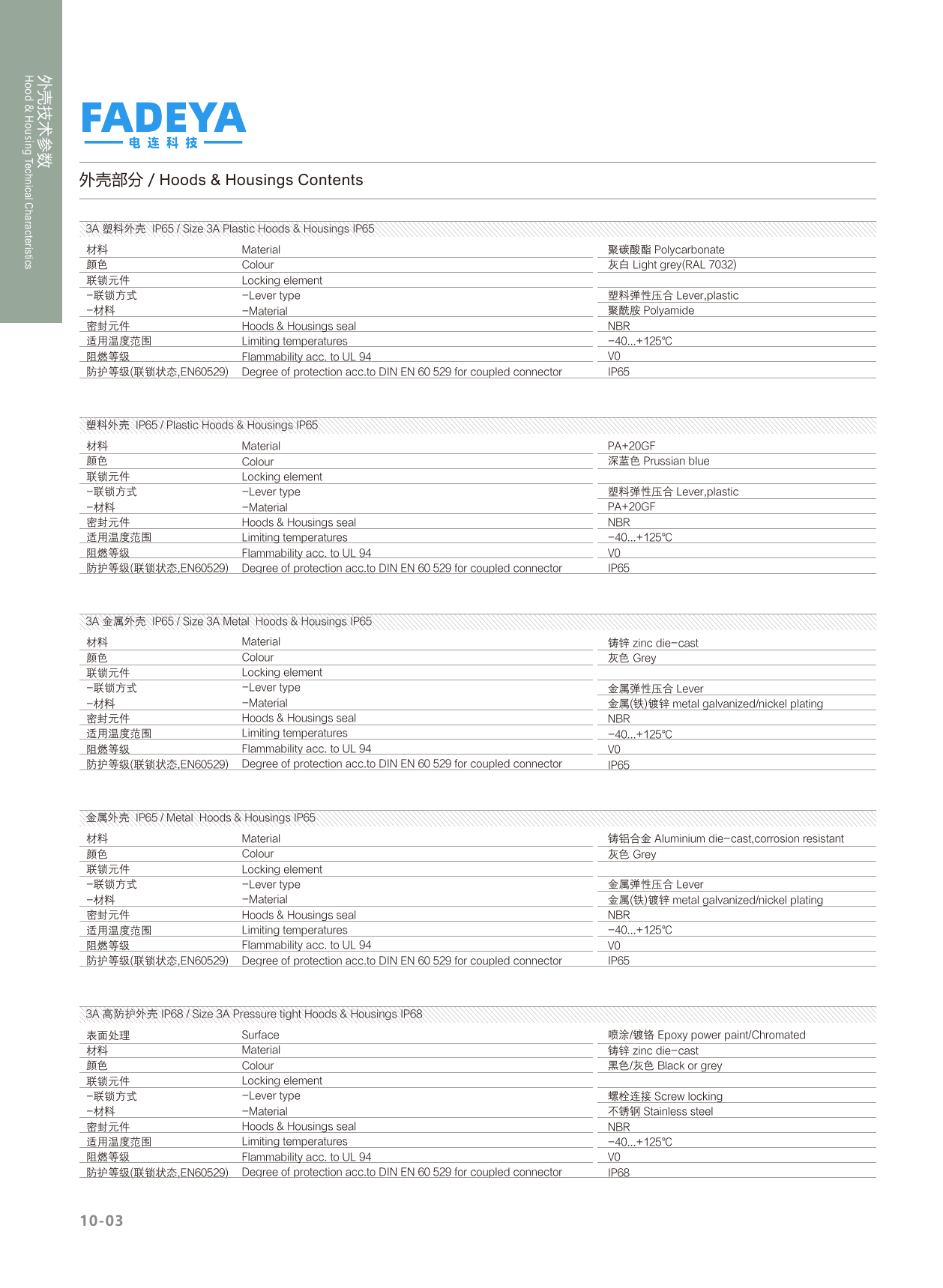

3A plastic / metal / IP68 enclosures — materials, locking, temperature, IP rating
Zoom

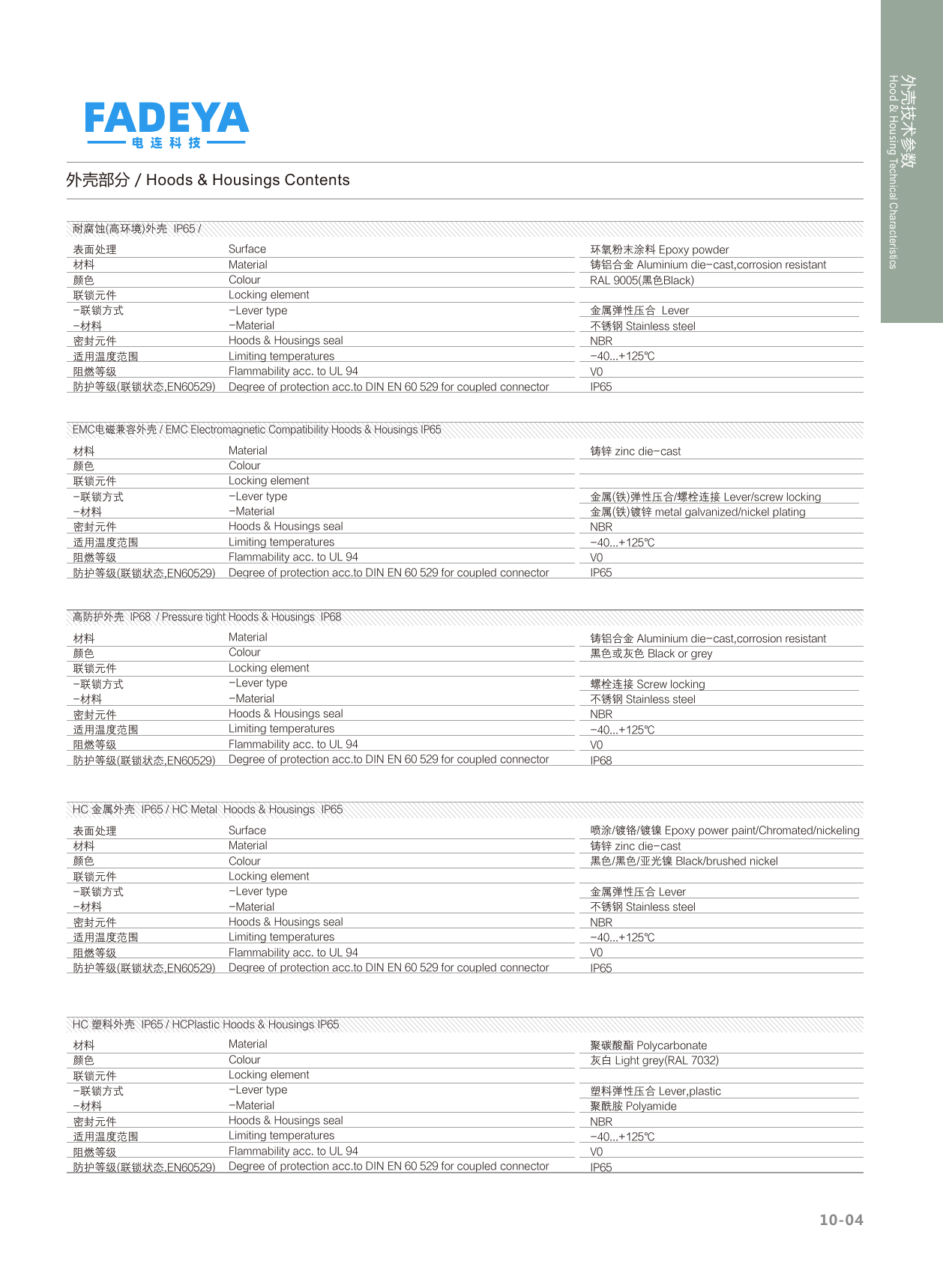

HC, EMC, corrosion-resistant and IP68 enclosures — materials and ratings
Zoom

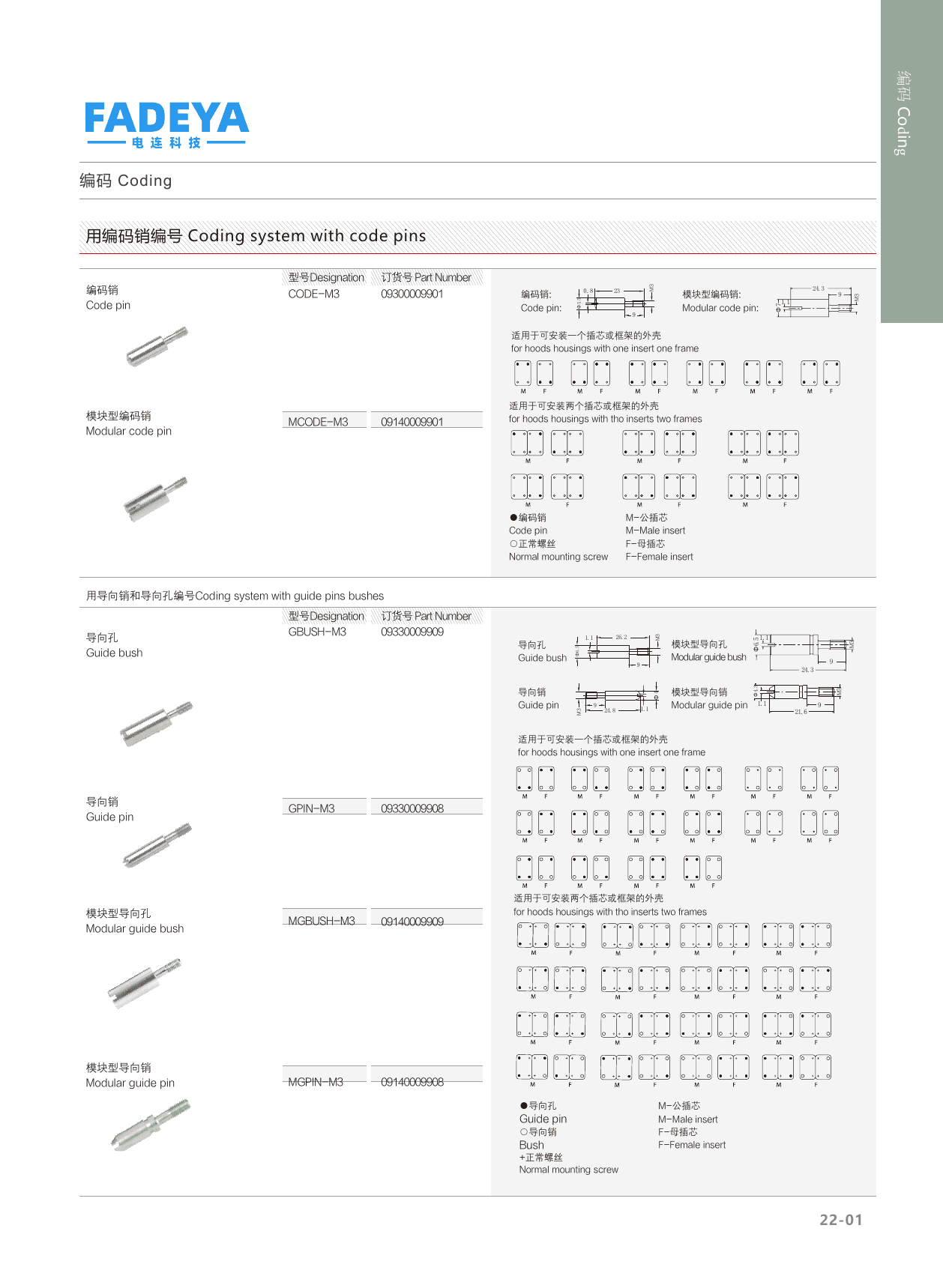

Where to fit code pins, guide pins and bushes in one-insert and two-insert hoods/housings (male/female layouts)
Zoom
Need a Custom Heavy Duty Solution?
Insert configurations, termination types, and housing options tailored to your application. Share your requirements and we'll respond within 24 hours.
