KEL 24-MT Split Entry Frames
Two-row KEL-24 frames: 4/4, 8/3, 12/2, 16/1, 20/- layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 24/8-MT (099042221) — 4/4
KEL 24/11-MT (099042271) — 8/3
KEL 24/14-MT (099042225) — 12/2
KEL 24/17-MT (099042224) — 16/1
KEL 24/20-MT (099042232) — 20/-
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 110 × 82.4 mm |

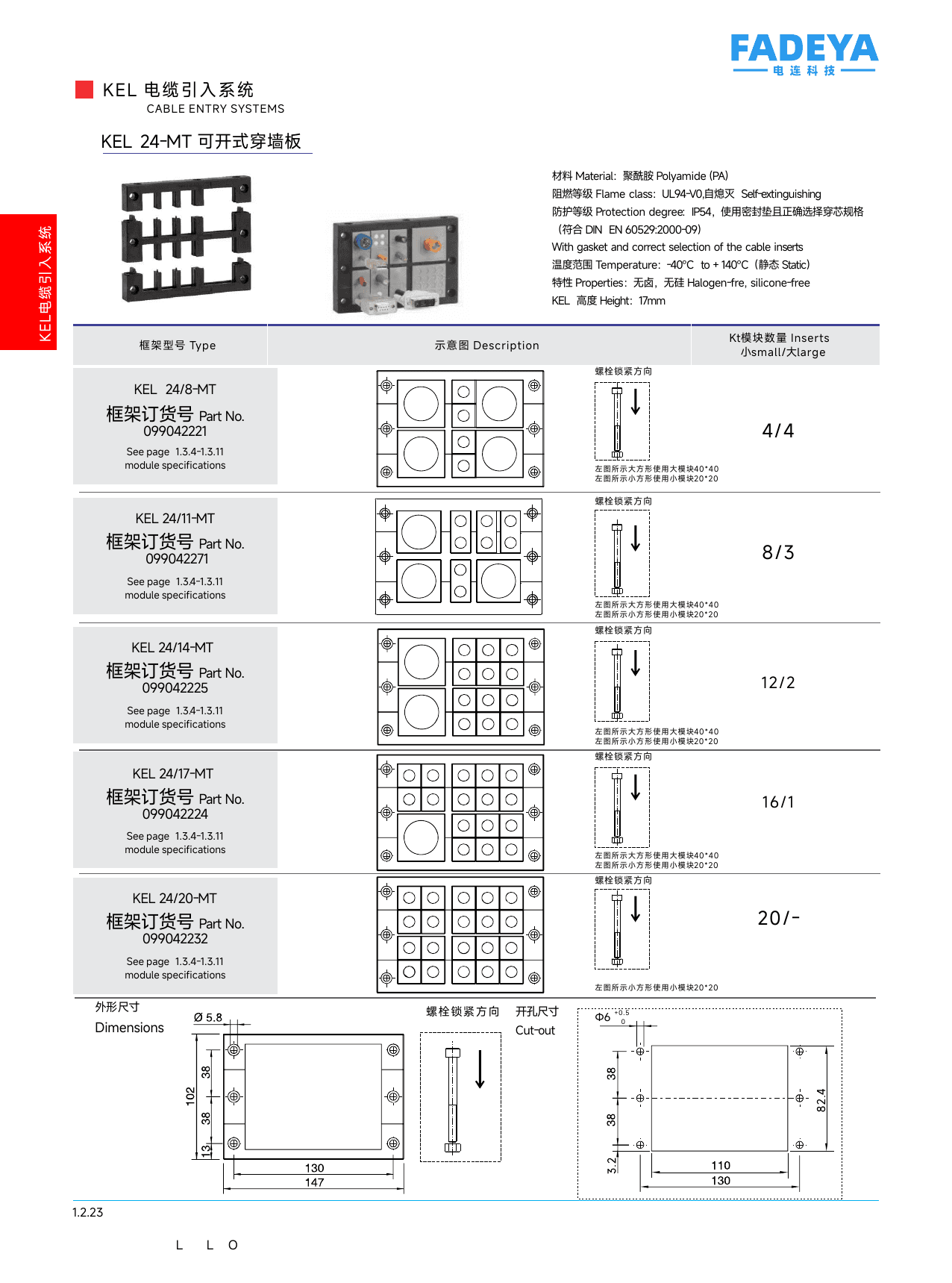

Datasheet
