Transit Sealing System
FM Transit Frames (No Flange)
Steel transit frames (carbon / 304 / 316) for sealing multiple cables/pipes through walls, floors, bulkheads and decks. 60 mm standard module depth.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FM 2/1 — carbon 099110210 / 304 099110214 / 316 099110216 — 1 openings, 60×120 per opening
FM 2/2 — carbon 099110220 / 304 099110224 / 316 099110226 — 2 openings, 60×120 per opening
FM 2/3 — carbon 099110230 / 304 099110234 / 316 099110236 — 3 openings, 60×120 per opening
FM 4/1 — carbon 099110410 / 304 099110414 / 316 099110416 — 1 openings, 120×120 per opening
FM 4/2 — carbon 099110420 / 304 099110424 / 316 099110426 — 2 openings, 120×120 per opening
FM 4/3 — carbon 099110430 / 304 099110434 / 316 099110436 — 3 openings, 120×120 per opening
FM 6/1 — carbon 099110610 / 304 099110614 / 316 099110616 — 1 openings, 180×120 per opening
FM 6/2 — carbon 099110620 / 304 099110624 / 316 099110626 — 2 openings, 180×120 per opening
FM 6/3 — carbon 099110630 / 304 099110634 / 316 099110636 — 3 openings, 180×120 per opening
FM 6/4 — carbon 099110640 / 304 099110644 / 316 099110646 — 4 openings, 180×120 per opening
FM 6/5 — carbon 099110650 / 304 099110654 / 316 099110656 — 5 openings, 180×120 per opening
FM 6/6 — carbon 099110660 / 304 099110664 / 316 099110666 — 6 openings, 180×120 per opening
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Frame Material | Carbon steel / 304 / 316 stainless |
| Module Depth | 60 mm |
| Opening Size | 60×120 to 240×120 mm |
| Application | Walls, floors, bulkheads, decks |
| Note | Cell sizes on request |

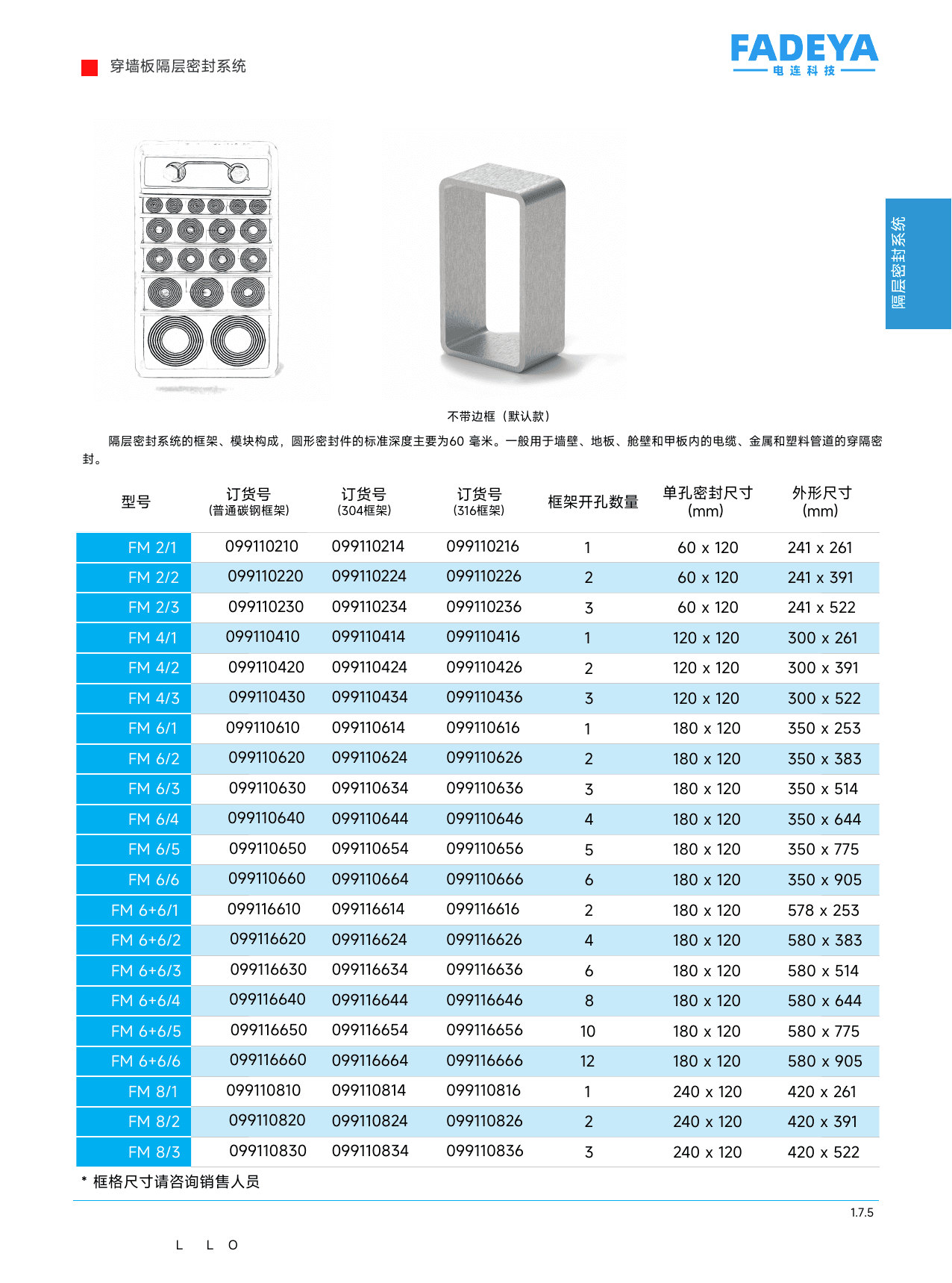

Datasheet
