Transit Sealing System
FRM Variable Transit Modules
Halogen-free peel-layer transit modules (60 mm depth) for cables/pipes 2.5–99 mm, used in the FM frame system.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CM 15w40-60 (099151540) — 15×40, 2.5-12 mm
CM 20w40-60 (099152040) — 20×40, 3-15 mm
CM 20-60 (099152020) — 20×20, 3-16 mm
CM 30-60 (099153030) — 30×30, 10-25 mm
CM 40-60 (099154040) — 40×40, 21.5-34 mm
CM 60-60 (099156060) — 60×60, 28-52 mm
CM 90-60 (099159090) — 90×90, 47-74 mm
CM 120-60 (099151212) — 120×120, 68-99 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Halogen-free composite rubber |
| Depth | 60 mm |
| Cable Pipe O D | 2.5 to 99 mm |
| Feature | Multi-layer variable diameter |

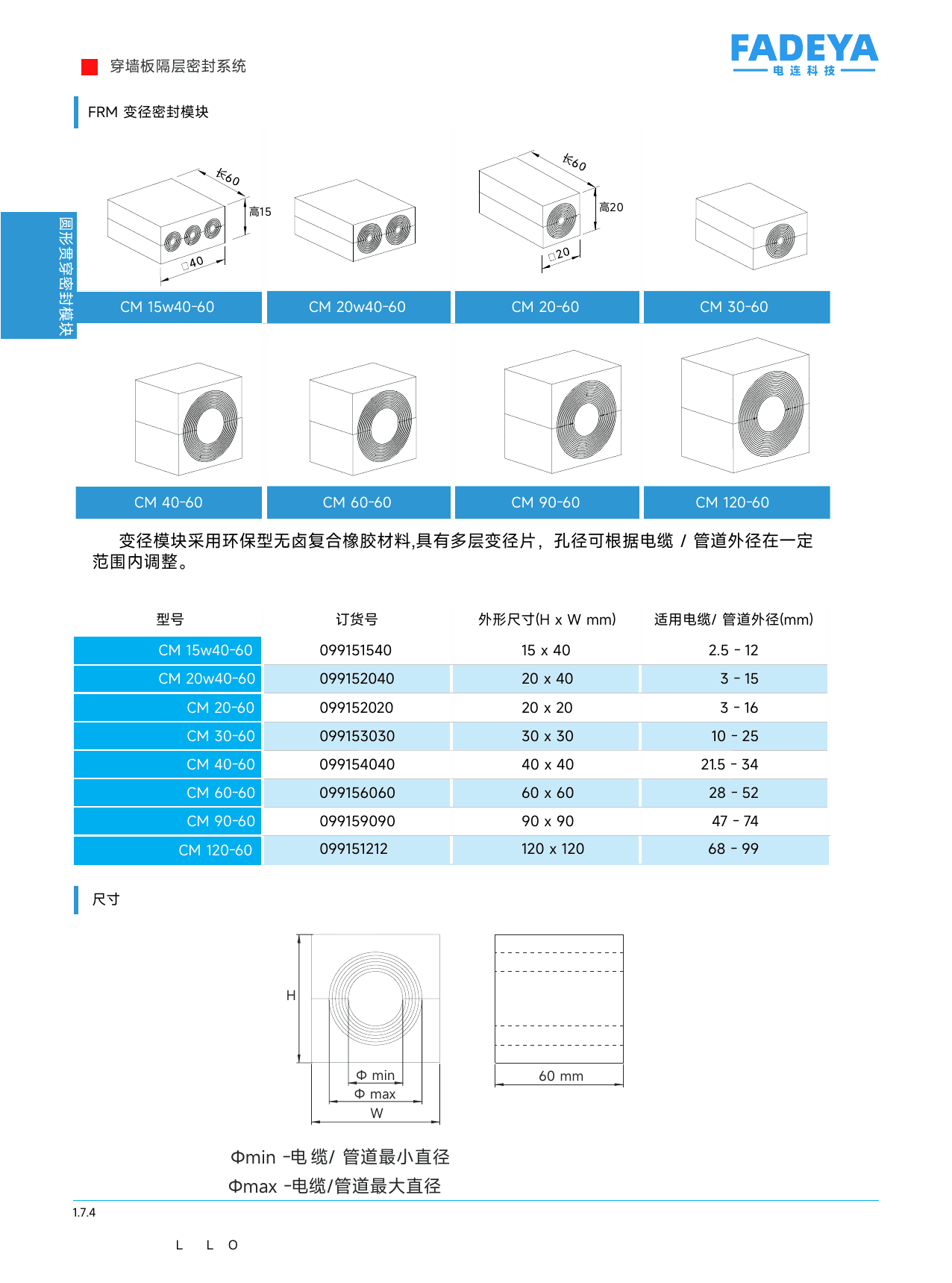

Datasheet
