Transit Sealing System
WM Compression Blocks & Accessories
Square compression blocks (single bolt to compress modules in a frame), plus stayplates (304/316) and lubricant.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WM-06060 (099140606) — W 60 mm
WM-12060 (099141206) — W 120 mm
FM-P06060A (099100000) — 304 stainless
FM-P06060B (099100001) — 316 stainless
FM-P12060A (099100010) — 304 stainless
FM-P12060B (099100011) — 316 stainless
LH001 lubricant (099000001)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Function | Module compression block |
| Wrench | SW 13 |
| Stayplate Material | 304 / 316 stainless steel |
| Dims | L 109-130 mm, H 29-48 mm |

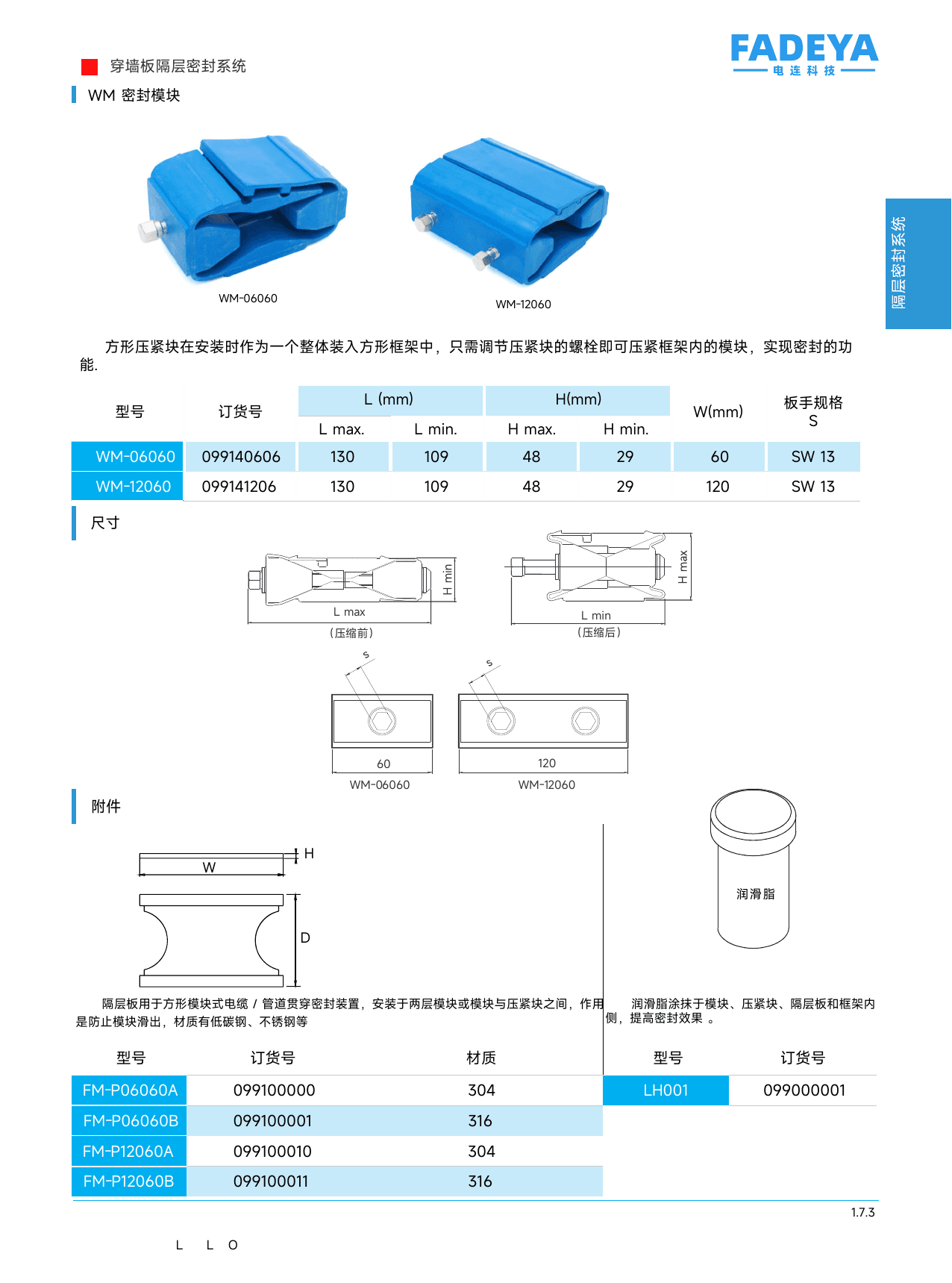

Datasheet
