Transit Sealing System
RP Round Transit Sealing Modules
Split round through-seals (Ø25–200 mm) for sealing a single cable/pipe through a round opening, 3.5–150 mm OD. 58 mm depth.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
RP25 (099090025) — OD 3.5-12 mm, hex 2.5 mm
RP43 (099090043) — OD 10-30 mm, hex 2.5 mm
RP50 (099090050) — OD 15-30 mm, hex 4 mm
RP68 (099090068) — OD 20-50 mm, hex 4 mm
RP75 (099090075) — OD 30-55 mm, hex 4 mm
RP100 (099090100) — OD 50-70 mm, hex 4 mm
RP125 (099090125) — OD 50-95 mm, hex 5 mm
RP150 (099090150) — OD 60-120 mm, hex 5 mm
RP200 (099090200) — OD 100-150 mm, hex 5 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Length | 58 mm |
| Cable Pipe O D | 3.5 to 150 mm |
| Outer Diameter | 25 to 200 mm |
| Type | Split round transit module |

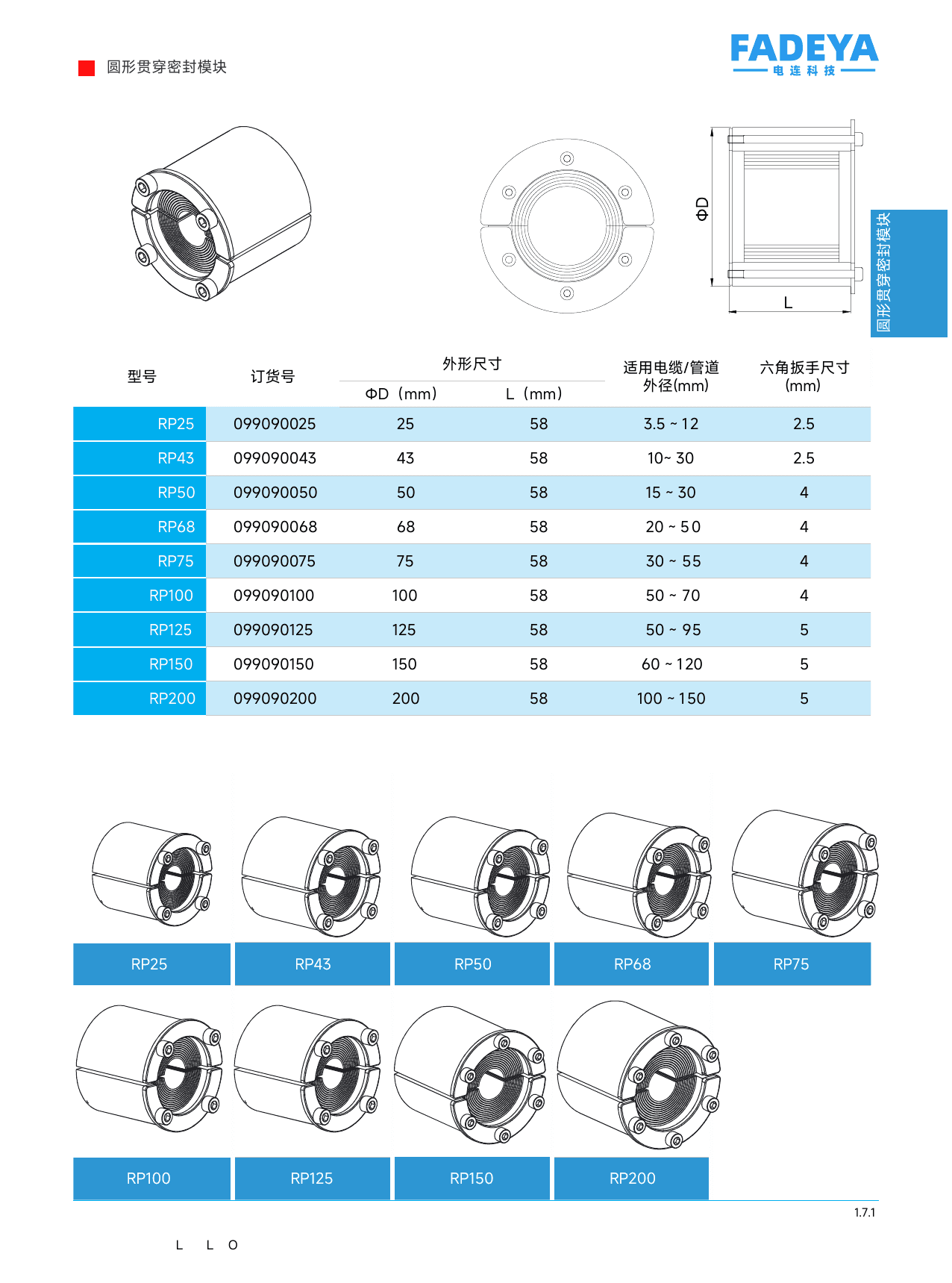

Datasheet
