KEL 16-MT Split Entry Frames
Two-row KEL-16 frames: 0/4, 4/3, 8/2, 12/1, 16/0 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 16/4-MT (099042259) — 0/4
KEL 16/7-MT (099042260) — 4/3
KEL 16/10-MT (099042249) — 8/2
KEL 16/13-MT (099042250) — 12/1
KEL 16/16-MT (099042251) — 16/0
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 85 × 82.4 mm |

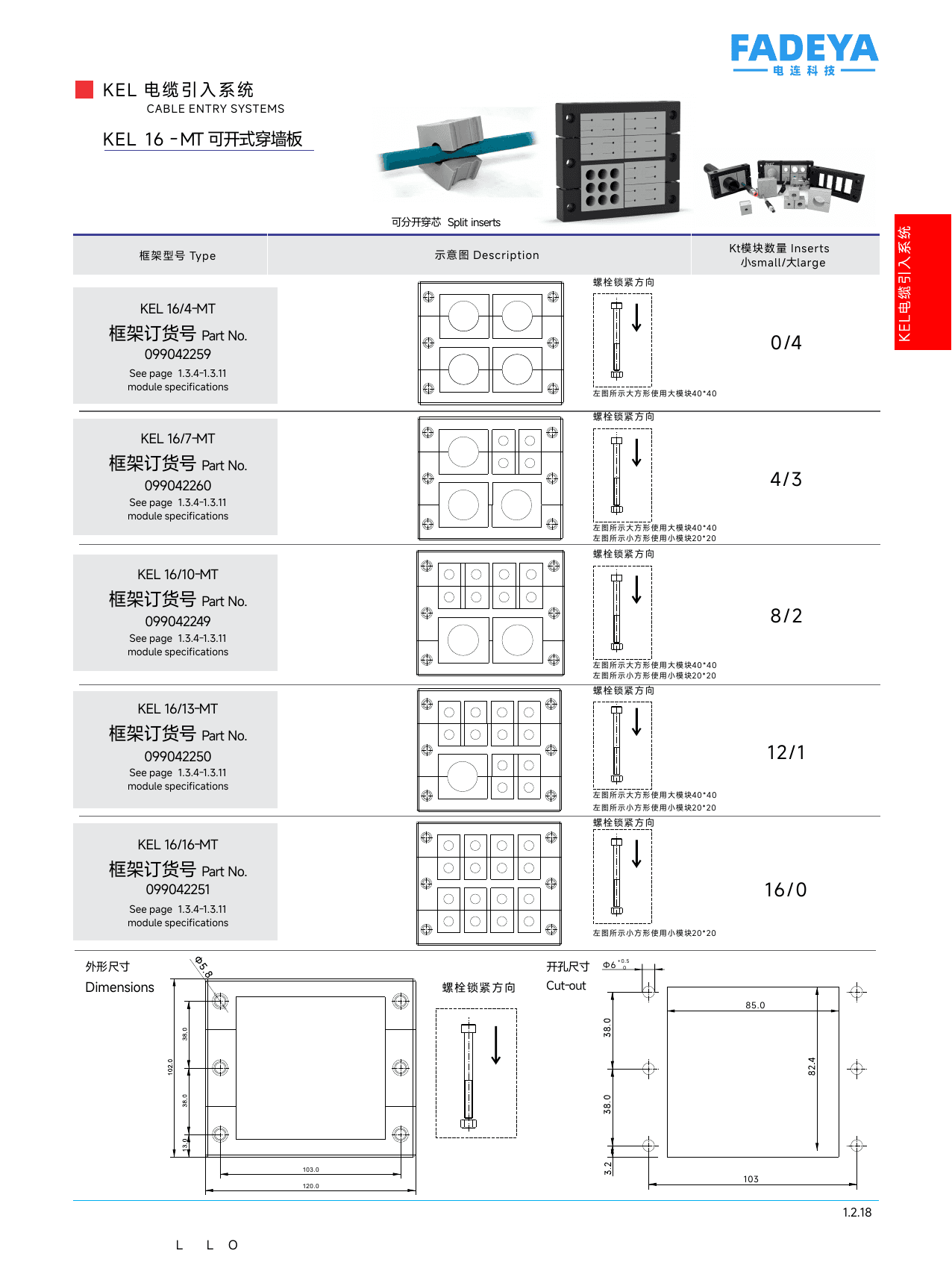

Datasheet
