KTP Conduit Inserts (Small)
20×20 mm inserts for corrugated conduit, 2.5–14 mm, plus matching dummy plugs and twin-hole KTMB versions. IP65.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KTP-A (099042565) — 2.5-4.5 mm
KTP-B (099040475) — 4.0-7.5 mm
KTP-C (099046510) — 6.5-10 mm
KTP-D (099049513) — 9.5-13 mm
KTP-E (099041316) — 11-14 mm
KTP-BTG1 (099041410) — for KTP-A
KTP-BTG2 (099041416) — for KTP-B
KTP-BTG-3 (099041417) — for KTP-C
KTP-BTG-4 (099041418) — for KTP-D
KTP-BTG-5 (099041419) — for KTP-E
KTMB-Ax2 (099042545) — 2.5-4.5×2 mm
KTMB-Bx2 (099044575) — 4.5-7.5×2 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP65 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 20×20 mm |
| Cable Range | 2.5 to 14 mm |

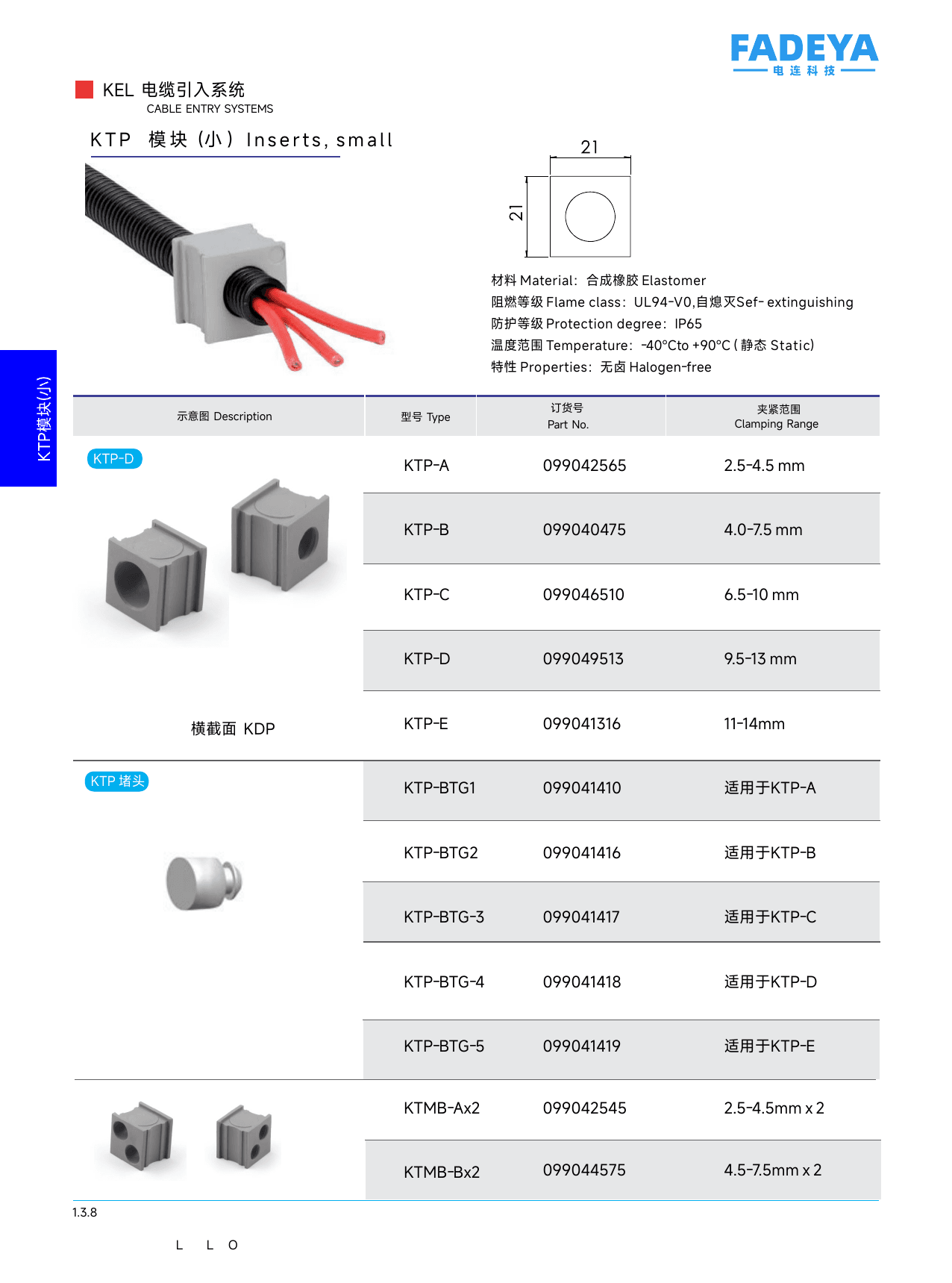

Datasheet
