EMC-KT Small Inserts (20×20)
Shielded 20×20 mm inserts (EMC versions of the KT small range) for grounding cable shields at the entry.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
EMC-KT 2 (099139934) — 2-3 mm
EMC-KT 3 (099131203) — 3-4 mm
EMC-KT 4 (099131204) — 4-5 mm
EMC-KT 5 (099131205) — 5-6 mm
EMC-KT 6 (099131206) — 6-7 mm
EMC-KT 7 (099131207) — 7-8 mm
EMC-KT 8 (099131208) — 8-9 mm
EMC-KT 9 (099131209) — 9-10 mm
EMC-KT 10 (099131210) — 10-11 mm
EMC-KT 11 (099131211) — 11-12 mm
EMC-KT 12 (099131212) — 12-13 mm
EMC-KT 13 (099131213) — 13-14 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 20×20 mm |
| EMC Shielding | Shielded |

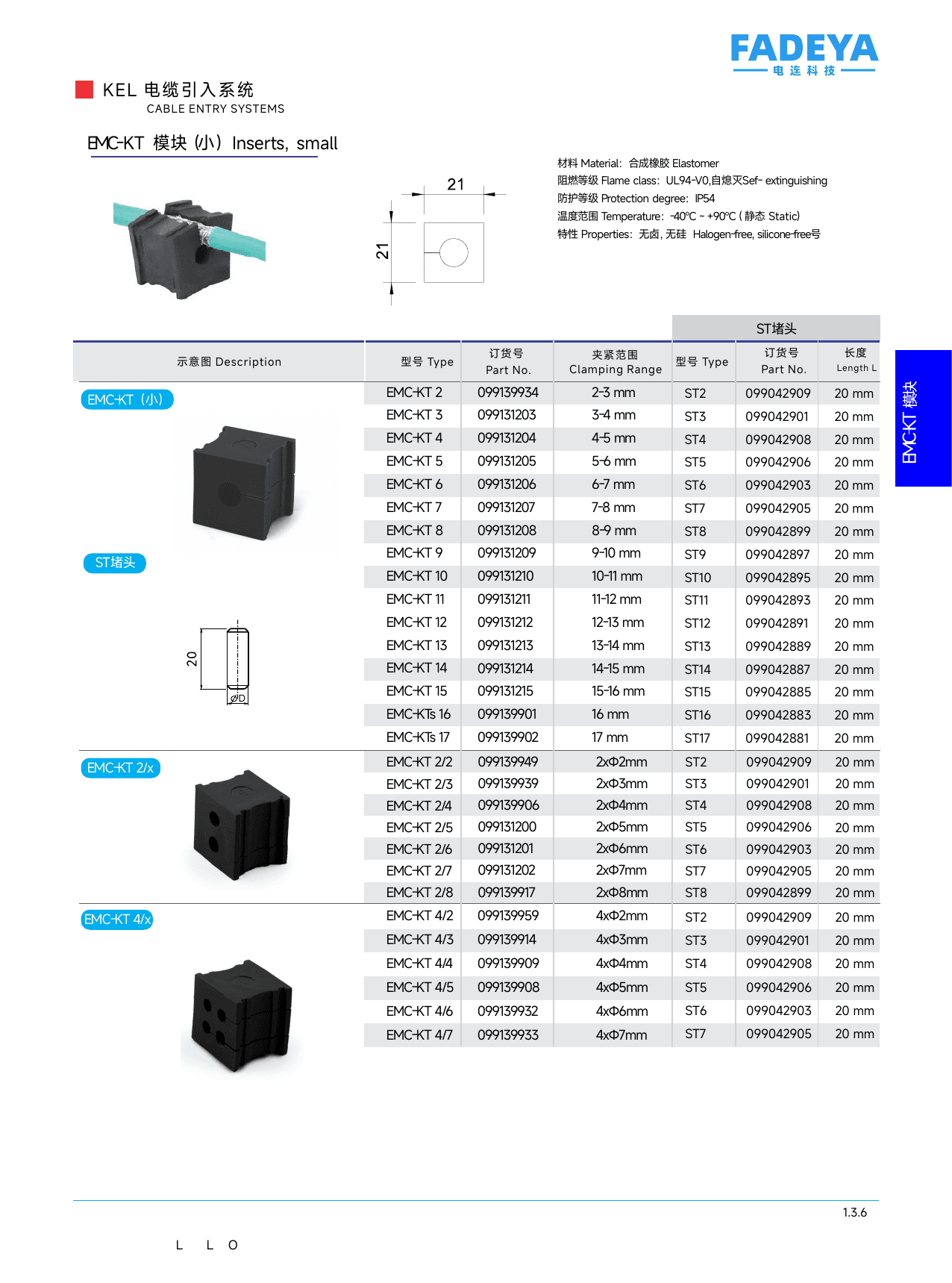

Datasheet
