KQT-ASI Cable Grommets
20×20 mm inserts for flat ASI bus cables — 1 or 2 ASI cables; flat face toward frame centre for a tight seal.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KQT-ASI/1 (099052573) — 1× ASI
KQT-ASI/2 (099052574) — 2× ASI
ST ASI dummy (099052575)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 20×20 mm |
| Cable Type | ASI flat cable |

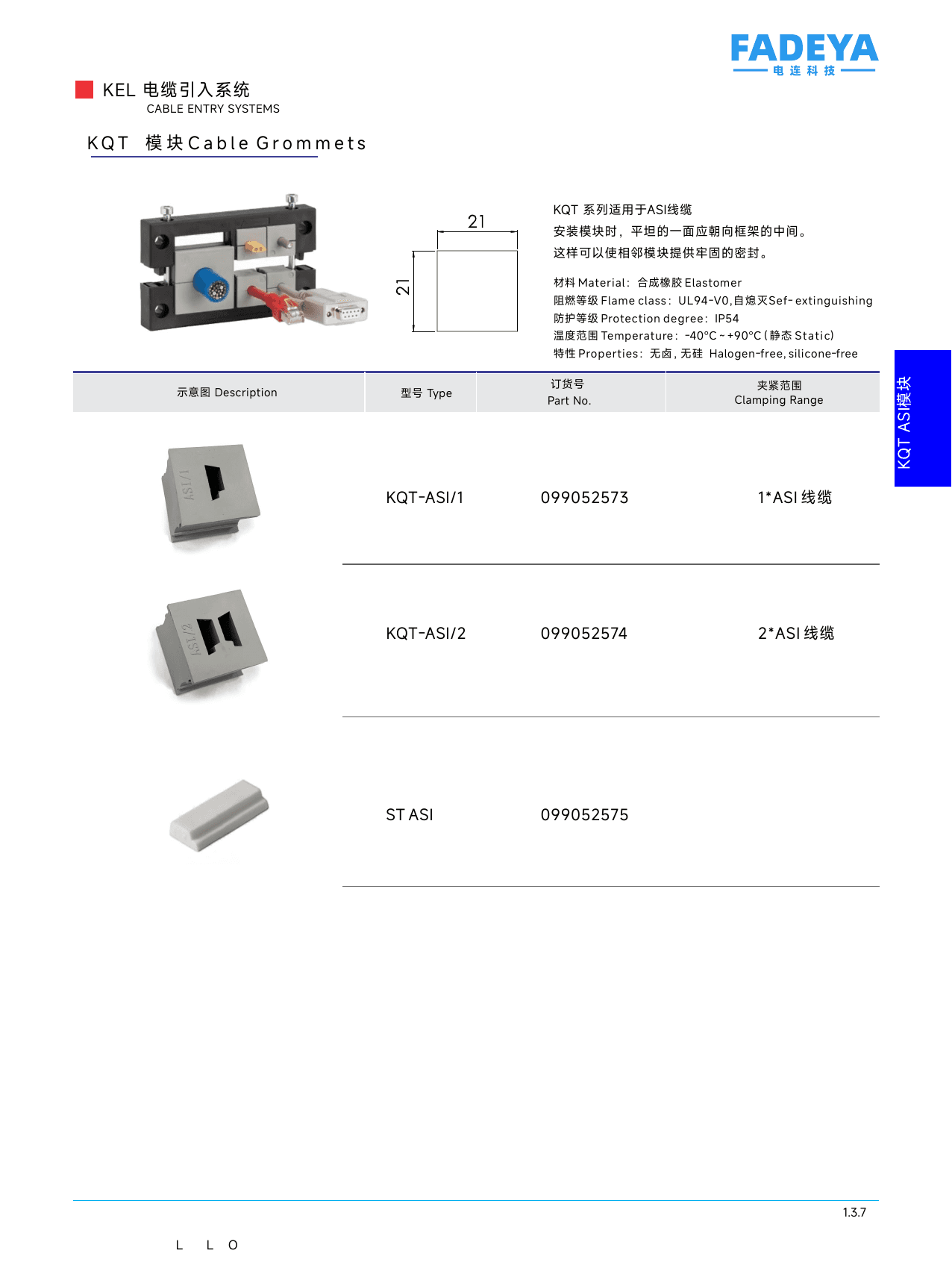

Datasheet
