KT 2/x-H Horizontal Small Inserts
20×20 mm inserts with two side-by-side horizontal holes, for routing flat/twin cables.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KT2/2H (099039950) — 2×2 mm
KT2/3H (099039951) — 2×3 mm
KT2/4H (099039952) — 2×4 mm
KT2/5H (099039953) — 2×5 mm
KT2/6H (099039954) — 2×6 mm
KT2/7H (099039955) — 2×7 mm
KT2/8H (099039956) — 2×8 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 20×20 mm |

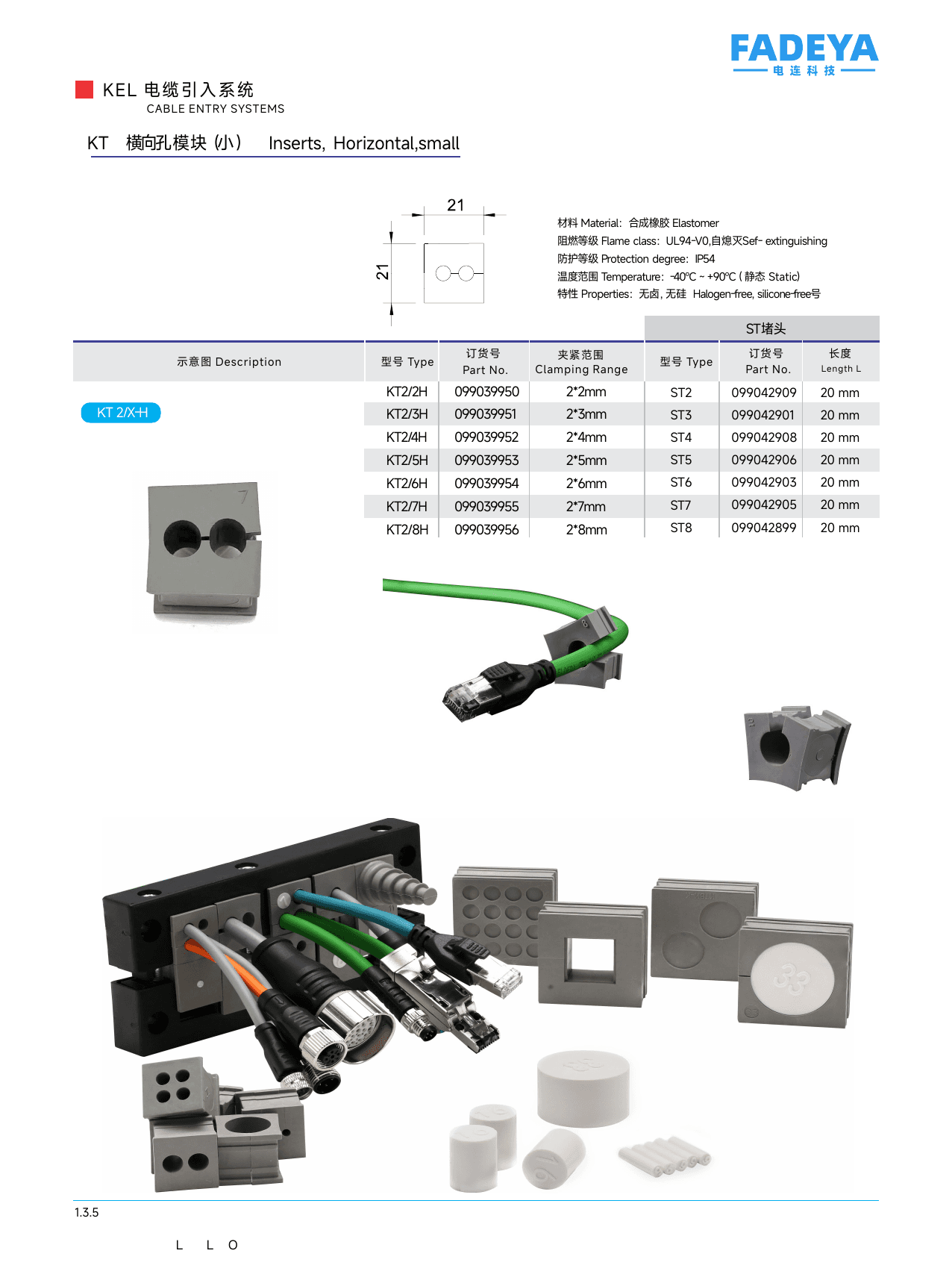

Datasheet
