KEL-EMC Ground Mounting Plates
Stainless-steel shielding contact plates that ground installed shielded cables without cutting — direct, low-resistance chassis connection.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-EMC 6 (0936520) — 2 cables
KEL-EMC 10 (0936522) — 3 cables
KEL-EMC 16/4 (0936524) — 4 cables
KEL-EMC 24/5 (0936526) — 5 cables
KEL-EMC-F (0939110) — 3 cables
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Stainless steel |
| Function | Low-resistance shield contact |
| Suits Frames | KEL-E2/E3/E4/E5, KEL-6/10/16/24 |
| Advantage | Up to 10 cables with two sets; replaces EMC cable glands |

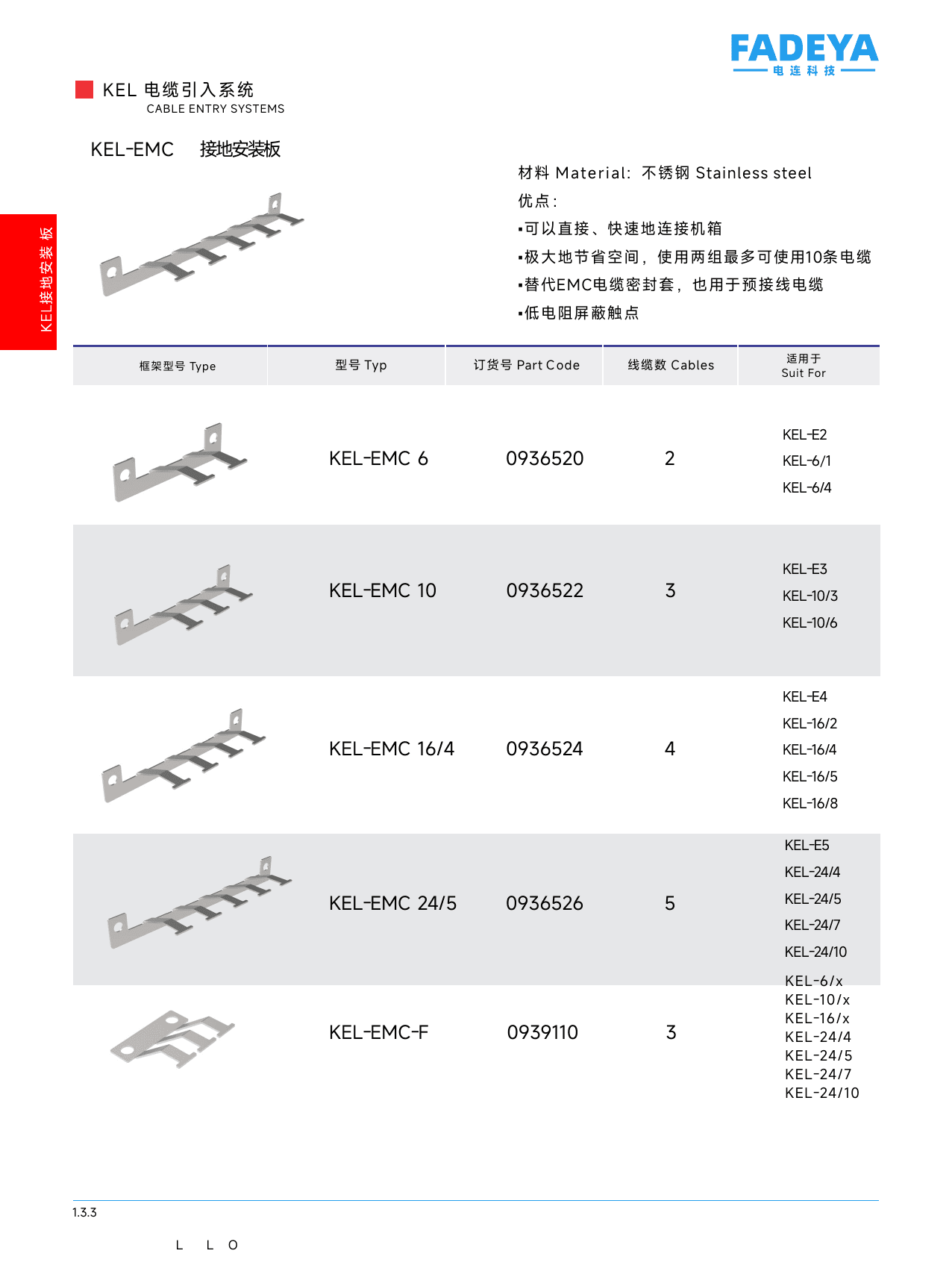

Datasheet
