KEL-64 Large-Diameter Sealing Frames
Large round-cable sealing frames (1 or 2 openings) for big cable diameters, used with KTF bellows/cable modules. Cut-out = cable diameter +15%.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 64/1 (099046401) — 111×116.5×35 mm
KEL 64/2 (099046402) — 202×116.5×35 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +140 °C |
| Openings | 1 or 2 |
| Cut-Out | Round, cable diameter +15% |

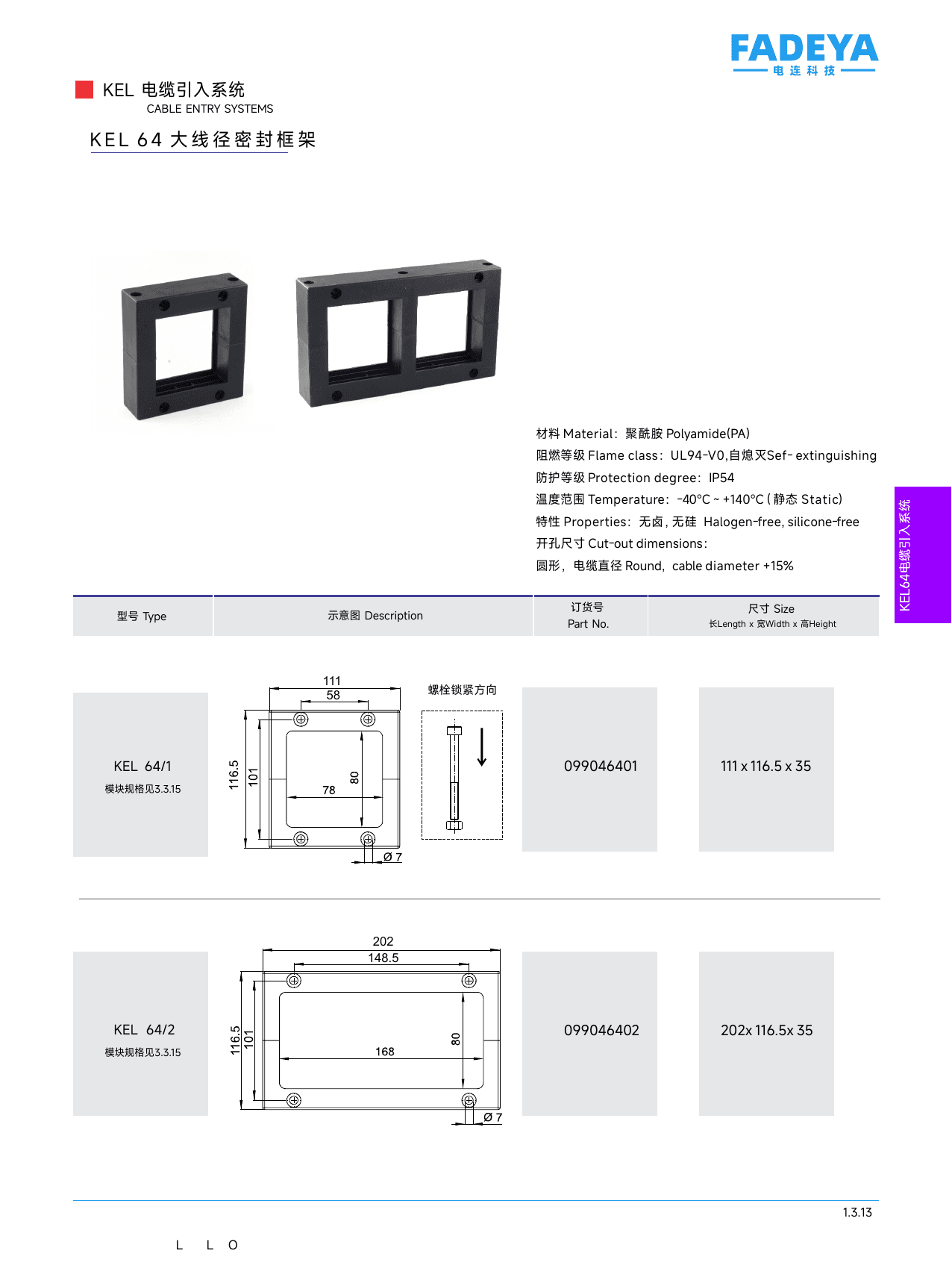

Datasheet
