KML 30 / 32 Aluminum Frames
Largest aluminium frames, up to 6 large (KML 30) or 32 (KML 32) cables. IP55, UL/NEMA 3/12/12K.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KML 30 (097300001)
KML 30/6 (097300601)
KML 32 (097320001)
KML 32/8 (097320801)
KML 32/14 (097321401)
KML 32/20 (097322001)
KML 32/32 (097323201)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Powder-coated aluminium |
| IP Rating | IP55 |
| Ul Nema | 3, 12, 12K |
| Operating Temp. | -40 to +120 °C |
| Max Cables | 32 |

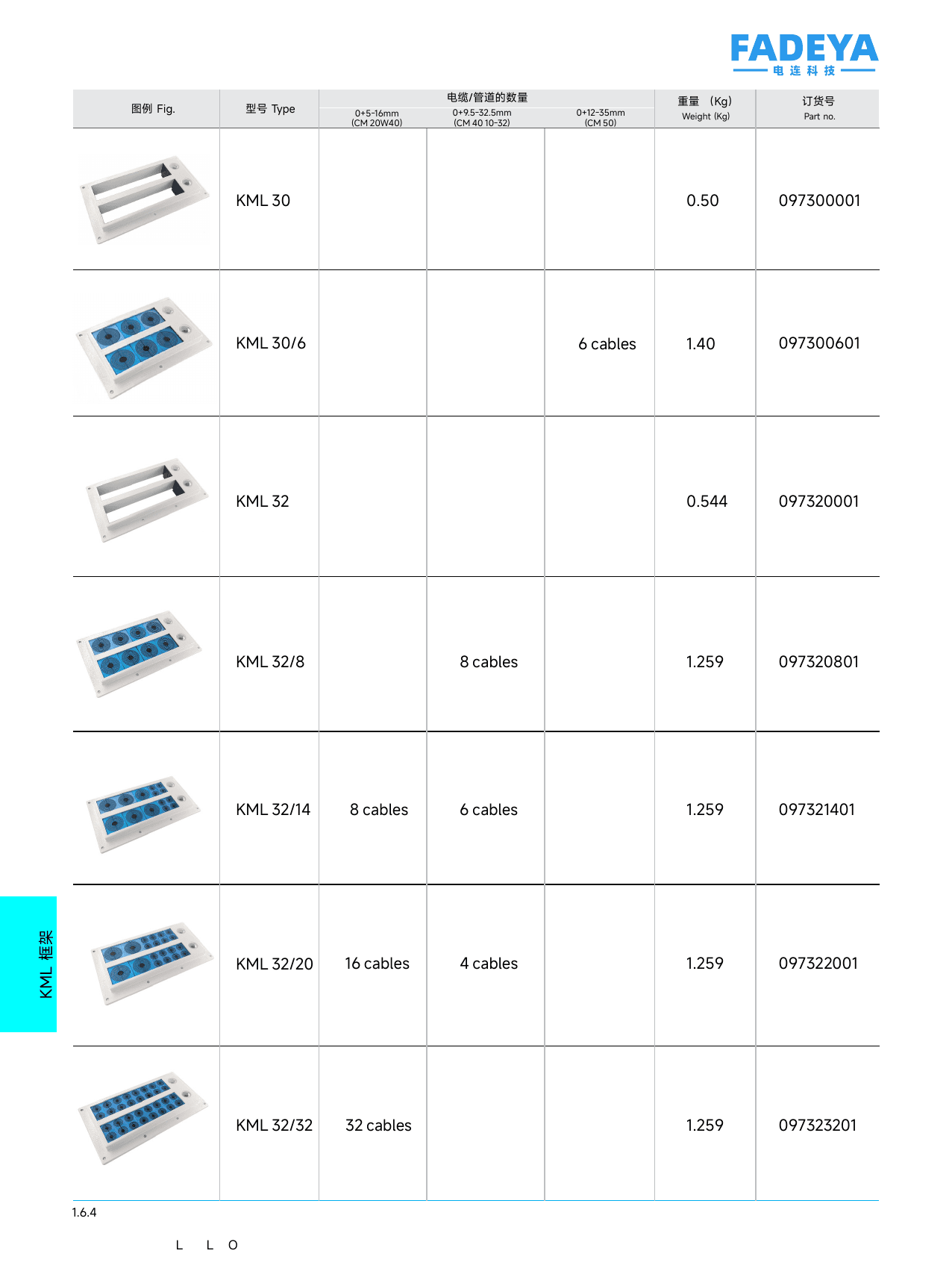

Datasheet
