KML CM Core Modules
Variable-diameter core modules (30 mm height) for KML frames, sealing cables/pipes 3.5–79 mm; keep the core in as a spare for future capacity.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CM 15w40-30 (097154010) — 3.5-10.5 mm, 15×40
CM 30w40-30 (097304010) — 10.0-25.0 mm, 30×40
CM 20-30 (097202011) — 4-14.5 mm, 20×20
CM 20w40-30 (097204011) — 3.5-16.5 mm, 20×40
CM 40-30 (097404011) — 21.5-34.5 mm, 40×40
CM 40 10-32-30 (097404020) — 9.5-32.5 mm, 40×40
CM 50-30 (097505010) — 12-35 mm, 50×50
CM 60-30 (097606010) — 28-54 mm, 60×60
CM 90-30 (097909010) — 48-79 mm, 90×90
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Halogen-free elastomer |
| Module Height | 30 mm |
| Cable Range | 3.5 to 79 mm |
| Feature | Peel-layer variable diameter |

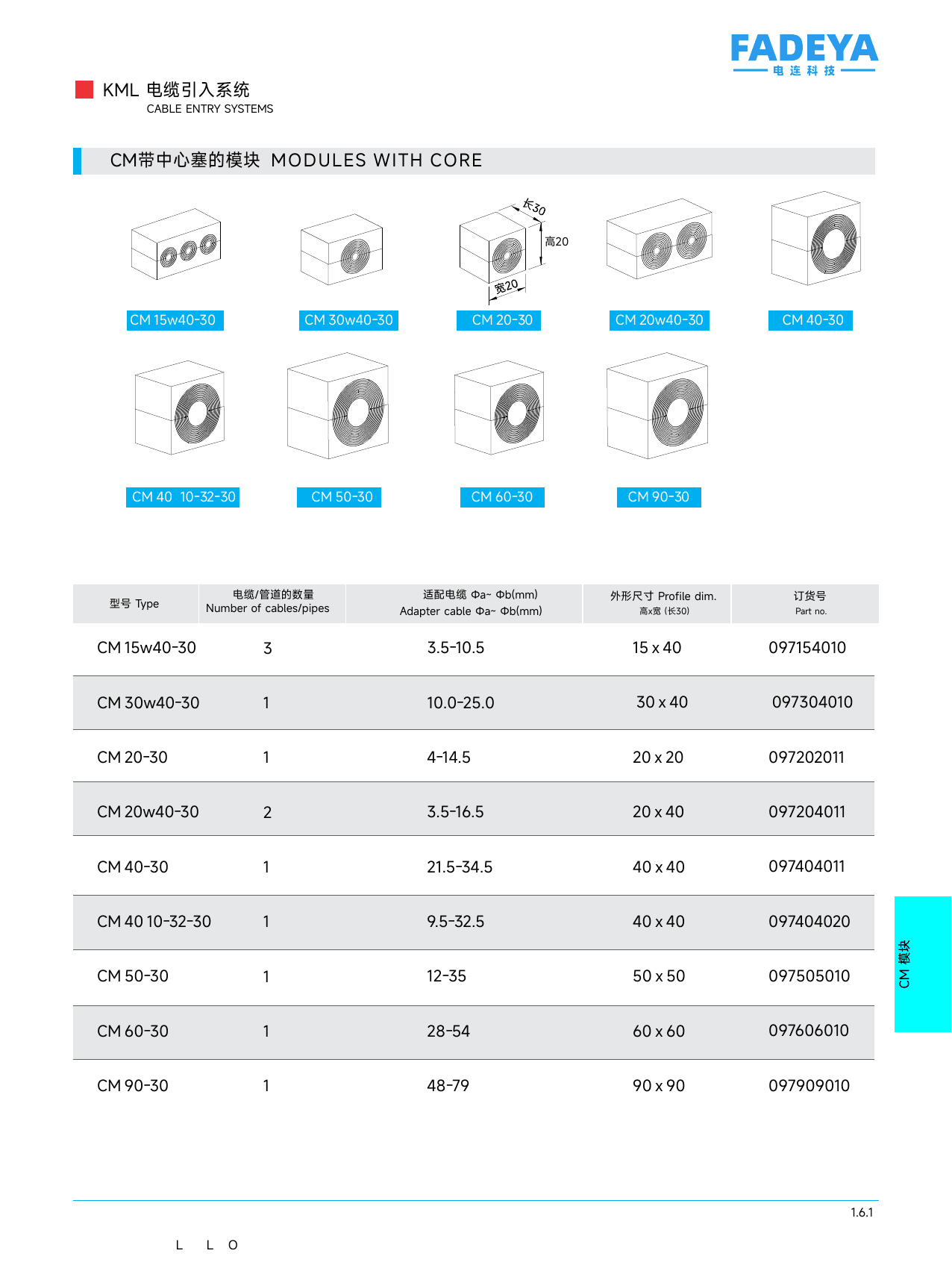

Datasheet
