KML — Aluminum Entry Frames
KML 15 / 16 Aluminum Frames
Aluminium frames for up to 3 large (KML 15) or 16 (KML 16) cables, with CM 20W40 / CM 40 / CM 50 modules. IP55.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KML 15 (097150001)
KML 15/3 (097150301)
KML 16 (097160001)
KML 16/4 (097160401)
KML 16/7 (097160701)
KML 16/10 (097161001)
KML 16/16 (097161601)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Powder-coated aluminium |
| IP Rating | IP55 |
| Ul Nema | 3, 12, 12K |
| Operating Temp. | -40 to +120 °C |

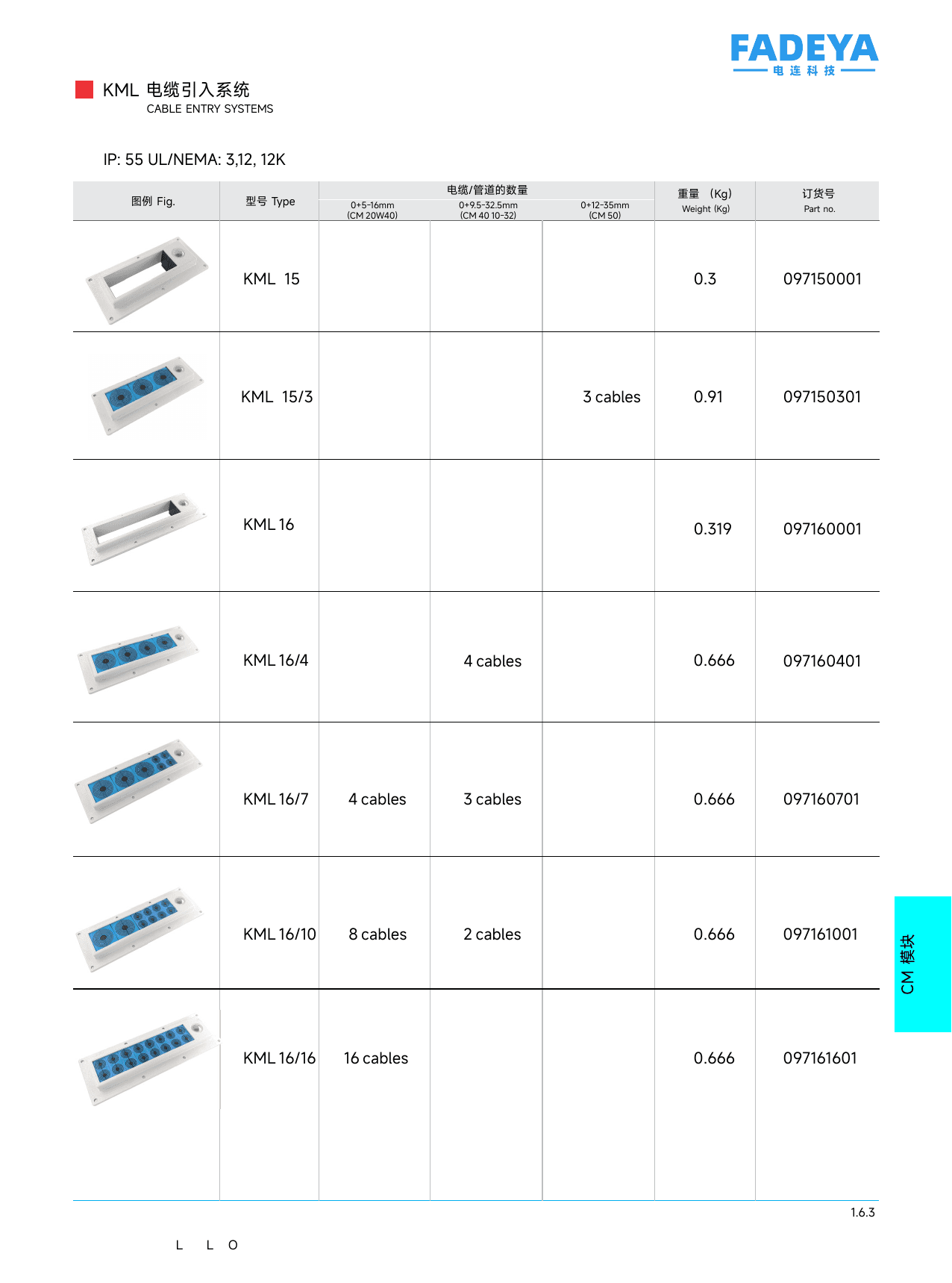

Datasheet
