KML — Aluminum Entry Frames
KML 10 / 12 Aluminum Frames
Powder-coated aluminium frames with integrated pressing kit, holding up to 10 (KML 10) or 12 (KML 12) cables. IP55, UL/NEMA 3/12/12K.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KML 10 (097100001)
KML 10/4 (097100401)
KML 10/7 (097100701)
KML 10/10 (097101001)
KML 12 (097120001)
KML 12/3 (097120301)
KML 12/6 (097120601)
KML 12/9 (097120901)
KML 12/12 (097121201)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Powder-coated aluminium |
| IP Rating | IP55 |
| Ul Nema | 3, 12, 12K |
| Operating Temp. | -40 to +120 °C |
| Modules Used | CM 20W40 / CM 40 10-32 |

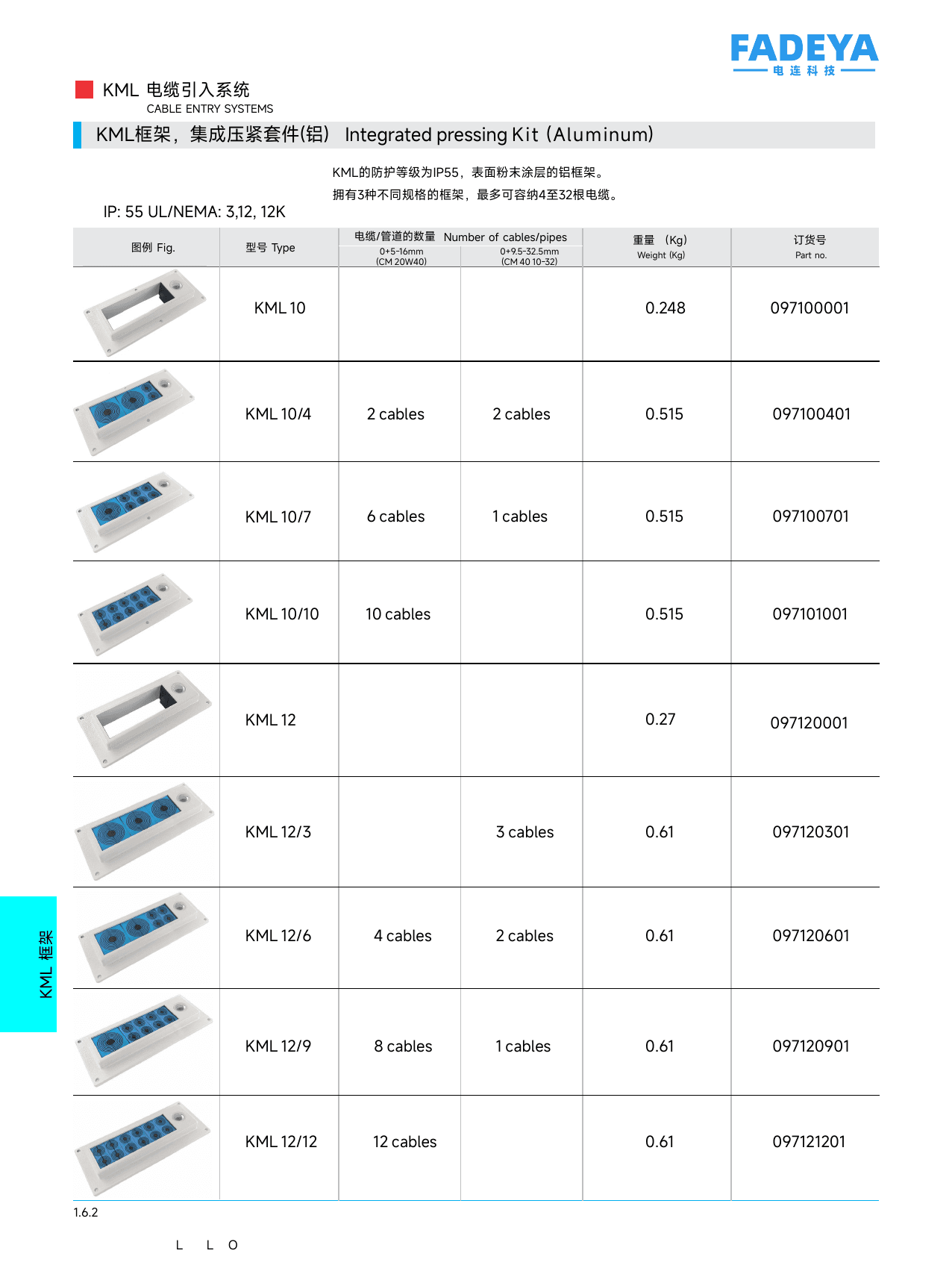

Datasheet
