KEL 24-MTE Split Entry Frames
Tall KEL-24 frames mixing large/small modules: 9/4, 13/3, 21/1, 25/0 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 24/13-MTE (099042272) — 9/4
KEL 24/16-MTE (099042273) — 13/3
KEL 24/22-MTE (099042276) — 21/1
KEL 24/25-MTE (099042277) — 25/0
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 109.2 × 106.5 mm |

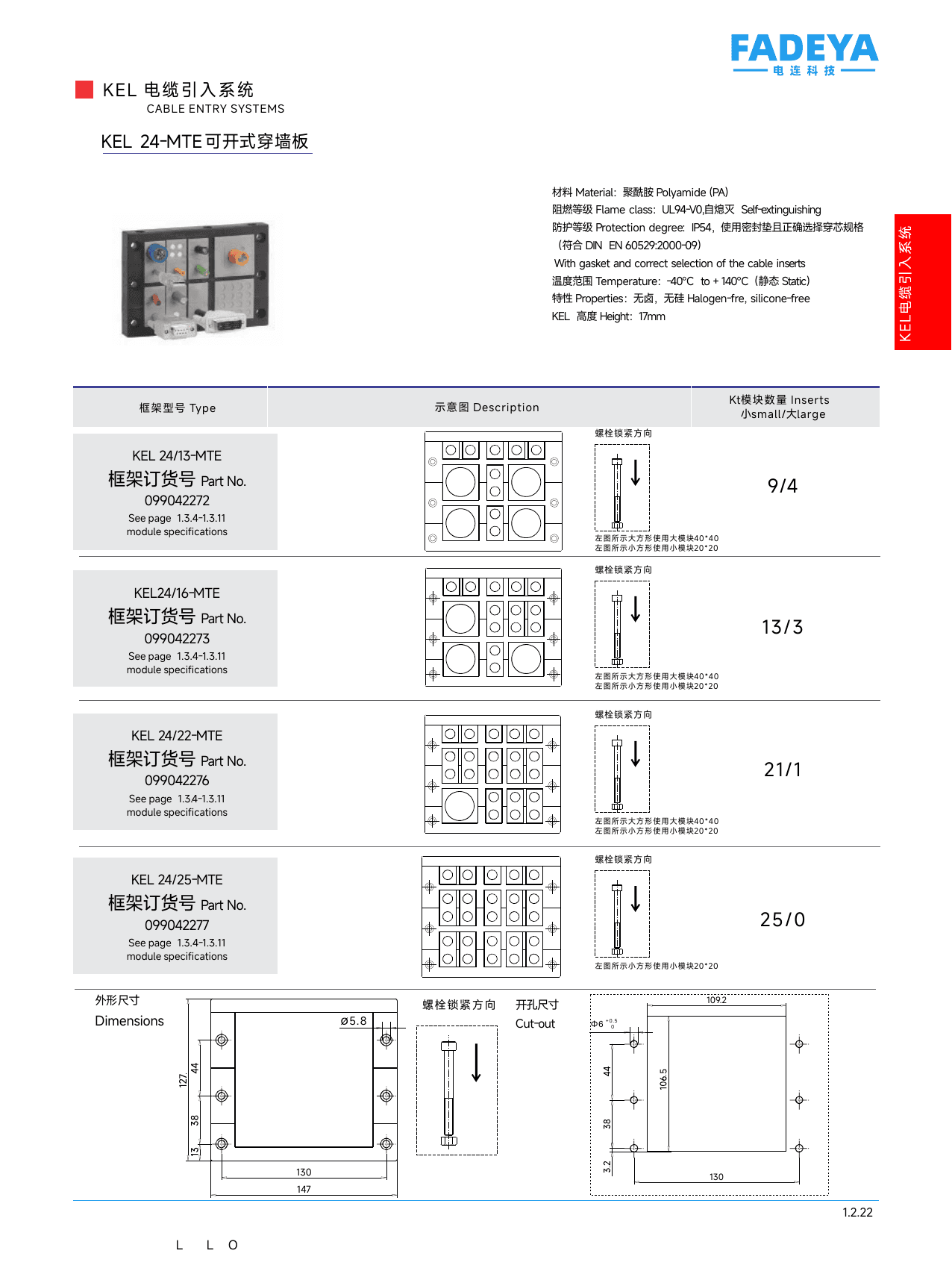

Datasheet
