KEL 24-E Split Entry Frames
Three-row KEL-24 frames (62 × 110 mm cut-out): 15/-, 11/1 and 7/2 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 24/15-E (099042209) — 15/-
KEL 24/12-E (099042208) — 11/1
KEL 24/9-E (099042207) — 7/2
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Cut-Out | 62 × 110 mm |

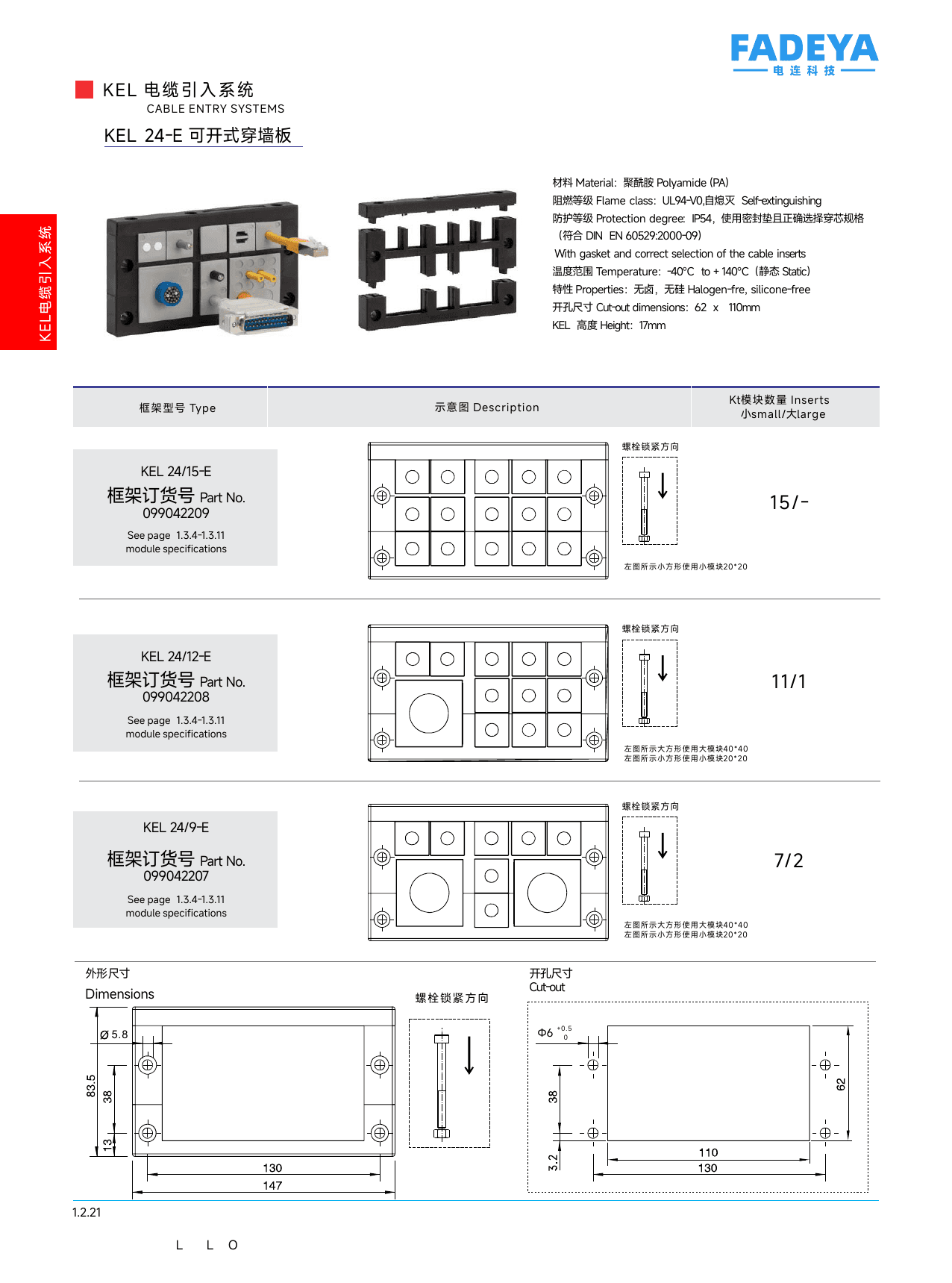

Datasheet
