KEL-QVT Split Cable Sealing Heads
Compact round split frames for pre-terminated cables — 1–16 conductors via multi-hole inserts. IP54; IP65 with single insert.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-QVT 20 (097520010) — 1 cable, M20x1.5
KEL-QVT 25 (097525001) — 1 cable, M25x1.5
KEL-QVT 32 (097532010) — 1 cable, M32x1.5
KEL-QVT 40/1 (097540010) — 1 cable, M40x1.5
KEL-QVT 40/2 (097540020) — 2 cable, M40x1.5
KEL-QVT 50/1 (097550010) — 1 cable, M50x1.5
KEL-QVT 50/4 (097550040) — 4 cable, M50x1.5
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polycarbonate (PC) |
| Color | Grey |
| Flame Class | UL94 V-0 |
| IP Rating | IP54 (up to IP65 single insert) |
| Operating Temp. | -30 to +100 °C |
| Thread | M20–M50 × 1.5 |
| Max Torque | 2.0 Nm |

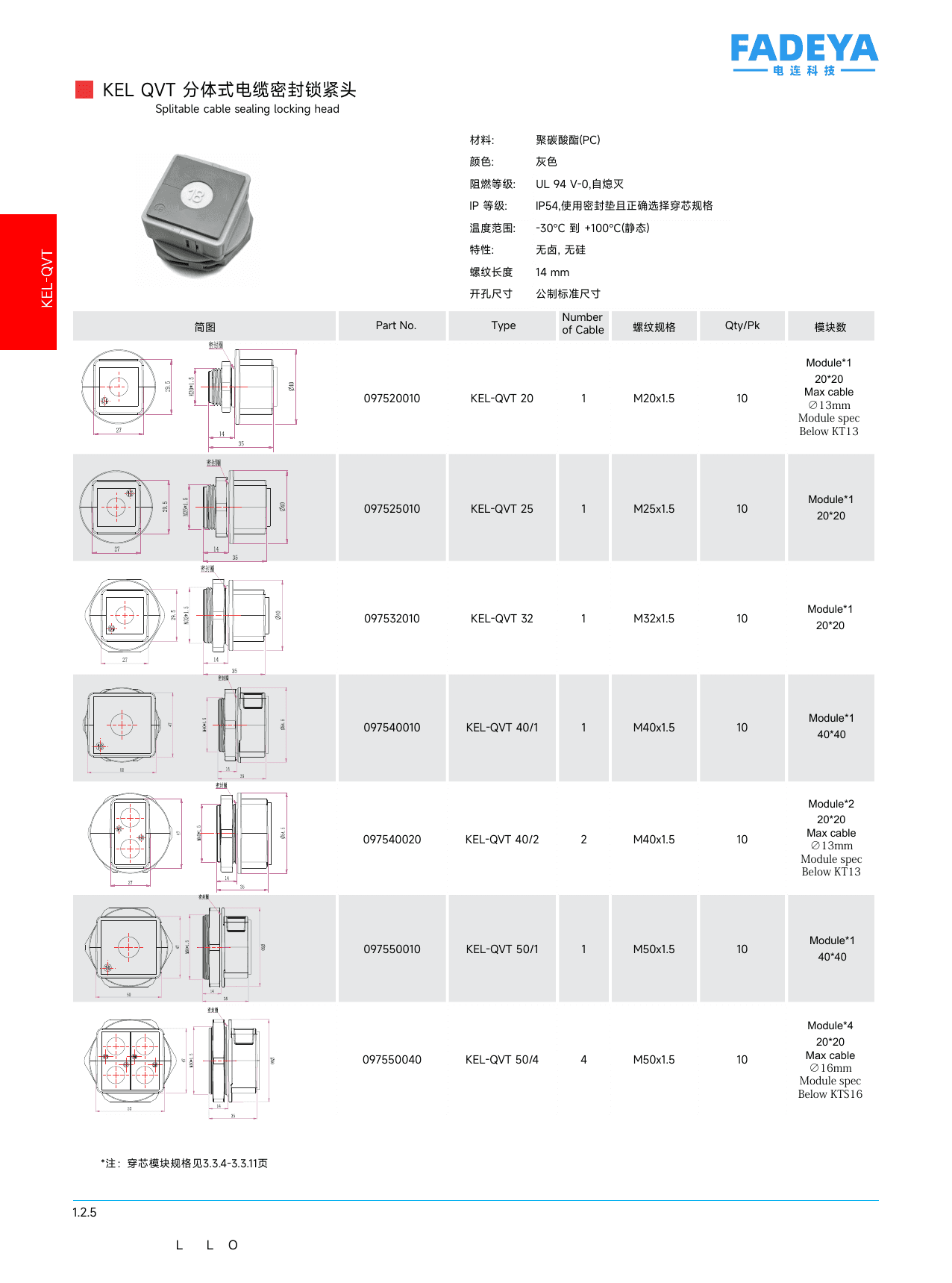

Datasheet
