KEL-DPF Cable Entry Inserts
Tower-form gland inserts for large/unknown-diameter cables. Cut to 20% below cable OD; up to IP68. Metric M25–M63.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-DPF 25/3-12 (097403120) — M25x1.5, Ø3-12 mm
KEL-DPF 32/6-18 (097406180) — M32x1.5, Ø6-18 mm
KEL-DPF 40/12-27 (097412270) — M40x1.5, Ø12-27 mm
KEL-DPF 50/22-36 (097422360) — M50x1.5, Ø22-36 mm
KEL-DPF 63/27-50 (097427500) — M63x1.5, Ø27-50 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) frame |
| Color | Grey |
| Flame Class | UL94 V-0 |
| IP Rating | IP66/IP68 (EN 60529) |
| Operating Temp. | -40 to +100 °C |
| Thread | M25–M63 × 1.5 |
| Cable Range | 3 to 50 mm |

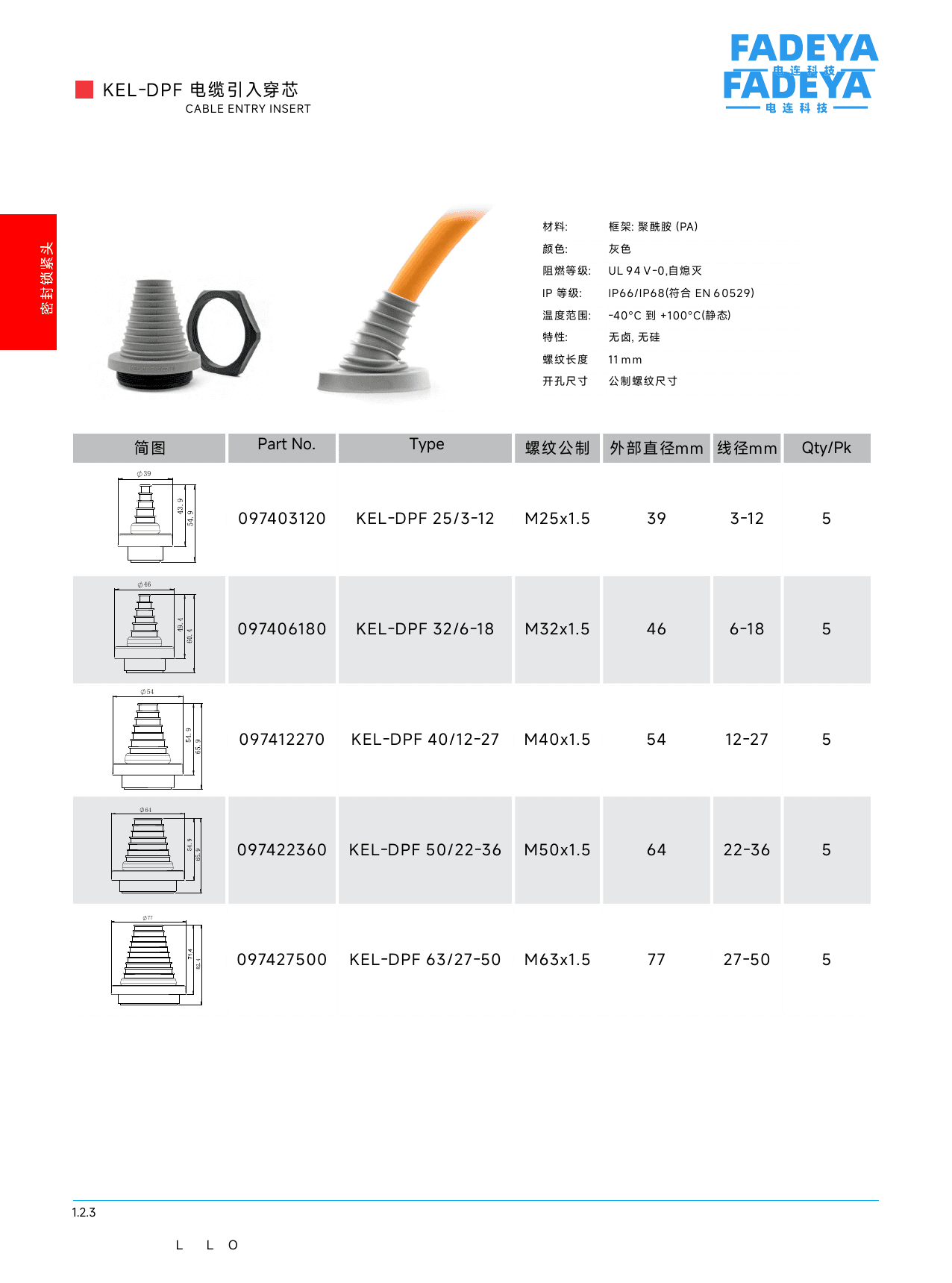

Datasheet
