KEL-ER Split Cable Entry System
Split sealing heads guiding and sealing terminated cables 1–16 mm. Certified IP65/66/67/68 (single insert) per EN 60529.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-ER 25 (097625010) — 1 cable, M25x1.5
KEL-ER 32 (097632010) — 1 cable, M32x1.5
KEL-ER 50/2 (097650010) — 2 cable, M50x1.5
KEL-ER 63/1 (097663010) — 1 cable, M63x1.5
KEL-ER 63/4 (097663040) — 4 cable, M63x1.5
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polypropylene frame / synthetic-rubber gasket |
| Color | Black |
| Flame Class | UL94 V-0 |
| IP Rating | IP65/67/68 |
| Operating Temp. | -40 to +110 °C |
| Thread | M25–M63 × 1.5 |
| Strain Relief | EN 62444 |

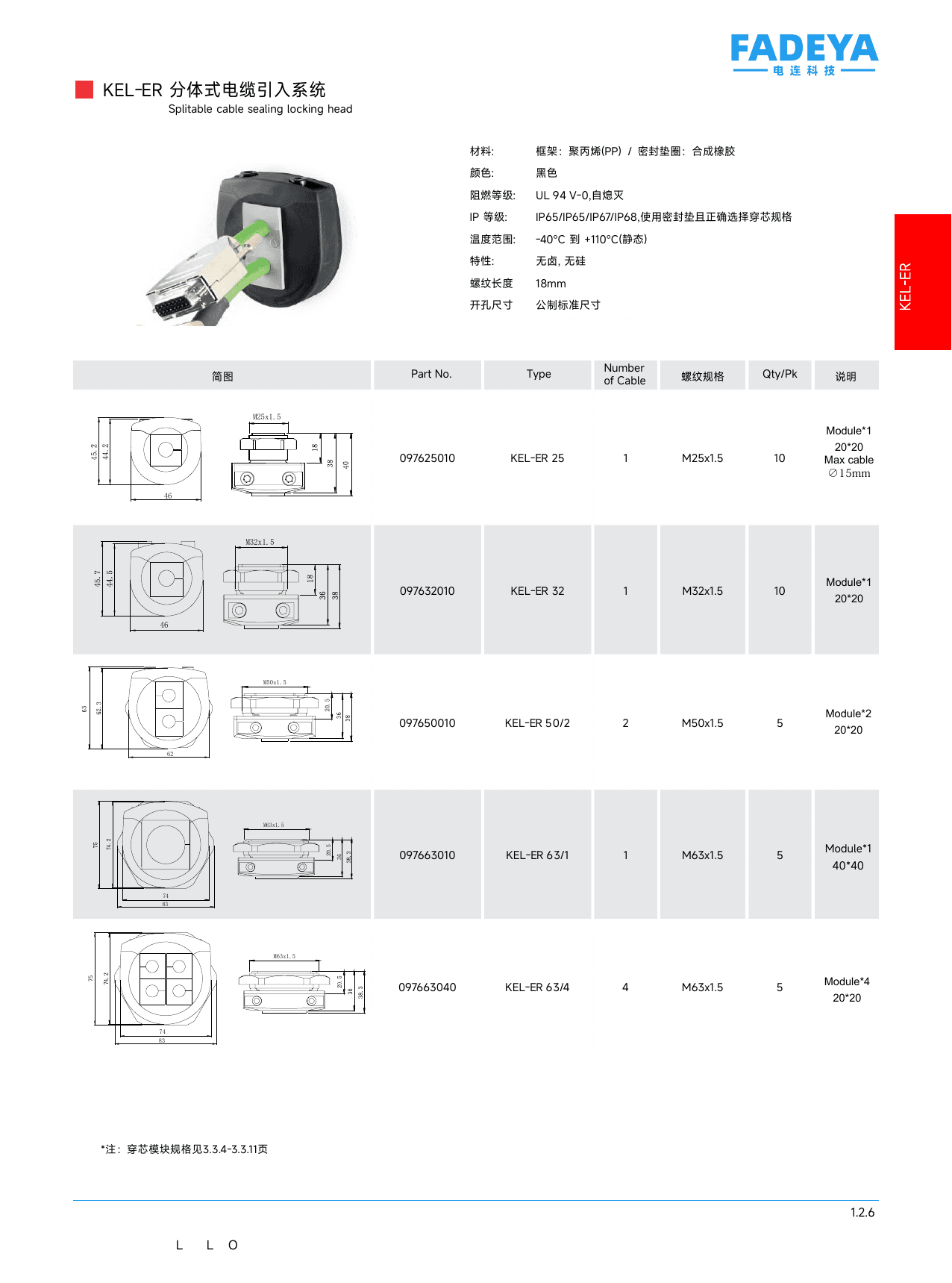

Datasheet
