KEL-SNAP Quick Mounting Bases
Tool-free snap bases for sealing KEL-6/10/16/24 frames — press the loaded frame in to mount. KEL height 38 mm.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-SNAP-6 (099040600) — suits KEL-6/1, 6/4
KEL-SNAP-10 (099041000) — suits KEL-10/3, 10/6
KEL-SNAP-16 (099041600) — suits KEL-16/2, 4, 5, 8
KEL-SNAP-24 (099042400) — suits KEL-24/4, 5, 7, 10
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 38 mm |
| Mounting | Tool-free press-fit |

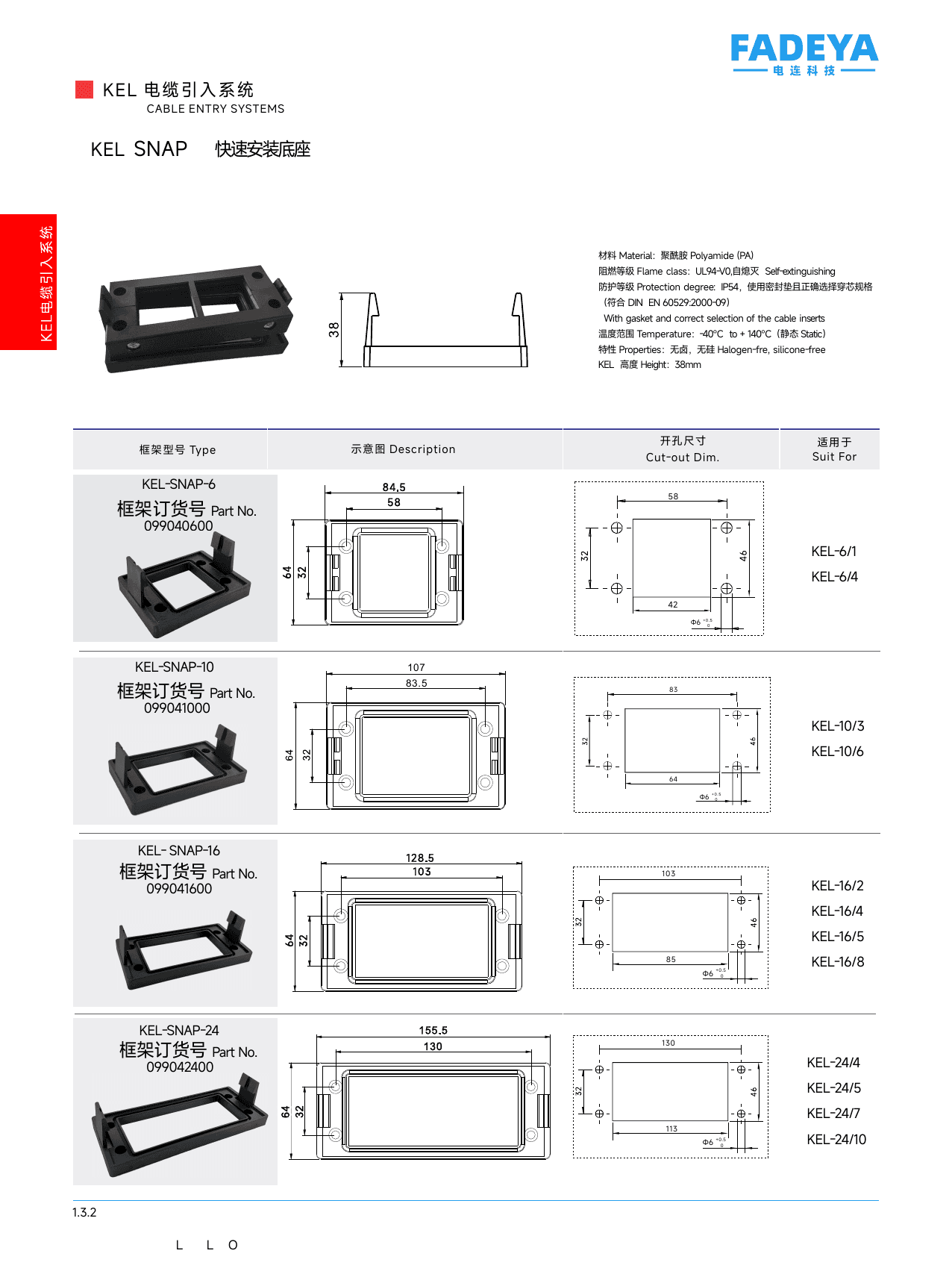

Datasheet
