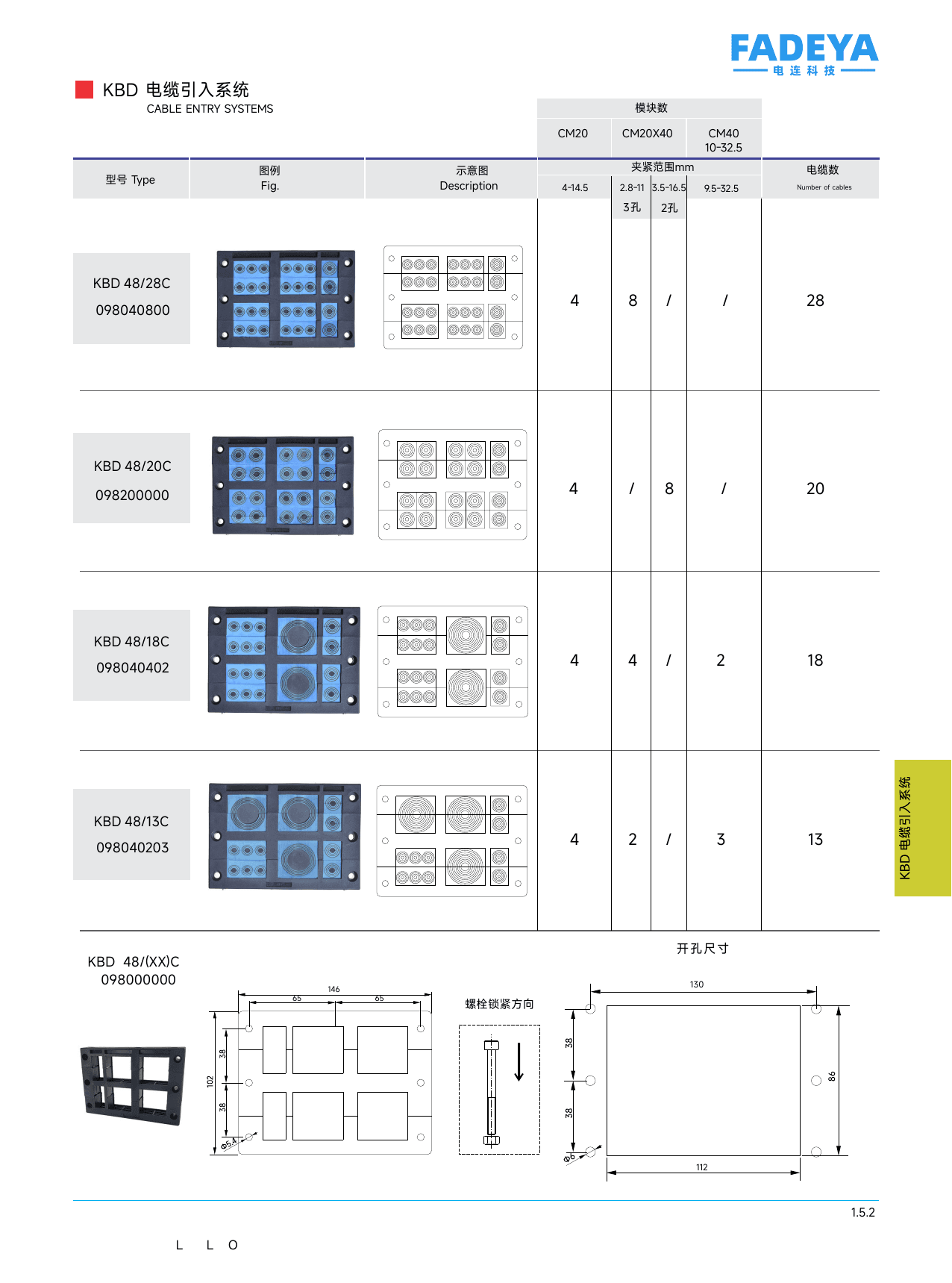

KBD 48 Variable-Diameter Frames
Larger double-row variable-diameter frames (112 × 86 mm cut-out), 13–28 cables. Empty frame available.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KBD 48/28C (098040800) — 28 cables
KBD 48/20C (098200000) — 20 cables
KBD 48/18C (098040402) — 18 cables
KBD 48/13C (098040203) — 13 cables
KBD 48/(XX)C (098000000) — empty frame
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Halogen-free PA66 |
| Color | Black |
| IP Rating | IP65 |
| Flame Class | UL94 V0 |
| Operating Temp. | -40 to +120 °C |
| Cut-Out | 112 × 86 mm |
