KBD 64 Variable-Diameter Frames
Heavy-duty variable-diameter frames (111 or 202 mm) with large CM 40 and CM 80 modules for big cables/pipes up to 68 mm.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KBD 64/1C (098064001)
KBD 64/4C (098064004)
KBD 64/2C (098064002)
KBD 64/5C (098064005)
KBD 64/8C (098064008)
CM 40 10-32-30 (097404020) — 9.5-32.5 mm, 40×40×30
CM 80-30 (097808011) — 28-68 mm, 80×80×30
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Color | Black |
| IP Rating | IP65 |
| Flame Class | UL94 V0 |
| Operating Temp. | -40 to +120 °C |
| Frame Sizes | 111×116.5×35 / 202×116.5×35 mm |
| Module Range | 9.5 to 68 mm |

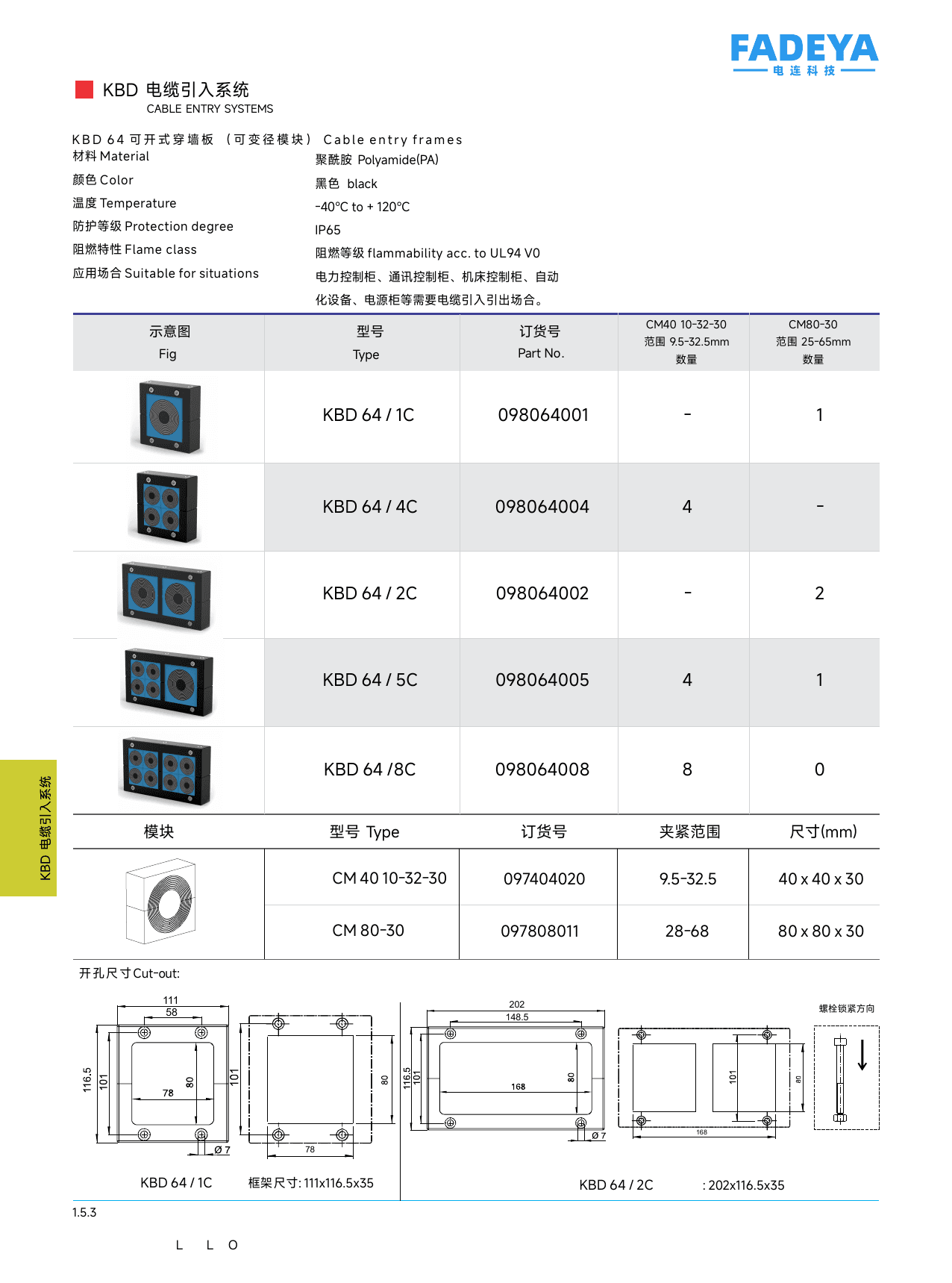

Datasheet
