KBD — Variable-Diameter Frames
KBD CM Variable-Diameter Modules
Peel-layer variable-diameter modules (20 mm height) for KBD frames, clamping 2.8–34.5 mm.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CM 20-20 (097202010) — 4.0-14.5 mm
CM 20W40-20 (097204010) — 3.5-16.5 mm
CM 20w40-3-20 (097204013) — 2.8-11 mm
CM 40-20 (097404012) — 21.5-34.5 mm
CM 40 10-32-20 (097404010) — 9.5-32.5 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Halogen-free PA66 |
| Color | Black |
| IP Rating | IP65 |
| Flame Class | UL94 V0 |
| Operating Temp. | -40 to +120 °C |
| Install Height | 20 mm |
| Clamping Range | 2.8 to 34.5 mm |

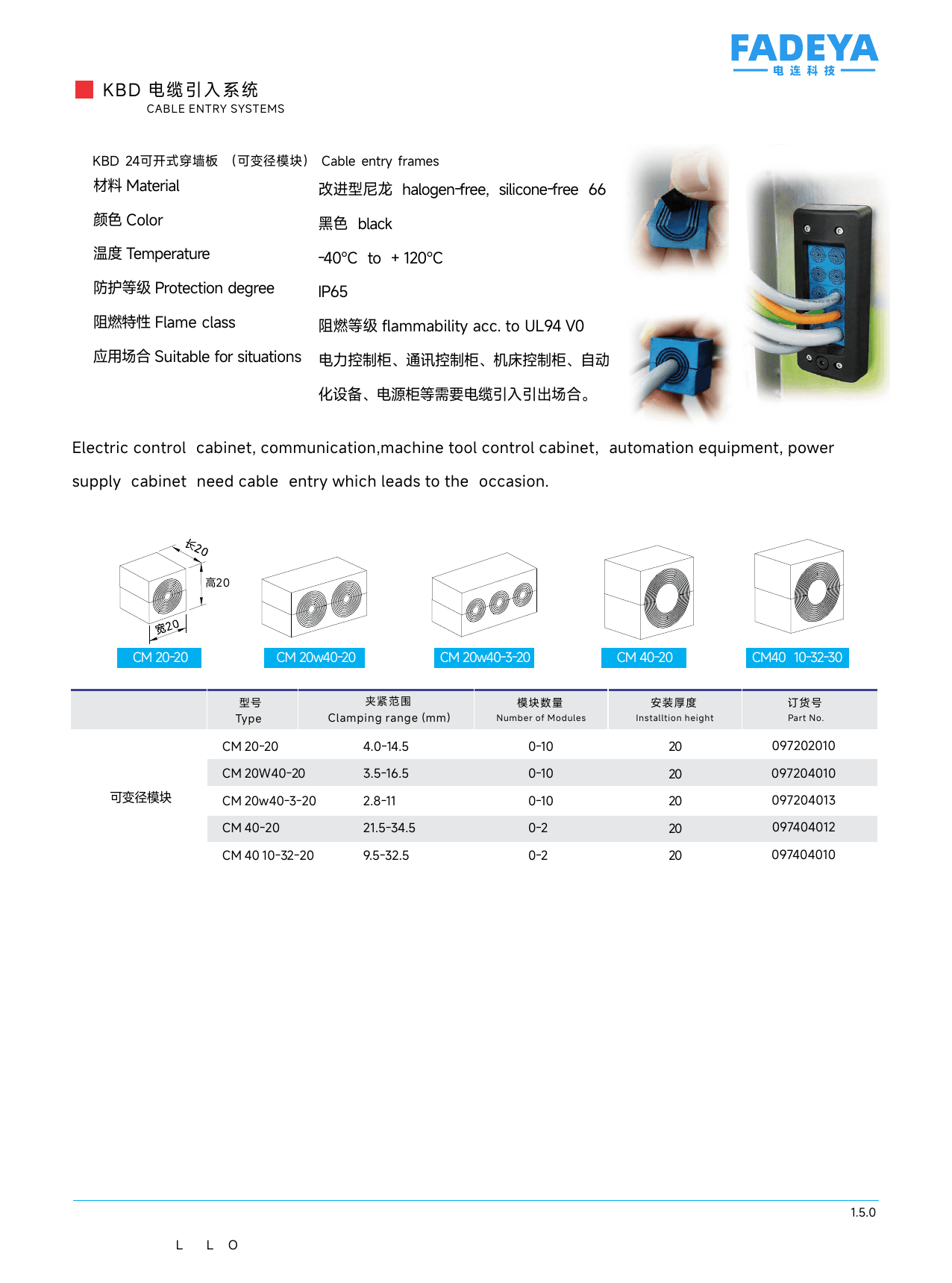

Datasheet
