KBD — Variable-Diameter Frames
KBD 24 Variable-Diameter Frames
Openable wall plates on the 24-cut-out (110 × 32 mm), holding 4–14 variable-diameter CM modules. Empty frame available.

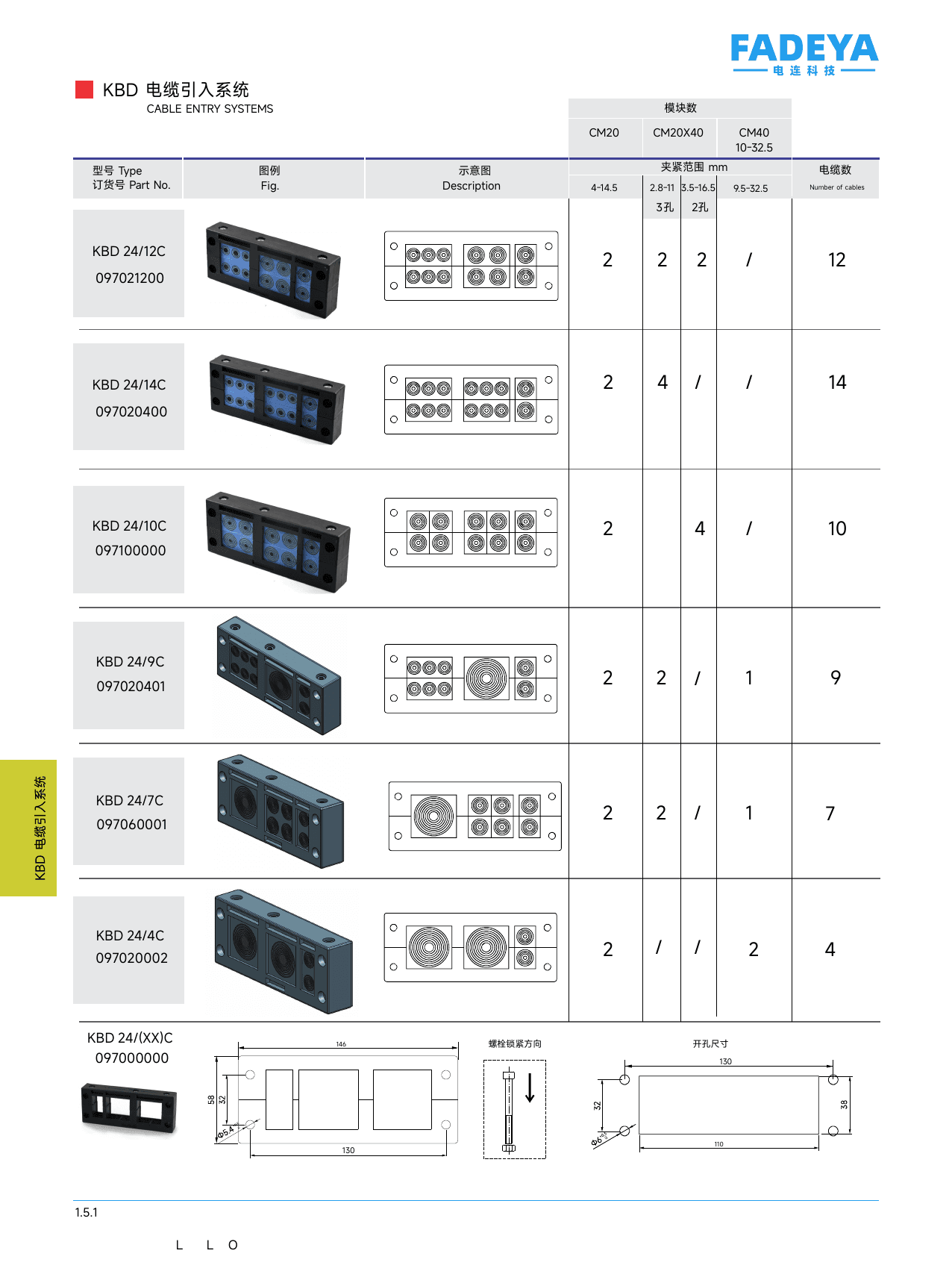

Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KBD 24/12C (097021200) — 12 cables
KBD 24/14C (097020400) — 14 cables
KBD 24/10C (097100000) — 10 cables
KBD 24/9C (097020401) — 9 cables
KBD 24/7C (097060001) — 7 cables
KBD 24/4C (097020002) — 4 cables
KBD 24/(XX)C (097000000) — empty frame
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Halogen-free PA66 |
| Color | Black |
| IP Rating | IP65 |
| Flame Class | UL94 V0 |
| Operating Temp. | -40 to +120 °C |
| Cut-Out | 110 × 32 mm |
