KEL 24-2MT Split Entry Frames
Highest-density KEL-24 frames up to 30 modules: 30/-, 26/1, 22/2, 18/3, 14/4, 10/5, 6/6 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 24/30-2MT (099042234) — 30/-
KEL 24/27-2MT (099042233) — 26/1
KEL 24/24-2MT (099042227) — 22/2
KEL 24/21-2MT (099042226) — 18/3
KEL 24/18-2MT (099042275) — 14/4
KEL 24/15-2MT (099042274) — 10/5
KEL 24/12-2MT (099042223) — 6/6
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 110 × 126.4 mm |

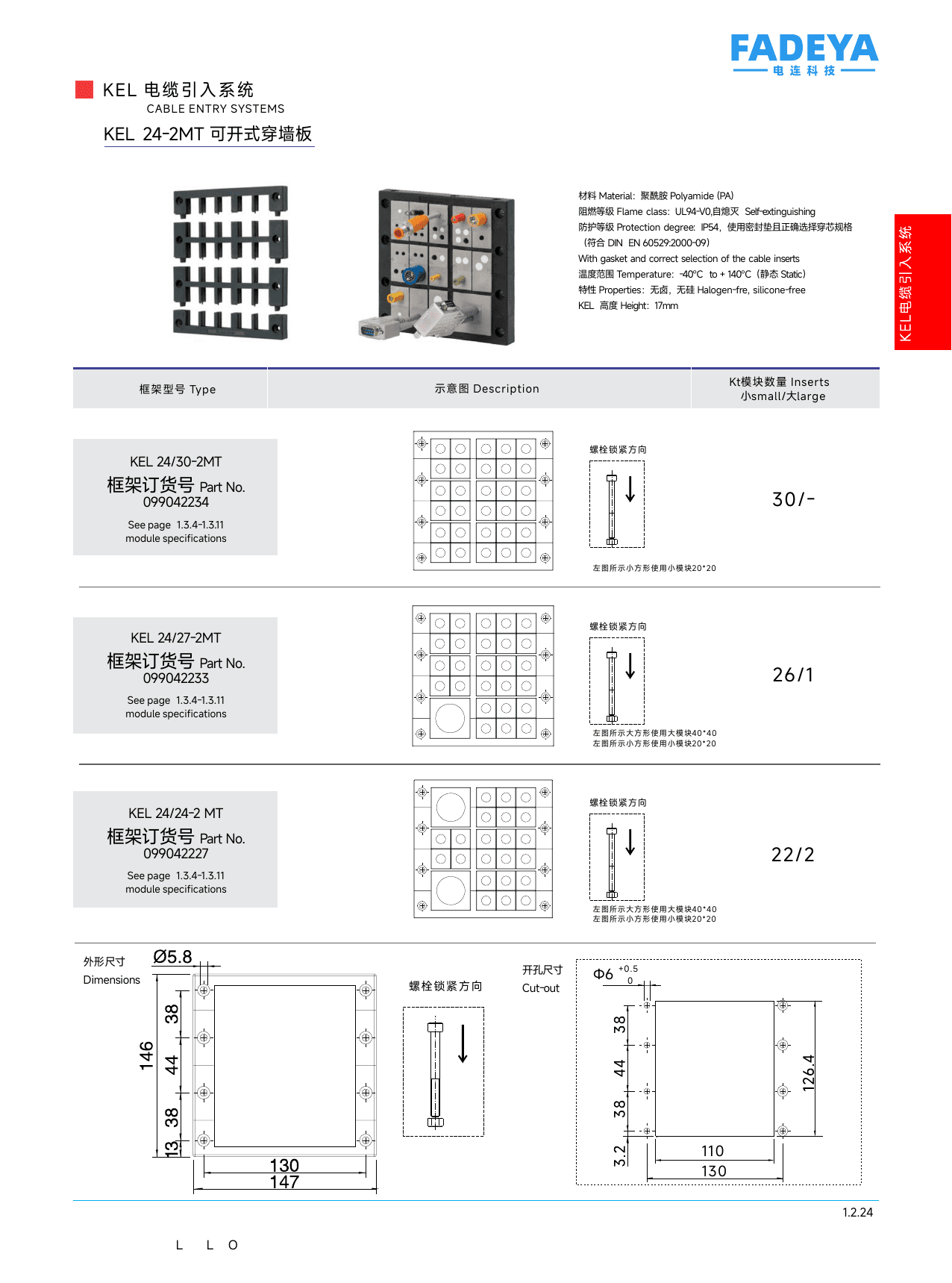

Datasheet
