KEL — Split Cable Entry Frames
KEL 16-MTE Split Entry Frames
Tall KEL-16 frames mixing large/small modules: 4/4, 8/3, 12/2, 16/1, 20/0 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 16/8-MTE (099042265) — 4/4
KEL 16/11-MTE (099042266) — 8/3
KEL 16/14-MTE (099042267) — 12/2
KEL 16/17-MTE (099042268) — 16/1
KEL 16/20-MTE (099042269) — 20/0
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 82 × 106.5 mm |

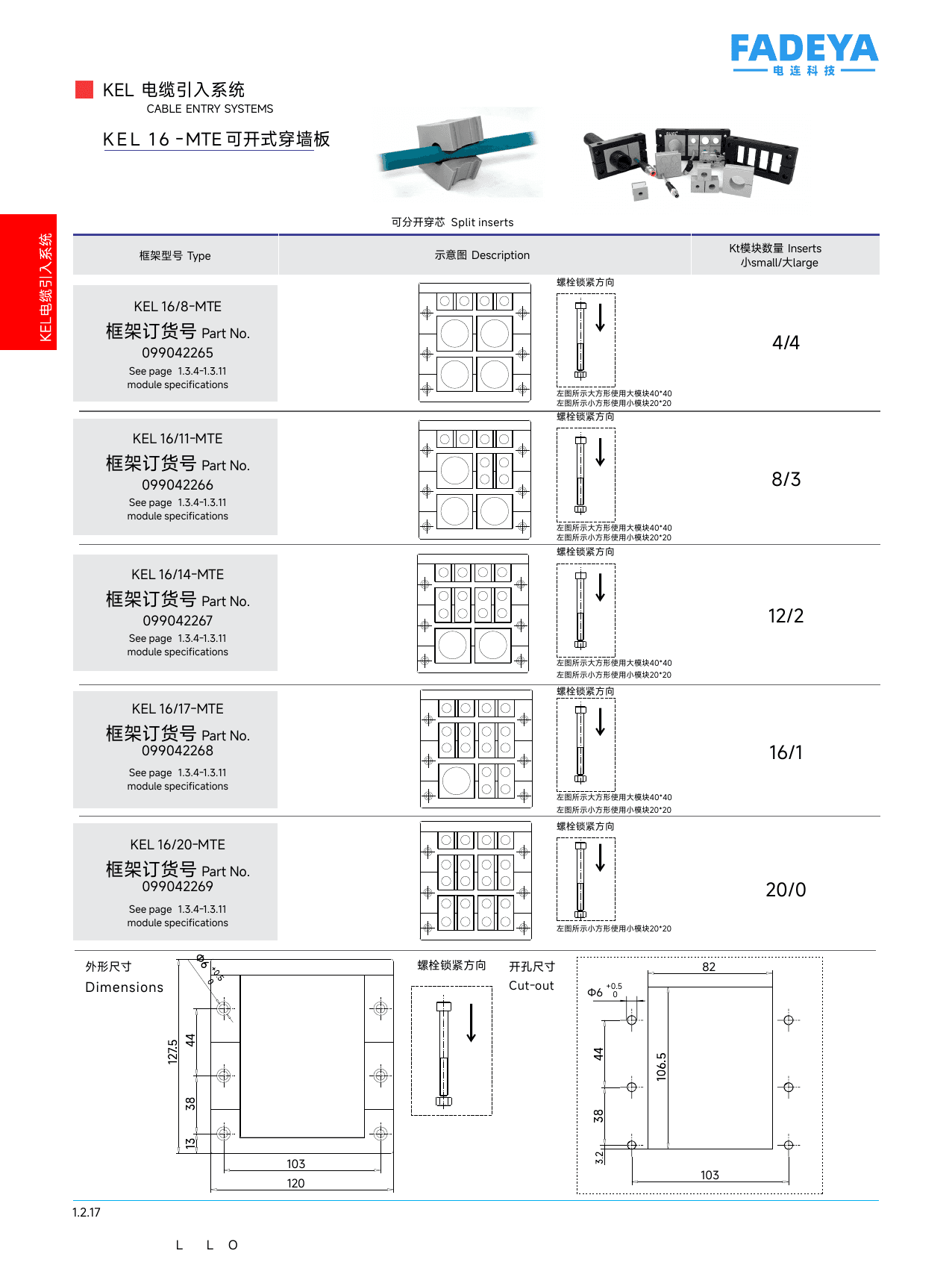

Datasheet
