KDP — Push-Through Entry Plates
KDP Control-Box Cable Entry Seals
Pre-sealed cone grommets for the bottom area of control boxes — KDP1/3/8 plus the three-cable KDP 8/75. IP55.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KDP 1 (097311347) — 1 cable(s), 13-47 mm
KDP 3 (097310321) — 3 cable(s), 3-21 mm
KDP 8 (097310313) — 8 cable(s), 3-13 mm
KDP 8/75 (097310875) — 3 cable(s), 8-18 / 15-32 / 40-75 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polypropylene body / TPE sleeve |
| IP Rating | IP55 (correctly installed) |
| Cable Range | 3 to 75 mm |

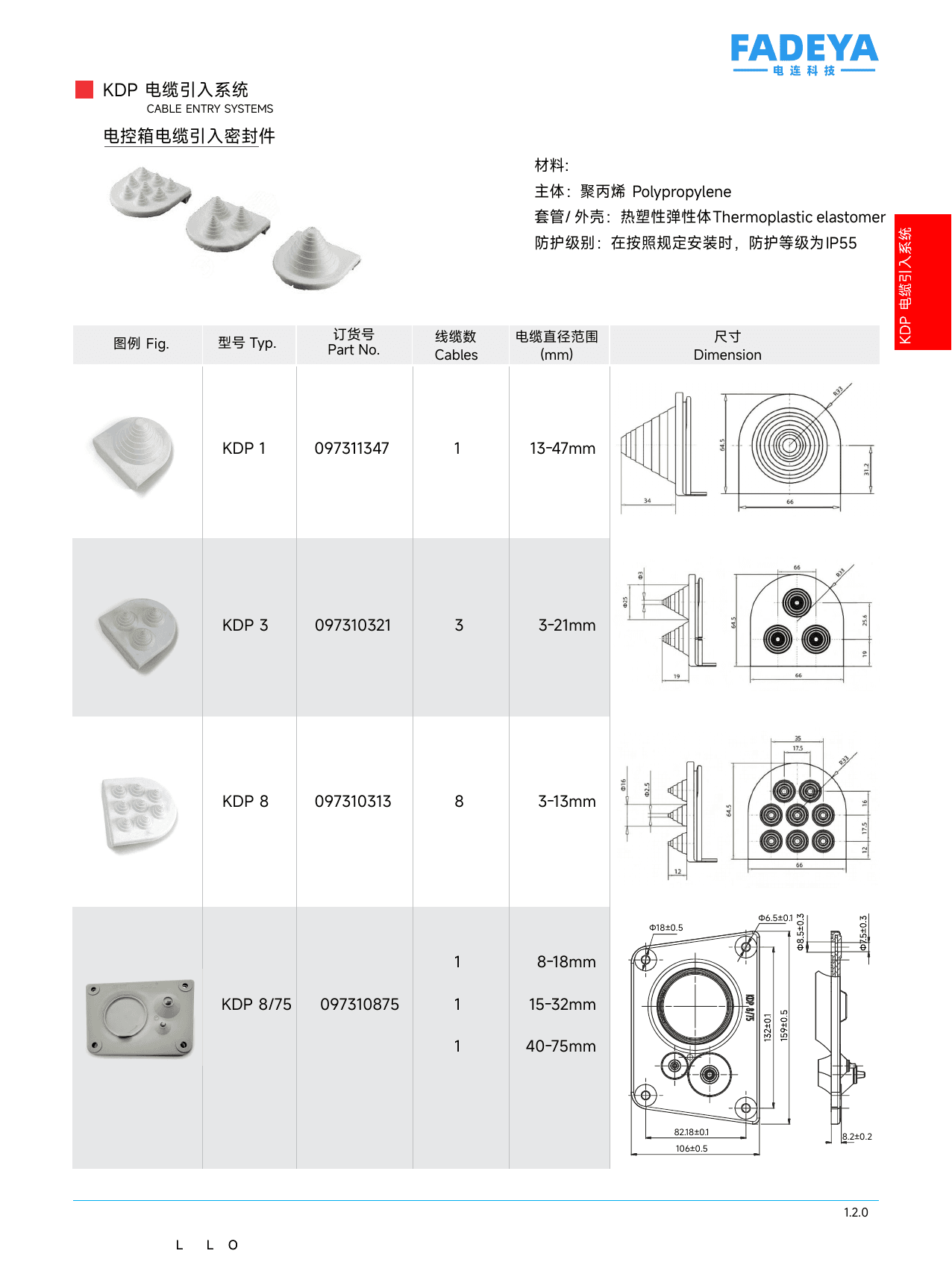

Datasheet
