KDL — Fixed-Diameter Entry Frames
KDT-ZM Cable Entry Grommets

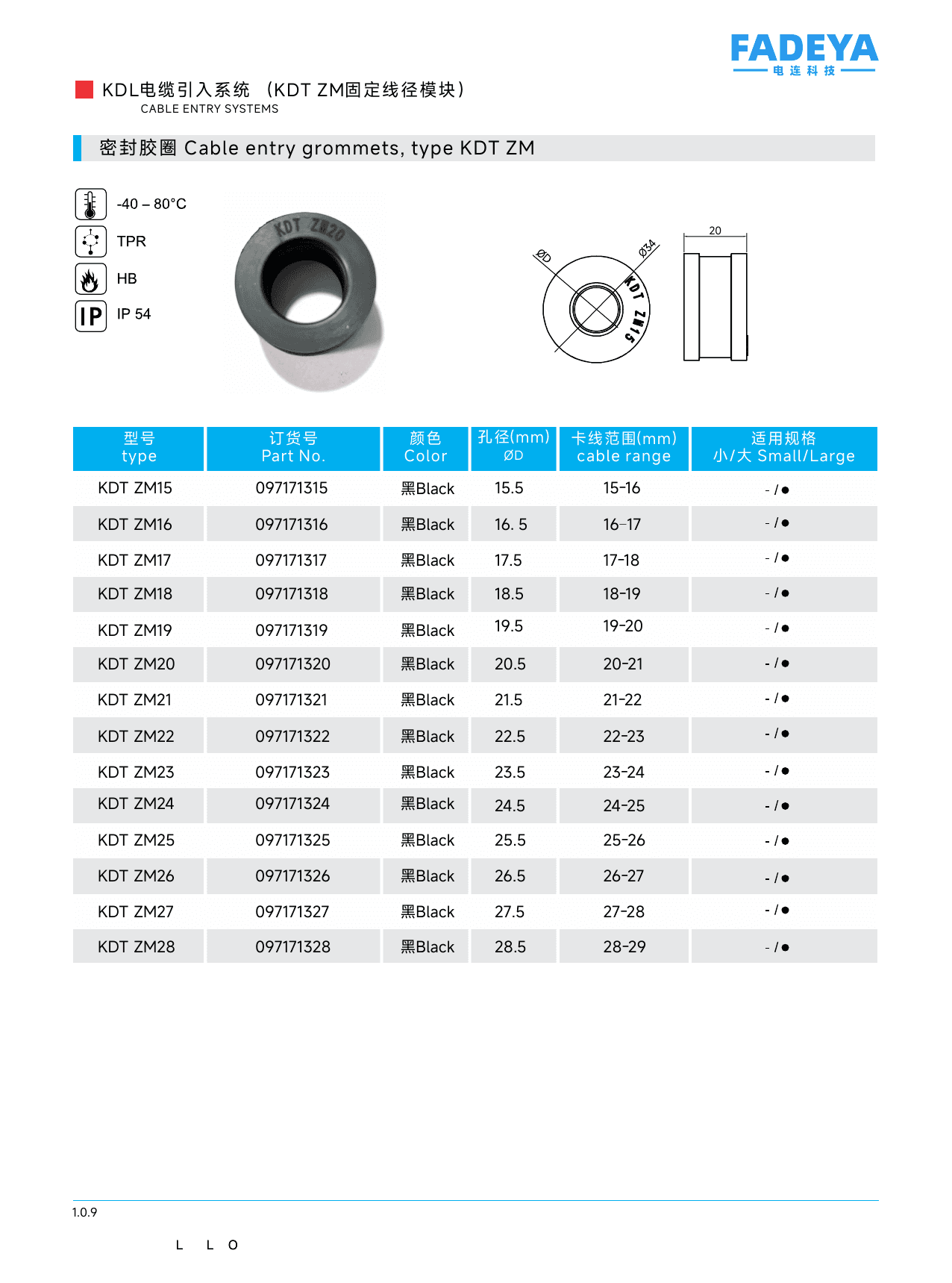

Large fixed-diameter grommets for KDL frames, 15–29 mm cable range.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KDT ZM15 (097171315) — 15-16 mm
KDT ZM16 (097171316) — 16-17 mm
KDT ZM17 (097171317) — 17-18 mm
KDT ZM18 (097171318) — 18-19 mm
KDT ZM19 (097171319) — 19-20 mm
KDT ZM20 (097171320) — 20-21 mm
KDT ZM21 (097171321) — 21-22 mm
KDT ZM22 (097171322) — 22-23 mm
KDT ZM23 (097171323) — 23-24 mm
KDT ZM24 (097171324) — 24-25 mm
KDT ZM25 (097171325) — 25-26 mm
KDT ZM26 (097171326) — 26-27 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | TPR |
| Color | Black |
| IP Rating | IP54 |
| Flame Class | HB |
| Operating Temp. | -40 to +80 °C |
| Cable Range | 15 to 29 mm |
Datasheet
