KDL — Fixed-Diameter Entry Frames
KDT/Z Cable Entry Grommets

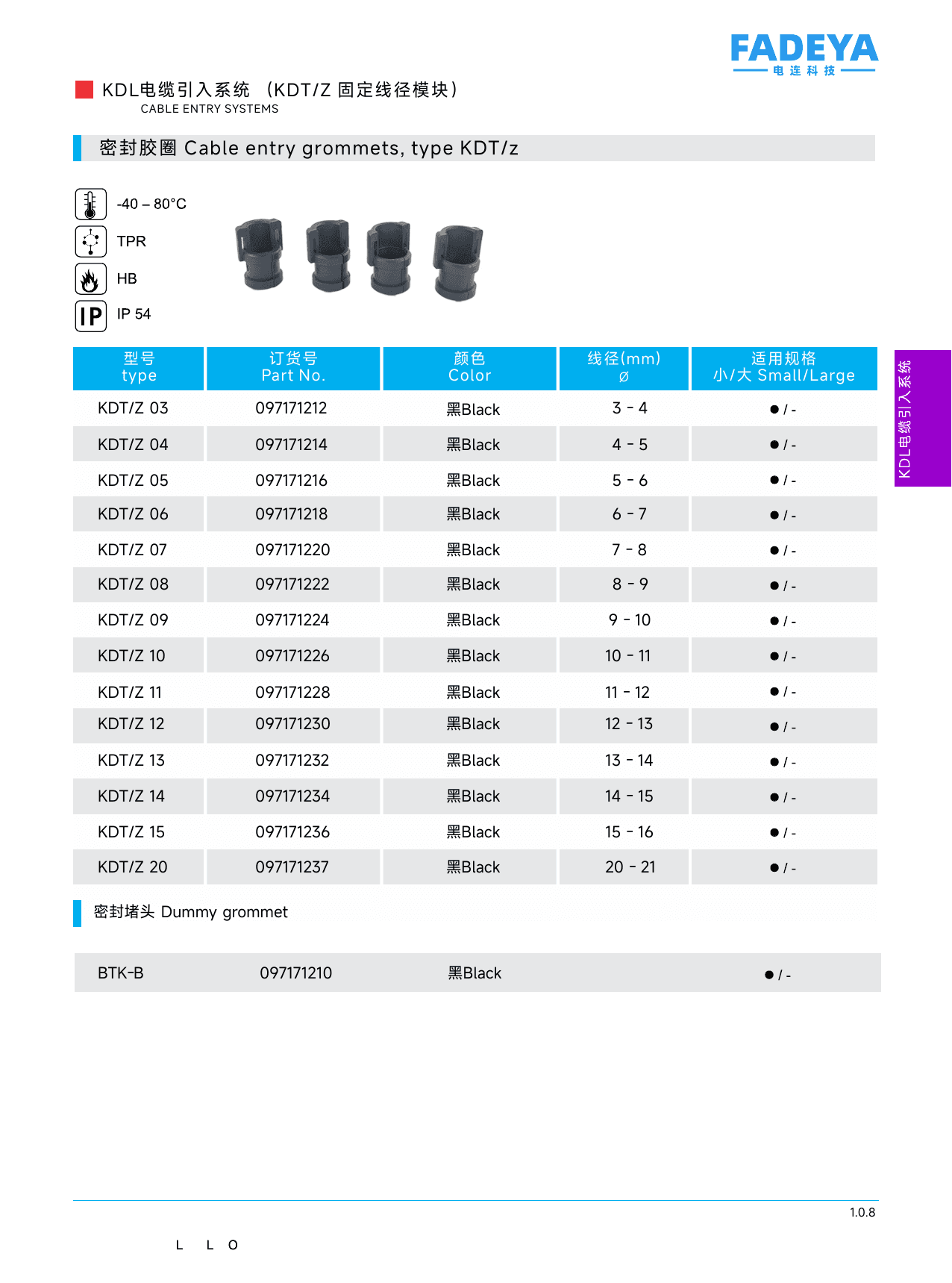

Fixed-diameter sealing grommets for KDL frames, 3–21 mm cable range, plus BTK-B dummy plug.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KDT/Z 03 (097171212) — Ø3-4 mm
KDT/Z 04 (097171214) — Ø4-5 mm
KDT/Z 05 (097171216) — Ø5-6 mm
KDT/Z 06 (097171218) — Ø6-7 mm
KDT/Z 07 (097171220) — Ø7-8 mm
KDT/Z 08 (097171222) — Ø8-9 mm
KDT/Z 09 (097171224) — Ø9-10 mm
KDT/Z 10 (097171226) — Ø10-11 mm
KDT/Z 11 (097171228) — Ø11-12 mm
KDT/Z 12 (097171230) — Ø12-13 mm
KDT/Z 13 (097171232) — Ø13-14 mm
KDT/Z 14 (097171234) — Ø14-15 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | TPR |
| Color | Black |
| IP Rating | IP54 |
| Flame Class | HB |
| Operating Temp. | -40 to +80 °C |
| Cable Range | 3 to 21 mm |
Datasheet
