KDL — Fixed-Diameter Entry Frames
KDL Cable Entry Frames
One-piece split entry frames in six cut-out sizes, holding 3–15 fixed-diameter grommets.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KDL 10/3 (097171011)
KDL 16/4 (097171012)
KDL 24/3 (097171015)
KDL 24/5 (097171016)
KDL 2/10 (097171017)
KDL 3/15 (097171018)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | PA66 nylon |
| Color | Black |
| IP Rating | IP54 |
| Frame Depth | 10 mm |
| Flame Class | UL94 V0 |
| Operating Temp. | -40 to +80 °C |
| Cut-Out Sizes | 96x58 to 146x122 mm |
| Cables / Frame | 3 · 4 · 5 · 10 · 15 |

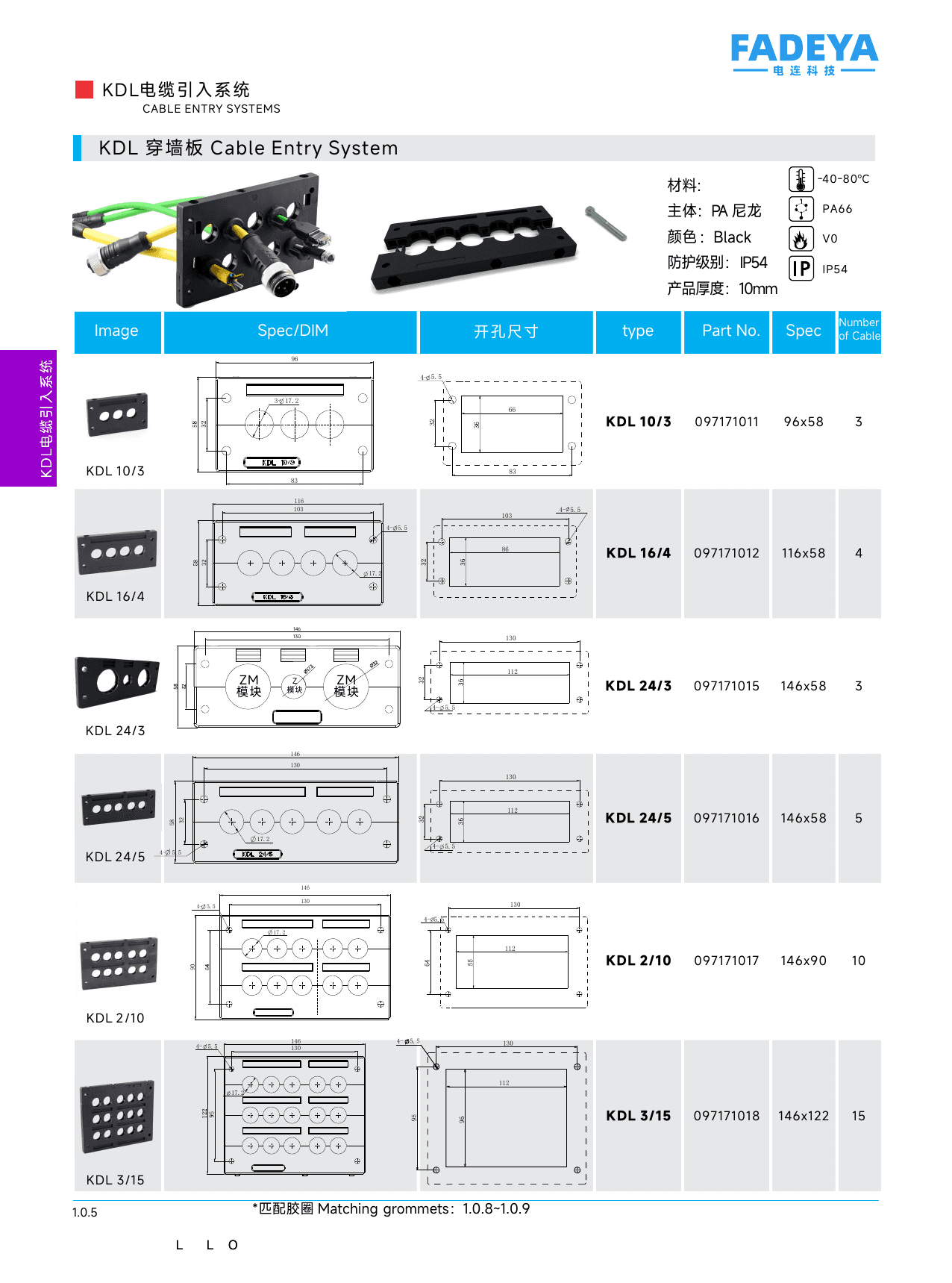

Datasheet
