KDL — Fixed-Diameter Entry Frames
KD/SG Enclosure Mounting Type

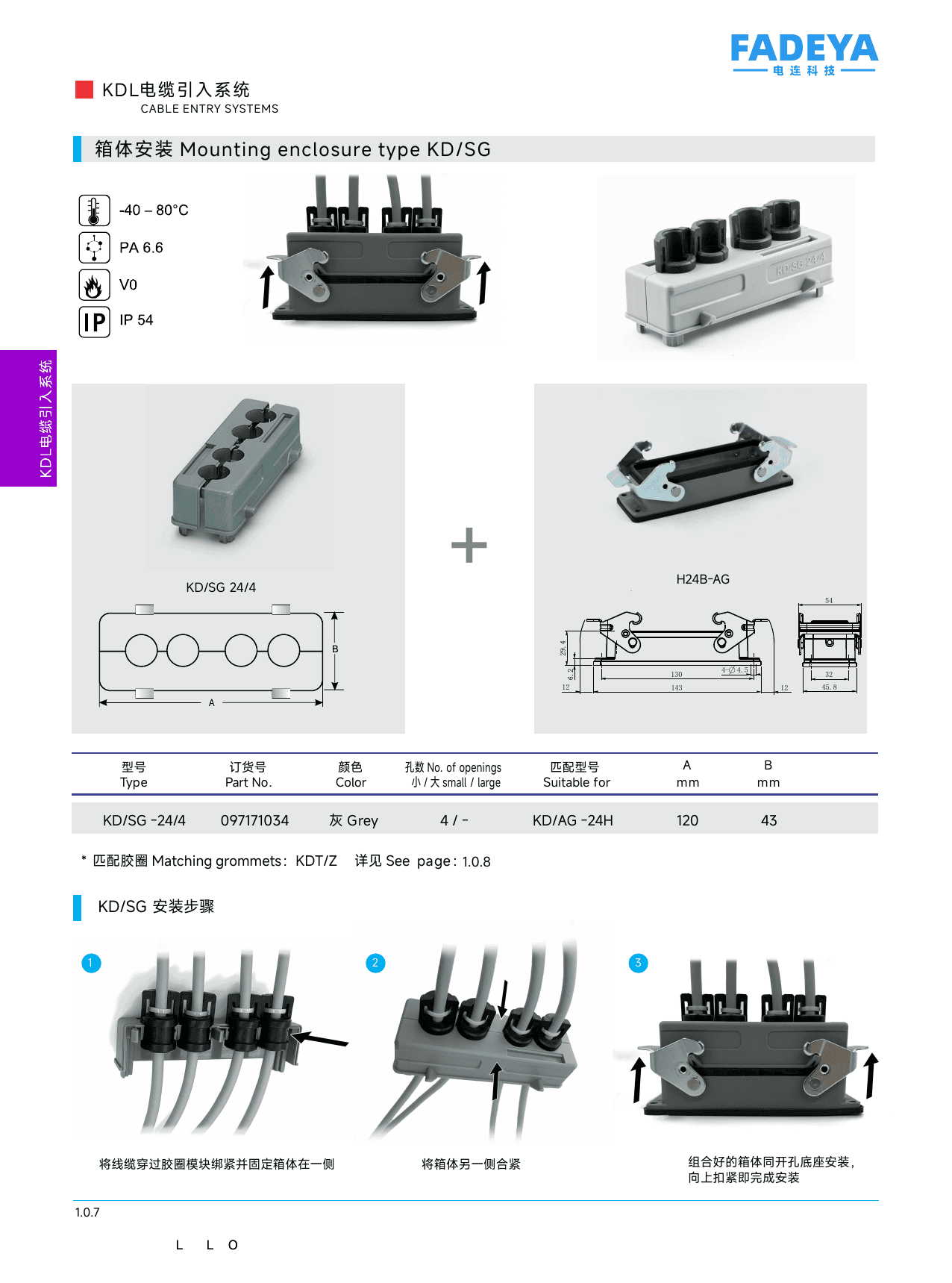

Snap-fit enclosure housing (KD/SG) with H24B-AG base for mounting KDL grommet sets onto cabinet walls.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KD/SG-24/4 (097171034)
H24B-AG base
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | PA6.6 |
| Color | Grey |
| IP Rating | IP54 |
| Flame Class | V0 |
| Openings | 4 small |
| Operating Temp. | -40 to +80 °C |
| Dimensions | A 120 × B 43 mm |
