KTB Conduit Inserts (Large)
41.5×42 mm conduit inserts 13–33 mm, with matching dummy plugs and twin-hole KTBM-K. IP54.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KTMB-G (099041318) — 13-18 mm
KTMB-H (099041823) — 18-23 mm
KTMB-I (099042328) — 23-28 mm
KTMB-J (099042833) — 28-33 mm
KTB-BTG1 (099045224) — for KTMB-G
KTB-BTG2 (099045234) — for KTMB-H
KTB-BTG3 (099045244) — for KTMB-I
KTB-BTG4 (099045254) — for KTMB-J
KTBM-K (099241318) — 2 × 13-18 mm
KTB-KBM (099241318)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 40×40 mm |
| Cable Range | 13 to 33 mm |

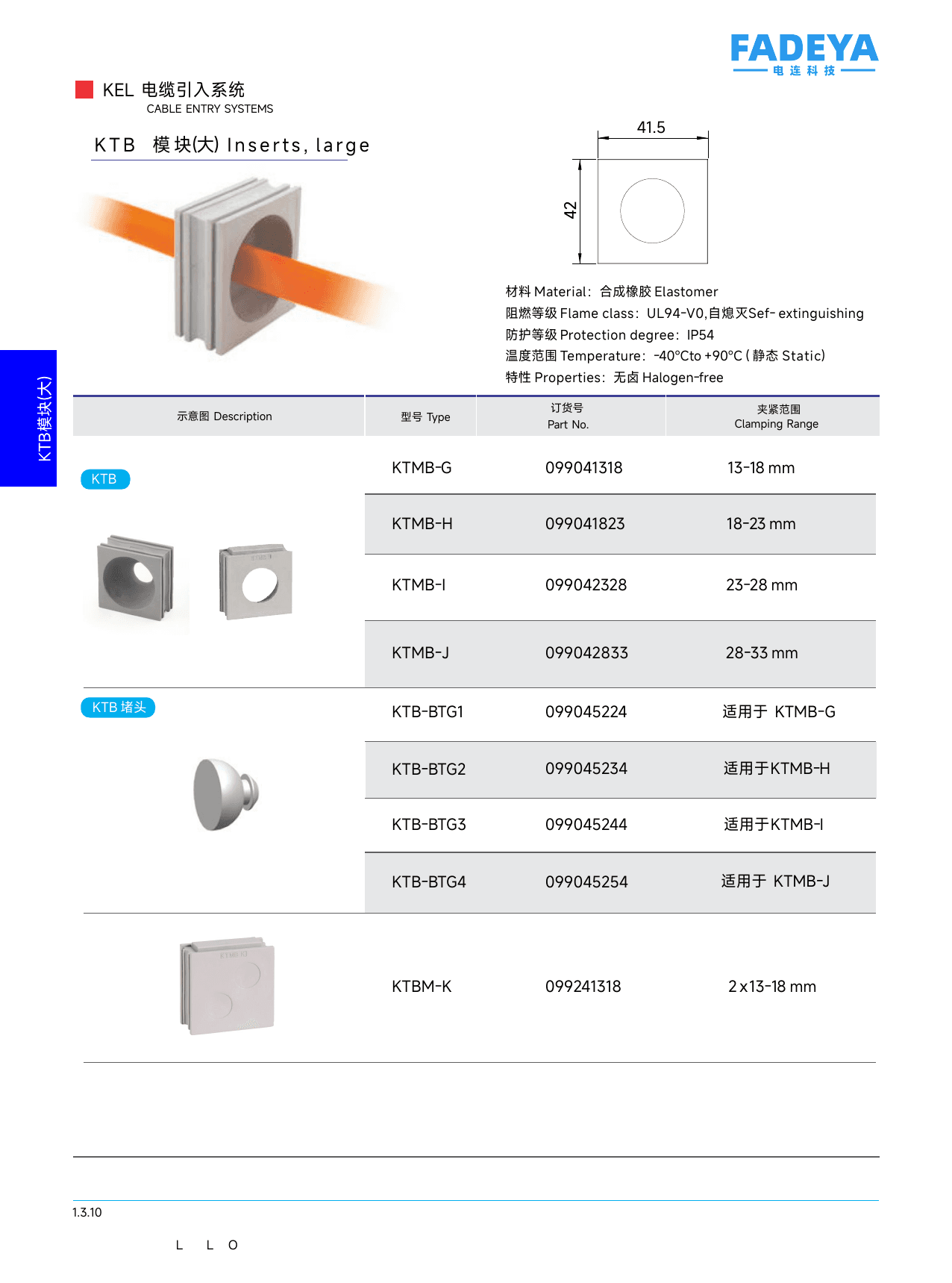

Datasheet
