KEL 10-MT Split Entry Frames
Two-row KEL-10 frames: 12/0, 8/1 and 4/2 module layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 10/12-MT (099042237) — 12/0
KEL 10/9-MT (099042239) — 8/1
KEL 10/6-MT (099042238) — 4/2
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 61 × 82.4 mm |

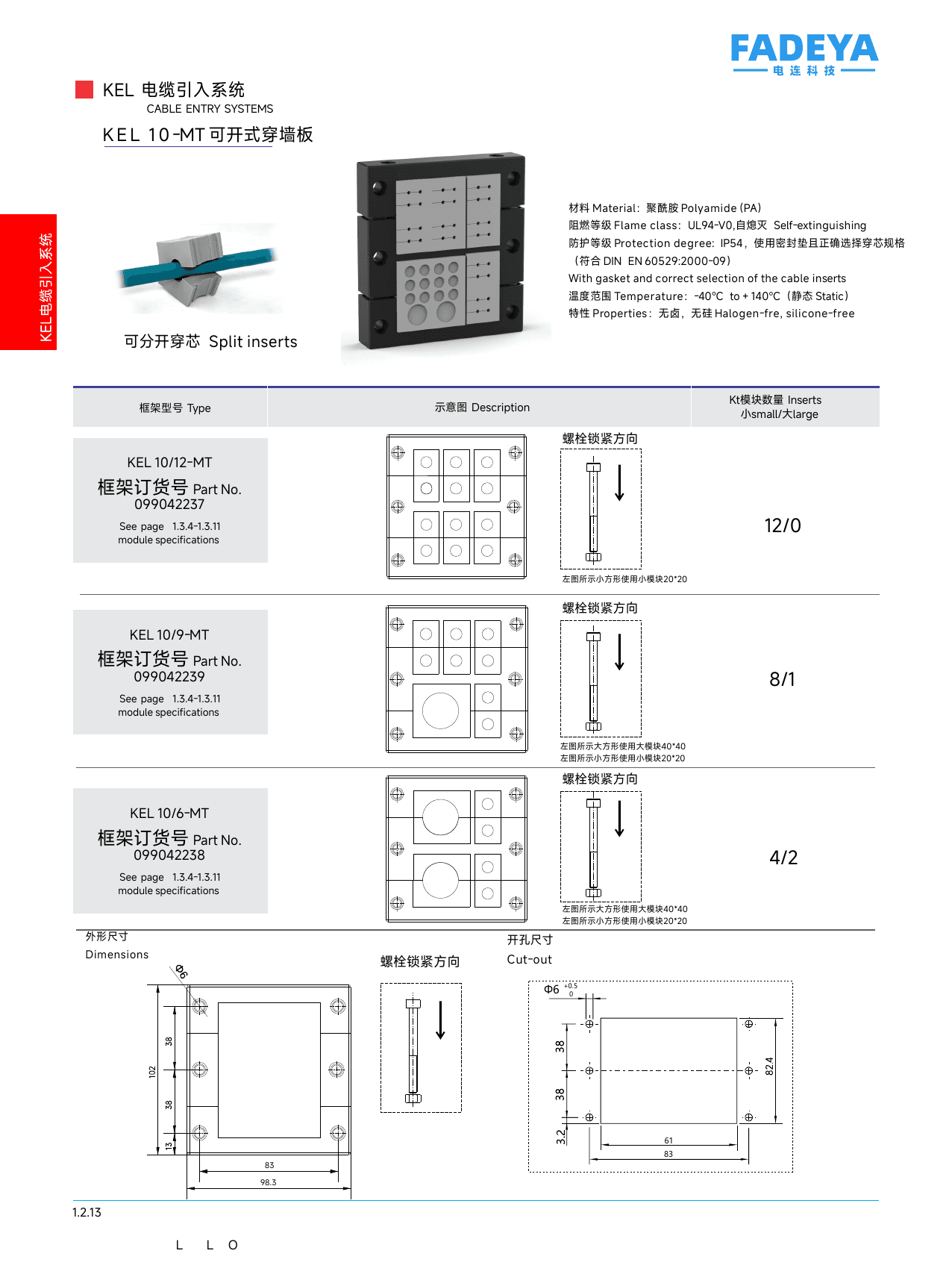

Datasheet
