Inserts & Grommets
KT Large Inserts (40×40)
41.5×42 mm split inserts KT 16–35 (16–36 mm), with shielded EMC-KT versions, ATG adapter and BTG filler block. IP65.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
ATG adapter (099041253)
BTG filler block (099041252)
KT 16 (099041216) — 16-17 mm
KT 17 (099041217) — 17-18 mm
KT 18 (099041218) — 18-19 mm
KT 19 (099041219) — 19-20 mm
KT 20 (099041220) — 20-21 mm
KT 21 (099041221) — 21-22 mm
KT 22 (099041222) — 22-23 mm
KT 23 (099041223) — 23-24 mm
KT 24 (099041224) — 24-25 mm
KT 25 (099041225) — 25-26 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP65 |
| Operating Temp. | -40 to +90 °C |
| Module Size | 40×40 mm |
| Cable Range | 16 to 36 mm |
| EMC Shielding | EMC versions available |

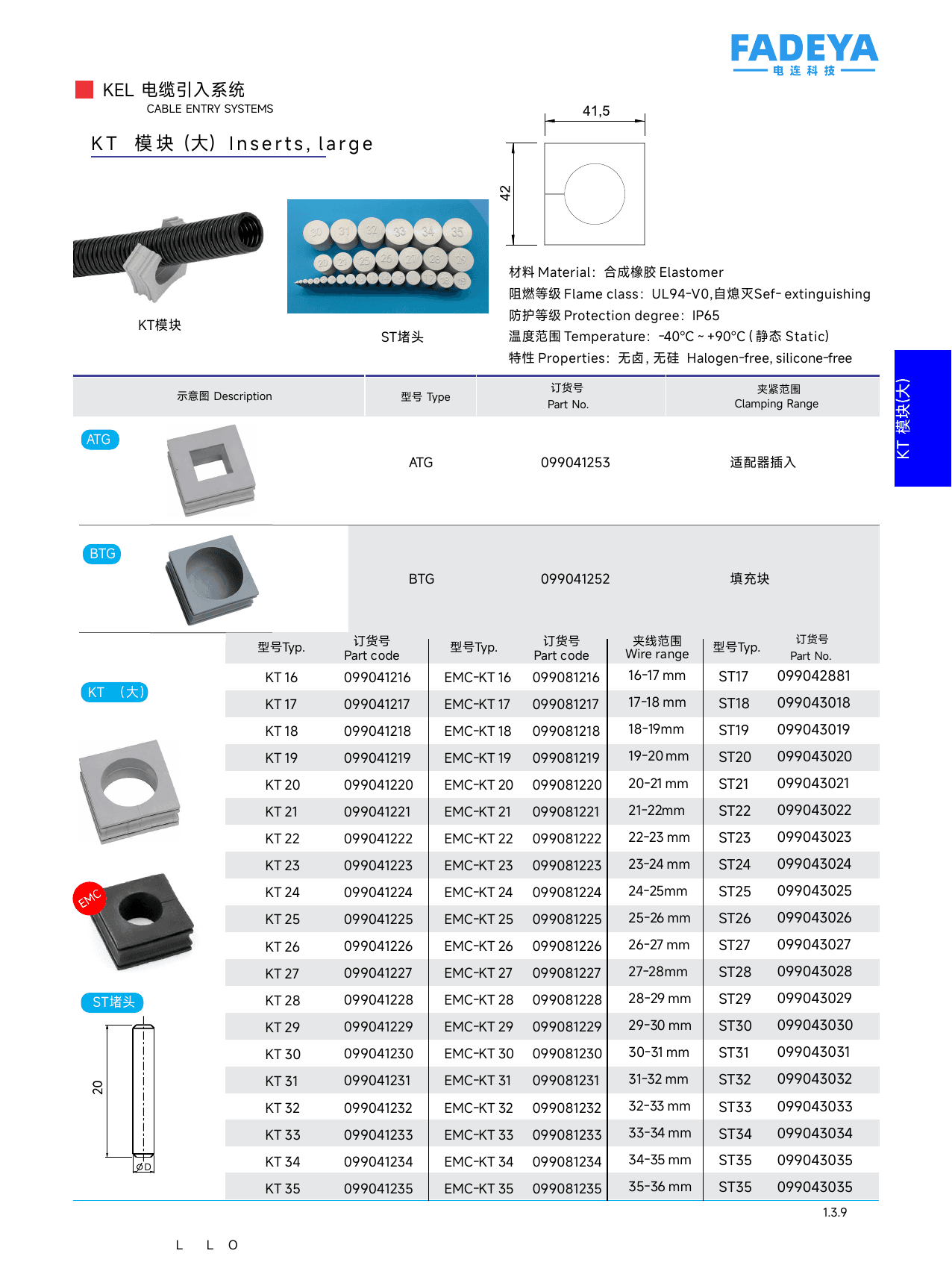

Datasheet
