KEL 10-MTE Split Entry Frames
Tall KEL-10 frames mixing large and small modules (10/5, 11/1, 7/2 layouts).
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL10/9-MTE (099042262) — 10/5
KEL10/12-MTE (099042263) — 11/1
KEL10/15-MTE (099042264) — 7/2
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 61 × 106.5 mm |

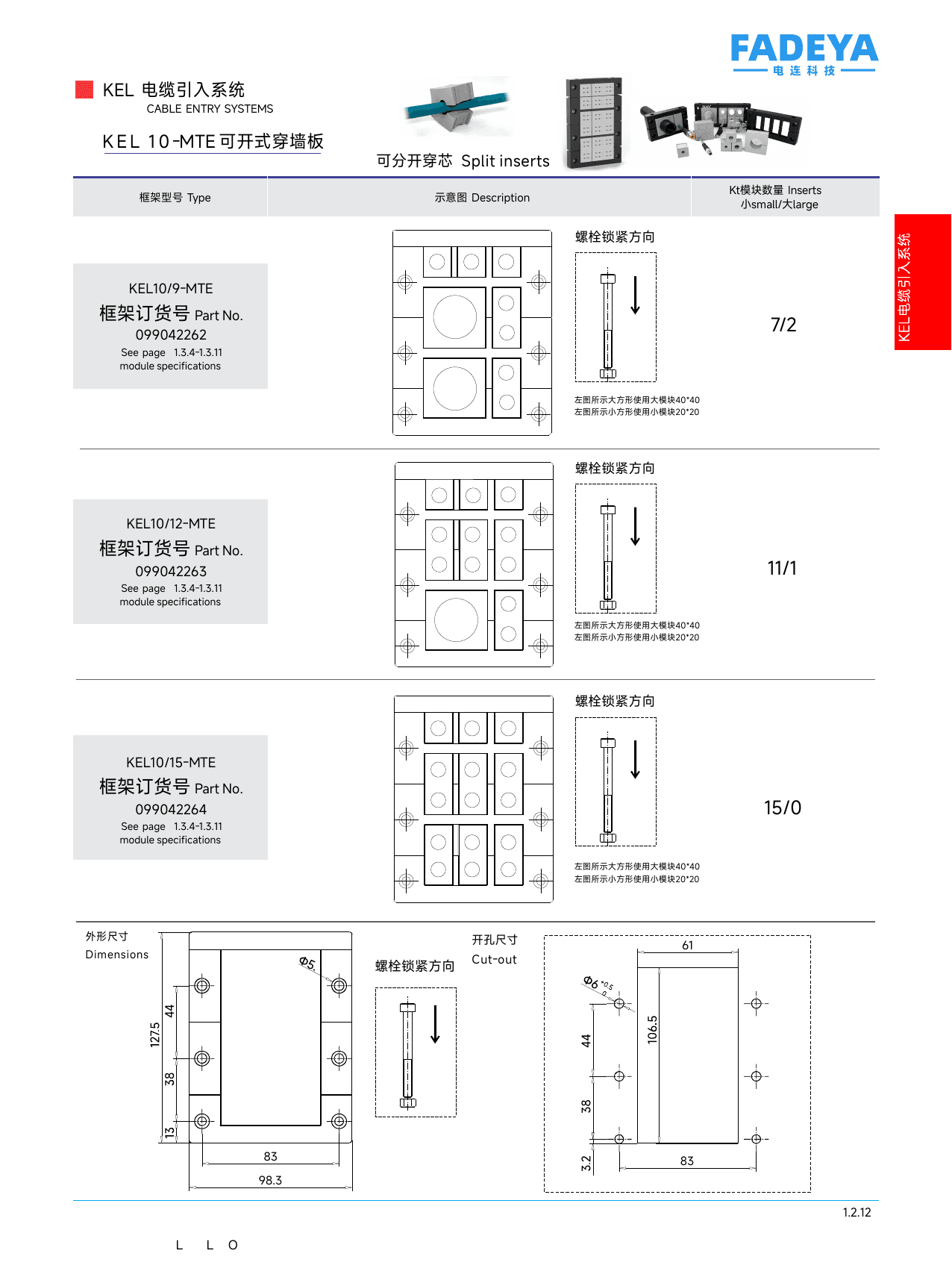

Datasheet
