KEL — Split Cable Entry Frames
KEL 16 Split Entry Frames
KEL-16 cut-out frames (85 × 37 mm) in 8/-, 4/1 and -/2 module layouts, with EMC options.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 16/8 (099042168)
KEL 16/8-EMC (099342168)
KEL 16/5 (099042165)
KEL 16/5-EMC (099342165)
KEL 16/2 (099042162)
KEL 16/2-EMC (099342162)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Cut-Out | 85 × 37 mm |
| EMC Shielding | EMC variants available |

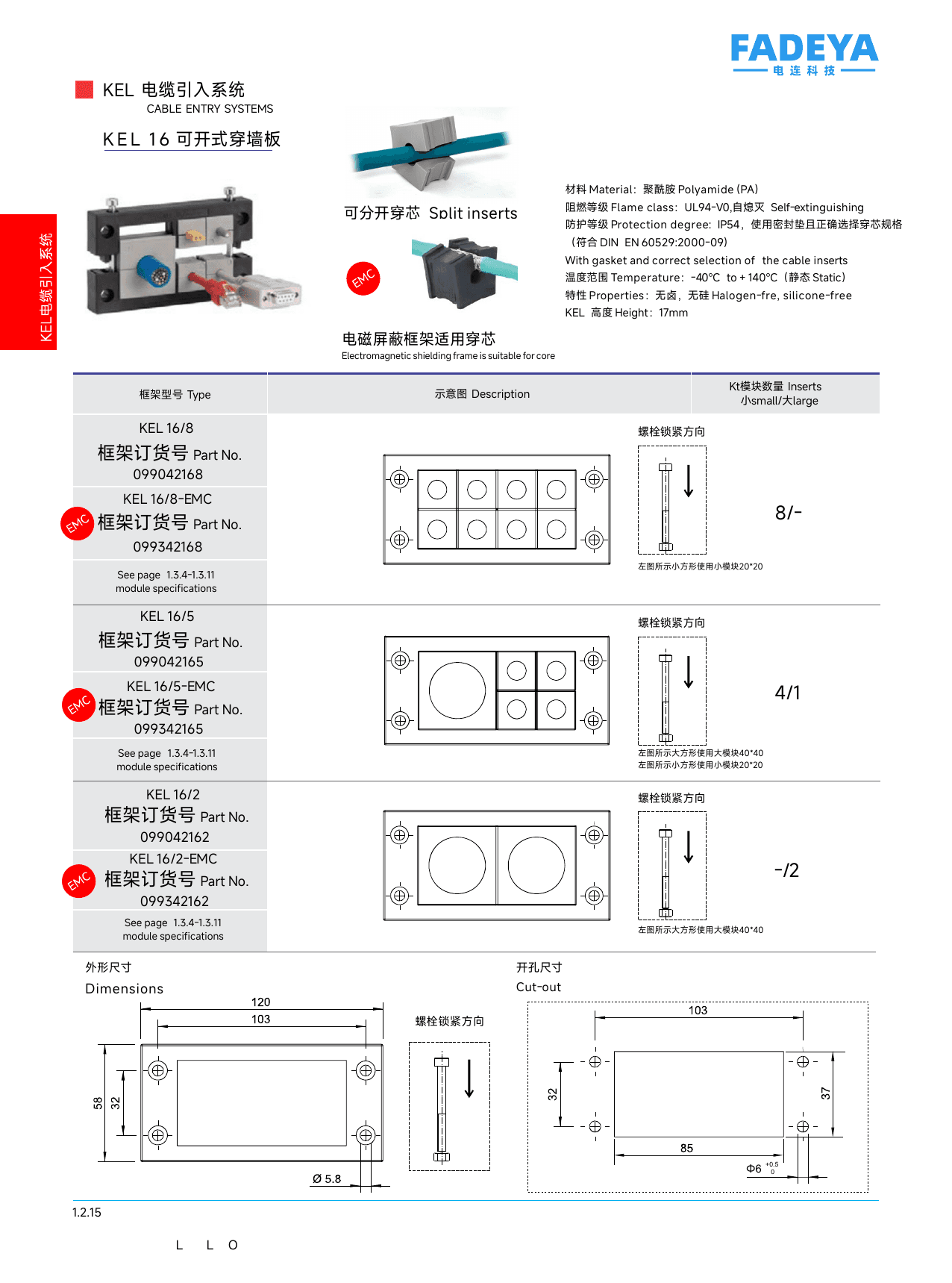

Datasheet
