KEL 24 Split Entry Frames
KEL-24 cut-out frames (37 × 110 mm) in 10/-, 6/1 and 2/2 module layouts, with EMC options.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 24/10 (099042241)
KEL 24/10-EMC (099342241)
KEL 24/7 (099042247)
KEL 24/7-EMC (099342247)
KEL 24/4 (099042244)
KEL 24/4-EMC (099342244)
KEL 24/4-2 (099042244-2)
KEL 24/4-2-EMC (099342244-2)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Height | 17 mm |
| Cut-Out | 37 × 110 mm |
| EMC Shielding | EMC variants available |

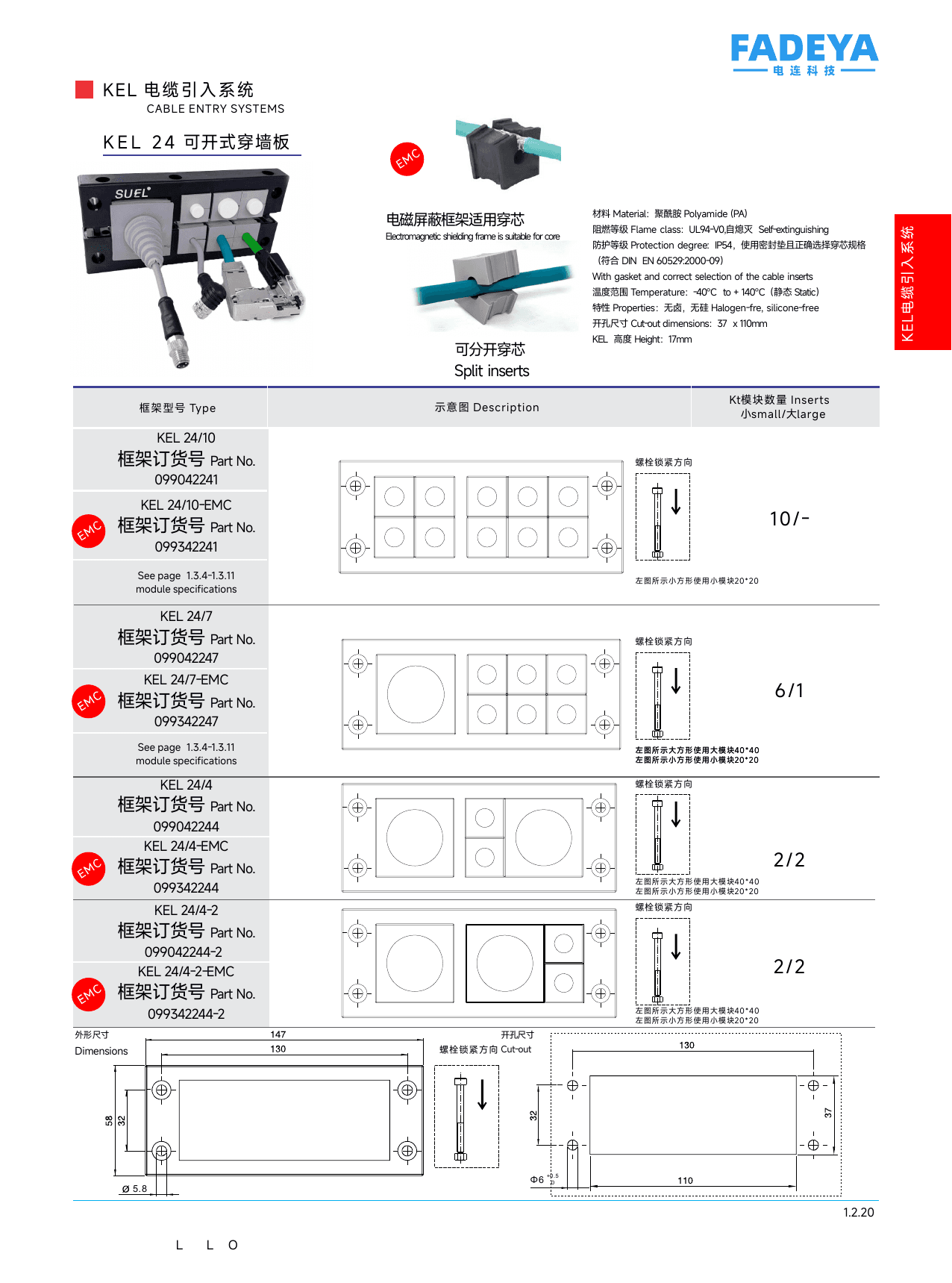

Datasheet
