KTF Standard Cable Modules
Solid cable modules for the KEL-64 frame, suiting cable OD 35–76 mm.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KTF 35C (099043510) — 35-37 mm
KTF 38C (099043810) — 38-40 mm
KTF 41C (099044110) — 41-43 mm
KTF 44C (099044410) — 44-46 mm
KTF 47C (099044710) — 47-49 mm
KTF 50C (099045010) — 50-52 mm
KTF 53C (099045310) — 53-55 mm
KTF 56C (099045610) — 56-58 mm
KTF 59C (099045910) — 59-61 mm
KTF 62C (099046210) — 62-64 mm
KTF 63C (099046311) — 63-65 mm
KTF 65C (099046511) — 65-67 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Suits Frame | KEL-64 |
| Cable O D | 35 to 76 mm |

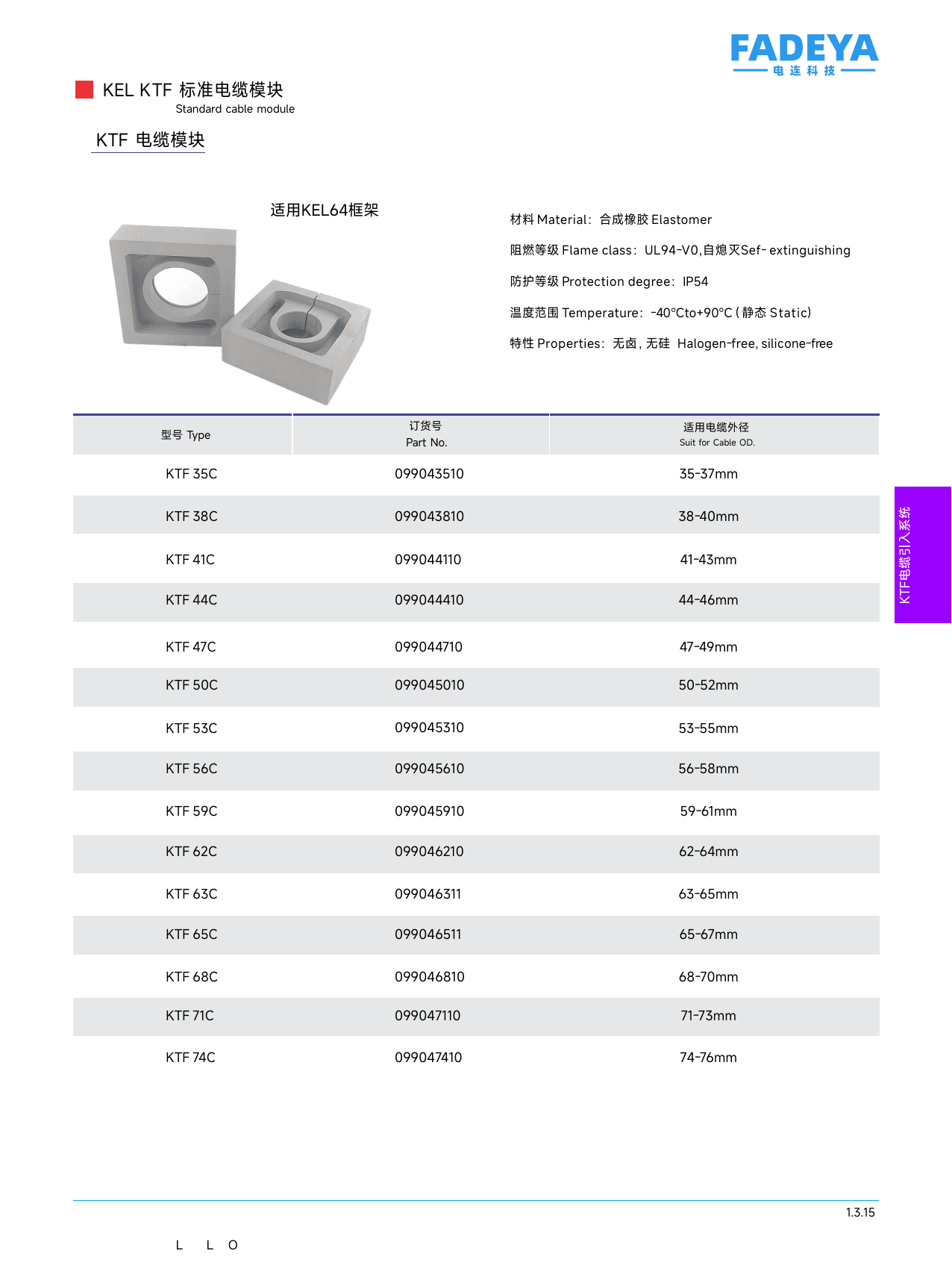

Datasheet
